65FVB/65FVB-X

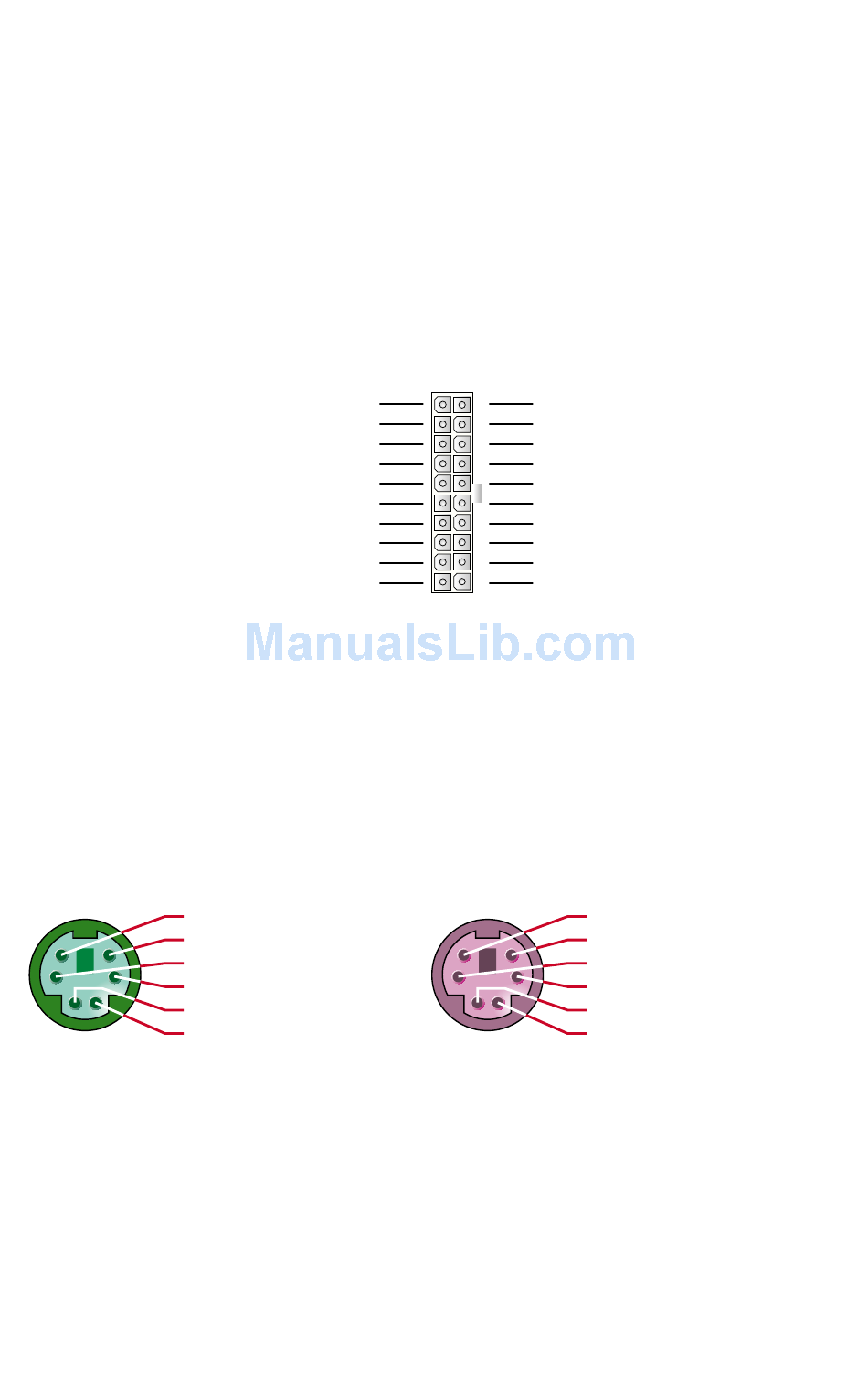

2-5.3 ATX POWER SUPPLY CONNECTOR

• This connector connects to an ATX power supply. The plug from the power
supply only inserts in an orientation because of the different hole sizes.
Find the proper orientation and push down firmly making sure that all pins
are aligned.
• Reminding that your power supply should support at least 10mA on the 5V
standby voltage. It may cause an difficulty to power on the system if the
power supply cant support the load.
• For Wake On LAN function, the power supply should support at least
720mA current.

2-5.4 PS/2 MOUSE AND PS/2 KEYBOARD

PIN 6 : None
PIN 5 : Mouse Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : None
PIN 1 : Mouse Data
PS/2 MOUSE
20
+3.3 Volts
-12.0 Volts
GND
Power Supply On
GND
GND
GND
-5.0 Volts
+5.0 Volts
+5.0 Volts
+3.3 Volts
+3.3 Volts
GND
+5.0 Volts
GND
+5.0 Volts
GND
Power Good
+5.0V Standby
+12.0 Volts
PIN 6 : None
PIN 5 : Keyboard Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : None
PIN 1 : Keyboard Data
PS/2 KEYBOARD
