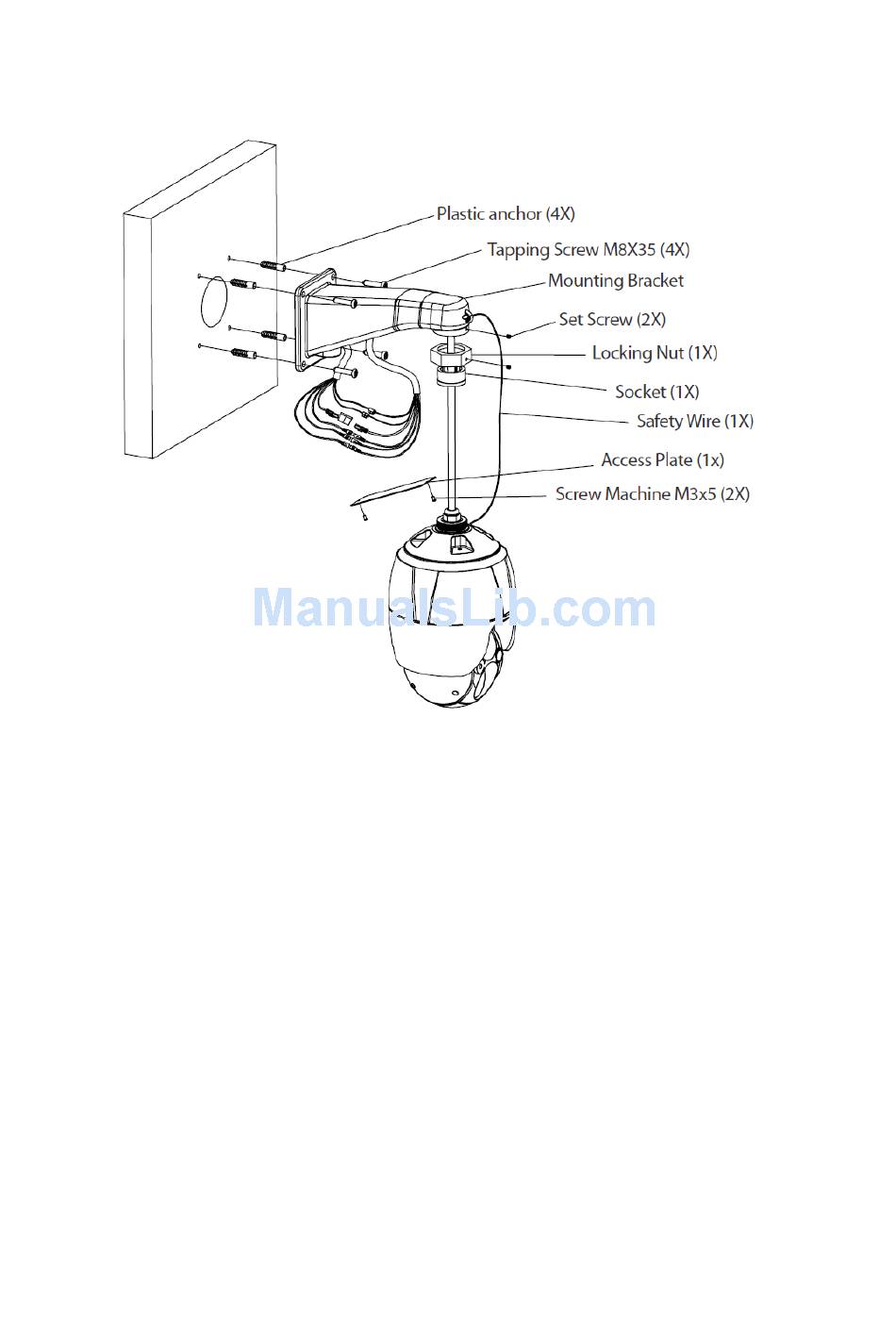

1) Installation - Wall Mount
A wall mounting plate is supplied with the wall mount; this must be attached to a structural object
such as concrete that will support the weight of the mount and dome camera.
1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of
the wall mount.
2. Mark and drill mounting holes in the mounting surface using the wall mount flange as a
template. Open a cable access hole, if needed.
3. Secure the mounting plate to the wall using the hardware provided or appropriate for the
mounting surface.
4. Pull out cables required to connect to the dome camera from the wall or route cables through a
section of 0.75 in. (19 mm) conduit pipe.
5. Remove the cable access plate from the underside of the wall mount bracket.
6. Attach the wall mount bracket using screws; route cables through the access plate hole.
7. Attach the housing's safety wire to the wall mount's latch.
8. Route cables on the dome through the wall mount bracket. Fix the housing to the wall mount
bracket using the locking nut and tighten the housing set screw with the supplied wrench.
9. After connecting cables, reattach the access plate.
