Quick Guide
XX270-21-00

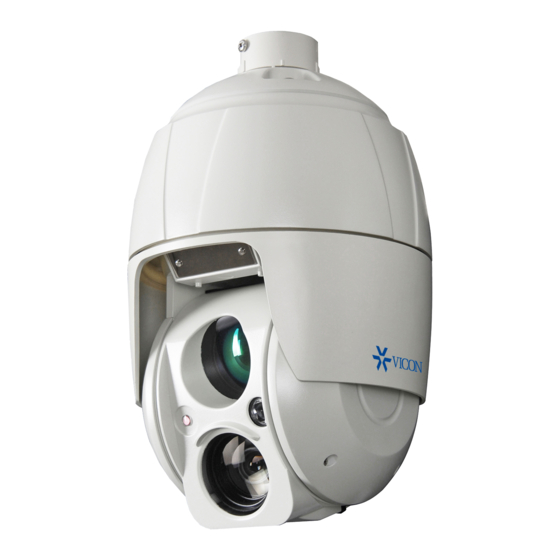

SN680D-A-WNIR Network
PTZ Dome
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8270-21-00
Issued: 415
Product specifications subject to change without notice.
Copyright © 2015 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN680D-A-WNIR and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon SN680D-A-WNIR

Summary of Contents for Vicon SN680D-A-WNIR

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2 1 Introduction The information in this manual provides quick installation and setup procedures for the SN680D-A-WNIR Camera Dome. This unit should only be installed by a qualified techni- cian using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation.

  • Page 3: Key Features

    1.2 Key Features Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drasti- cally reduces bandwidth and storage requirements without compromising image qual- ity. Motion JPEG is also supported for increased flexibility. Dual or Triple Streams The network camera can deliver dual or triple video streams simultaneously at full frame rate in all resolutions up to Full-HD (1920 x 1080p) using Motion H.264 and JPEG.

  • Page 4: Installation

    2 Installation 2.1 Installation An optional mounting kit, either a wall mount (V660-HDB242) or ceiling mount (V660-HDB241), is required to install the dome camera. The wall or ceiling mount must be attached to a structural object such as hard wood, con- crete that will support the weight of the mount and dome camera.
  • Page 5 2.1.1 Installation - Wall Mount A wall mounting plate is supplied with the wall mount; this must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount.
  • Page 6 2.1.2 Installation - Ceiling Mount The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and Dome Camera. 1 Select a suitable mounting location and verify there is sufficient cable to connect with cables from the housing.

  • Page 7: Basic Configuration Of Camera System

    2.2 Basic Configuration of Camera System Connector Wire Color Description DC Jack BLACK 12VDC Ethernet, RJ-45 port compatible with RJ-45 BLACK 10/100Mbps (Option PoE++ functionality) BLACK Audio Input GRAY Audio Output YELLOW Alarm Input 1 WHITE Alarm Input 2 5-pin Cable VIOLET Alarm Input 3 BROWN...

  • Page 8: Micro-Sd Card Insertion

    2.3 Micro-SD Card Insertion User can install and change Micro-SD card as shown in the following picture. 1. Open the Micro-SD card cover. 2. Install or change Micro-SD card. 3. Tightly close the Micro-SD card cover to ensure waterproof.
  • Page 9 2.4 Connections Connecting the Network Connect a standard RJ-45 cable to the network port of the camera. Generally a cross- over cable is used for directly connection to PC, while a direct cable is used for con- nection to a hub. Connecting Alarms –...
  • Page 10 2.4.1 Network Connection & IP assignment The network camera is designed for use on an Ethernet network and requires an IP ad- dress for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server.

  • Page 11: Operation

    3 Operation The network camera can be used with Windows operating system and browsers. The rec- ommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 12: Access From The Internet

    3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network cam- era.

  • Page 13: Live View Page

    3.4 Live View Page The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960), 1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 14 The Full Screen button causes the video image to fill the entire screen area. No other windows will be visible. Press the ’Esc’ button on the computer keyboard to cancel full screen view. The Manual Trigger button activates a pop-up window to manually start or stop the event.
  • Page 15 3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
  • Page 16 (3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed. (4) Speaker Control Bar Use this scale to control the volume of the speakers.

  • Page 17: Network Camera Setup

    3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System.
  • Page 18 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup System Maintenance web page (described in “System Maintenance” of Users Manual) or use the Reset button on the network camera, as described below: Using the Reset button: Follow the instructions below to reset the network camera to the factory default settings using the Reset button.
  • Page 19 System Requirement for Web Browser Operating System: Microsoft Windows OS Series CPU: Intel Core 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance.
