Vicon Cruiser SN673V-B Quick Manual

Outdoor ptz camera dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Guide
ViconNet 8.0 Software

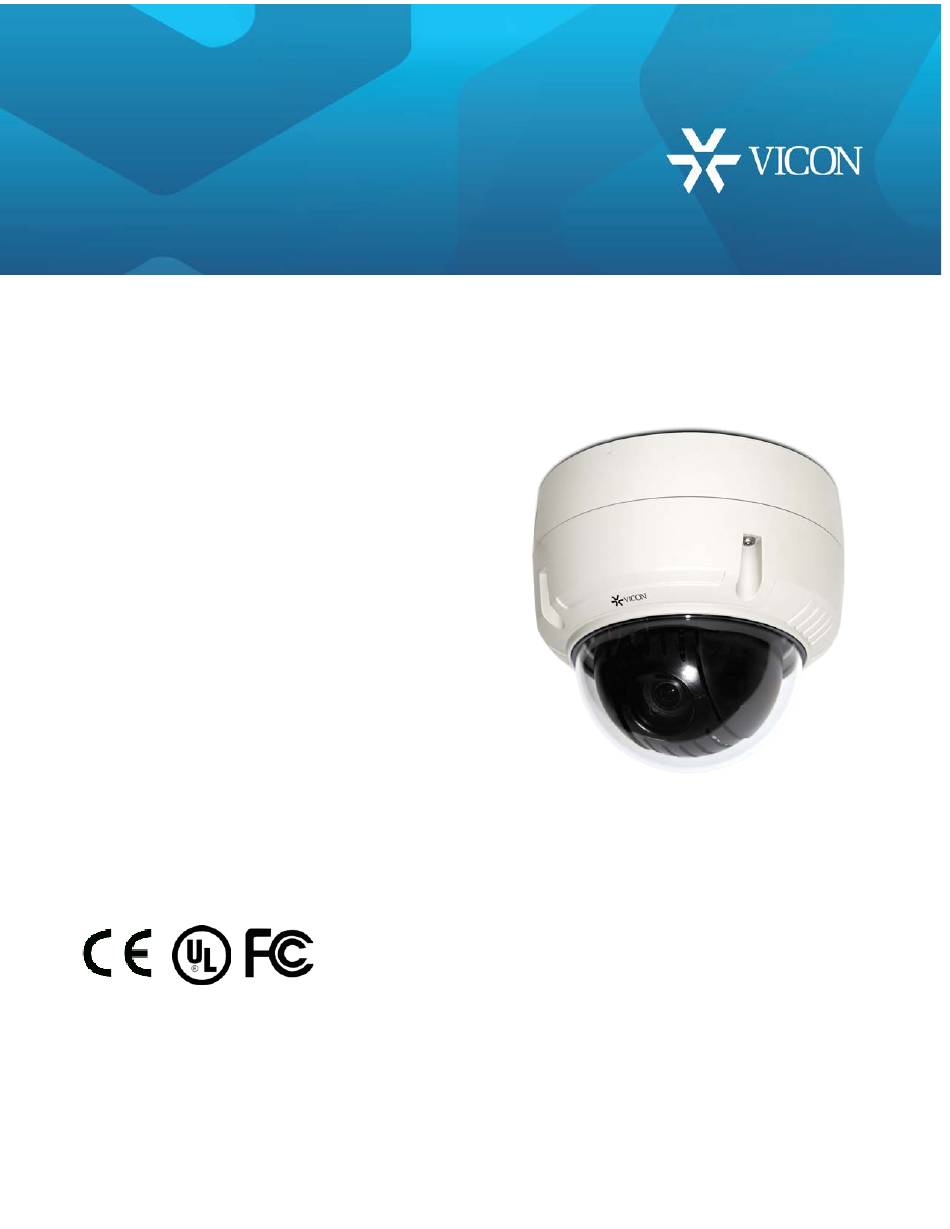

Cruiser™ SN673V-B Outdoor PTZ Camera Dome
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8249-45-00 Product specifications subject to change without
notice. Issued: 7/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
XXYYY-XX-XX
XX249-45-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cruiser SN673V-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Cruiser SN673V-B

Summary of Contents for Vicon Cruiser SN673V-B

  • Page 1 Cruiser™ SN673V-B Outdoor PTZ Camera Dome XX249-45-00 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform Toll Free: 800-645-9116 precisely as described in the documentation.
  • Page 3 1 Introduction The Cruiser SN673V-B network camera is an outdoor camera dome that includes 1080p high resolution camera lens combination that provides video transmission over a network. It is fully featured for security surveillance and remote monitoring needs. The camera provides triple-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth;...

  • Page 4: Key Features

    1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Wide Dynamic Range The network camera provides WDR (Wide Dynamic Range) that improves video exposure quality in scenes with high contrast between bright and dark areas in the video, for example a sunny area and a shady area in the same scene.

  • Page 5: Installation

    2 Installation 2.1 Mounting the Camera The dome camera is for use in surface or pendant mounting applications, and the mounting surface must be capable of supporting loads of up to 10 lb (4.5 kg). (Pendant mounting must use pendent mount accessory.) The dome cameras mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of the dome camera.
  • Page 6 CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting screws “A” on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome’s base and fit the tab of the mounting bracket into the locking slot.
  • Page 7 2.2 Basic Configuration of Camera System Connector Wire Color Description 3-pin terminal block CAMERA POWER WHITE PINK ALARM INPUT 1 GRAY ALARM INPUT 2 GREEN ALARM INPUT 3 6-pin terminal block BLUE ALARM INPUT 4 BROWN YELLOW ALARM OUTPUT Ethernet, RJ-45 port compatible with RJ-45 BLACK 10/100Mbps having PoE functionality...

  • Page 8: Micro-Sd Card Insertion

    2.3 Micro-SD Card Insertion User can install and change Micro-SD card as shown in the following picture. 1. Open the Micro-SD card cover. 2. Install or change Micro-SD card. 3. Close the Micro-SD card cover tightly to ensure waterproofing.
  • Page 9 2.4 Connections • Connecting the Network Connect a standard RJ-45 cable to the network port of the camera. Generally a crossover cable is used for directly connection to PC, while a direct cable is used for connection to a hub. •...

  • Page 10: Network Connection & Ip Assignment

    2.4.1 Network Connection & IP Assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server.

  • Page 11: Operation

    3 Operation The network camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 12: Access From The Internet

    3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 13: Live View Page

    3.4 Live View Page The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960), 1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 14 2) Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the play and stop. The Play button connects to the network camera or starts playing a video stream. The Pause button pauses the video stream being played.
  • Page 15 3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
  • Page 16 3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed. 4) Speaker Control Bar Use this scale to control the volume of the speakers.

  • Page 17: Network Camera Setup

    3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System. You can configure the network camera by clicking Setup either in the first connection page or the top second-right button of the Live View page.

  • Page 18: Resetting To The Factory Default Settings

    Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset button on the network camera, as described below: •...

  • Page 19: System Requirement For Web Browser

    System Requirement for Web Browser • Operating System: Microsoft Windows OS Series • CPU: Intel Core 2 Duo 2GHz or higher, 1GB RAM or more, 10GB free disk or higher • VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance.

  • Page 20: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 21: Vicon Standard Equipment Warranty

    “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 22 (f) to consumables (such as storage media or batteries) (g) to products that have been purchased ”as is” and Vicon the seller or the liquidator expressly disclaim their warranty obligation pertaining to the...
  • Page 24 50304249A...
