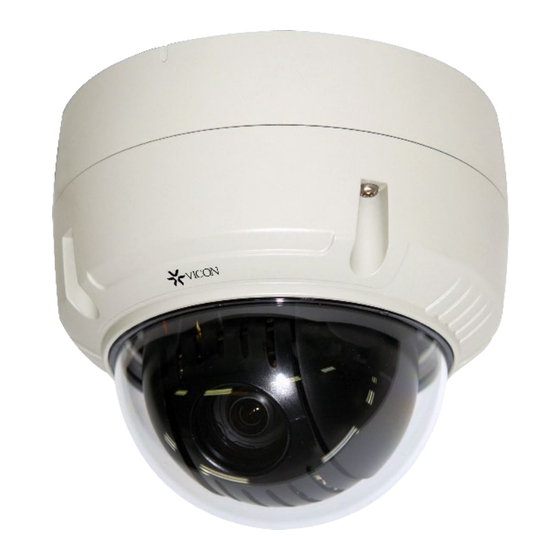

Outdoor ptz network camera dome
Hide thumbs Also See for Cruiser SN663V:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual
Installation and Operation Guide
XX249-30-00
Cruiser™ SN663V Outdoor PTZ
Network Camera Dome
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8249-30-00
Issued: 1113
Product specifications subject to change without notice.
Copyright © 2013 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cruiser SN663V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Cruiser SN663V

Summary of Contents for Vicon Cruiser SN663V

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. Description ........................7   1.1 Components ......................... 7   1.2 Key Features ......................... 8   2. Installation ........................9   2.1 Installation Details ........................ 9   2.2 Basic Configuration of Camera System ................11   2.3 Connections ........................12  ...
  • Page 6 2) Tour ..........................46   3) Motor Setup ........................47   4) RS485 ..........................48   5) View Angle ........................49   6) System Menu ......................... 50   7) Privacy Zone ........................51   3.5.7 System .......................... 52   1) Information ........................52  ...

  • Page 7: Description

    1. Description The SN663V network camera is an outdoor PTZ camera dome that includes a 1080p high resolution camera lens combination that provides video transmission over a network. It is fully featured for security surveillance and remote monitoring needs. The network camera supports H.264 compression technology as well as M-JPEG compression. By using its dedicated program, multiple users are able to have access to the network camera simultaneously or a single user can monitor various network cameras at the same time.

  • Page 8: Key Features

    1.2 Key Features • Brilliant Video Quality The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Triple Streams The network camera can deliver triple video streams simultaneously at full frame rate in all resolutions up to 1920 x 1080 using Motion JPEG (M-JPEG) and H.264.

  • Page 9: Installation

    2. Installation 2.1 Installation Details The dome camera is for use in surface or pendant mounting applications; the mounting location and material must be capable of supporting loads of up to 4.4 lb (2.0 kg). (Pendent mounting must use pendent mount accessory.) The dome camera’s mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of the dome camera.
  • Page 10 CAUTION: Before installing the mounting bracket to surface, pre-adjust the four mounting screws "A" on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome's base and fit the tab of the mounting bracket into the locking slot. Screws "A" should not be too tight or too loose when the dome is in the locked position.

  • Page 11: Basic Configuration Of Camera System

    2.2 Basic Configuration of Camera System Connector Wire Color Description 24 VAC or 12 VDC+ 3-pin terminal block WHITE 24 VAC or 12 VDC- PINK GRAY ALARM INPUT BROWN 6-pin terminal block YELLOW ALARM OUTPUT GREEN RS485+ BLUE RS485- Ethernet, RJ-45 port compatible with RJ-45 BLACK 10/100Mbps having PoE functionality.

  • Page 12: Connections

    2.3 Connections • Connecting the Network Connect a standard RJ-45 cable to the network port of the camera. Generally a cross-over cable is used for direct connection to a PC, while a direct cable is used for connection to a hub. •...

  • Page 13: Network Connection & Ip Assignment

    2.4 Network Connection & IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server.

  • Page 14: Operation

    3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google® Chrome® with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 15: Access From The Internet

    3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera.
  • Page 16 1) Gene eral contr Live View Page Setup Page Help Page he video dr op-down lis st allows the e selection o of a custom mized or pre programmed d video stre am on the L Live View p age. Stream m profiles a onfigured u under Setup...

  • Page 17: Network Camera Setup

    3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product. Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic Configuration, Live View, Video & Image, Audio, Event, Dome Configuration, and System.

  • Page 18: Users

    1) Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority...

  • Page 19: Network

    2) Network The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually.

  • Page 20: Video & Image

    3) Video & Image • Sensor Setting: - Capture mode: Select video frame rate at either 60/50fps or 30/25fps of resolution 1920x1080. • Stream 1 Setting: - Codec: The codec settings are separated into H.264 profiles. H.264 is also known as MPEG-4 Part 10.
  • Page 21 - Bit rate control: The bit rate can be set as Variable Bit Rate (VBR) or Constant Bit Rate (CBR). VBR adjusts the bit rate according to the image complexity, using up bandwidth for increased activity in the image, and less for lower activity in the monitored area. CBR allows the setting of a fixed target bit rate that consumes a predictable amount of bandwidth.

  • Page 22: Audio

    4) Audio The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as full duplex and simplex.

  • Page 23: Date & Time

    5) Date & Time • Current Server Time: This displays the current date and time (24h clock). The time can be displayed in 12h clock format (see below). • New Server Time: Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight saving time, select “Automatically adjusts for daylight saving time changes”.

  • Page 24: Live View, Source

    3.5.2 Live View, Source • Video Input Mode: - Video Mode: Select the Video Mode from the drop-down list, NTSC or PAL. This defines the video output port for a service monitor. NOTE: This function may not be applicable, depending on the model. When satisfied with the settings, click the Save button, or click the Reset button to revert to previously saved settings.

  • Page 25: Image

    2) Image • Image Appearance: - Brightness: The image brightness can be adjusted in the range 1 ~ 12, where a higher value produces a brighter image. - Sharpness: Controls the amount of sharpening applied to the image. A sharper image might increase image noise especially in low light conditions.

  • Page 26: Auto Exposure

    3) Auto Exposure • Auto Exposure Setting: Exposure is the amount of light detected by the camera sensor. A scene with correct exposure settings has adequate detail and contrast between white and dark values. An image with too little or too much exposure may lose detail in the scene. The camera features Auto and Manual Exposure Settings.
  • Page 27 • WDR Control: Wide Dynamic Range (WDR) improves video exposure quality in scenes with high contrast between bright and dark areas, for example, if a shady area and a bright light area are in the same scene. - Mode: Select On or Off. •...

  • Page 28: Day & Night

    4) Day & Night • Day & Night Control: Select the day & night mode from among three modes. - Mode: * Automatic: Normally displays color image and switches automatically to black & white image after the ambient light level reaches a pre-defined threshold. * Day: Always displays color image.

  • Page 29: Auto Focus

    5) Auto Focus • Auto Focus Setting: Continuously adjusts the lens automatically to the correct focus for the sharpest picture. - Mode: * Auto: Auto Focus is always active. * Manual: Auto Focus is inactive. - Focus limit: The auto focus operates from this approximate distance value. - Speed: The speed can be adjusted in the range 1 ~ 8.

  • Page 30: Dis

    6) DIS • Digital Image Stabilization Setting: Check the box to Enable DIS. Select a DIS level from 0 to 9; the larger the number, the more sensitive to motion. There are 4 types of motion that can be suppressed: Local motion, Illumination, Plain background, and Slow motion; each of these can be turned On or Off individually.

  • Page 31: Webcasting

    7) Webcasting The network camera can stream live video to a website. Copy the HTML code generated on the screen and paste it in page code of the website you want to display live video. NOTE: To use webcasting service, the Enable Anonymous viewer login option must be checked.

  • Page 32: Audio

    3.5.4 Audio Refer to “3.5.1 Basic Configuration > Audio” for more details. 3.5.5 Event 1) Event In On Boot This is used to trigger the event every time the network camera is started. Select “Enable on boot” to activate the motion event. Enter the Dwell time the event lasts from the point of detection, 1-180 seconds.
  • Page 33 Alarm In This page allows you to configure the alarm input supported by the camera. The Port can be given as Normally Open or Normally Close state, and the Normal state can be configured. An input will be inactive as long as its Normal state is the same as its Current state. The 2 options for Normal state are NO (Normally Open) and NC (Normally Close).
  • Page 34 Manual Trigger This option makes use of the Manual Trigger button provided on the Live View page, which is used to start or stop the event type manually. Alternatively, the event can be triggered via the product's API (Application Programming Interface). Check the Enable manual trigger box to activate the manual trigger (up to 4 manual triggers).
  • Page 35 Motion n is detecte ed in defined d Motion w windows, wh hich are plac ced in the v video image to target specif fic areas. M ovement in the areas o outside the motion win dows will be e ignored. I f part of a motion n window ne...
  • Page 36 Network Loss This is used to trigger the event every time the network connection fails. Select “Enable network loss” to activate the Network Loss event. Enter a dwell time, 1-180 second, for how long the event will last from the point of detection. Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 37: Event Out

    2) Event Out SMTP (E-Mail) The network camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP (E-Mail) Setting: Select “Enable SMTP” to activate the SMTP operation. - Sender: Enter the email address to be used as the sender for all messages sent by the network camera.
  • Page 38 • SMTP (E-Mail) Test: - Receiver: Enter an email address and click the Test button to test that the mail servers are functioning and that the email address is valid. Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.
  • Page 39 - Post-event: This function is the counterpart to the pre-trigger buffer described above and contains images from the time immediately after the trigger. Configure as for pre- event. - Prefix file name: This name will be used for all the image files saved. If suffixes are also used, the file name will take the form <prefix>, <suffix>, <extension>.
  • Page 40 Alarm Out When the network camera detects an event, it can control external equipment to its alarm output port. • Enable alarm out: Click the “Enable alarm out” checkbox to enable the Alarm Out port. - Type: Select a Type. The default setting is NO. * NO: Normally Open * NC: Normally Close Click the Save button to save the settings, or click the Reset button to clear all of the...
  • Page 41 Audio Alert When the network camera detects an event, it can output predefined audio data to an external speaker. Check the “Enable audio alert” box to enable the service. • Audio Alert Setting: To use the Audio Alert with the network camera, an audio data file made by the user must be uploaded from your PC.
  • Page 42 PTZ Preset When the camera detects an event, you can move the camera to a predefined preset position. Check the “Enable PTZ preset” box to enable the service and return to the Home position once the event has ended. Define the Home position in the field provided. Event Notification When the network camera detects an event, it can send a message to a server to receive notification that this event has occurred.

  • Page 43: Event Map

    3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the network camera; up to max. 15 events can be registered. Click the Add button to make a new event map: a popup window displays as below. To change an existing event, select that event and click the Modify button;...
  • Page 44 - HTTP Server: Send notification messages to an HTTP server that listens for these. The destination server must first be configured on the Event In page. Enter a message you want to send. - Alarm out: Check box to enable the alarm out. - Audio Alert: Select an Audio Alert file as the output when audio alert event triggered.

  • Page 45: Dome Configuration

    3.5.6 Dome Configuration 1) Preset If specific places are viewed routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom and focus settings. Once programmed, clicking the Preset number or clicking the Go button in the PTZ Control Panel calls up that Preset automatically.

  • Page 46: Tour

    2) Tour There are 8 programmable Tours. Each Tour consists of up to 100 Presets. • Tour Setting: - Tour Number: The Tour number can be selected in the range 1 - 8. - Title: Up to 12 characters (alphanumeric characters and space). - Repeat: Select number of repetition from Continuous to 90.

  • Page 47: Motor Setup

    - Set Position: Click the Set Position button, then show the stored Presets or Home on drop-down list. Follow steps below to program the Tours: 1. Click the desired Tour position on Tour Position Setup list, and click Set Position button; show the saved Presets or Home on drop-down list.

  • Page 48: Rs485

    4) RS485 • RS485 Setting: - DOME ID: Enter identification number for external PTZ device. The DOME ID can be adjusted in the range 1 ~ 3999. - Protocol: Select PTZ protocol to communicate with external PTZ device. - Baud rate: Select one of the Baud rates. - Parity: Select the Parity bit.

  • Page 49: View Angle

    5) View Angle • View Angle Setting: - Tilt angle limit: This option is designed to limit the view angle if there is some obstruction when zooming out on specific areas of the tilt angle. NOTE: Focus issues may occur if the tilt angle limit is set below 10 degree. - Flip: * Off: The dome camera moves up to 90°...

  • Page 50: System Menu

    6) System Menu • Dome Information: The system information provides essential information about the dome if service is required. This information cannot be modified. • System Menu setting: - Dome Answer: Select On or Off for acknowledge command from the dome. This option is helpful to escape the collision of the command using some DVRs.

  • Page 51: Privacy Zone

    7) Privacy Zone Using privacy zones (masks), you can hide up to 8 unwanted scenes in a camera. The color of privacy zones is gray. • Privacy Zone Setting: Follow the steps below to configure the privacy zones; 1. After aiming the camera (view direction and lens control) using the Arrow and Zoom button in PTZ Control Panel, click a Set in the Set column of any inactive row to create privacy zone.

  • Page 52: System

    3.5.7 System 1) Information System information can be entered on this page. This page is very useful when you require device information after installation. • Device Name Configuration: Enter the device name. • Location Configuration: Enter the location information. You can enter up to four locations. Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 53: Security

    2) Security Users User access control is enabled by default when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
  • Page 54 HTTPS For greater security, the network camera can be configured to use HTTPS [Hypertext Transfer Protocol over SSL (Secure Socket Layer)], so that all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. • HTTPS Connection Policy: Choose the form of connection you wish to use from the drop-down list for the administrator, Operator and Viewer to enable HTTPS connection (set to HTTP by default).
  • Page 55 IP Filtering Checking the “Enable IP address filtering” box enables the IP address filtering function. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses. All other IP addresses not in this list will then be allowed or denied access accordingly, that is, if the addresses in the list are allowed, then all others are denied access, and vice versa.

  • Page 56: Date & Time

    3) Date & Time • Current Server Time: This displays the current date and time (24h clock). The time can be displayed in 12h clock format (see below). • New Server Time: Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight saving time, select “Automatically adjusts for daylight saving time changes”.

  • Page 57: Network

    4) Network Settings regarding the network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, Zeroconfig and Bonjour. Basic • IP Address Configuration: - Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network.
  • Page 58 - Obtain DNS Server via DHCP: Automatically use the DNS server settings provided by the DHCP server. Click the View button to see the current settings. - Use the following DNS server address to enter the desired DNS server by specifying the following: * Domain name: Enter the domain(s) to search for the host name used by the network camera.
  • Page 59 DDNS • Internet DDNS (Dynamic Domain Name Service): When using the high-speed Internet with the telephone or cable network, users can operate the network camera even on the floating IP environment in which IPs are changed at every access. NOTE: At least a primary DNS server must be configured in DNS configuration settings to use Dynamic DNS.
  • Page 60 Users can configure settings for sending and receiving audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams.
  • Page 61 UPnP The network camera includes support for UPnP™. UPnP is enabled by default, and the network camera is then automatically detected by operating systems and clients that support this protocol. Enter a name in the Friendly name field. NOTE: UPnP must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
  • Page 62 Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: - The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.
  • Page 63 A broadband router allows devices on a private network (LAN) to share a single connection to the Internet. This is done by forwarding network traffic from the private network to the “outside,” that is, the Internet. Security on the private network (LAN) is increased since most broadband routers are pre-configured to stop attempts to access the private network (LAN) from the public network/Internet.
  • Page 64 * Automatic setting: When selected, the network camera automatically searches for NAT routers on your network. * Manual setting: Select this option to manually select a NAT router and enter the external port number for the router in the field provided. NOTES: 1.
  • Page 65 Zeroconfig Zeroconfig allows the network camera to create and assign the IP address for network cameras and connect to a network automatically. Zero configuration networking (zeroconf) is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers.
  • Page 66 Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Click the checkbox to enable Bonjour. Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 67: Language

    5) Language Select the desired language, English, Russian or Korean. Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 68: Maintenance

    6) Maintenance • Maintenance: - Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. - Reset: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address...

  • Page 69: Support

    7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. • Logs: The network camera supports system and event log information. Click the System Log button to get the system log data or the Event Log button to get information on events. •...
  • Page 70 - Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. The pop-up window below will display. - Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware like video.

  • Page 71: Help

    3.6 Help The Help information window is provided as a popup window so that users can open and read it without needing to log-in. It offers a description of the setting and Help page, so that users can manipulate the network camera without having to reference the manual. 3.7 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup >...

  • Page 72: Appendix

    4. Appendix 4.1 Troubleshooting When troubleshooting if problems occur, verify the installation of the network camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be...

  • Page 73: Alarm Connection

    4.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. 4.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. 1.

  • Page 74: Product Specification

    4.4 Product Specification SN663V IP Camera Dome MODEL IMAGE Image Sensor 1/2.8” SONY Exmor CMOS 12x A/F Optical Zoom, Optical/Digital Zoom 16x Digital Zoom Scanning Mode Progressive Scan Min. Illumination Color: 0.5 Lux, B/W: 0.1 Lux AE/AWB D&N True D&N (IR-cut filter) VIDEO Progressive Encoding H.264 (BP/MP/HP), MJPEG...
  • Page 75 NETWORK Max. Connections IPv4/IPv6, Manual, TCP/IP, UDP, HTTP, RTP, RTSP, Protocols NTP, DHCP, SMTP, DDNS, HTTPS, RTCP, FTP, Bonjour NAS Support JPEG push DDNS Remote Client Web browser, SmartManager SmartManager Installation Tool MISCELLANEOUS Weatherproof IP66 802.3af Class 3 PoE, 12 VDC, 24 VAC ± 10% Power 250mA (12W) @ PoE, Power Consumption...
  • Page 76 Figure – Dimension...

  • Page 77: System Requirement For Web Browser

    4.5 System Requirement for Web Browser • Operating System: Microsoft® Windows® OS Series • CPU: Intel® Core™ 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher • VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) 4.6 General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance.

  • Page 78: Shipping Instructions

    Vicon Industries Inc. 131 Heartland Boulevard Edgewood, NY 11717 Phone: 631-952-2288; Toll-Free: 1-800-645-9116; Fax: 631-951-2288 For service or returns from countries in Europe, contact: Vicon Industries (U.K.) Ltd Brunel Way Fareham, PO15 5TX United Kingdom Phone: +44 (0)1489/566300; Fax: +44 (0)1489/566322...

  • Page 79: Vicon Standard Equipment Warranty

    Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: Monitors, all models: One year from date of original retail purchase.
