Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-410 Video-Audio to HDMI Scaler... -
Page 2: Table Of Contents
Figure 1: VP-410 Video-Audio to HDMI Scaler Front and Rear Panels Figure 2: Connecting the VP-410 Video-Audio to HDMI Scaler Tables Table 1: VP-410 Video-Audio to HDMI Scaler Front and Rear Panel Features Table 2: The Display Menu and Parameters Table 3: The OSD Settings Menu and Parameters... -
Page 3: Introduction
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function. Congratulations on purchasing your Kramer VP-410 Video-Audio to HDMI Scaler. This product is ideal for: •... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This Quick Start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The Kramer VP-410 Video-Audio to HDMI Scaler is a high quality, composite video and audio to HDMI scaler. It scales the video, embeds the audio, and transmits the signal on the HDMI output. The VP-410 Video-Audio to HDMI Scaler features: •... - Page 6 4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to support Dolby 5.1 audio and high-resolution audio formats 5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost- effective manner KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 7: Defining The Vp-410 Video-Audio To Hdmi Scaler

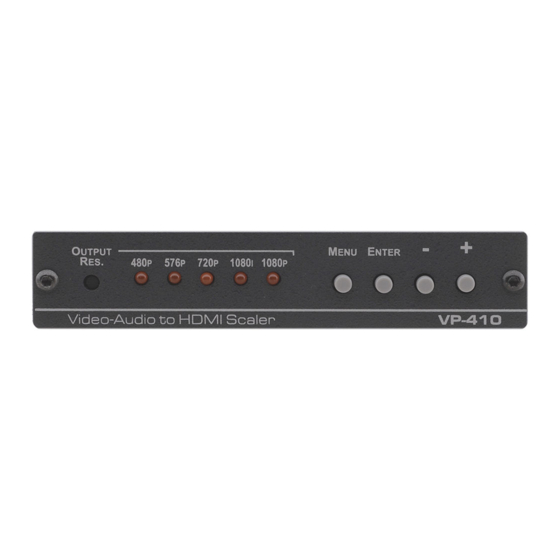

VP-410 Video-Audio to HDMI Scaler. Figure 1 Table 1 Figure 1: VP-410 Video-Audio to HDMI Scaler Front and Rear Panels Table 1: VP-410 Video-Audio to HDMI Scaler Front and Rear Panel Features Feature Function OUTPUT RES. Button Press to select the resolution: 480p, 576p, 720p, 1080i, or 1080p... -
Page 8: Connecting The Vp-410 Video-Audio To Hdmi Scaler
(not shown in Figure Figure 2: Connecting the VP-410 Video-Audio to HDMI Scaler Controlling the VP-410 Video-Audio to HDMI Scaler The VP-410 is controlled directly via the front panel buttons (see Section 6.1 Section 6.2). -
Page 9: Controlling The Output Resolution
FACTORY DEFAULT Reverts settings to factory defaults 1 When on, the VP-410 disables its output syncs after a few minutes when no input source is detected. This feature is useful for applications where the projector should automatically shut down when no source is present. -
Page 10: Technical Specifications
Exits the OSD Settings menu to the Display Menu (see Table Technical Specifications Table 4: Technical Specifications of the VP-410 Video-Audio to HDMI Scaler INPUTS: 1 composite video (1Vpp/75 Ω) on an RCA connector 1 unbalanced audio (1Vpp/47kΩ) stereo on RCA connectors OUTPUT:... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
