FingerTec AC900 Installation Manual

We Make Things Easy
Installation Guide
WelcomeCheck-In
Fri
01-01 09:00

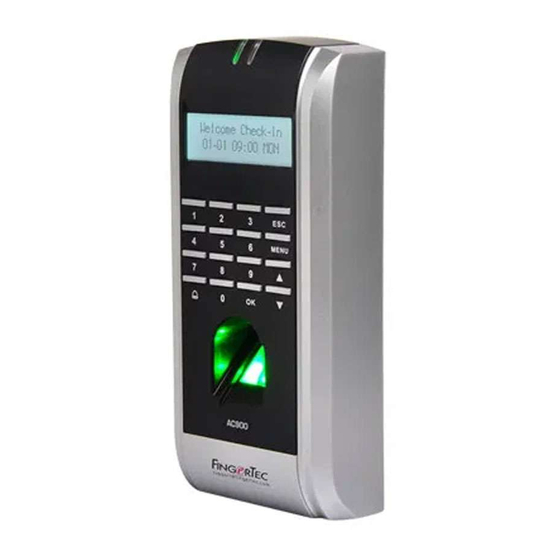

AC900
Fingerprint Door Access &
Time Attendance System
w w w . f i n g e r t e c . c o m

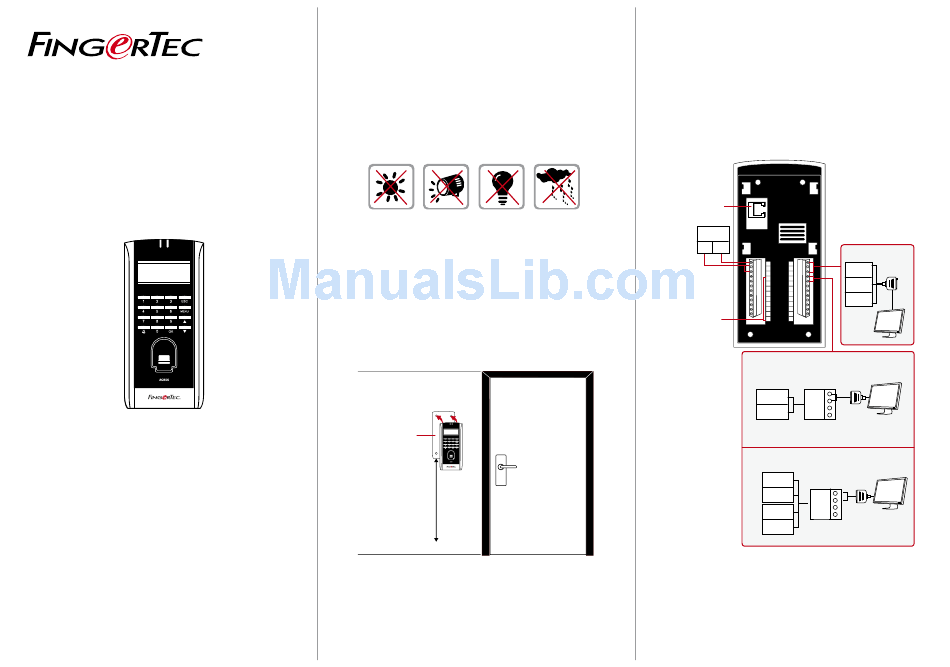

Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting of Terminals on A Wall
Back Plate
4 feet / 1.2 meter
(recommended)
•
After determining the height of the terminal from the ground
level and have made the relevant marks on the wall, based on
the measurements in Appendix II, drill the screws into the wall to
hang the terminals.
Step 3
Wiring for Power Supply
The power input port for AC900 is located at the rear of the ter-
minal. There is no adapter plug supplied with AC900, instead you
need to source for power cable (red and black cables) to connect
AC900 and AdapTec.
TCP/IP Port (LAN)
Power
Supply
+12V 0
GND GND
PWR RX
COM TX
NO GND
NC 485A
GND 485B
AL+ GND
AL- D0
BUT D1
GND +5V
B+ SEN
Door Access
B- GND
Cortrol Port
refer to
Appendix II
1. RS485 Single Connection
485A RX+
485B RX-
RS232/ RS485
Data Converter
2. RS485 Network Connection
485A
485B
RX+
485A RX-
RS232/ RS485
485B
Data Converter
RS232 Cable
GND
RX
TX
