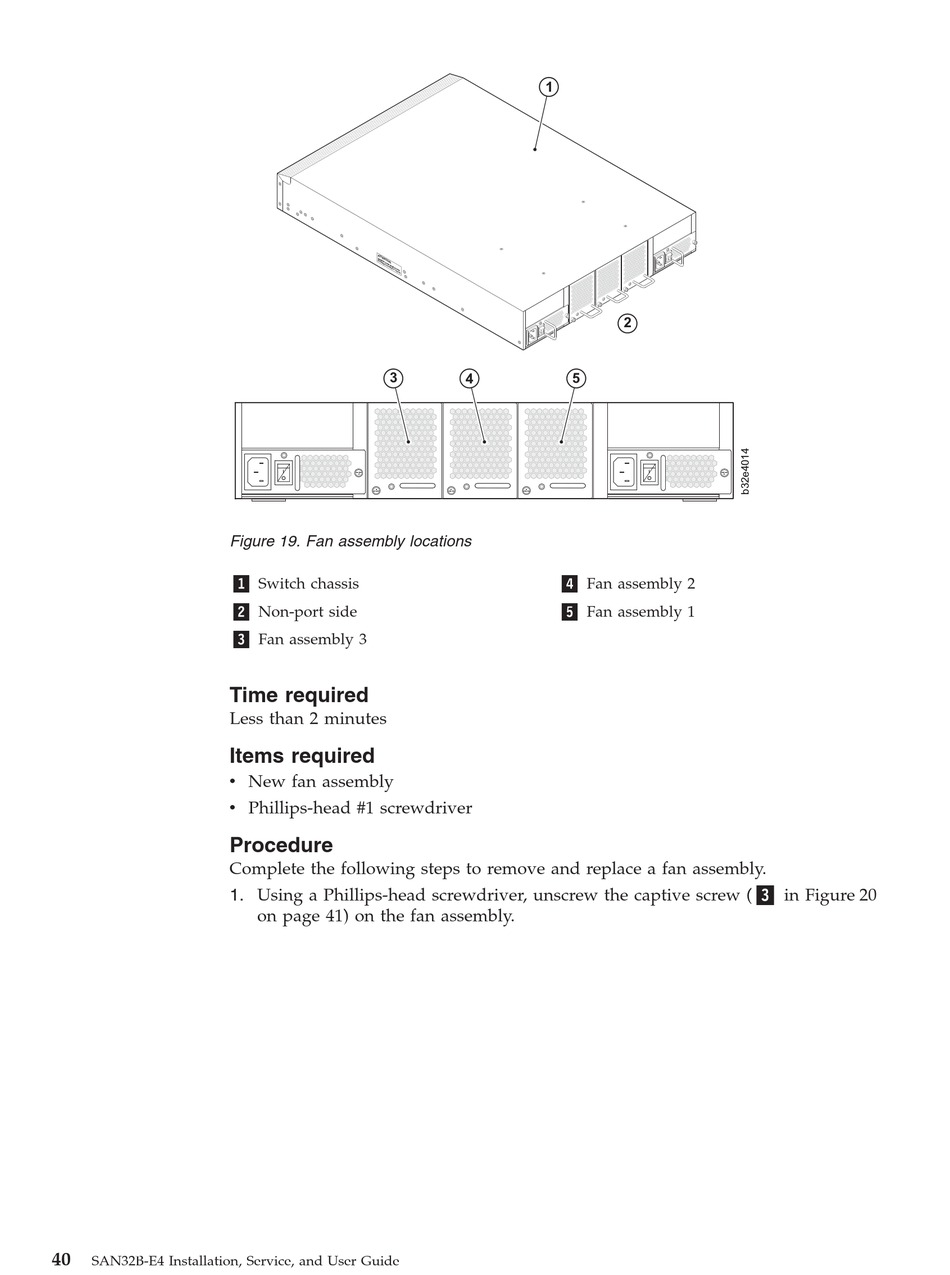

Figure 19. Fan assembly locations
Time required
Less than 2 minutes
Items required
v New fan assembly
v Phillips-head #1 screwdriver
Procedure
Complete the following steps to remove and replace a fan assembly.
1. Using a Phillips-head screwdriver, unscrew the captive screw ( 3 in Figure 20
40
SAN32B-E4 Installation, Service, and User Guide
A T
T E
M a
N T
xi m
m o
IO
u n
u m
N :
tin
sc
g to
re w
b e
le n
5 m
g th
m
fo r
o r
ra ck
1 3
/6 4
in .
3
1 Switch chassis
2 Non-port side
3 Fan assembly 3
on page 41) on the fan assembly.
1
2
4
5
4 Fan assembly 2
5 Fan assembly 1
Scale:
5/16" = 1"
