Rack-Mounting the
Router

2 Installation

3Com B68 cabinets are available for mounting the 3Com Router 6000
Family. For more information on the cabinets and their installation refer to
the chapter "Installing the B68 Cabinet".
The 3Com Router 6000 is designed to fit 19-inch standard racks. The
following table describes their dimensions:
Table 7 Dimensions of the 3Com 6000 Routers
Model
Router 6040 (H x W x D)
Router 6080 (H x W x D)

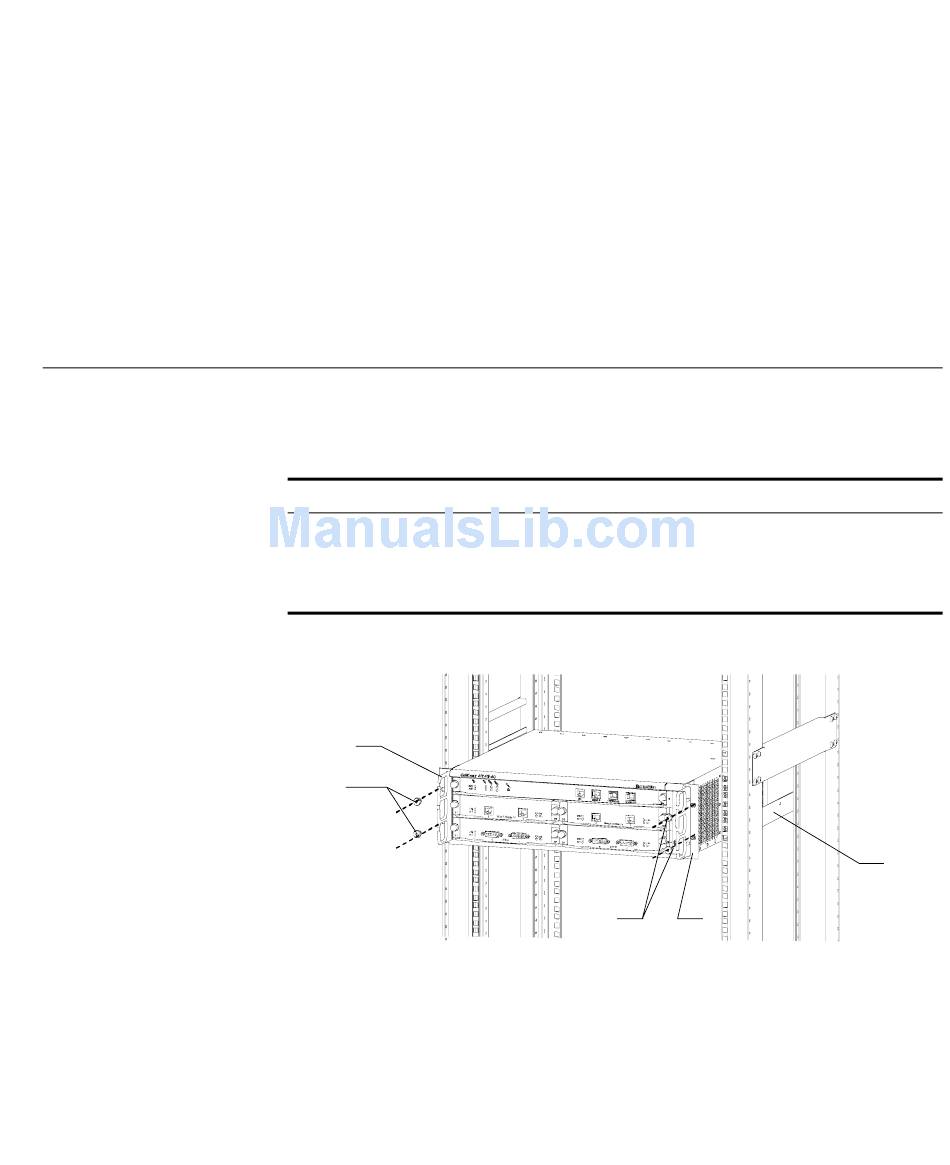

Figure 12 Mount the router in a rack
(2)
(1)
1) Mounting screws
Dimensions
130.5 x 436.2 x 420 mm
(5.1 x 17.2 x 16.5 in.)
219.5 x 436.2 x 420 mm
(8.6 x 17.2 x 16.5 in.)
(1) (2)
2) Mounting brackets
(with cable-management
brackets installed)

Rack-Mounting the Router 23

(3)
3) Guides
