ClearOne Collaborate Installation Manual

Hide thumbs Also See for Collaborate:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Collaborate™ - Conferencing Solutions
I
G
nstallatIon
uIde

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Collaborate and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne Collaborate

Summary of Contents for ClearOne Collaborate

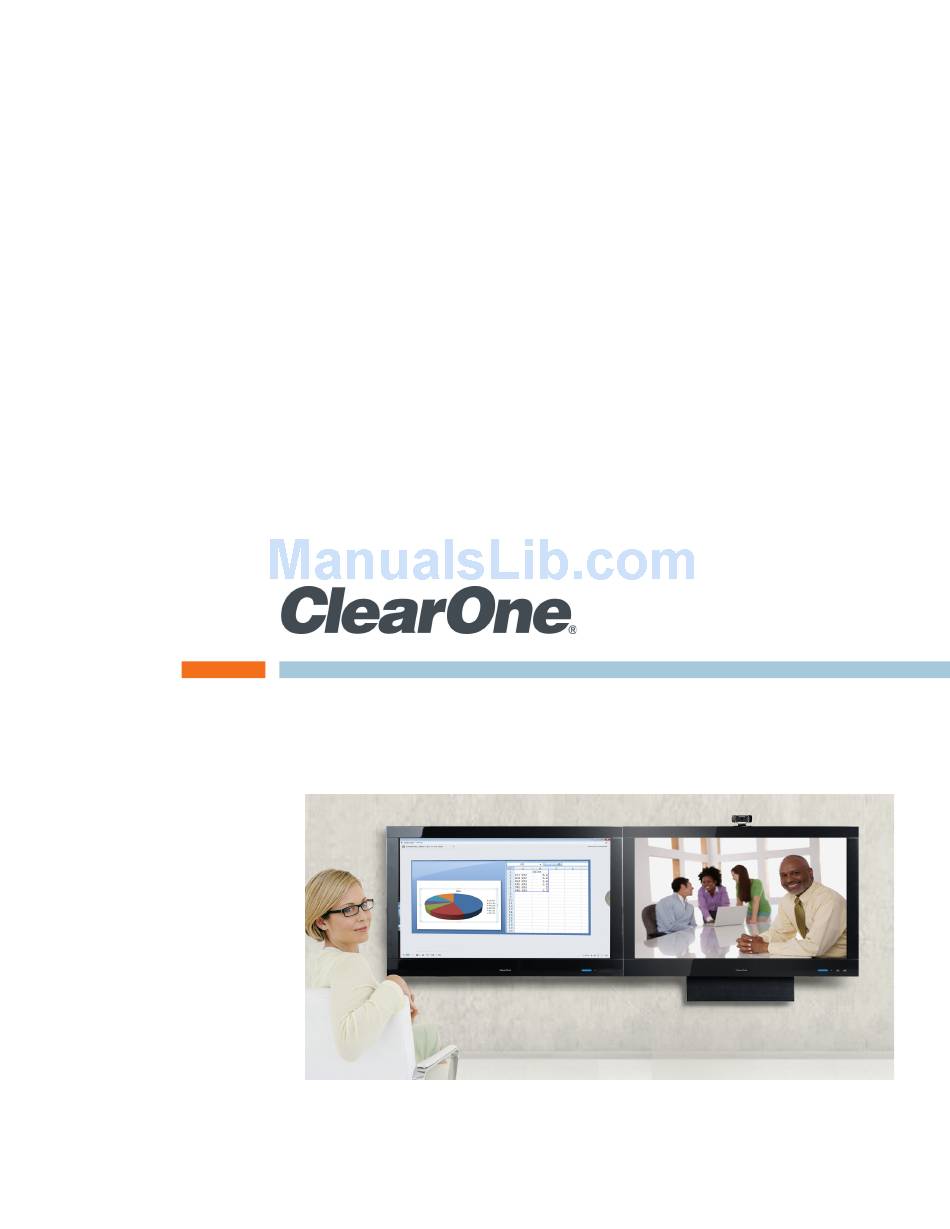

  • Page 1 Collaborate™ - Conferencing Solutions nstallatIon uIde...

  • Page 2: Table Of Contents

    Table of Contents COLLABORATE CONFERENCING SOLUTIONS Tools Needed But Not Included ............................1 Basic Collaborate Solution ..............................1 COLLABORATE OVERVIEW Cable Connections ................................2 Foot Stand Assembly (Single Monitor) ..........................3 Foot Stand Assembly (Dual Monitor)............................5 WALL-MOUNT ASSEMBLY OVERVIEW Wall-Mount Kit ..................................7 Wall-Mount Assembly (Single Monitor)..........................8 Wall-Mount Assembly (Dual Monitor) ...........................9...

  • Page 3: Collaborate Conferencing Solutions

    Wireless Keyboard and Mouse HD USB Camera » CAUTION: The Console weighs about 100 lb. Please take all necessary precautions when lifting. ClearOne recommends only lifting and moving the Collaborate with a team of two or more people. nstallatIon uIde...

  • Page 4: Collaborate Overview

    Option 2: Wall Mount system - Accessory kit available for a dual monitor Wall Mount system. Option 3: Dual Articulating Arm Cart or Media Stand system Please contact ClearOne for more details on pricing and shipping of any of the Collaborate accessory kits.

  • Page 5: Foot Stand Assembly (Single Monitor)

    Console and/or Display to prevent personal injury or damage to the product. 1. Place the Collaborate Console face-down on a flat, clean, soft, non-abrasive surface as shown below and attach the feet brackets to the console, then attach the feet to the brackets as shown.
  • Page 6 4. Carefully stand the Collaborate Console upright then plug the Wireless Keyboard/Mouse receiver into one of the USB ports. 5. Clip the HD USB camera to the top of the Console then plug the camera into a USB port located along the bottom of the Console and position it for best results.

  • Page 7: Foot Stand Assembly (Dual Monitor)

    DVI-I and USB cables shown below. 3. While the two monitors are still face-down, install the Collaborate Soundbar as described on page 3, step 3. With a dual system, the soundbar can be mounted to either the Console or Display or can be placed on the table for positioning as needed.
  • Page 8 6. Plug the Collaborate Console and Display monitors into electrical outlets. 7. Press the power buttons on the front of the Console and Display to turn the units on. 8. After boot-up has completed, configure the software if necessary (See the Software Installation section.)

  • Page 9: Wall-Mount Assembly Overview

    WALL-MOUNT ASSEMBLY OVERVIEW The Collaborate monitor provides standard mounting sizes (M6 600 x 200 external, M6 600 x 100 internal) and locations for the mounting of the Collaborate monitor onto a wall. As always, comply with the appropriate mounting recommendations and ensure the wall is capable of handling a minimum monitor wall mount installation weight of 100 lb.

  • Page 10: Wall-Mount Assembly (Single Monitor)

    4. While the unit is still face-down, install the Collaborate Soundbar as shown below using the Long Soundbar Mounting Bracket with the screws provided and those on the soundbar as shown.

  • Page 11: Wall-Mount Assembly (Dual Monitor)

    7. Plug the power cable into an outlet. 8. Press the Collaborate Console power switch located on the front to turn the unit on. 9. Once the system has completed bootup, configure the Collaborate Software if necessary. 10. Adjust the HD USB camera as necessary.
  • Page 12 5. Clip the HD USB camera to the top of the Console then plug the camera into one of the USB ports located along the bottom of the Console. 6. Mount the Collaborate Console and Display units onto the TV Wall Mount brackets (See TV Wall Mount manufacturers instructions.) 7.

  • Page 13: Media Stand Assembly Overview

    ClearOne Soundbar to the Collaborate Media Stand. For installing the monitor onto the Media stand it is recommended to mount the bracket and speaker first, then attach the speaker wires for the Collaborate Console before installing the monitor onto the Media stand.

  • Page 14: Titan Dual Articulating Arm Assembly Overview

    Plug the HD USB Camera into one of the USB ports located along the bottom of the Collaborate Console, then place the camera on top of the Console. » NOTE: It is advised to take the HD USB Camera down when moving the cart, then replacing and adjusting it once the cart is moved to its location and the screens are extended.

  • Page 15: Software Installation

    The Collaborate Console software installation must be run under the Windows 7 Administrator’s account. Login to the Collaborate PC as Administrator. (It is recommended to log out of all other accounts on the PC prior to software installation.) When the system is first booted after the OS is installed it will contain a shortcut to a “Welcome to ClearOne Collaborate”...

  • Page 16: Compliance

    WARNING: The country code must be set correctly in Console to ensure that the unit operates properly when connected to the telco network, and that it complies with the country’s telco requirements. Changing this code to a country other than the intended country of operation might cause Collaborate devices to be non-compliant.
  • Page 17 No user serviceable parts are contained in this product. If damage or malfunction occurs, contact ClearOne Communications for instructions on its repair or return Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

  • Page 18: Specifications

    © 2011 ClearOne All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne. ClearOne reserves specific privileges. Other product names may be trademarks of their respective owners. Information in this document is subject to change without notice.
