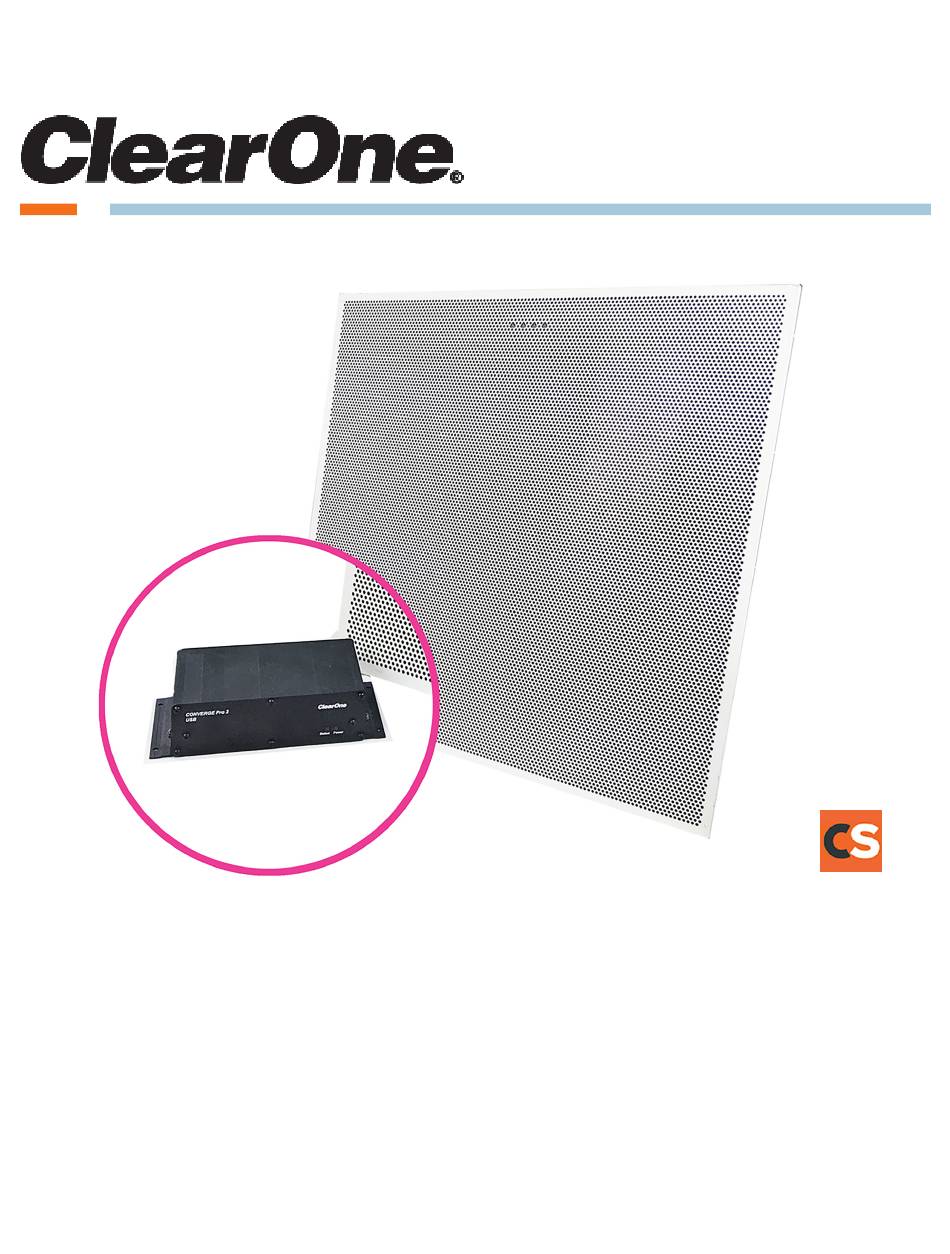

Quick-Start Guide
COLLABORATE
Versa Lite CT
©
QSG-0091-001 v1.0 June 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COLLABORATE Versa Lite CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne COLLABORATE Versa Lite CT

Summary of Contents for ClearOne COLLABORATE Versa Lite CT

  • Page 1 Quick-Start Guide COLLABORATE Versa Lite CT © QSG-0091-001 v1.0 June 2020...

  • Page 2: Table Of Contents

    Step 3: Connect the Components ..............9 Step 4: Start and Test the System..............11 Step 5: Adjust the System ................. 11 COLLABORATE Space Pro ..................11 Pair a Bluetooth Device .................... 12 Troubleshooting ......................13 Compliance ........................ 13 ClearOne Contacts ....................13...

  • Page 3: Important Safety Information

    COLLABORATE Versa Lite CT Quick-Start Guide Important Safety Information 1. Read and follow all instructions. 2. Keep these instructions. 3. Do not use these devices near water. 4. Clean only with dry cloth. 5. Do not block any ventilation openings. Install in accordance with manufacturer instructions.

  • Page 4: Introduction

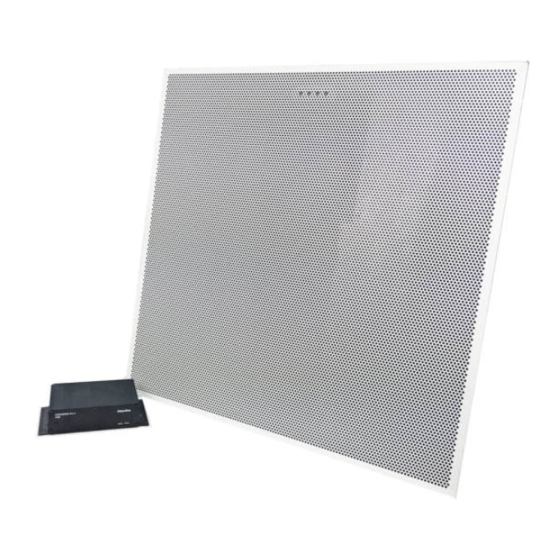

    COLLABORATE Versa Lite CT Quick-Start Guide Introduction The COLLABORATE Versa Lite CT brings cost-effective and superb professional conferencing to small- and mid-sized meeting rooms. The Versa Lite CT features a BMA CTH, a USB audio enabled Beamforming Ceiling Tile Microphone that includes: •...

  • Page 5: Operating And System Requirements

    • 500MB hard disk space (additional space is required to store site files and other project files) • Administrator permission to install and run the software System Part Number • COLLABORATE Versa Lite CT: 930-3200-010 • COLLABORATE Versa Lite CT INTERNATIONAL: 930-3200-010-I QSG-0091-001 v1.0 June 2020...

  • Page 6: Setup

    Verify that you have received all parts associated with each of the components. Inspect your shipment carefully. If the shipment shows obvious signs of damage, retain original boxes and packing mate- rial for inspection by the carrier, and contact them immediately. ClearOne is not responsible for product damage incurred during shipment.
  • Page 7 You can mount the BMA CTH in a suspended ceiling, held in place by the standard T-BAR grid, with an additional 1/8” diameter seismic cables (not included). For stability, ClearOne recommends attachment at the four points shown. If installing with the plenum shield, feed cables thru slots cut in earlier step...
  • Page 8 2. Align mounting holes on rack shelf mounting ears with holes on the rack (at determined location). 3. Insert the four #10-32 screws included with the ClearOne 1U rack shelf (or proper screws for your third-party mount) and tighten. Note: Remove pre-installed mounting ears on expander to fit up to 3 expander units side-by-side on a single ClearOne 1U rack shelf.

  • Page 9: Step 3: Connect The Components

    COLLABORATE Versa Lite CT Quick-Start Guide 6. Route the cables through the hole. Note the following: • Carefully run connected cables so they do not block the cooling vents or put strain on the connectors. • Anchors and screws used to mount the expander are not provided and must be selected by installer for the type of ceiling material supporting the expander.
  • Page 10 Figure 4. PoE Injector Connectors b. Steps to Connect In the following instructions, the letter references such as “(a)” refer to points on figures 1, 3, and 4. Before you connect the devices, download CONSOLE AI Lite software from www.clearone.com/console-ai-lite- documents. Step Actions Complete this step NOW if you did not when you installed the BMA CTH.

  • Page 11: Step 4: Start And Test The System

    COLLABORATE Space is a powerful collaboration application with a full suite of audio, video , and meeting tools in a persistent space. Connect hundreds of users, unifying messaging, calling and meetings for cloud collaboration. For more information, including instructions about how to use COLLABORATE Space, visit the ClearOne Resource Li- brary at: https://www.clearone.com/rl-home and Browse by Solution in the CLOUD COLLABORATION section.

  • Page 12: Pair A Bluetooth Device

    2. In your Bluetooth-enabled device, navigate to your Bluetooth settings (e.g. for iOS users, Settings > Bluetooth). 3. Select “ClearOne Bluetooth xxxx” (xxxx indicates the last 4 digits of the MAC address). When a device is paired, a short beep plays, followed by a higher frequency beep.

  • Page 13: Troubleshooting

    See the CONSOLE AI Lite User Manual, available at the ClearOne Resource tory default Library at www.clearone.com/console-ai-lite-documents. Compliance Details about compliance for the BMA CTH and COLLABORATE Versa USB are available online on ClearOne’s website (www.clearone.com) in the Resource Library. ClearOne Contacts Headquarters...
