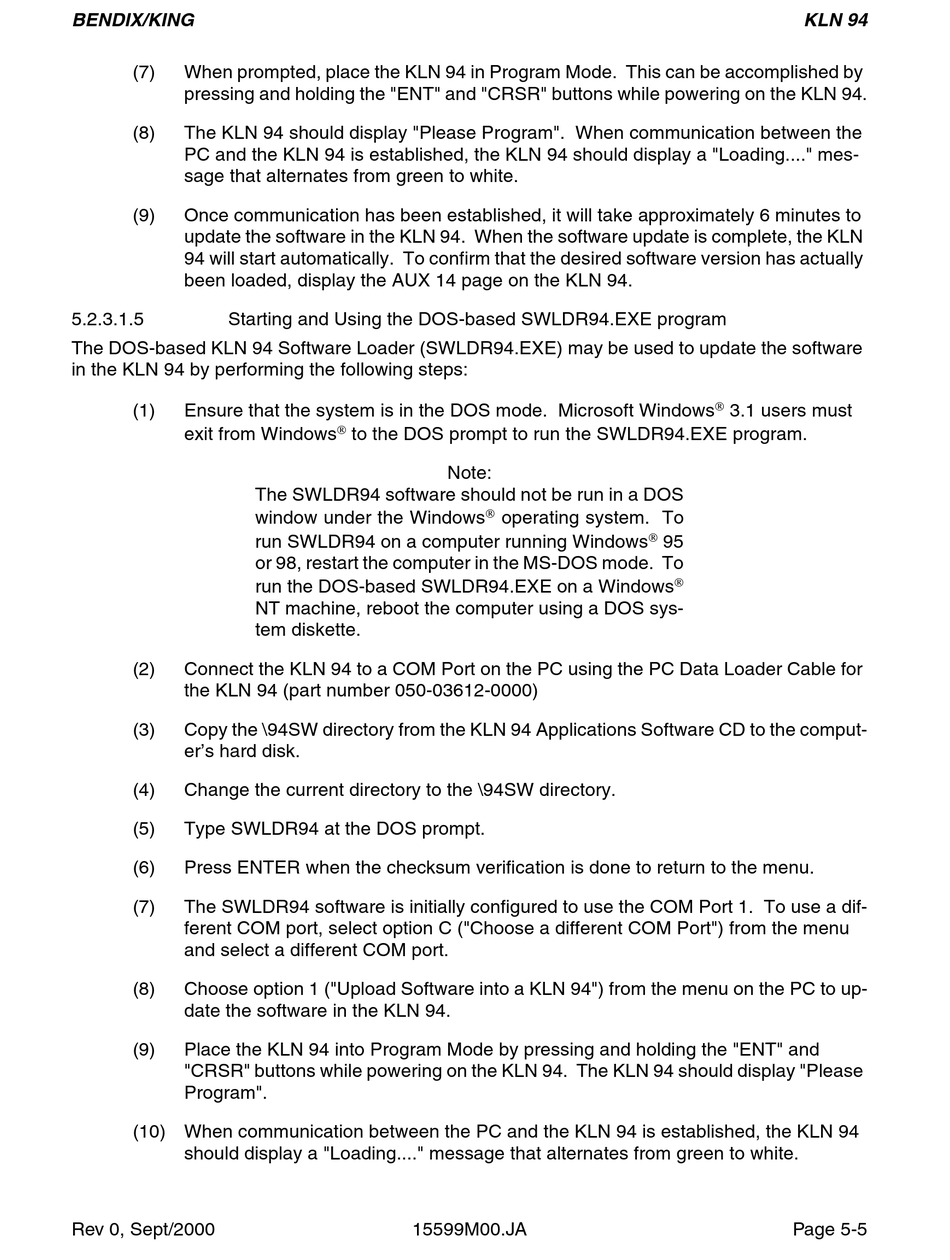

BENDIX/KING
(7)
When prompted, place the KLN 94 in Program Mode. This can be accomplished by
pressing and holding the "ENT" and "CRSR" buttons while powering on the KLN 94.
(8)
The KLN 94 should display "Please Program". When communication between the
PC and the KLN 94 is established, the KLN 94 should display a "Loading...." mes-
sage that alternates from green to white.
(9)
Once communication has been established, it will take approximately 6 minutes to
update the software in the KLN 94. When the software update is complete, the KLN
94 will start automatically. To confirm that the desired software version has actually
been loaded, display the AUX 14 page on the KLN 94.
5.2.3.1.5
Starting and Using the DOS-based SWLDR94.EXE program
The DOS-based KLN 94 Software Loader (SWLDR94.EXE) may be used to update the software
in the KLN 94 by performing the following steps:
(1)
Ensure that the system is in the DOS mode. Microsoft Windows
exit from Windows
(2)
Connect the KLN 94 to a COM Port on the PC using the PC Data Loader Cable for
the KLN 94 (part number 050-03612-0000)
(3)
Copy the \94SW directory from the KLN 94 Applications Software CD to the comput-
er's hard disk.
(4)
Change the current directory to the \94SW directory.
(5)
Type SWLDR94 at the DOS prompt.
(6)
Press ENTER when the checksum verification is done to return to the menu.
(7)
The SWLDR94 software is initially configured to use the COM Port 1. To use a dif-
ferent COM port, select option C ("Choose a different COM Port") from the menu
and select a different COM port.
(8)
Choose option 1 ("Upload Software into a KLN 94") from the menu on the PC to up-
date the software in the KLN 94.
(9)
Place the KLN 94 into Program Mode by pressing and holding the "ENT" and
"CRSR" buttons while powering on the KLN 94. The KLN 94 should display "Please
Program".
(10) When communication between the PC and the KLN 94 is established, the KLN 94
should display a "Loading...." message that alternates from green to white.
Rev 0, Sept/2000
to the DOS prompt to run the SWLDR94.EXE program.
The SWLDR94 software should not be run in a DOS
window under the Windows
run SWLDR94 on a computer running Windows
or 98, restart the computer in the MS-DOS mode. To
run the DOS-based SWLDR94.EXE on a Windows
NT machine, reboot the computer using a DOS sys-
tem diskette.
15599M00.JA
Note:
operating system. To
KLN 94
3.1 users must
95
Page 5-5
