Installation and User Guide

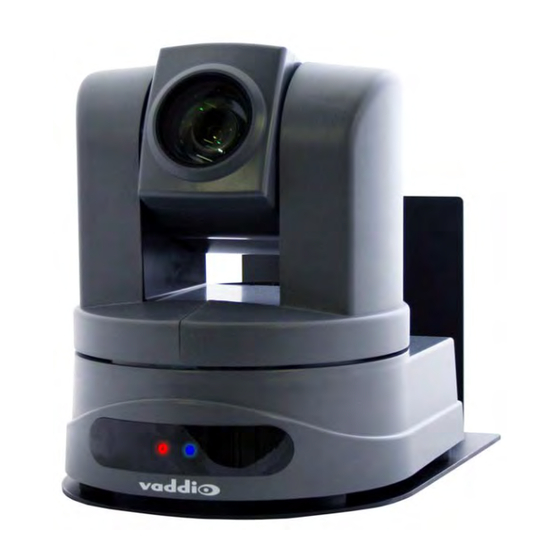

WallVIEW™ HD-USB PRO System
Featuring the ClearVIEW™ HD-USB PTZ Camera, Power Extension
Module, Extreme USB 2.0 Extender and Thin Profile Wall Mount
Part Numbers:
999-6995-000 - North America
999-6995-001 - International
© 2013 Vaddio - All Rights Reserved. WallVIEW HD-USB PRO Camera System - Document Number 342-0467 Rev E
Camera Software 2.1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO WallVIEW HD-USB PRO System
Summary of Contents for VADDIO WallVIEW HD-USB PRO System
- Page 1 Module, Extreme USB 2.0 Extender and Thin Profile Wall Mount Part Numbers: 999-6995-000 - North America 999-6995-001 - International © 2013 Vaddio - All Rights Reserved. WallVIEW HD-USB PRO Camera System - Document Number 342-0467 Rev E Camera Software 2.1.0...
-
Page 2: Table Of Contents
WallVIEW HD-USB PRO Camera System Table of Contents Overview: ..................................... 3 Soft Ware Notes ..................................3 Unpacking ....................................4 ClearVIEW HD-USB PTZ Conferencing Camera ........................5 Diagram: Rear View Connectors with Feature Call-outs: ....................5 Diagram: Front View with Feature Call-outs: ........................6 Connecting the Extension Devices to the Camera ........................ -
Page 3: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 4: Unpacking
The information contained in this manual will help you install and operate your product. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. -
Page 5: Clearview Hd-Usb Ptz Conferencing Camera
WallVIEW HD-USB PRO Camera System ClearVIEW HD-USB PTZ Conferencing Camera Diagram: Rear View Connectors with Feature Call-outs: ④ ⑤ ③ ⑥ ② Note: Use the EZ POWER VIDEO port with the Power Extension Module ① ⑦ ⑨ ⑧ ⑩ ⑪ ⑫... -
Page 6: Diagram: Front View With Feature Call-Outs
12) RS-232 Port: The RS-232 Port allows external control systems to engage a rudimentary API. Basic functions include pan, tilt zoom, on/off etc. The functions on the Vaddio IR Remote Commander are mirrored in the API. Most control is expected to come from the internal web page via Ethernet or Telnet. -
Page 7: Connecting The Extension Devices To The Camera
WallVIEW HD-USB PRO Camera System ONNECTING THE XTENSION EVICES TO THE AMERA The following diagrams pertain to the connectivity of the WallVIEW HD-USB PRO Camera System with the Thin Profile Wall Mount, Power Extension Module and Extreme USB 2.0 Extenders ... -
Page 8: Diagram: Connection Detail With The Power Extension Module And The Active Usb 2.0 Extension Cable
WallVIEW HD-USB PRO Camera System Diagram: Connection Detail with the Power Extension Module and the Active USB 2.0 Extension Cable The 24VDC connection from the Power Extension Module to the camera can provide adequate power up to 150’ (45.7m) away. The Extreme UBS 2.0 Extenders can amplify the USB 2.0 signal up to 328.1’ (100m) on a single CAT-5 or better cable. -
Page 9: Reference Diagrams
Port Reference Diagram: Connectivity Example 2 with Audio: This example uses the HD-USB PTZ Camera and Vaddio’s EasyUSB™ Mixer/Amp, two (2) Echo Cancelling EasyMic™ MicPODs and Two (2) Bose Ceiling Speakers to create a complete room system using programs such as Skype®, Jabber®, Google+®, Microsoft Lync®... -
Page 10: Reference Diagram: H.264 Streaming Connectivity
The ClearVIEW HD-USB PTZ Camera was designed to be exceptionally easy to use and operate. There is documentation at the back of the manual for pin-outs. These pin-outs are also available, along with application TechNotes, from the Vaddio website www.vaddio.com. WallVIEW HD-USB PRO Camera System Document Number 342-0467 Rev. E... -
Page 11: Getting Started
WallVIEW HD-USB PRO Camera System Getting Started Step 1: Using the HD Video Select Rotary Switch and Camera Settings Dip Switch on the back of the camera, set up the camera’s output resolution and functional preferences. A reference label is on the bottom of the camera. HD Video Camera Settings 10-Pos Dip Switches Select Switch... -
Page 12: Step By Step Instructions To Install The Wallview Hd-Usb Pro Camera System
Pick a mounting location to optimize the performance of the camera. Like all Vaddio WallVIEW systems, the WallVIEW HD-USB PRO is easy to install and operate. The product was specifically designed with Cat-5 cable connectivity for the extension both the power and USB 2.0 signals. -
Page 13: Checking Out The Installation
The HD-USB PTZ Camera will work with the following web browsers, soft codecs, computer operating systems and media players. Thorough testing has been performed by the technical staff at Vaddio to ensure that the HD-USB camera is compatible with the elements listed below. Compatibility - Web Browsers:... -
Page 14: Supported Uvc Resolutions
2) Real Player 3) VLC Media Player Evolving Compatibilities: As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the camera’s viability and compatibility with other manufacturer’s products. -
Page 15: Internal Web Pages And Control
15 seconds and then automatically turns off. with a Cross-over cable To see the IP address for longer than the 15 seconds at boot up, then… 2) Pick up the Vaddio IR Remote Commander and find the Data Screen button. Data Screen 3) Press and hold the Data Screen button on the remote for 4 seconds. -
Page 16: Static Ip Set-Up
WallVIEW HD-USB PRO Camera System Static IP Set-up: It is highly recommended that the Network Administrator and/or network personnel are involved on the Static IP set-up of the HD-USB camera. Please do not try to set the Static IP of the camera without help from network personnel…please? The static IP can be assigned either through the network or directly to a computer using a cross-over cable. -
Page 17: Screen Shot Tour
WallVIEW HD-USB PRO Camera System CREEN The Camera Control page (functions called out below). ➐ ➏ ➊ ➋ ➌ ➍ ➎ Store Preset pop-up menu dramatization 1) Pan, Tilt and Home Controls: These intuitive controls use the up/down arrows for camera tilt, the left/right arrows for camera pan and the center button to move the camera to the home position. - Page 18 WallVIEW HD-USB PRO Camera System Admin Pages: Clicking on the Admin link button will open the Log-in window. Enter the default password (password) on this line and click on Log-in. ◄ Password is: password After Login, the Admin link buttons are exposed and include Streaming, Labels, Networking, Security, Diagnostics, System, Help and Logout Admin.
- Page 19 WallVIEW HD-USB PRO Camera System Streaming: The Streaming Menu allows an administrator to set up the type of streaming, color depth, video speed and quality, protocol and path. ➊ ➋ ➌ ➍ ➎ The Streaming Menu: 1) The Streaming mode is set for either USB 2.0 streaming (MJPEG) or IP streaming (H.264); however the HD-USB cannot do both at the same time.
- Page 20 WallVIEW HD-USB PRO Camera System Room Labels: The Room Labels menu allows the administrator to label the company name, room name, room phone and help phone on a per camera basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save.
- Page 21 WallVIEW HD-USB PRO Camera System If Static IP is chosen, a new menu “pops up" where the IP Address, Subnet Mask and Gateway are entered. Click on Save to keep the Static IP information. ◄ ◄ ◄ By clicking on the Security link button, the UPDATE “user” PASSWORD and UPDATE “admin” PASSWORD control sections are displayed.
- Page 22 By clicking the Diagnostics link button, a set of self-diagnostics will be displayed. These diagnostics may help the Vaddio technical support team diagnose a problem with the HD-USB camera. The System link button is where the Firmware Updates will be loaded. There will be several firmware updates and upgrades over the life of the camera.
- Page 23 WallVIEW HD-USB PRO Camera System By clicking on “Show more…” the software versions are displayed. To update the firmware files, chose the appropriate file and click on Begin Firmware Update. When in doubt, call Vaddio Tech Support for assistance. ◄...
- Page 24 WallVIEW HD-USB PRO Camera System ◄ Service/Help information can be found under the Help tab. Support phone numbers and e-mail, manuals, FAQ’s and System information is listed on this page. Have this page open when calling Vaddio Tech Support. ◄ See next page for “Vertical”...
- Page 25 WallVIEW HD-USB PRO Camera System Finally, the Vertical button at the top right of the camera control page reduces the size of the camera control window and drops the menu bars to allow the controls to be open and on screen along with any soft-codec application without taking up too much space.
-
Page 26: Connecting The Camera To The Program Of Choice
The systems will negotiate the highest resolutions possible, depending on the computer speed, network quality, cabling etc..., and display the video signal of the camera. The camera can be controlled with the supplied Vaddio IR Remote Commander or through IP as described earlier through the cameras web pages. -
Page 27: Technical Specifications
CIF, 640x480 (VGA), 480p, 720p/30 1080p/30 (1080p Ethernet only) (Release 2.0) User Control Vaddio IR Remote Commander, On Screen Display for camera set-up, RS-232, Ethernet (web page) Supported Media Players Windows Media Player, Apple Quick-Time and VLC Media Player Supported Browsers Internet Explorer 8 &... -
Page 28: Compliance And Ce Declaration Of Conformity: Clearview Hd-Usb Ptz Camera
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 29: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 30: Appendix 1: Communication Specification
TXD (to RXD of control source) NOTE: The Vaddio ClearVIEW HD-USB Control Protocol is similar, but not identical to the Sony® VISCA™ command set and is not compatible with Vaddio Joysticks. This is an abbreviated Command set intended to give external control systems basic control over the camera. -
Page 31: Firmware Version 2.1.0 Release Notes
WallVIEW HD-USB PRO Camera System HD-USB Inquiry List Inquiry Command Command Response Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqr: 0-0x6B3 CAM_FocusPosInq 8x 09 04 48 FF... - Page 32 Cisco Jabber None Web Ex WBS 28.7 None Must have WebEx client version 28.7 to work with Vaddio USB Video Products. AV Bridge color space should be set to 4:2:0 Skype 720p only supported on Workaround for HD by downloading Skype Certified Camera shareware to force HD.
-
Page 33: Previous Release Notes
New Features and Functions: WebEx Compatibility: The video compatibility problem between HD-USB and WebEx has been resolved with a new software release of the WebEx client. Version WBS 28.7 and above is compatible with Vaddio USB devices. Improved Interoperability with Various UC software Clients: Additional USB video resolution support was added to the UVC endpoint to improve video quality for some UC soft clients that only use standard definition video resolution. -
Page 34: Appendix 2 - Telnet Serial Command Api
ERIAL OMMAND The Vaddio Serial Command protocol is a high level text based command line interface supported via telnet session on the ClearVIEW HD-USB PTZ Camera. The Vaddio Serial Command protocol is not supported on the RS-232 port. The RS-232 port is dedicated for VISCA commands only. The command application protocol interface is intended to allow external device such as AMX and Crestron to control the camera. - Page 35 WallVIEW HD-USB PRO Camera System Camera Preset NAME camera preset - Recall and set camera presets SYNOPSIS camera preset {recall|store} [1-6] DESCRIPTION Method used to recall and store camera presets OPTIONS recall Recall preset store Store preset preset Required value from 1-6 used to indicate the preset number ...
- Page 36 WallVIEW HD-USB PRO Camera System Exit NAME exit - ends the current API command session SYNOPSIS exit DESCRIPTION Exit ends the current API command session. If the session is over telnet, the session is ended and the socket is closed. If the session is over serial, a new session is started.
- Page 37 WallVIEW HD-USB PRO Camera System Network Settings NAME network settings - get current network settings SYNOPSIS network settings {get} DESCRIPTION Method used to get the current network settings of the device OPTIONS get Get the current network settings for the machine ...
- Page 38 WallVIEW HD-USB PRO Camera System Streaming Quality NAME streaming quality - Gets or sets the current streaming quality SYNOPSIS streaming quality {get|low|standard|high} DESCRIPTION Method used to get or set the current streaming quality OPTIONS get Get the current streaming quality low Set video quality to low standard Set video quality to standard high Set video quality to high...
- Page 39 WallVIEW HD-USB PRO Camera System System Factory‐Reset NAME system factory-reset - Gets or sets factory reset status SYNOPSIS system factory-reset {get|on|off} DESCRIPTION Method used to get or set the factory reset status OPTIONS get Get the current factory reset status on Enable factory reset on reboot off Disable factory reset on reboot ...
- Page 40 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ClearVIEW, WallVIEW, EZCamera, EasyTalk, EasyMic, EasyUSB and PowerRite are trademarks of Vaddio. All other trademarks are property of their respective owners.
