FEATURES:
• 1/2.9" Sony CMOS
• 2.1 MegaPixel With full 1080p/720p HD-SDI
Output (SMPTE 292M)
• Smart Motion Zoom tracks motion, then
intelligently zooms into that area of the frame
• Mechanical IR Cut Filter (True Day/Night)
• Small scale design to fit in 5" dome enclosures
such as the Pelco DF5 Housing
• Fully programmable advanced WDR
• Sensitivity of 0.0005 Lux
• Advanced OSD Functions: Defog, BLC/HLC,
Motion Deblur, Pixel Defect Compensation,
Mirror, Flip
• 100% Pure Digital Transmission of video data
• Up to 700' HD Transmission Range (Depending
on cable characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation

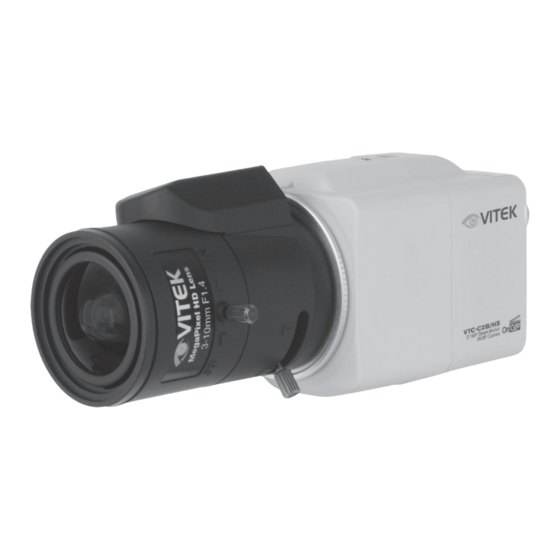

VTC-C2B-HS
2.1MP HD-SDI Smart
WDR Camera
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-C2B-HS
Summary of Contents for Vitek VTC-C2B-HS

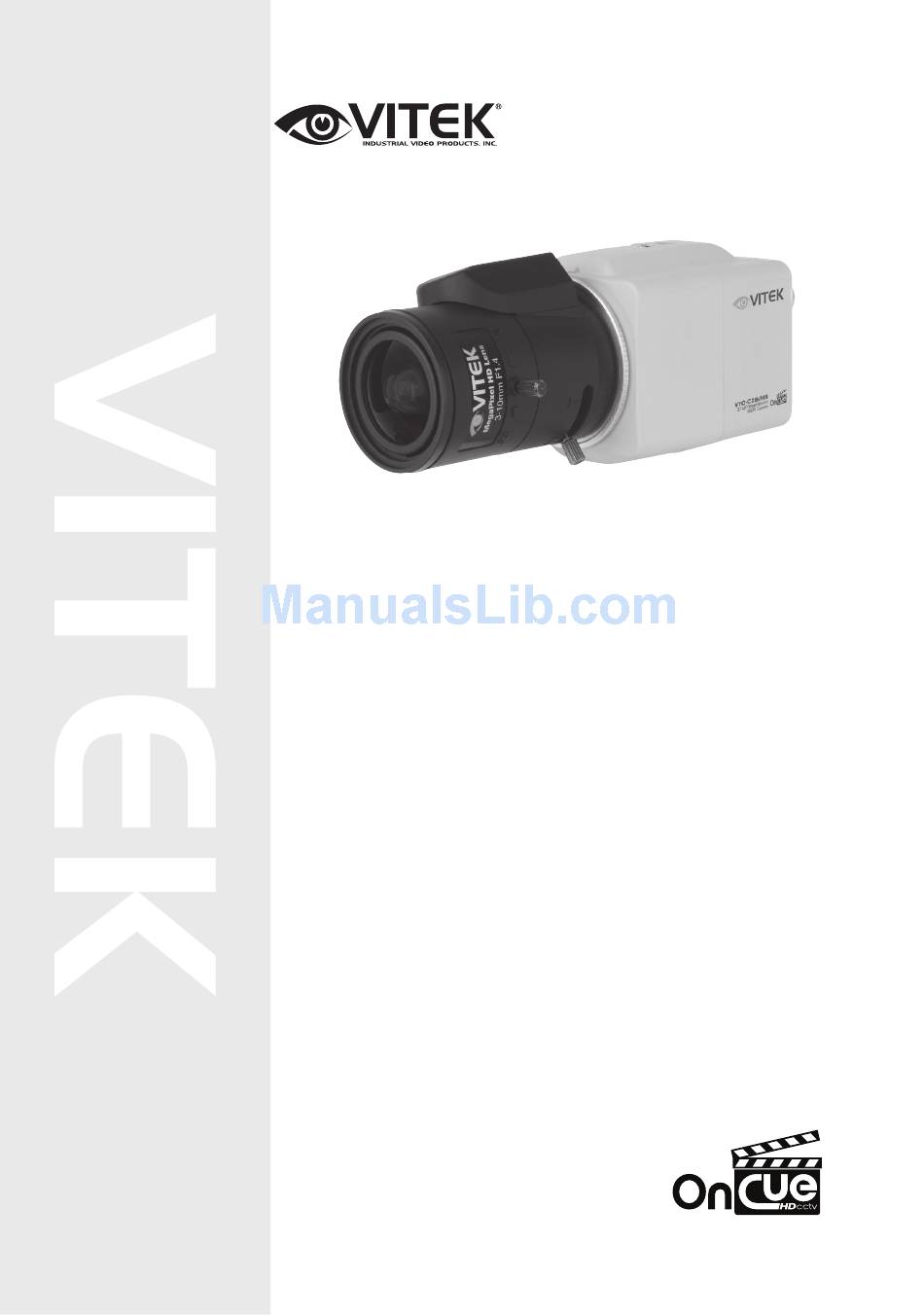

- Page 1 VTC-C2B-HS 2.1MP HD-SDI Smart WDR Camera FEATURES: • 1/2.9” Sony CMOS • 2.1 MegaPixel With full 1080p/720p HD-SDI Output (SMPTE 292M) • Smart Motion Zoom tracks motion, then intelligently zooms into that area of the frame • Mechanical IR Cut Filter (True Day/Night) •...
-
Page 2: Safety Precaution
FULL-HD MEGA-PIXEL CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 3 FULL-HD MEGA-PIXEL CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing in areas where shock or vibration may occur. Pay attention to safety when running the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 4: Table Of Contents
FULL-HD MEGA-PIXEL CAMERA Contents p.02~03 Safety Precaution p.04 Contents p.05 Features p.06 Composition p.06 Dimensions p.07 Part Names p.08~09 Installation Instructions p.10~22 Operating Instructions p.23 Specifications... -
Page 5: Features
FULL-HD MEGA-PIXEL CAMERA Features Key Features • Full HD, 2Mega Pixel HD-SDI CAMERA, 1920x1080(30p/25p) • True WDR(Wide Dynamic Range) • Improved Noise filter with the enhanced 3D-NR • CS mount supported (Option: C-mount adaptor) • Non Compressed digital streaming up to 1.485Gbps. •... -
Page 6: Composition
FULL-HD MEGA-PIXEL CAMERA Composition Operating Video Sub-out Instruction Cable (1pc) Compact Box Camera Dust Protection L- Wrench: Cap (1pc) 1.5mm (1pc) Dimensions (unit : inches) 2.87 1.89 2.38 1.81... -
Page 7: Part Names
FULL-HD MEGA-PIXEL CAMERA Part Names Mount Holes (Top / Bottom) Flange Lock screw L-Wrench Dust Protection Cap Rear Case Back focus Front Case adjusting Flange ① ① Video out connector(BNC) ② Power input terminal ③ ③ OSD Control Joy stick ④... -
Page 8: Installation Instructions
FULL-HD MEGA-PIXEL CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before installation. • Follow the order for applying power. When using 12VDC or 24VAC power make power connections at camera first then apply power. this will help avoid unnecessary power surges to camera. - Page 9 FULL-HD MEGA-PIXEL CAMERA Installation Instructions Using OSD Controller Setup menu can be accessed and controlled by OSD control joy stick on the rear of the camera unit. Five commands are available with the joy stick. The design of rear panel could be different according to the camera models. Description of the joystick operation 1) SET Key (●) : Access to the menu or enter the setting.
-
Page 10: Operating Instructions
FULL-HD MEGA-PIXEL CAMERA Operating Instructions OSD menu Startup Press ‘● (OSD menu Joy stick key) down for about 2 seconds to access the setup menu mode. MENU V3.12 1. EXPOSURE 2. LENS 3. FOCUS ASSIST NORMAL 4. SCENE ENHANCE 5. 3D-NR AUTO 6. - Page 11 FULL-HD MEGA-PIXEL CAMERA Operating Instructions BLC – Improves the visibility of bright back NORMAL SCENE light. Outside area of BLC window can over saturate. ENHANCE BLC has a target window for compensation and its size and position can be set by H-POS, V-POS, H-SIZE and V-SIZE. HLC –...
- Page 12 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 1. EXPOSURE EXPOSURE AUTO SHUTTER |:::::::|::::::| 10 BRIGHTNESS SENS-UP |:::::::|::::::| 12 RETURN 1-1. SHUTTER (default: AUTO) : Ability to set EXPOSURE MODE to AUTO, MANUAL and Flickerless. MANUAL and Flickerless modes disable SENS-UP and MOTION BLUR functions. •...
- Page 13 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 2. LENS Lens can be selected either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed MANUAL DEBLUR NORMAL MODE MODE RETURN RETURN 2-1. DC (default: DEBLUR for None LED type) : Selects lens mode according to installation location.
- Page 14 FULL-HD MEGA-PIXEL CAMERA Operating Instructions FOCUS ASSIST menu is a unique and patented feature that assists in focusing by simulating DAY & NIGHT conditions. Set zoom first and adjust focus to get best picture when switching from DAY to NIGHT. •...
- Page 15 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 4-4. GAMMA : Adjusts the gamma of video. (default: 0.5) 4-5. SHADING (default: OFF) ON enables the ability to compensate the shade caused by a wide lens setting. 5. SPECIAL SPECIAL MIRROR/FLIP PRIVACY MOTION PIXEL DEFECT TITLE SET DISPLAY DEFOG...
- Page 16 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 5-3. MOTION (default: OFF) : MOTION can detect the changes in the motion window and displays the results in blocks and/or a text message on screen. • SENSITIVITY : Adjusts the detection sensitivity for motion. Higher value increases the sensitivity to detect small motion easier.
- Page 17 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 5-5. TITLE SET : Camera title(name) can be set and edited up to 15 alpha numeric and symbolic characters from ASCII codes(ENGLISH only). ▲,▼, , moves the cursor to next input. Choose a character and ‘ selects it.
- Page 18 FULL-HD MEGA-PIXEL CAMERA Operating Instructions Detail Function Description ▐ SMART MOTION ZOOM SMART MOTION ZOOM enlarges the area defined by a yellow window to a full size image when motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POINTER and V-POINTER.
- Page 19 FULL-HD MEGA-PIXEL CAMERA Operating Instructions ▐ POINTING ZOOM This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out of any area in the scene. UNLIKE the conventional zoom which can zoom in/out the center area of image only the flexible zoom location and area POINTING ZOOM differentiates its usefulness from others.
- Page 20 FULL-HD MEGA-PIXEL CAMERA Operating Instructions * EXAMPLE OF SMART MOTION & POINTING ZOOM...
- Page 21 FULL-HD MEGA-PIXEL CAMERA Operating Instructions 6. SYSTEM SYSTEM TV SYSTEM US(NT) RESOLUTION 1080P COMM. SETUP LANGUAGE FACTORY DEFAULT RETUTN 5-1. TV SYSTEM (default: US or EU) : Selects HDTV standards for US(60HZ) or EU(50HZ). By this selection, 2nd analog video output switches to NTSC or PAL accordingly. 5-2.
- Page 22 FULL-HD MEGA-PIXEL CAMERA Operating Instructions Setting for RS-485 Communication with PTZ Controller ● Enter the MENU : Press buttons 9+5+PSET (PRESET) ● Move the cursor in the MENU : Moves UP/DOWN/LEFT/RIGHT Joy stick ● Select or Choose value in the MENU : Press button OPEN (IRIS OPEN) ●...
-
Page 23: Specifications
Detailed Specifications 1/2.9” Sony® CMOS Sensor 2.1 MegaPixel (1080p / 720p) Resolution More than 50 dB (AGC Off) 1x HD-SDI (BNC) / 1x SD CVBS (BNC) Video Output Lens CS Mount Lens Support (Not Included) Digital Zoom 1.1x ~ 8x Minimum Illumination .0005 Lux (@AGC Max. - Page 24 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects...
