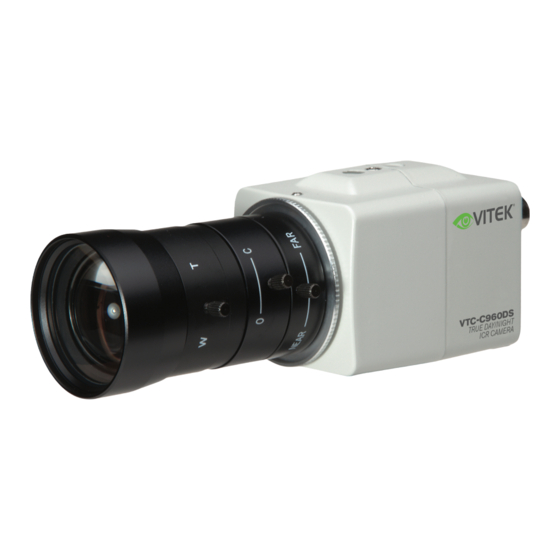

• VTC-C960DS: 750 TVL 960H True Day/Night CCD Camera
w/Effio-A Processing
• VTC-C960WS: 750 TVL 960H WDR Day/Night CCD
Camera w/Effio-V Processing
• 1/3" High density Sony CCD (960H)
• High Resolution of 750 Horizontal Lines
• Small scale design to fit in 5" dome enclosures such as the
Pelco DF5 Housing
• E-WDR by ATR-EX (Adaptive Tone Reproduction) (VTC-
C960DS)
• True WDR (Wide Dynamic Range) (VTC-C960WS)
• Sensitivity of 0.0005 Lux
• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction
• True Day/Night by ICR - Infrared Cut Removal
• Built-in Motion Detection with a 24x16 Grid
• Privacy Mask function with up to 15 programmable mask
areas
• 12VDC / 24VAC Dual Voltage Operation
• Lenses Sold Separately
VTC-C960DS
VTC-C960WS
750 TVL 960H True Day/Night CCD
Cameras w/Effio-A/V Processing
Advertisement
Table of Contents
Related Manuals for Vitek VTC-C960DS
Summary of Contents for Vitek VTC-C960DS

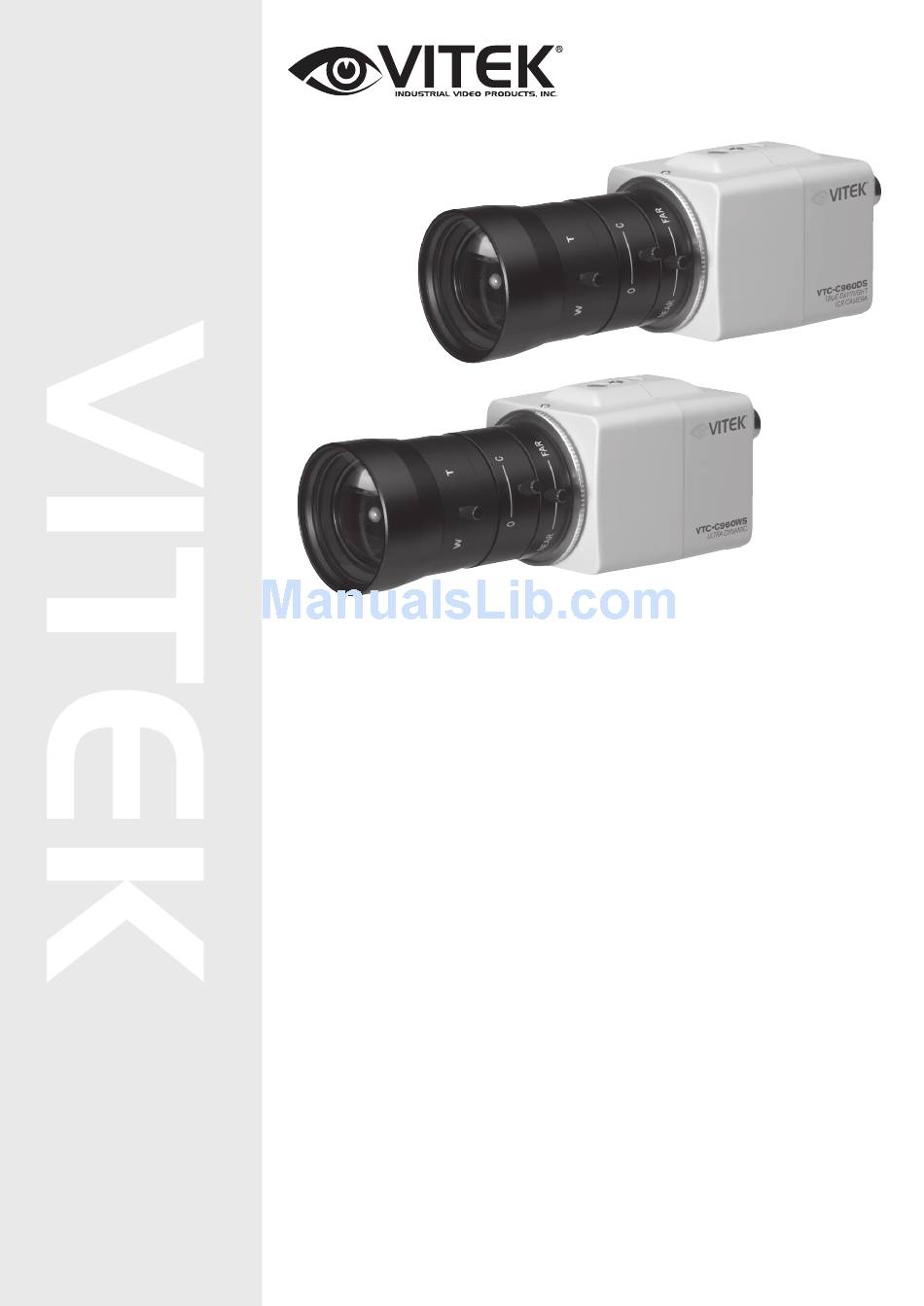

- Page 1 VTC-C960DS VTC-C960WS 750 TVL 960H True Day/Night CCD Cameras w/Effio-A/V Processing • VTC-C960DS: 750 TVL 960H True Day/Night CCD Camera w/Effio-A Processing • VTC-C960WS: 750 TVL 960H WDR Day/Night CCD Camera w/Effio-V Processing • 1/3” High density Sony CCD (960H) •...
- Page 2 To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK).
- Page 3 NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual appearance of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
- Page 4 p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.07 Dimensions p.08 Part Names p.09~10 Installation Instructions p.11~28 Operating Instructions p.29~30 Specifications...
-
Page 5: Key Features
Key Features • VTC-C960DS: 750 TVL 960H True Day/Night CCD Camera w/Effio-A Processing • VTC-C960WS: 750 TVL 960H WDR Day/Night CCD Camera w/Effio-V Processing • 1/3” High density Sony CCD (960H) • High Resolution of 750 Horizontal Lines • Small scale design to fit in 5” dome enclosures such as the Pelco DF5 Housing •... - Page 6 L- Wrench: Operating 1.5mm (1pc) Instruction Dust Protection Cap (1pc) Camera Dimensions (unit : mm) 2.89” 1.89” 2.38” Ø1.81”...
- Page 7 Mount Holes (Top / Bottom) Flange Lock screw L-Wrench Dust Protection Cap Rear Case Back focus Front Case adjusting Flange ③ ① ① Video out connector(BNC) ② Power input terminal ③ OSD Control Joy stick ② ④ ④ DC Auto Iris Lens connector PIN 4 PIN 2 Lens Connector...
-
Page 8: Installation And Commissioning Instructions
Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First connect the low voltage (DC12V or AC24V), then plug the AC adapter to AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load. -
Page 9: Using Osd Controller
Using OSD Controller Setup menu can be accessed and controlled by OSD control joy stick on the rear of the camera unit. Five commands are available with the joy stick. The design of rear panel could be different according to the camera models. Description of the joystick operation 1) SET Key (●) : Access to the menu or enter the setting. -
Page 10: Osd Menu Startup
OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • : Selects previous page or next page. • EXIT : Enters ‘EXIT’ menu. • RETURN : Returns to the previous menu. SETUP MENU SETUP MENU 1 / 2 2 / 2... - Page 11 WDR for VTC-C960WS, ATR-EX for VTC-C960DS WDR / ATR-EX SCENE SELECT LEVEL DAY/NIGHT AUTO BURST CNTL SIGNAL DELAY CNT DAY->NIGHT NIGHT->DAY MODE IR OPTIMIZER AUTO IR AREA LEVEL IR LED DAY/NIGHT COLOR NIGHT ON/OFF OFF (default) LENS SHD COMP PATTERN...
- Page 12 PRIVACY MASK TRANSP MOSAIC MOTION DET DETECT SENSE INTERVAL BLOCK DISP MASK AREA MONITOR AREA AREA SEL AREA MODE BOTTOM LEFT RIGHT TYPE LENS AUTO SYS SETTING AUTO MODE ADJUST SPEED FLIP OFF / V / H / HV LCD / CRT CAMERA ID English/ Spanish/ Russian/ Portuguese/ German/ French/ Chinese/ Japanese LANGUAGE...
-
Page 13: Osd Menu Setup
OSD menu Setup Press the OSD menu SET key down to access the setup menu mode. SETUP MENU ADVANCED MENU 1 / 2 1 / 2 SCENE SELECT FULL AUTO AUTO SHUTTER/AGC PICT ADJUST WHITE BAL EZOOM HLC/BLC WDR/ATR-EX PRIVACY MASK MOTION DET NIGHT DAY/NIGHT... -
Page 14: White Bal
1-1-3. FIX Video level is fixed in any conditions by the setting of SHUTTER, AGC MAX. 1-2. WHITE BAL Can set the WHITE BALANCE mode. 1-2-1. ATW (Auto Trace White Balance): Automatically tracks the changes of color temperature and continuously adjusts the white balance. - Page 15 > INDOOR : Optimized for Indoor installation and more easily compensates ATW for low color temperature such as incandescent lights. > SUNNY : Optimized for outdoor sunlight applications and more easily compensates ATW for high color temperature such as sunlight. >...
- Page 16 • CLEAR FACE (default: MID): Selects one of ‘LOW/MID/HIGH’ Note: WDR is fixed except ‘CUSTOM’ scene preset. Selects one of ‘WDR/ATR-EX/OFF’ is only in ‘CUSTOM’ scene preset. 1-4-2. ATR-EX (Adaptive Tone Reproduction-EX): (VTC-C960DS) Sets enabling/disabling ATR compensation for the better dynamic range (D-WDR) of the image.
- Page 17 1-6. DAY/NIGHT This function is used to control the setting during day-time and night-time operation. 1-6-1. AUTO AUTO mode in DAY/NIGHT is used only for a camera which does not have a light sensor. Camera switches DAY from/to NIGHT automatically along with the amount of light through the lens.
- Page 18 • NIGHT -> DAY (default: 120) NIGHT→DAY is a threshold level which determines to switch from NIGHT to DAY. Lower(Higher) value makes the camera switched from Night to Day at lower (higher) illumination. If it stays in Night(B/W) mode at day time, decrease NIGHT-> DAY threshold value until it just switches to Day * Examine and verify Day/Night operation according to IMPORTANT ACTIVITY 1-6-2.
-
Page 19: Mode : Auto
1-7. IR OPTIMIZER This function is effective built-in LED models in NIGHT mode only. If subjects which can cause overexposure are located near the monitored area, you can adjust IR OPTIMIZER level or area. IR OPTIMIZER SETUP IR LED AUTO AUTO MODE IR AREA... -
Page 20: Lens Shd Comp
1-8. LENS SHD COMP (default: OFF) This function is used to caculate the compensation data for lens shading. Convex shape of the lens causes the light to enter the camera unevenly and typically makes the center of the screen brighter than the rest. It is used to compensate for this undesirable effect and make the screen more even. -
Page 21: Color Gain
2-1. BRIGHTNESS (default: 120): Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases the digital gain of video. Do not increase this too much, the dynamic range for the highlight area will decrease. - Page 22 5. PRIVACY MASK Sets ON/OFF for enabling/disabling PRIVACY. Up to 15 privacy areas are available and each area is programmable in size and location. The number of privacy areas is limited to four when MOTION DET > MONITOR AREA is ON. The privacy areas are masked with the color selected by PRIVACY MASK>COLOR.
-
Page 23: Motion Detection
6. MOTION DET Up to 4 motion detection areas are available and each area is programmable in size and location. The motion is displayed by means of blocks when MOTION DET and MOTION DET>BLOCK DISP are ON. MOTION DETECTION DETECT SENSE INTERVAL BLOCK DISP MASK AREA... -
Page 24: Monitor Area
6-5. MONITOR AREA Sets the MOTION DETECTION area on screen. MONITOR AREA AREA SEL AREA MODE BOTTOM LEFT RIGHT RETURN 6-5-1. AREA SEL (default: 1/4) : Selects one of AREA1~AREA4 to be adjusted. Each area is displayed with the color. AREA1-Red, AREA2-Green, AREA3- Blue, AREA4-Yellow 6-5-2. -
Page 25: Camera Id Setup
7-1. LENS Selects the lens type, AUTO or MANUAL. AUTO supports DC auto-iris lens only. 7-1-1. AUTO • TYPE (default: DC): This camera does NOT support video type auto iris lens. MUST BE SET TO DC ONLY. • MODE (default: AUTO): Lens iris is automatically controlled according to the scene light level. -
Page 26: Maintenance
● Use four direction buttons (▲/▼/◄/►) to move a block cursor in character table ◙) and press a set button ( to input the selected character. To move the character input position on CAMERA ID input line, move a cursor to ←... -
Page 27: Camera Reset
10-1. W.PIX MASK This function is used to compensate white pixels(defective pixels). MANUAL COMP AUTO COMP REGISTRATION LEVEL1 REG.POINT LEVEL2 CURSOR COLOR AUTO WHITE BLINK REG. NUMBER 3 / 64 RETURN RETURN 10-1-2. AUTO COMP : Setting for white pixels(defective pixels) compensation automatically. •... - Page 28 VTC-C960DS Image Device 1/3” High density Sony CCD (960H) Resolution 750TV Lines Effective Pixels 976(H) x 494(V) Minimum Illumination 0.0005 Lux (Sens-up Off) Lens mount CS Mount Day/Night True Day/Night by ICR E-WDR by ATR-EX Noise Reduction XD-DNR (2D+3D DNR)
- Page 29 VTC-C960WS Image Device 1/3” High density double scan Sony CCD (960H) Resolution 750TV Lines Effective Pixels 976(H) x 494(V) Minimum Illumination 0.001 Lux (Sens-up Off) Lens mount CS mount Day/Night True Day/Night by ICR True WDR Noise Reduction XD-DNR (2D+3D DNR) Motion Detection 24x16 Grid Privacy Mask...
- Page 30 OTHER PRODuCTS FROm VITEK SPIRE Elite Series 960H Digital Video Recorders VT-SRE Series Spire Series 4, 8, & 16 Channel 960H Digital Video Recorders • Supports High Resolution 960H Cameras • 4, 8 or 16 Video Inputs with 1 HDMI, 1 Spot Monitor Output and 1 VGA output •...
- Page 31 VITEK warrants to the purchaser that products manufac- tured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
- Page 32 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM...
