FEATURES:
• 1/2.8" Sony® STARVIS 2.1 MegaPixel CMOS Sensor
• 2.1 MegaPixel with Full 1080p/720p HD/EX-SDI 1.0, 2.0 / TVI / AHD / CVI
/ CVBS Output
• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light
Producing Color Images in Very Dark & Night Scenes
• CS Mount Lens Support (Lens Not Included)
• 3D-DNR Digital Noise Reduction
• True Day/Night by ICR - Dual Filter Switch
• Fully programmable True WDR (Dual Scan)
• ROI (Region of Interest) WDR achieves superior exposure compensation
specifically in exact areas of interest while reducing HDD storage space
• Advanced OSD Functions: Motion Detection, Privacy Mask, Defog, Sens-
up(~x32), Sharpness, Mirror/Flip, BLC/HLC, Deblur, Anti-Saturation, Title
Set, D-WDR
• 12VDC / 24VAC Dual Voltage Operation

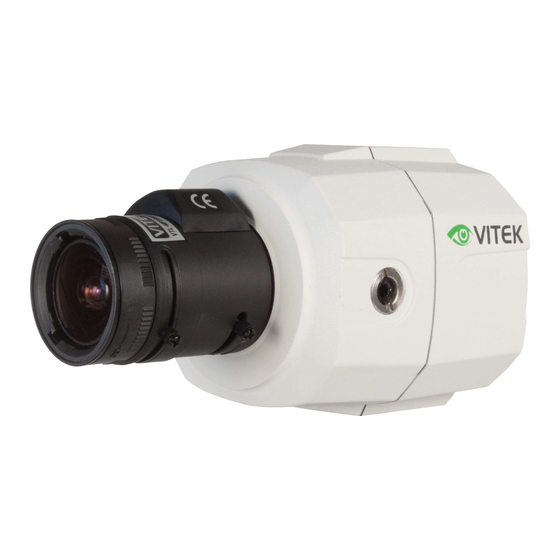

VTC-C2BMS2
Premium 2.1 Megapixel 6-in-1 HD/
EX-SDI / TVI / AHD / CVI / CVBS
Box Type Camera
Advertisement
Related Manuals for Vitek VTC-C2BMS2
Summary of Contents for Vitek VTC-C2BMS2
- Page 1 VTC-C2BMS2 Premium 2.1 Megapixel 6-in-1 HD/ EX-SDI / TVI / AHD / CVI / CVBS Box Type Camera FEATURES: • 1/2.8” Sony® STARVIS 2.1 MegaPixel CMOS Sensor • 2.1 MegaPixel with Full 1080p/720p HD/EX-SDI 1.0, 2.0 / TVI / AHD / CVI / CVBS Output •...
-
Page 2: Safety Precaution
Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 3 Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when running the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 4: Table Of Contents
Contents p.02~03 Safety Precaution p.04 Contents p.05 Composition p.05 Dimensions p.06~07 Installation Instructions p.08~23 Operating Instructions p.24 Specifications... -
Page 5: Composition
Composition Dust Protection C-mount Cap (1pc) adaptor (Option) Box Camera Torque Wrench: Operating 3mm (1pc) Instruction Dimensions 2.99” 2.99” 3.50”... - Page 6 Part Names Mount Holes Dust (Top / Bottom) Body Case Protection Cap Torque Wrench PIN 4 PIN 2 Lens Connector for Auto Iris lenses DC Iris Back focus Damp(-) adjustment Damp(+) Drive(+) PIN 3 PIN 1 REAR VIEW ③ CONTROL ①...
-
Page 7: Installation Instructions
Installation Instructions Installation and commissioning Instructions • Make sure power is removed before installation. • Follow this order for powering camera: Connect the power leads to the camera (observe polarity for DC power) then plug-in power. This will avoid damage to the camera from power surges and improper reseting 1. -
Page 8: Operating Instructions
Operating Instructions Power Supply Connections Camera can work with either 12VDC or 24VAC, dual voltage power. Primary and secondary grounds are completely isolated to avoid possible ground-loop problems. Using OSD Controller Setup menu can be accessed and controlled by the OSD control joystick on the rear of the camera unit. - Page 9 Operating Instructions ANALOG OUT0 should be set to TVI MODE, AHD MODE or CVI MODE to get CVBS video in sub-out. If it is set to CVBS, there is no CVBS video in sub-out port. (SYSTEM> OUTPUT> ANALOG OUTPUT0) If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs.
- Page 10 Operating Instructions 3D-NR OFF, LOW, MIDDLE, HIGH SHARPNESS MAIN ANALOG ANALOG OUT0 TVI MODE, AHD MODE, IMAGE OUTPUT OUT0 CVBS, CVI MODE TVI MODE 0~10 AHD MODE 0~10 CVI MODE 0~10 ANALOG ANALOG OUT1 CVBS OUT1 SDI&CVBS 0~10 SDI OUT HD-SDI, EX-SDI 1.0, OUTPUT EX-SDI 2.0, OFF...
- Page 11 Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • EXIT : Enters ‘EXIT’ menu with save current setting or without save. • RETURN : Returns to the previous menu. MENU V0. XX 1.
- Page 12 Operating Instructions 3. EXPOSURE 3. EXPOSURE BRIGHTNESS llllllllllllllllllllll SHUTTER AUTO SENS-UP llllllllllllllllllllll RETURN 3-1. BRIGHTNESS Adjusts the brightness of video (0~20). 3-2. SHUTTER Select AUTO or MANUAL. If shutter is set to Manual mode, SENS-UP mode is deactivated. 3-2-1. AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically.
- Page 13 Operating Instructions 4. BACKLIGHT Compensates the video image by cutting out the bright areas with a mask or adjusting the contrast of the video. LEVEL llllllllllllllllllllll COLOR RETURN 4-1. HLC (High Light Compensation) Cuts out the bright area with a mask and excludes it from compensation. 4-1-1.
- Page 14 Operating Instructions WINDOW ZONE MODE WINDOW USE TARGET-BRT MIDDLE H-POS WEIGHT MIDDLE V-POS RETURN H-SIZE V-SIZE RETURN 4-3. WDR (Wide Dynamic Range) When part of an image is extremely dark but another part is so bright you can't see any details WDR will even the image out. 4-3-1.
- Page 15 Operating Instructions 5. DAY & NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types. MENU V0. XX 1. LENS 2. FOCUS Ast. 3. EXPOSURE 4.
- Page 16 Operating Instructions 5-2. AUTO Used when DAY or NIGHT is 5. DAY&NIGHT determined by light level through the lens and DAY from/to NIGHT SMART IR is switched automatically by the ANTI-SAT. llllllllllllllllllllll AGC THRES scene brightness. It can be llllllllllllllllllllll AGC MARGIN controlled by the AGC threshold llllllllllllllllllllll...
- Page 17 Operating Instructions 6. COLOR 6. COLOR AUTO COLOR GAIN llllllllllllllllllllll RETURN 6-1. AWB (Auto White Balance) Automatically tracks the changes of color temperature and continuously adjusts the white balance. AUTO, AUTOext, PRESET and MANUAL modes are available. 6-1-1. AUTO : Optimized for Indoor installation and compensates AWB for low color temperature such as incandescent lights.
- Page 18 Operating Instructions 7. 3D-NR (Digital Noise Reduction) DNR function improves picture quality by filtering out signal noise which is generated under low light conditions. Set off, low, middle or high level. 3DNR(3-dimensional noise reduction) which reduces noise by multi frames. It is effective in low light. Set to high will reduce the most noise but the image will be less sharp and a tailing effect might occur.
- Page 19 Operating Instructions 8-1. SHARPNESS Sets the Sharpness level 0~10. Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line flicker at the edge of object in the picture. 8-2.
- Page 20 Operating Instructions PRIVACY ZONE NUM ZONE DISP H-POS V-POS H-SIZE V-SIZE Y-LEVEL llllllllllllllllllllll CB LEVEL llllllllllllllllllllll CR LEVEL llllllllllllllllllllll TRANS RETURN 8-7-4. H-SIZE, V-SIZE : Adjusts the mask size using H, V direction. 8-7-5. Y LEVEL : Adjusts the mask color by Y LEVEL. (0: black ~ 20: white) 8-7-6.
- Page 21 Operating Instructions 9. MOTION DET WINDOW DET WINDOW WINDOW ZONE DET TONE WINDOW USE MDRECT FILL DET H-POS SENSITIVITY llllllllllllllllllllll DET V-POS MOTION OSD DET H-SIZE TEXT ALARM DET V-SIZE RETURN RETURN 9-2. DET ZONE Sets the detection zone 0 to 4 display types which window use setting ON. 0 : Set 100% opacity level of video background except detection window zone.
- Page 22 Operating Instructions A. SYSTEM Sets the system related functions. A. SYSTEM OUTPUT RESOLUTION 1080 30P TV SYSTEM US(NTSC) LANGUAGE CAM TITLE RESET RETURN HD-ANALOG OUTPUT ANALOG OUT0 MAIN OUTPUT TVI MODE ANALOG OUT0 HD-SDI SDI OUTPUT Y GAIN llllllllllllllllllllll TVI MODE ANALOG OUT0 CB GAIN llllllllllllllllllllll...
- Page 23 Operating Instructions If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs. It should be considered when installer adjusts the video with installation monitor via CVBS video signal. A-2. RESOLUTION Select the video resolutions, 1080P/720P are available.
-
Page 24: Specifications
12VDC / 24VAC (Dual Voltage) Operating Temp. 14° ~ 122°F (-10° ~ +50°C) @ 20-80% RH Weight 10.58oz (300g) Dimension (WxHxD) 2.99” x 2.83” x 3.50” (76 x 72 x 89mm) (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355... - Page 25 CONSIDER THESE OTHER GREAT PRODUCTS FROM OnCue Bridge 8 & 16 Channel Complete HD/EX-SDI, TVI, AHD, CVI, Analog & IP Recording Solution 8 & 16 Channel Stand-alone Real-time Video Recorders • Supports IP, HD/EX-SDI, TVI, AHD, CVI, Analog (CVBS) Cameras with automatic format detection •...
- Page 27 3 years. * Per a special agreement with Western Digital, as of August 2016, VITEK also warrants factory installed Hard Drives for the full 3 year span of the recorder warranty provided that the recorder was purchased through an authorized VITEK distributor.
- Page 28 Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 September 2017 WWW.VITEKCCTV.COM...
