FEATURES
• 1/3" 2.1 MegaPixel Progressive Scan CMOS
• 2.1 MegaPixel With full 1080p/720p Output
• Up to 30fps live view @ 1920x1080 (1080p)
• MegaPixel IR Corrected 3-9mm (VTC-C2BAZE39) / 9-22mm (VTC-
C2BAZE922) Motorized Auto Focus and Zoom
• Extended long reach HD Solution
• Mechanical IR Cut Filter (True Day/Night)
• 16:9 Video format
• On-board Intelligence (OBI Technology) delivers Auto-Focus-Zoom by
tracking motion, then optically zooming in to that area of the frame
• Fully programmable advanced WDR
• Advanced OSD Functions: Motion Activated Pointing Zoom, Defog, Smart
Dynamic IR, BLC/HLC, Motion Deblur, Pixel Defect Compensation, Title Set,
Mirror, Flip, Lens Refresh, Lens Initialize, Home Position, DSS
• Up to 1000' HD Transmission Range (Depending on cable characteristics and
integrity)
• 12VDC / 24VAC Dual Voltage Operation

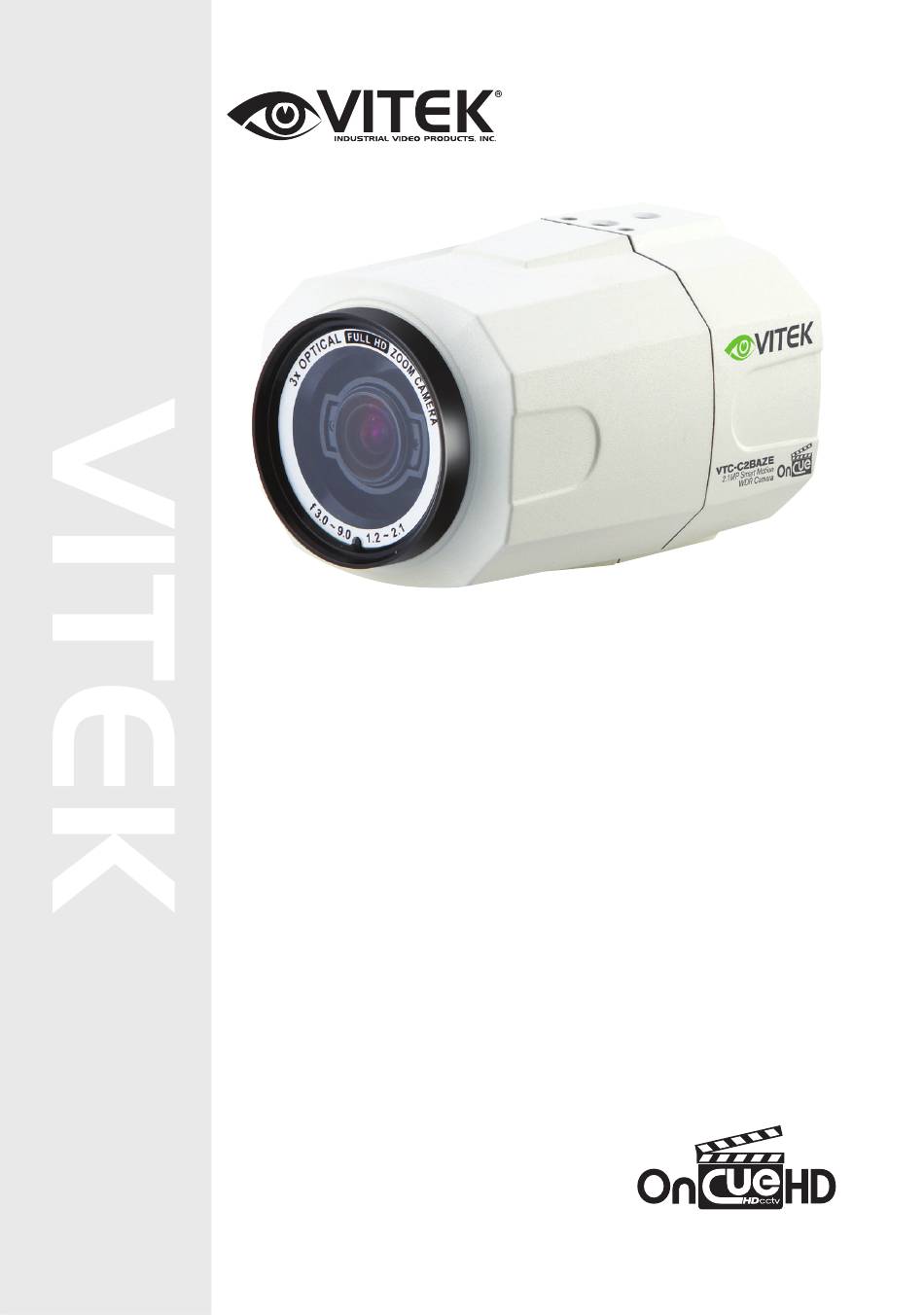

VTC-C2BAZE
2.1MP HD-SDI / EX-SDI
Auto-Focus-Zoom Camera
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-C2BAZE
Summary of Contents for Vitek VTC-C2BAZE
- Page 1 VTC-C2BAZE 2.1MP HD-SDI / EX-SDI Auto-Focus-Zoom Camera FEATURES • 1/3” 2.1 MegaPixel Progressive Scan CMOS • 2.1 MegaPixel With full 1080p/720p Output • Up to 30fps live view @ 1920x1080 (1080p) • MegaPixel IR Corrected 3-9mm (VTC-C2BAZE39) / 9-22mm (VTC- C2BAZE922) Motorized Auto Focus and Zoom •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. - Page 3 Safety Precaution NOTICE • The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. • Avoid installing in areas where shock or vibration may occur. • Pay attention to safety when running the connection cables and make sure that the cables are not subject to heavy loads, kinks, moisture or damage.
-
Page 4: Table Of Contents
Contents p.02~03 Safety Precaution p.04 Contents p.05~06 Features Package Includes p.07 Dimensions p.08 Part Names p.09 Installation Instructions p.10~26 Operating Instructions p.27 Specifications p.28 OnCue VT-HDOCE Series p.29 Limited Product Warranty... -
Page 5: Features
Features Key Features • Full HD, 2Mega Pixel, EX-SDI CAMERA, 1920x1080(30p/25p) • Extended long reach HD Solution • Real time True WDR (Wide Dynamic Range) / 30fps • Improved noise reduction with the enhanced 3DNR • VTC-C2BAZE39: f=3~9mm, F1.2~F2.1 Day & Night Motorized Auto Focus and Zoom lens (Optical 3x / Digital 32x) •... -
Page 6: Package Includes
Features General Description This camera realizes the natural and crisp image as you see the scene in front of you by adopting Auto Focus Full HD(1920x1080p) camera module. • With ICR mechanism, - Enhances its sensitivity about 10x at night time - Can accept infrared light •... -
Page 7: Dimensions
Dimensions (unit : mm) 2.99 4.45 4.92 CAUTION • Extreme care should be taken NOT to scratch the window on front of lens. • Care should be taken that the cable is NOT damaged, kinked or exposed in a hazardous area. •... -
Page 8: Part Names
Part Names Mount Holes Rear Case (Top / Bottom) Front Case Window ⑦ REAR VIEW ① ⑥ ⑤ ② ④ ③ ① OSD Control Joy stick ④ HD-SDI/EX-SDI output connector ② Power input terminal ⑤ Power LED ⑥ CVBS output connector (24VAC/12VDC) ③... -
Page 9: Installation Instructions
Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before installation. • After all connections are properly finished, follow this order for applying power. first connect the low voltage wires to the camera, then plug the AC/DC adapter to AC outlet to avoid damage.. -
Page 10: Operating Instructions
Operating Instructions Using OSD Controller Setup menu can be accessed and controlled by OSD control joy stick on the rear of the camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Description of the joystick operation 1) SET Key (●) : Access to the menu or enter the setting. - Page 11 Operating Instructions OSD menu Startup Press ‘●’(OSD menu Joy stick key) down for about 2 seconds to access the setup menu mode. Lens Initializing is strongly recommended at the first stage of the setup menu control. ZOOM/FOCUS > LENS INIT > Press the joystick ‘☟’straight down for about 2 seconds.
- Page 12 Operating Instructions EXIT SAVE & EXIT – Exits the menu after saving the parameters. 1. ZOOM/FOCUS ZOOM / FOCUS FOCUS MODE ZOOM PUSH D-ZOOM HOME POSITION LENS REFRESH ☟ LENS INIT. RETURN 1-1. FOCUS MODE (default: ZOOM PUSH) : ZOOM PUSH, AUTO and MANUAL modes are available for focusing. •...
- Page 13 Operating Instructions HOME POSITION O-ZOOM RATIO OZ X2.0 DURATION 5sec RETURN 1-4. LENS REFRESH (default: OFF) : LENS REFRESH can be set to 1~10days and performs a scheduled LENS Initialization automatically. Every initialization occurs when the time reaches the scheduled time after setup or power up. When LENS REFRESH initiates LENS Initialization, a notification LENS INITIALIZING appears on the top left corner on the monitor.
- Page 14 Operating Instructions EXPOSURE MODE AUTO BRIGHTNESS DAY |:::::::|::::::| 10 |::::::|:::::::| 8 BRIGHTNESS NIGHT SENS-UP |:::::::|::::::| 10 MOTION DEBLUR RETURN • AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically. • IRIS Priority: Select to fix IRIS at a certain apperture and the video level is controlled by an automatic shutter control.
- Page 15 Operating Instructions 2-6. MOTION DEBLUR (default: ON) : ON enables MOTION DEBLUR to reduce motion blur in certain indoor environments. Noise or color rolling can increase. 3. SCENE ENHANCE 3-1. NORMAL (default) : Optimized for normal indoor and outdoor in good lighting conditions. 3-2.
- Page 16 Operating Instructions 5. DAY / NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the lighting conditions and the camera type. SMART (DYNAMIC) IR can be set to reduce the saturation by strong IR illumination at night in any menu.
- Page 17 Operating Instructions • D↔N DELAY (0~60s): Sets the delay time when the camera switches from/to DAY(color) or NIGHT(B/W). 5-3. B/W(NIGHT) : Removes IR cut filter and switches to B/W regardless of light level. 5-4. COLOR(DAY) : DAY/NIGHT is disabled and outputs color video. 5-5.
- Page 18 Operating Instructions 6-1. WHITE BAL (default: ATW) : ATW, ATWext, ONE PUSH and MANUAL are available for the white balance modes. • ATW: White balance is continuously working along with the color temperature changes in the range of 2,000K~8,500K. • ATWext: White balance is continuously working along with the color temperature changes in the range of 1,800K~11,000K.
- Page 19 Operating Instructions 7-2. PRIVACY : 10 Privacy zones which can be enabled individually by ZON DISP are available to mask the video. • ZONE NUM : Set a number to select a privacy zone from 1~10. • ZONE DISP : ON enables to display relevant privacy zone •...
- Page 20 Operating Instructions ※SMART MOTION ZOOM does not work in low light conditions and BW. • STAY ZOOMING : Sets the duration time for zooming by Motion. CAUTION • Set the direction of video by MIRROR/FLIP before setting SMART MOTION ZOOM. Otherwise ZOOM TARGET could be different from your intention. 7-4.
- Page 21 Operating Instructions • ZOOM RATIO : ON enables to display the zoom ratio on the bottom right corner. OZx.x appears during the optical zoom and DZx.x will display by multiplying the optical zoom ratio and the actual digital zoom ratio. •...
- Page 22 Operating Instructions • O-ZOOM RATIO: Set the Optical Zoom Ratio from OX 1.1~OX3.0(OX2.4) • D-ZOOM RATIO: Set the Digital Zoom Ratio from DX 1.1~DX5.0 • STAYING ZOOMING : Sets the duration time for preset zoom area. 8. SYSTEM 8-1. TV SYSTEM (default: US or EU) SYSTEM : Selects HDTV standards for US...
- Page 23 Operating Instructions Detail Function Description ▐ SMART MOTION ZOOM SMART MOTION ZOOM enlarges the area defined by a yellow window to a full size image when motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POS and V-POS UNLIKE the conventional zoom which can zoom in/out the center area of image only, the flexible zoom location and area, SMART MOTION ZOOM differentiates...
- Page 24 Operating Instructions ▐ POINTING ZOOM This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out any area. POINTING ZOOM is the ability to zoom into an off center location using the PTZ Zoom in/out feature when connected via RS485 Use H-POINTER and V-POINTER to move the Yellow box to set the position of the center of the Zoom.
- Page 25 Operating Instructions * SMART MOTION and POINTING ZOOM VS. Conventional Zoom Smart Motion and Pointing Zoom Conventional Zoom...
- Page 26 Operating Instructions Setting for Zoom Function with PTZ Controller ● Enter the MENU : Press buttons 9+5+PSET (PRESET) ● Set the Preset Zoom : Press buttons 1(or ~4)+PSET (PRESET) ● Move the cursor in the MENU : Moves UP/DOWN/LEFT/RIGHT Joy stick ●...
- Page 27 Detailed Specifications VTC-C2BAZE39 VTC-C2BAZE922 Sensor 1/3” 2.1 MegaPixel Progressive Scan CMOS Resolution 2.1 MegaPixel (1080p / 720p) More than 50 dB (AGC Off) Video Output Selectable: 1x HD-SDI (BNC) / EX-SDI (BNC) and 1x SD CVBS (BNC) IR Illuminators IR Color Temp. IR Range Dynamic Intensity Smart IR LEDs Lens...
- Page 28 COnSIDEr THESE OTHEr GrEAT PrODuCTS FrOM VT-HDOCE Series On Cue Series 4, 8, and 16 Channel Real Time 1080p EX-SDI Digital Video Recorders • 4, 8 OR 16 CH EX-SDI / Analog Inputs (hybrid) with Full 1080p Camera Support • Now Supporting Cable distance of up to 1000’ using RG59!* •...
-
Page 29: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning. - Page 30 Version 1.0 28492 Constellation Road ValenCia, Ca 91355 June 2015 WWW.ViteKCCtV.CoM...
