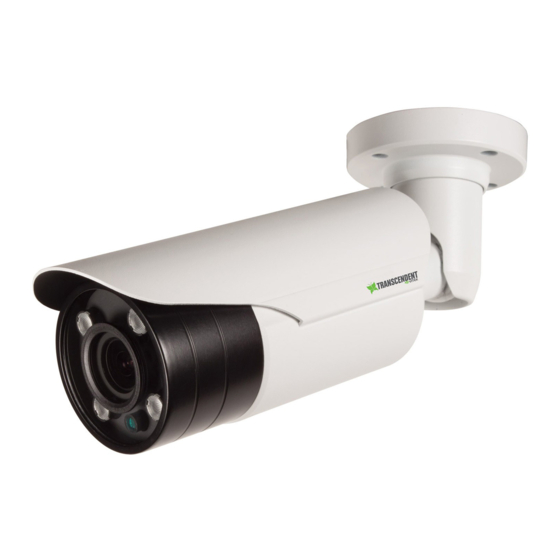

5 and 8 megapixel 4-in-1 hd-tvi/ahd/cvi/cvbs motorized varifocal bullet and turret cameras

Advertisement

Quick Links

5 and 8 Megapixel 4-in-1 HD-TVI/AHD/CVI/CVBS
Motorized Varifocal Bullet and Turret Cameras
FEATURES
• 1/2.8" 5.69 / 8.51 Megapixel Sony® Starvis™* Progressive Scan CMOS
Sensor
• 5MP Models: 20fps live view @ 2592 x 1944p
• 8MP Models: 15fps live view @ 3840 x 2160p
• True Day/Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
• 5MP Models: Motorized 2.7~13.5mm MegaPixel IR Corrected Auto Focus
Varifocal Lens
• 8MP Models: Motorized 2.8~12mm MegaPixel IR Corrected Auto Focus
Varifocal Lens
• 4 Integrated High Power Dynamic IR LEDs with up to 165' IR Range (VTC-
T4B4HR5MD/8MD), 3 Integrated High Power Dynamic IR LEDs with up to
135' IR Range (VTC-T4T4HR5MD/8MD)
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• Double Shutter Wide Dynamic Range (WDR)
• 16:9 Video format
• IP66 Weather Resistance
• Supports Control over COAX (CoC)
• Over 1500' HD Video Transmission (Depending on cable characteristics and
integrity)
• Optional Junction Box Mount Available for Cable Management (VT-TJB04)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty
*Sony Starvis is a registered trademark of Sony
VTC-T4B4HR5MD
VTC-T4T3HR5MD
VTC-T4B4HR8MD
VTC-T4T3HR8MD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-T4B4HR5MD and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek VTC-T4B4HR5MD

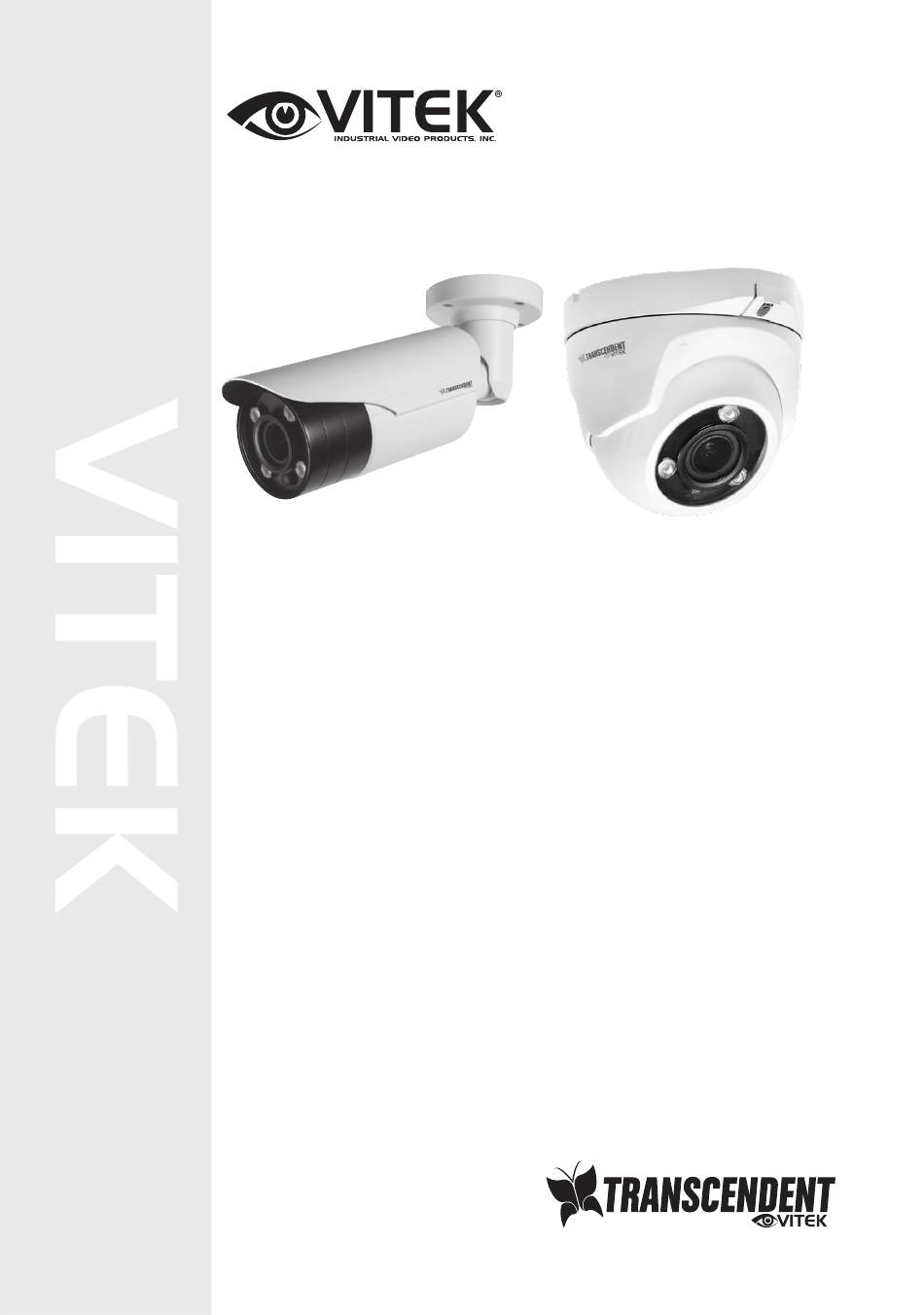

  • Page 1 VTC-T4B4HR5MD VTC-T4T3HR5MD VTC-T4B4HR8MD VTC-T4T3HR8MD 5 and 8 Megapixel 4-in-1 HD-TVI/AHD/CVI/CVBS Motorized Varifocal Bullet and Turret Cameras FEATURES • 1/2.8” 5.69 / 8.51 Megapixel Sony® Starvis™* Progressive Scan CMOS Sensor • 5MP Models: 20fps live view @ 2592 x 1944p • 8MP Models: 15fps live view @ 3840 x 2160p •...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety and Notes ........ 3~4 2. Product Introduction ........ 5 2.1 Production Instruction ......5 2.2 Product Features ........5 3. Product Structure ........6 4. OSD Menu Tree ........7 5. Product Installation ......... 8 5.1 Installation Note ........
  • Page 3: Safety And Notes

    Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
  • Page 4 1. Notes Please use the specified power supply to connect the camera. Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
  • Page 5: Product Introduction

    2. Product Introduction 2.1 Production Instructions This series of cameras uses a CMOS image sensor with high performance, which provides mega pixel resolution and supports HD video. Transmission distance can reach more than 900’ based on RG59 95% coaxial cable. This series can support TVI/ CVI/AHD/CVBS output.
  • Page 6: Product Structure

    3. Product Structure The followings are the dimensions for the bullet and turret cameras in this series: 4. OSD Menu tree...
  • Page 7 Main Menu Secondary menu BRIGHTNESS 0~100 EXPOSURE GLOBAL MODE GAIN HIGH MIDDLE MODE PRO, GRAY WORLD RGAIN 0~100 BGAIN 0~100 DAY/NIGHT MODE AUTO , COLOR, B/W IMAGE ENHANCE CONTRAST AUTO MANUAL 0~20 SHARPNESS AUTO MANUAL 0~20 SATURATION AUTO MANUAL 0~20 3DNR AUTO VIDEO SETTING...
  • Page 8: Product Installation

    LENADJ L+L+R+R+C RESET SAVE&EXIT 5. Product Installation 5.1 Note 1) Make sure the unit is powered off before installation. 2) Make sure to only use specified power to prevent damage to the camera 3) Do not use in environment beyond the boundaries of the temperature and maintain good ventilation to prevent the risk of fire or electric shock.
  • Page 9: Connection

    Installation 5.4 Connection 1) Disconnect power before installation. Connection as shown in the figure below: 2) Confirm proper 12VDC or 24VAC power supply is used to prevent Installation damage to the camera. 3) Do not use in an environment beyond the boundaries of the 1) Disconnect power before installation.
  • Page 10: Appendix: Accessories, Specs

    VT-TJB04 Optional Junction Box for Cable Management including for models: VTC-T4B4HR5MD, VTC-T4T3HR5MD, VTC-T4B4HR8MD, and VTC-T4T3HR8MD...
  • Page 11 Detailed Specifications - VTC-T4B4HR5MD Image Sensor 1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 2592 × 1944 Resolution / Video Output Up to 5MP // TVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps AHD: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps...
  • Page 12 Detailed Specifications - VTC-T4T3HR5MD Image Sensor 1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 2592 × 1944 Resolution / Video Output Up to 5MP // TVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps AHD: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps CVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps Lens Motorized 2.7~13.5mm MegaPixel IR Corrected Varifocal Lens...
  • Page 13 Detailed Specifications - VTC-T4B4HR8MD Image Sensor 1/2.8” 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 3840 × 2160 Resolution / Video Output Up to 8MP // TVI: 4MP@25fps, 4MP@30fps, 5MP@20fps, 8MP@12-5fps, 8MP@15fps, AHD: 4MP@30fps, 5MP@20fps, 8MP@15fps CVI: 4MP@25fps, 4MP@30fps, 8MP@15fps Lens Motorized 2.8~12mm MegaPixel IR Corrected Varifocal Lens...
  • Page 14 Detailed Specifications - VTC-T4T3HR8MD Image Sensor 1/2.8” 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 3840 × 2160 Resolution / Video Output Up to 8MP // TVI: 4MP@25fps, 4MP@30fps, 5MP@20fps, 8MP@12-5fps, 8MP@15fps, AHD: 4MP@30fps, 5MP@20fps, 8MP@15fps CVI: 4MP@25fps, 4MP@30fps, 8MP@15fps Lens Motorized 2.8~12mm MegaPixel IR Corrected Varifocal Lens...
  • Page 15 NOTES...
  • Page 16: Warranty Information

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
