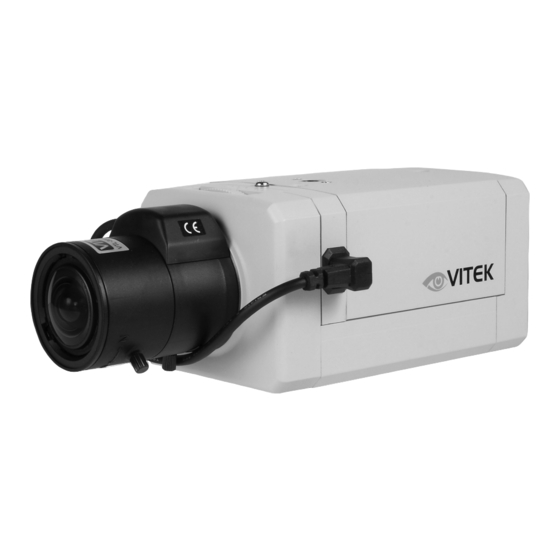

Vitek VTC-C770WDR Manual

Wdr true day and night (icr) camera
Hide thumbs Also See for VTC-C770WDR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

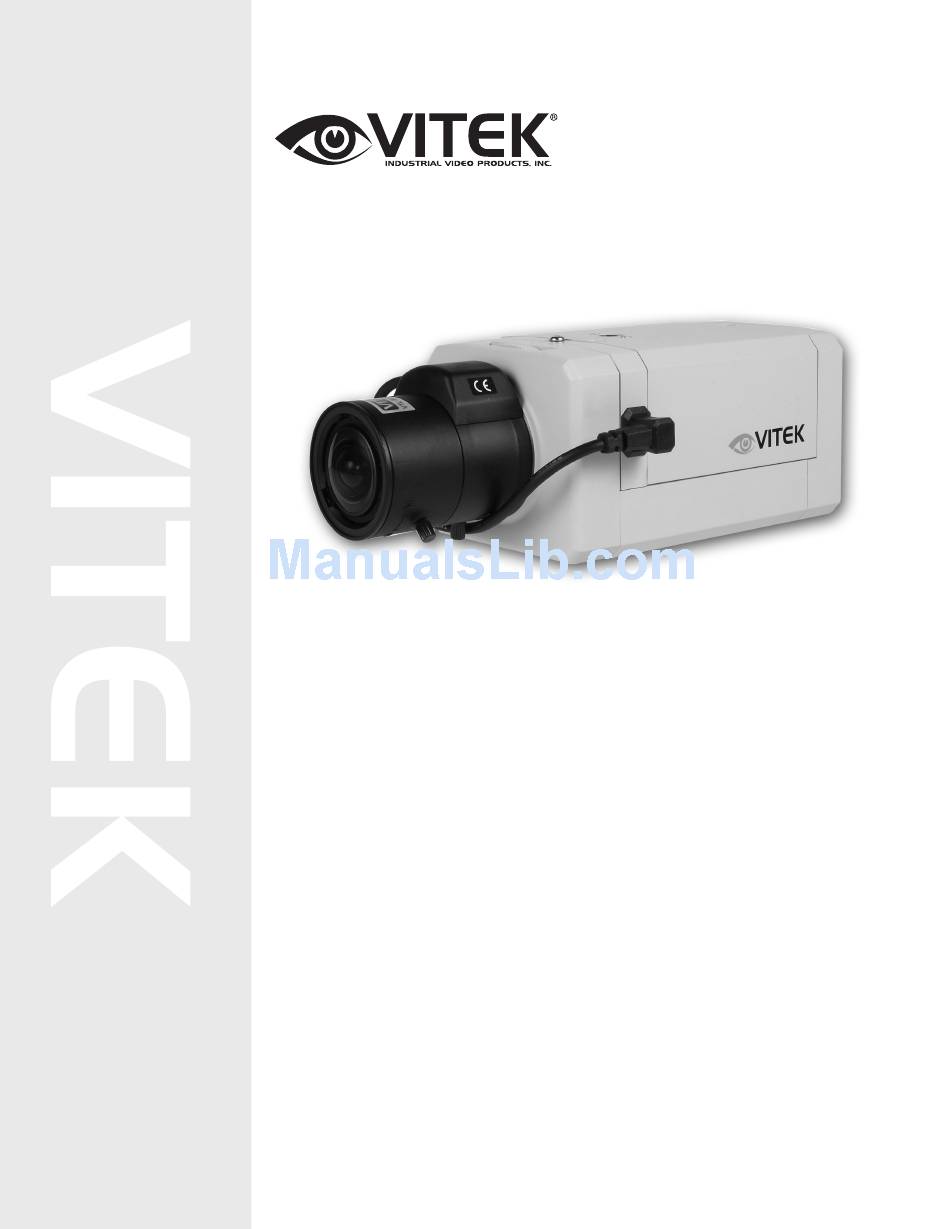

VTC-C770WDR
WDR True Day and Night
(ICR) Camera
• Pixim D8800C Seawolf Digital Imaging System CMOS
• 700TVL High Resolution
• On Screen Display (OSD) Menu
• 3DNR - Three Dimensional Motion Adaptive Noise Reduction
• UTC CONTROL - Serial Control over Coax
• 0.00008 Lux (F1.2@40IRE using sense-up)
• Supports C/CS mount DC drive lenses
• Supports NTSC & PAL Standards
• 4:3 / 16:9 Ratio Scaled Video Output
• CRT / LCD Selectable Video Output Optimization
• 10 - bit ITU DSP
• 4 Metering Zones for WDR Optimization

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-C770WDR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTC-C770WDR

Summary of Contents for Vitek VTC-C770WDR

  • Page 1 VTC-C770WDR WDR True Day and Night (ICR) Camera • Pixim D8800C Seawolf Digital Imaging System CMOS • 700TVL High Resolution • On Screen Display (OSD) Menu • 3DNR - Three Dimensional Motion Adaptive Noise Reduction • UTC CONTROL - Serial Control over Coax •...
  • Page 2 VTC-C770WDR To prevent fire or shock hazard, do not expose the unit to rain or moisture. WARNING The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

  • Page 3: Table Of Contents

    VTC-C770WDR Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation and commissioning Instructions............……………………... 6. Start up…………………................…………………………... 7. Setup Menu………………………………………………..............8. Specifications……………………………………………..............9. Dimensional Drawings…........................

  • Page 4: Safety Instructions And Notes

    Notice -- The images used in this manual are processed to help comprehension and may differ from actual video of the camera. 2. General Descriptions VTC-C770WDR (VTC-C770WDR/PAL for PAL)) is a superb wide dynamic range camera which achieves 120dB max (102dB typical) dynamic range of the image by implementing PIXIM's Seawolf digital imaging system.

  • Page 5: Supplied Items

    VTC-C770WDR With 24VAC/12VDC dual power design: - Offers flexibility of installation - Ensures reliability Main features are; • Pixim D8800C Seawolf Digital Imaging System CMOS • 700TVL High Resolution • On Screen Display (OSD) Menu • 3DNR - Three Dimensional Motion Adaptive Noise Reduction •...

  • Page 6: Part Names

    VTC-C770WDR 4. Part Names 4.1 Front view ① ② Back Focus Adjustment Dust Protection Cap ③ Lens connector for auto iris lenses ④ Back focus Adjustment Lock Screw ⑤ Camera Mount Hole (Top and Bottom) - Lens Connector for Auto-iris lens (DC Drive)

  • Page 7: Installation And Commissioning Instructions

    VTC-C770WDR 4.2 Rear side view ⓑ ⓐ ⓒ ⓓ OSD menu switches (Up/ Down/ Left/ Right / Enter) ⓐ Video Output Connector (BNC) ⓑ Power indicator LED ⓒ Power Input Terminal ⓓ 5. Installation and commissioning Instructions • Make sure the power is removed before the installation.

  • Page 8: Start Up

    VTC-C770WDR 5. Rotate Back Focus Adjustment until the optimum focus is achieved. 6. Tighten Back focus Adjustment Lock Screw again. 7. Trim the focus precisely at lens if necessary. Setting for lenses with a variable focal distance (zoom): If the focus changes as the focal distance changes, please proceed as follows.

  • Page 9: Setup Menu

    VTC-C770WDR 7. SETUP 7.1 In the menu buttons to move the menu, buttons to change the settings and press button to select or enter. button stands for MENU or ENTER button. 7.2 Entering menu Press button longer for than 2 seconds on the back of the camera.
  • Page 10 VTC-C770WDR 7.4 EXPOSURE To enter EXPOSURE menu, press button at MAIN>EXPOSURE. EXPOSURE Default Descriptions EXPOSURE Descriptions In NTSC system, the entire color tone on the monitor may continuously <WDR MID> Medium level of the dynamic range control for each PRESETs.
  • Page 11 VTC-C770WDR 7.5 DAY/NIGHT To enter EXPOSURE menu, press button at MAIN>DAY/NIGHT>AUTO... IMPORTANT!!! IMPORTANT!!! DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the final step of the installation. Block the lens for a few seconds for NIGHT mode and release and let it return to DAY mode.
  • Page 12 VTC-C770WDR 7.6 3D NR To enter EXPOSURE menu, press button at MAIN>3D NR 3D NR Default Descriptions Determines the depth of Three Dimensional Noise Reduction. High value effectively reduces the noise but a comet effect may occur DEPTH for a fast moving object and vice versa.

  • Page 13: Picture Control

    VTC-C770WDR 7.8 PICTURE CONTROL To enter the EXPOSURE menu, press button at MAIN>PICTURE CONTROL. PICTURE Factory Descriptions CONTROL Default Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL. ATW NORMAL – Compensates automatically in range of 2800K-7500K. ATW DESAT – Compensates automatically in range of 2000K-11000K.
  • Page 14 VTC-C770WDR SPECIAL Default Descriptions If it is set to ON and motion is detected, MOTION message will MOTION appear on the monitor. See ‘7.9.1 MOTION ’ for settings. PRIVACY If set to ON, it is available up to 6 privacy masks.

  • Page 15: Privacy Area

    VTC-C770WDR 7.9.2 PRIVACY AREA Up to 6 privacy areas can be programmed in size, position and mask color. Use joystick to change size, position and mask color. Right after pressing button at ON, the 1st Image after pressing button again. (1st zone appears on top-left corner in orange.

  • Page 16: Rs485 Control

    Description CONTROL CAMERA ID Determines the camera’s identification (between 1 and 255) ID DISPLAY Displays camera title on top-left corner of the screen. PROTOCOL VITEK VITEK is available only. BAUD RATE 2400 Select 2400/4800/9600/19200 bps. 7.10 D-EFFECT D-EFFECT Default Description FREEZE Image freezes and shows the still image at the moment when set to ON.
  • Page 17 VTC-C770WDR 7.16 EXIT MENU-2 Descriptions EXIT Exits menu with discarding any changes. SAVE AND EXIT Exits menu after saving the parameters. Restores and saves all parameters of factory settings. FACTORY SET Camera resets and restarts automatically.

  • Page 18: Specifications

    VTC-C770WDR 8. Specifications Model name VTC-C770WDR VTC-C770WDR/PAL Image Device Pixim D8800C Seawolf Digital Imaging System CMOS Effective Pixels 768(H) x 540(V) TV system NTSC Scan frequency. 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H) Synchronization Internal/Line lock (Default: Internal) H. Resolution 700TV Lines Sensitivity 0.0008Lux at F1.2@40IRE, 32x (DSS+ICR mode)

  • Page 19: Dimensional Drawings

    VTC-C770WDR 9. Dimensional Drawings...
  • Page 20 VTC-C770WDR...
  • Page 21 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller.
  • Page 22 VTC-C770WDR...
  • Page 23 VTC-C770WDR...
  • Page 24 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...

This manual is also suitable for:

Vtc-c770wdr/pal
