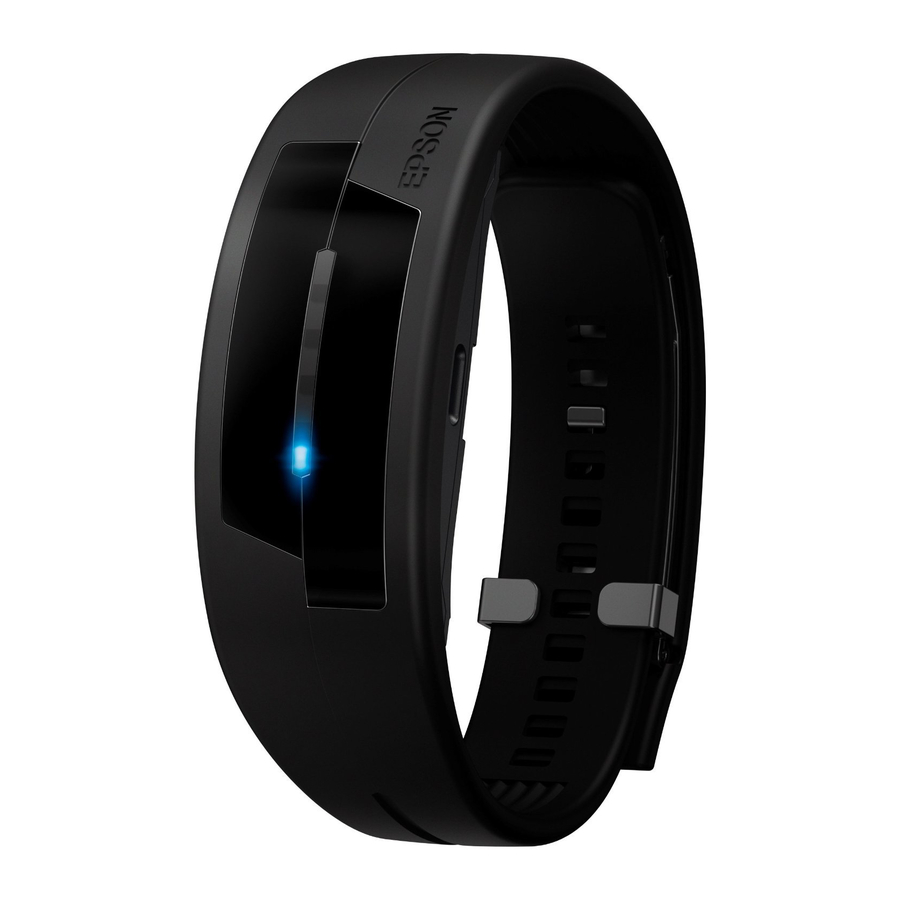

  • Page 1 PS-100 Series User’s Manual...

  • Page 2: Introduction

    Indicate related pages. Click the link in blue text to display the related page. Trademarks EPSON and EXCEED YOUR VISION are registered trademarks of the Seiko Epson Corporation. Microsoft and Windows are registered trademarks of the Microsoft Corporation in the United States of America and other countries.

  • Page 3: System Requirement

    ® PS-100 has Bluetooth Smart to transfer data to PULSENSE View. Uploaded data can be seen via PULSENSE View for Web (URL: go-wellness.epson.com). Use the PULSENSE View for iOS, Android on your smart device. ® To upload your data from PS-100 Your data will be transferred via Bluetooth Smart.

  • Page 4: Table Of Contents

    Contents Introduction Description in the User’s Manual .................. 2 Trademarks........................2 Caution: ........................2 System Requirement ....................3 Contents Using this Device Safely Symbols in this manual ....................6 Notes on Using the Product and Components ............7 Notes on using the cradle ..................8 Regulatory and Safety Notices ..................
  • Page 5 Appendix Product Specification ....................37 Device Specifications ..................... 37 Cradle Specification ....................37 Options specifications .................... 37 Troubleshooting Caution ........................40 Problem Solving ......................41 System Reset ......................42 Contacting us ......................43 Contents  5...

  • Page 6: Using This Device Safely

    Using this Device Safely Make sure you read the manuals (Quick Start Guide and User’s Manual) first to use this product safely. The product may malfunction, or an accident may occur if it is handled incorrectly. - Keep the manuals handy to help you resolve any problems. - When taking this product out of the country of purchase, check the laws and regulations in the destination country before you travel.

  • Page 7: Notes On Using The Product And Components

    Notes on Using the Product and Components Warning Exercise according to your physical capabilities. Stop exercising and consult your doctor if you feel unwell during exercise. This product is a highly accurate sensor and able to measure your pulse rate; However, this is not a medical device.

  • Page 8: Notes On Using The Cradle

    Data communication between the smartphone and product is made by Bluetooth Low Energy which operates in the 2.4GHz band. Hereby, SEIKO EPSON, declares that this PS-100 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 9 Warning In areas in which usage is restricted, such as on airplanes and in hospitals, follow the rules and regulations provided (such as in-flight announcements). Do not use the device if you have a surgically implanted medical device such as cardiac pacemaker.

  • Page 10: Set Up And Basic Operation

    Set up and Basic Operation You need to make the following preparations before use. “Things You Can Do with the Product” on page 11 box” on page 12 “What’s in the “Getting Started” on page 13 “Initial Configuration” on page 19 Set up and Basic Operation ...

  • Page 11: Things You Can Do With The Product

    Things You Can Do With The Product Measuring items Items Contents Heart rate The PS-100 reads and records your heart rate from the changes in light reflected through the blood vessels in your wrist. Calories PULSENSE calculates the actual burned calories based upon the body motion and the heart rate information, which is related very closely to the calories burned, enabling more detailed calorie calculation.

  • Page 12: What's In The Box

    What’s in the box Contact your reseller if there are any missing or damaged components. PS-100 Charging Cradle Quick Start Guide Information sheet Options You can purchase the following optional extras. Contact your local reseller for more information. AC Adapter AC Adapter （SFAC02 for Europe excluding UK and （SFAC03 for UK and Ireland.）...

  • Page 13: Getting Started

    Getting Started To record your data ! Important To record your data it is necessary to register your device with the PULSENSE View PC or smart device application. How to cancel the battery protection mode ! Important - You need to charge the product when using it for the first time. - The product automatically turns on when being charged.
  • Page 14 ! Important Before you place the product to the charging cradle, please check the below illustration. Insert charging cradle’s USB cable into the USB port on your PC Note: ® You can use a PC to charge your PS-100, but not to upload any data. PS-100 requires Bluetooth Smart to upload data.
  • Page 15 Using an AC adapter Connect the charging cradle with the AC adapter, and then insert the AC adapter into the power socket. We recommend using the specified AC adapter (SFAC03 for UK and Ireland. SFAC02 for Europe excluding UK and Ireland.) Note: - An orange LED will be shown while charging and the LED will change to blue when the PS-100 is fully charged...

  • Page 16: Start-Up Operation

    Detach the charging cradle from the product Press the clip and push from behind with your finger to release the product. The product will be ready for configuration when fully charged and detached from the charging cradle. Start-up operation: All LEDs light up in sequence and the PS-100 will vibrate ! Important - Pair with your smart device after purchase.

  • Page 17: Wearing The Ps-100

    Wearing the PS-100 Note: When wearing the product, make sure it does not touch the bone on your wrist. Wear the product closely around your wrist. Tighten the wrist band if your pulse is not measured correctly while exercising. Note: Do not wear the product too tight.
  • Page 18 Unfasten the buckle of the wristband as shown below. Insert the band fastener into the hole number you checked in step 3. The following figures are of a fastener inserted at "wristband adjustment hole" L7. Put your hand through the wristband and fasten the buckle. When wearing the product, make sure it does not touch the bone.

  • Page 19: Initial Configuration

    You need to perform initial configuration before using the PS-100 for the first time. Create a PULSENSE View account and connect to a smart device. Smart device user Search your smart device's app store for the dedicated application Epson PULSENSE View (free), and then install it. ®...
  • Page 20 You need to set up a PULSENSE View account and follow the on-screen instructions. Once you have created your account and completed your profile, follow the on-screen instructions to pair your PS-100 with your smart device. Once pairing is completed the LEDs will light up twice in sequence and the above screen is displayed on the smart device.
  • Page 21 Attach the PS-100 to the cradle to cancel the battery protection mode. ® Enable Bluetooth communication on your smart device. To check smart device compatibility follow this link www.epson.eu/pulsense Ensure your smart device is connected to the Internet. ® Remove any other PULSENSE product that could interfere with the Bluetooth communication.

  • Page 22: How To Use

    How to Use This product measures heart rate and activity 24 hours a day, tracking your steps, distance, calories, sleep quality and heart rate across five zones helping you to make better lifestyle choices. “Heart rate measurement” on page 23 “Low battery notification”...

  • Page 23: Heart Rate Measurement

    Heart rate measurement Heart rate detection Heart rate detection starts when the product is moved and the LEDs flash in sequence as shown belo w. Note: Heart rate detection will stop if the product is not worn and has not been moved for three minutes. Heart rate detection will start again when the product has been moved.

  • Page 24: Heart Rate Zones

    When the heart rate can’t be detected Issue How to solve It is likely that the device is not Wear the product closely around fitted correctly onto your wrist. your wrist. Tighten the wrist band if your pulse is not measured correctly.
  • Page 25 Note: - Your initial heart rate zones are calculated by your profile data. When using the PS-100 overnight the heart rate zones will be adjusted according to your basal heart rate (minimum heart rate). - You can check your real time heart rate (updated every four seconds) in the PULSENSE View app. Swipe the tab located in the middle at the top of the screen to the bottom in order to display the real- time meter.

  • Page 26: How To Stop And Resume Heart Rate Measurement

    How to stop and resume heart rate measurement Heart rate detection will stop if the product is not worn and has not been moved for three minutes. Heart rate detection will start again when the product has been moved. The below LED pattern will be shown when the PS-100 has been removed from your wrist. Note: Place the product onto a flat surface when you stop measurement.

  • Page 27: Low Battery Notification

    Low battery notification If the remaining battery level is low, the orange LED will flash every 4 seconds. Once the remaining battery level is down to 1 hour, the orange LED flashes every second for 30 seconds. After this hour the PS-100 will stop measuring heart rate until the device has been charged. How to Use ...

  • Page 28: Airplane Mode

    Airplane Mode Wireless communication needs to be switched OFF during a flight. Set the product to Airplane Mode before take-off. Also, when transporting the product it is recommend using this mode. Repeatedly tap the LED plate of the product as shown below. ! Important If you tap the PS-100 continuously as shown above while the device is connected to the charging cradle the pairing settings will be deleted.

  • Page 29: Turn Off Airplane Mode

    Turn off Airplane Mode Repeatedly tap the LED plate of the product as shown below The LEDs will light up and display the below pattern to confirm it is still in Airplane Mode. Keep tapping until the LEDs go out. The product will resume heart rate measurement and wireless communication.

  • Page 30: Additional Functions

    Additional Functions “Notification Settings” on page 31 “Wake-up Alarm” on page 31 Additional Functions  30...

  • Page 31: Notification Settings

    Notification Settings Depending on your settings the product can alert you by vibration and/or LEDs when you receive an E-mail, call or calendar notifications on your smart device. To alert you the LEDs will light up six times as shown in the below pattern and will vibrate once if vibrate is enabled in the settings.

  • Page 32: Maintenance

    Maintenance “Looking after your device” on page 33 “Replacing the Battery” on page 34 “Updating the Firmware” on page 35 Maintenance  32...

  • Page 33: Looking After Your Device

    Looking after your device Clean the PS-100 regularly. Wipe the product with a slightly moist soft cloth and then dry, or use a soft brush. Important: Avoid water, sweat or dirt build up between your skin and the product as it could lead to skin irritations. About the wristband The wristband is made of silicon which could lose its elasticity and colour over time.

  • Page 34: Replacing The Battery

    Replacing the Battery You cannot replace the built-in rechargeable battery. Maintenance  34...

  • Page 35: Updating The Firmware

    When updating the firmware, the history may be deleted and settings may be initialised. For more details on updating by smart device, see the following website. www.epson.eu/pulsense Before updating the firmware, we recommend uploading your measurement data to PULSENSE View.

  • Page 36: Appendix

    Appendix “Product Specification” on page 37 Appendix  36...

  • Page 37: Product Specification

    Product Specification Device Specifications Contents Specification Model PS-100 45mm ｘ 22mm ｘ 12.5mm (excluding sensor unit） Size (LxWxH) 1.77in ｘ 0.87in ｘ 0.49in (excluding sensor unit） S/M: 30g Weight M/L: 31g S/M:135mm-160mm (5.31in-6.30in) Wrist Size M/L:150mm-210mm (5.91in-8.27in) Battery Rechargeable Lithium Polymer 40mAh Battery Life(Heart rate ON) Approx.
  • Page 38 AC adapter Contents Specifications SFAC02 for Europe excluding UK and Ireland. Model SFAC03 for UK and Ireland. Input AC 100-240V 50/60Hz Output DC 5V / 1.0A Appendix  38...

  • Page 39: Troubleshooting

    Troubleshooting This section explains how to solve problems that occur during use. “Caution” on page 40 “Problem Solving” on page 41 “System Reset” on page 42 “Contacting us” on page 43 Troubleshooting  39...

  • Page 40: Caution

    Caution ・ Clean the PS-100 regularly. Wipe the product with a slightly moist soft cloth and then dry, or use a soft brush. Do not use the cradle or AC adapter if they are in any way damaged, faulty or contaminated by foreign material such as dust, water or dirt.

  • Page 41: Problem Solving

    Problem Solving Check each item. Problem Solution LED is not ON or Flashing. After buying the product, the PS-100 is in battery protection mode. Set product to the cradle and connect to a USB port to charge the device and terminate the battery protection mode.

  • Page 42: System Reset

    System Reset If device operations become unstable, perform a system reset by connecting the product to the cradle. Charging resets the system, and returns the product to normal operation. “Problem If this suggestion does not solve your problem, check Solving” on page 41. Troubleshooting ...

  • Page 43: Contacting Us

    Contacting us Go to www.epson.eu/pulsense for service contact details. EPSON EUROPE B.V. Address: Atlas Arena, Azië building, Hoogoorddreef 5, 1101 BA Amsterdam Zuidoost, The Netherlands Troubleshooting  43...
