Page 1: Installation Instructions

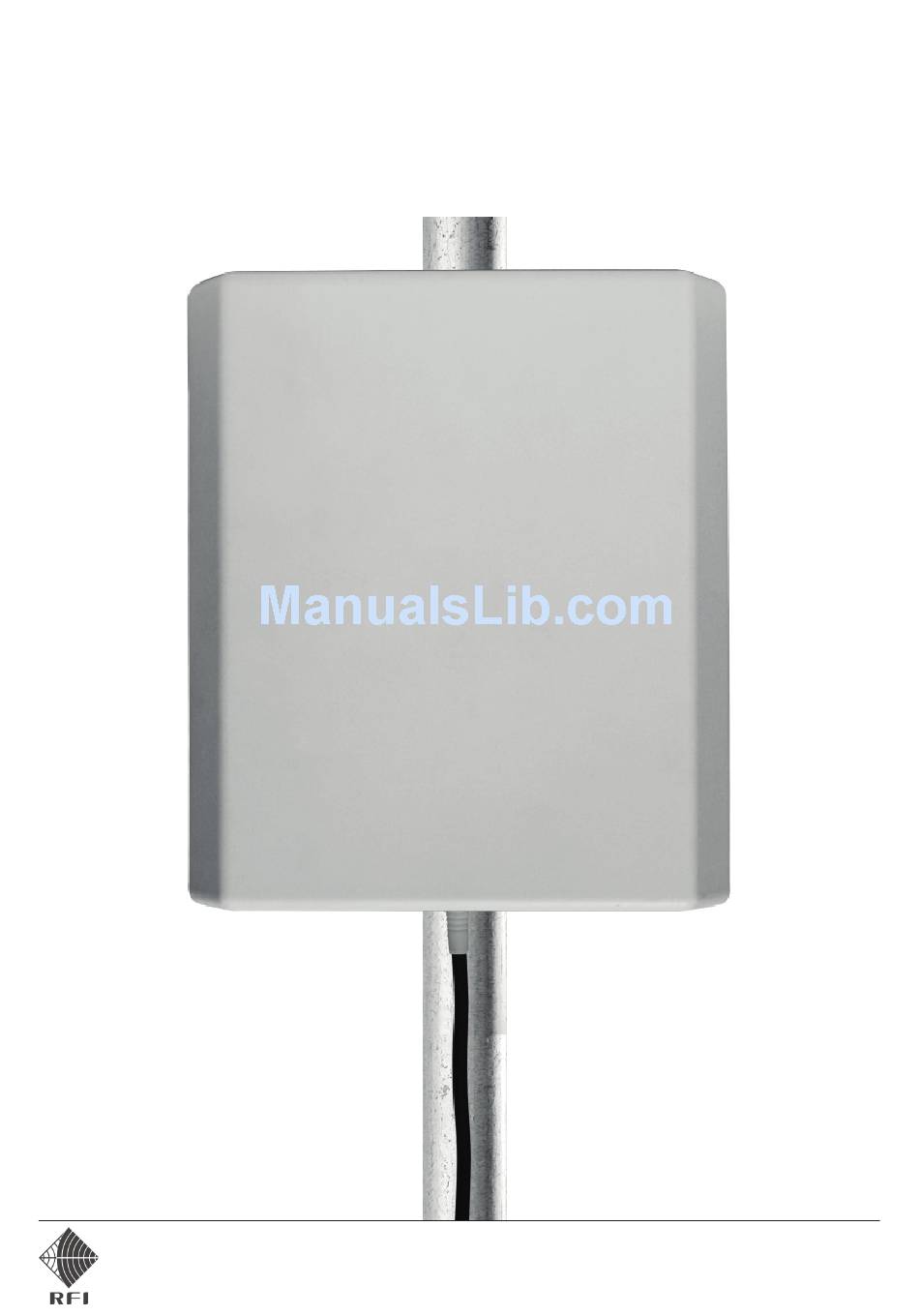

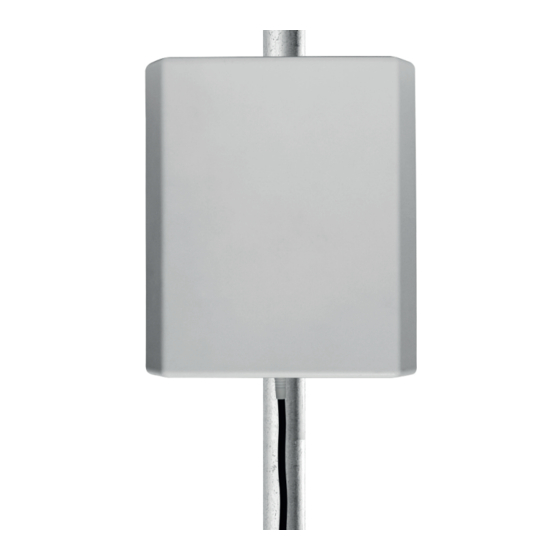

OUTDOOR PANEL ANTENNA INSTALLATION INSTRUCTIONS Model: CPL824-2500-10SMA INS-40877-17 rfi.com.au... - Page 2 INTRODUCTION Thank you for purchasing this RFI Outdoor Panel Antenna. The antenna offers high gain, multi-band performance covering all cellular networks in Australia (7dBi at 824-960MHz & 10dBi at 1800/2100/2400MHz). It is designed to provide extra signal strength to your wireless broadband service or mobile phone and can be mounted either inter- nally or externally.
-
Page 3: Pole Mounting
Place the antenna in your selected location and rotate it in 15-20 degree increments. In each position, check & record your signal strength. You may need to wait for up to a minute for the signal strength indicator to update. When you find to best signal strength, mount the antenna facing in this direction. - Page 4 Wall Mounting - Choose a suitable place (refer to Installation of Antenna) and fix the wall bracket using the mount accessories. - Hang the Panel antenna in the on the screws. COMPLETING THE INSTALLATION If you have not already done so, you can connect the cable to the antenna and your data devise. IMPORTANT: For maximum signal, we recommend external mounting to reduce signal losses caused by building structures etc.
