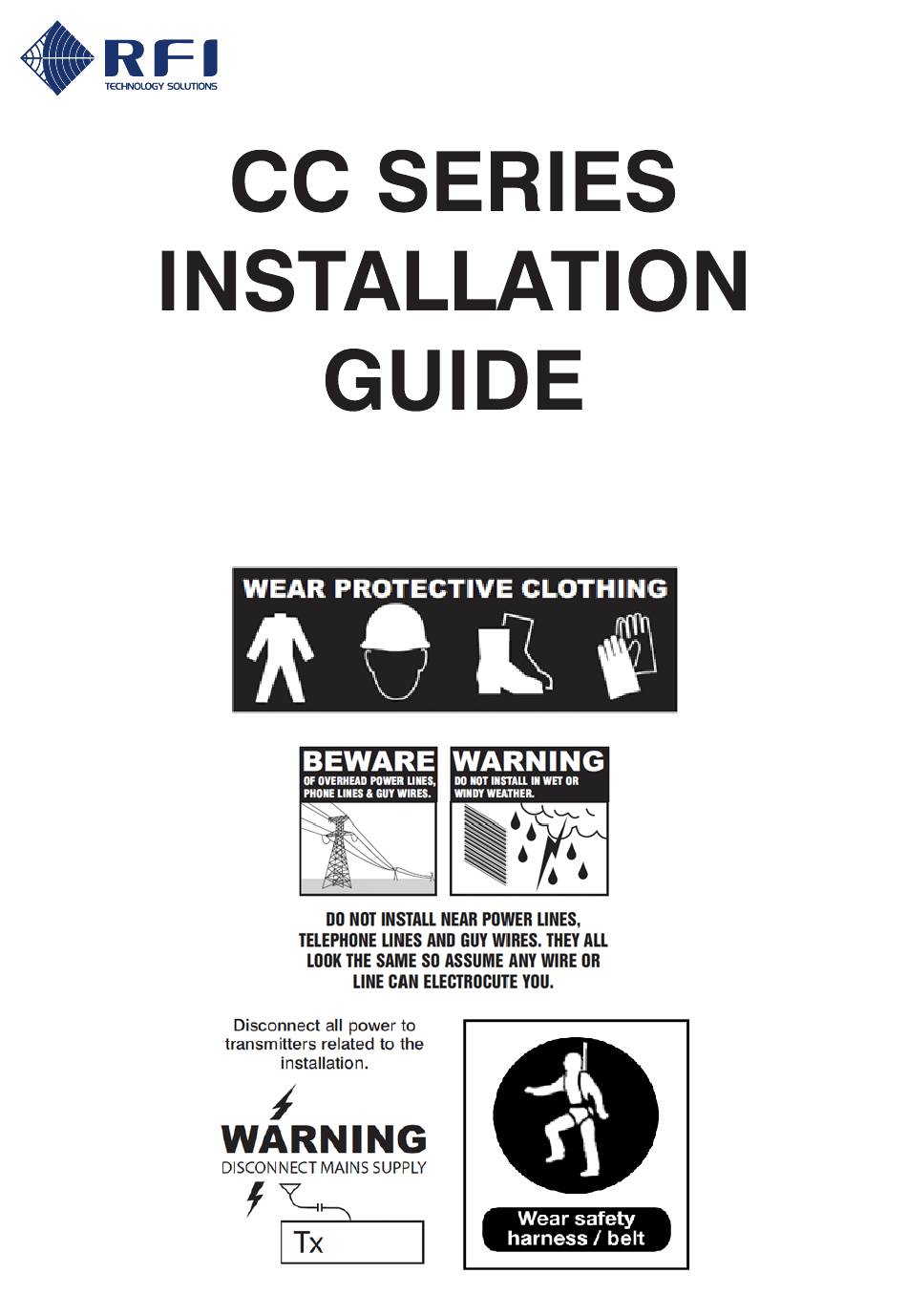

- Page 1 Please Ensure SAFETY AT ALL TIMES INS-41395-2...
- Page 2 Tools and equipment that may be required: Sealing tape Electrical tape Torque wrench Spanner / Shifter VSWR meter Measuring tape Any QUESTIONS contact your RFI representative. 1. Check Carton tube before taking out antenna to check for transport damage. INS-41395-2 www.rfiwireless.com.au...
- Page 3 2. Check VSWR of antenna before installation 3. Install antenna upright (normal mounting) or upside down (inverted mounting) INS-41395-2...
- Page 4 3.1 Install antenna upright (normal mounting) or upside down (inverted mounting) Take out the screw-Style drain hole plug and refit to the drain hole at the connector block Antenna Mounting Tube Antenna Base Connector Block Antenna Radome Antenna Mounting Tube Antenna Top Cap Drain hole Converting drain hole to Inverted Mounting...
- Page 5 4. SPACING, Antenna to STRUCTURE and CLAMPING dimensions Minimum Antennas to Structure spacing Clamping dimensions Band Frequency MHz Inches Inches 31.1 19.7 800 MHz 746 - 870 19.7 Top Mounting Side Mounting 2”(50mm) 2”(50mm) 2”(50mm) 5. VSWR test the antenna after mounting. VSWR <1.5:1 Full Band Coverage INS-41395-2...
- Page 6 6. Torque connector (s) and weatherproof. Drain loop must be applied. Connector Torque Din = 18-22lbs/ft (25-30 Nm) 6.1 Screw together and tighten based NOTE: DO NOT BLOCK on above specifications. DRAIN HOLE 6.1 Seal connectors with suitable tape. 6.3 Drain loop applied. 7.
