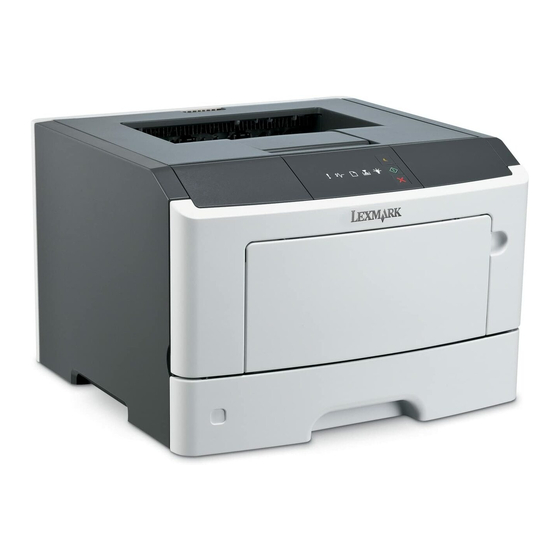

  • Page 1 MS310d/dn, MS312dn, MS315dn, MS410d/dn, MS415dn, MS510dn, MS610dn/dtn/de/dte, MX310dn, MX410de, MX510de, MX511de/dhe, MX610de, MX611de/dhe Technical Reference May 2014 www.lexmark.com...

  • Page 2: Edition Notice

    May 2014 The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

  • Page 3: Table Of Contents

    Appendix A: PCL support...................21 PCL emulation commands..........................21 GL/2 commands..............................27 Appendix B: PJL support..................30 Common variables for both printer languages....................30 Lexmark‑unique PJL variables for both printer languages................32 Common variables for PCL emulation.......................42 Lexmark‑unique variables for PCL emulation....................42 Common variables for PostScript emulation.....................43...
  • Page 4 Contents Lexmark‑unique variables for PostScript emulation..................43 Lexmark‑unique LRESOURCE variables......................43 Status Readback commands..........................44 USTATUS unsolicited status variables.......................44 PJL messages for auto-continuable conditions....................45 PJL messages for attendance conditions......................53 PJL messages for paper handling........................74 PJL messages for paper jams..........................78 Service errors..............................84 Device attendance messages..........................84 Lexmark‑unique PJL commands........................84...

  • Page 5: Introduction

    Introduction Introduction Overview This edition of the Technical Reference contains information about the following printers or multifunction printers (MFPs): MS310d MS310dn MS312dn MS315dn MS410d MS410dn MS415dn MS510dn MS610dn MS610dtn MS610de MS610dte MX310dn MX410de MX510de MX511de MX511dhe MX610de MX611de MX611dhe Understanding letters after model numbers Some Lexmark printers may have one or more letters after the model number to indicate features.

  • Page 6: Learning About The Printer

    Caring for and maintaining the printer • Troubleshooting and solving problems Information on setting up and configuring the accessibility features Lexmark Accessibility Guide—This guide is available at of your printer http://support.lexmark.com. Help using the printer software Windows or Mac Help—Open a printer software program or application, and then click Help.

  • Page 7: Printer Control Language (Pcl) Page Formatting

    Printer Control Language (PCL) page formatting Printer Control Language (PCL) page formatting For more information on PCL, see the Printer Languages and Interfaces Technical Reference. It contains a complete listing with descriptions of PCL commands. To determine which PCL commands your printer supports, see “Appendix A: PCL support”...
  • Page 8 8.27 inches (210 mm) and 8.5 inches (215.9 mm). Area dimensions for this paper are listed in pel ranges. Paper ID 99 is supported for backward compatibility with other Lexmark printers. It has the same logical paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.

  • Page 9: Printer Job Language (Pjl)

    Printer Job Language (PJL) Printer Job Language (PJL) PJL commands information Your printer supports complete PJL commands, including certain commands that cause the printer to enter PCL emulation, PostScript emulation, and Personal Printer Data Stream (PPDS). For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical Reference. To determine which commands your printer supports, see “Appendix B: PJL support”...

  • Page 10: Postscript (Ps) Emulation

    This is a Japanese Industry Standard (JIS) paper size. The same named designation is used by the JIS and International Organization for Standardization (ISO) for different paper sizes. This is a Lexmark‑unique paper size. This is an official PostScript paper size.

  • Page 11: Postscript Paper Tray Support

    PostScript (PS) emulation PostScript paper tray support When the printer receives one of the operators listed in “Tray selected with tray operators” on page 11, it performs the actions listed in this section. This paper tray selection process ends when a suitable paper source is chosen and paper is fed from that source.

  • Page 12: Postscript Envelope Size Support

    PostScript (PS) emulation = Supported X = Not supported Printer model Operator Tray selected MS310, MS312, MS315, MX310, MX410, MX610, MX611 (corresponding image size MS410, MS415, MS510, MX510, MX511 is set) MS610 foliotray Tray with folio-size paper ledgertray Tray with ledger‑size paper legaltray Tray with legal-size paper lettertray...

  • Page 13: Postscript Envelope Tray Support

    PostScript (PS) emulation Literal names supported = Supported X = Not Supported Literal names Printer model Literal name Compatible literal name MS310, MS312, MS315, MX310, MX410, MX510, MX610, MX611 MS410, MS415, MS510, MX511 MS610 b5envelope 176x250envelope c5envelope 162x229envelope com10envelope 4.125x9.5envelope dlenvelope 110x220envelope monarcenvelope...
  • Page 14 PostScript (PS) emulation = Supported X = Not supported Tray operators Printer model Operator Tray selected (corresponding image size is MS310, MS312, MX310, MX410, MX610, MX611 set) MS315, MS410, MX510, MX511 MS415, MS510, MS610 110x220envelopetray Tray with 110 x 220‑size envelopes dlenvelopetray Tray with 110 x 220‑size envelopes 162x229envelopetray...

  • Page 15: Printer Specifications

    Printer specifications Printer specifications Airflow requirement The room should meet ASHRAE 62—1989 standards. Noise emission levels The following measurements are in accordance with ISO 7779 and in conformance with ISO 9296. 1-meter average sound pressure, dBA MS310, MS315 MS410, MS510, MX310 MX410 MX510,...

  • Page 16: Electrical Specifications

    Warning—Potential Damage: Do not use voltage converters with printers. Power requirements The following table specifies the nominal average power requirements for the base configuration, including fuser power. Lexmark MS310, MS312, MS315, MS410, MS415, MS510, MS610dn, and MS610de nominal average power requirements State...

  • Page 17: Physical Specifications

    Average power while scanning continuously (Watts) ADF scan Typical Electricity Consumption (kWh) Normal mode Eco-Mode Savings 8.42% 9.98% 9.92% 11.64% Lexmark MS310, MS312, MS315, MS410, MS415, MS510, MS610dn, and MS610de average current while printing (Ampere) State MS310 MS312 MS315 MS410 MS415 MS510 MS610dn MS610de 100–110 V...

  • Page 18: Clearance Requirements

    Printer specifications Printer model Height Width Depth Weight with cartridge and imaging unit (unpackaged) MS610de 305.9 mm (12.1 in.) 399 mm (15.7 in.) 396.5 mm (15.6 in.) 16.2 kg (35.7 lb) MS610dte 414 mm (16.3 in.) 399 mm (15.7 in.) 396.5 mm (15.6 in.) 20.9 kg (46.1 lb) Multifunction printer dimensions (unpackaged)

  • Page 19: Environmental Conditions

    Printer specifications Clearance requirements for the MFP Printer model Left side Right side Front Rear MX310, MX410 65 mm (2.56 in.) 110 mm (4.33 in.) 304.8 mm (12 in.) 100 mm (3.94 in.) 243.8 mm (9.6 in.) MX510, MX511 65 mm (2.56 in.) 110 mm (4.33 in.) 304.8 mm (12 in.) 100 mm (3.94 in.)

  • Page 20: Altitude And Atmospheric Pressure Specifications

    Printer specifications Shock specification Printer model Specification MS310, MS312, MS315, MS410, MS415, MS510, MS610 Withstand a drop from 3 cm height (print quality not guaranteed). MX310, MX410, MX51x, MX61x Withstand a drop from 3 cm height (print quality not guaranteed). Altitude and atmospheric pressure specifications Altitude specifications Altitude...

  • Page 21: Appendix A: Pcl Support

    Appendix A: PCL support Appendix A: PCL support PCL emulation commands = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Decimal 8 Backspace (BS) Decimal 9 Horizontal Tab (HT) Decimal 10 Line Feed (LF)
  • Page 22 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Character Text Path Direction &c#T Disable Underline &d@ Collation ‑ Collated Copies &d#A (QTY) Select Underline Type &d#D...
  • Page 23 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Set Page Length & Simplex/Duplex & Job Separation & Left (Long-Edge) Offset & Registration Set Copy Count &...
  • Page 24 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Select Secondary Download Font (by Font ID) Select Default Secondary Font Secondary Font Stroke Weight )s#B Secondary Font Pitch )s#H...
  • Page 25 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Symbol Set Control *c#S Set Picture Frame Anchor Point *c0T Vertical Rectangle Size *c#V (in Decipoints) Define Pattern...
  • Page 26 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Set Status Readback Location *s#T Type Set Status Readback Location *s#U Unit Echo *s#X Raster Width (Destination) *t#H...

  • Page 27: Gl/2 Commands

    Appendix A: PCL support GL/2 commands = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Arc Absolute Anchor Corner Define Alternate Font Arc Relative Arc Absolute Three Point Bezier Relative Bezier Absolute Character Fill...
  • Page 28 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Fill Type Fill Type - 22 Fill Type - 9 Initialize Input P1 and P2 Input Relative P1 and P2 Input Window Line Attributes...
  • Page 29 Appendix A: PCL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command Function MS610 MX510, MX511 MX610, MX611 Fill Rectangle Relative Arc Relative Three Point Select Alternate Font Scalable/Bitmapped Fonts Scale Define Standard Font Absolute Character Size Character Slant...

  • Page 30: Appendix B: Pjl Support

    Appendix B: PJL support Appendix B: PJL support Common variables for both printer languages = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 AUTOCONT AUTOSELECT BINDING BITSPERPIXEL CLEARABLEWARNINGS CONTEXTSWITCH...
  • Page 31 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 INTRAY1SIZE INTRAY2SIZE INTRAY3SIZE INTRAY4SIZE INTRAY5SIZE IOBUFFER IOSIZE JOBATTR JOBNAME JOBOFFSET LANG LOWTONER MANUALFEED MEDIASOURCE MEDIATYPE MPTRAY...

  • Page 32: Lexmark-Unique Pjl Variables For Both Printer Languages

    RESOLUTION RESOURCESAVE RESOURCESAVESIZE STRINGCODESET TIMEOUT USERNAME VERIFYJOBTIMEOUT WIDEA4 This applies only to MX510 and MX511. Lexmark‑unique PJL variables for both printer languages = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name...
  • Page 33 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LBONDLENGTH LBONDLOADING LBONDOUTBIN LBONDTEXTURE LBONDWEIGHT LBOTTOMMARGINOFFSET LBWLOCK LCANCEL LCARDSTOCKLENGTH LCARDSTOCKLOADING LCARDSTOCKOUTBIN LCARDSTOCKTEXTURE LCARDSTOCKWEIGHT LCOLLATION LCOLORBALANCEBLACK LCOLORBALANCECYAN...
  • Page 34 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LCUSTOMPAPERFEED LCUSTOMTYPE1LENGTH LCUSTOMTYPE1LOADING LCUSTOMTYPE1MEDIA LCUSTOMTYPE1NAME LCUSTOMTYPE1OUTBIN LCUSTOMTYPE1TEXTURE LCUSTOMTYPE1WEIGHT LCUSTOMTYPE2LENGTH LCUSTOMTYPE2LOADING LCUSTOMTYPE2MEDIA LCUSTOMTYPE2NAME LCUSTOMTYPE2OUTBIN LCUSTOMTYPE2TEXTURE LCUSTOMTYPE2WEIGHT LCUSTOMTYPE3LENGTH...
  • Page 35 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LCUSTOMTYPE5LENGTH LCUSTOMTYPE5LOADING LCUSTOMTYPE5MEDIA LCUSTOMTYPE5NAME LCUSTOMTYPE5OUTBIN LCUSTOMTYPE5TEXTURE LCUSTOMTYPE5WEIGHT LCUSTOMTYPE6LENGTH LCUSTOMTYPE6LOADING LCUSTOMTYPE6MEDIA LCUSTOMTYPE6NAME LCUSTOMTYPE6OUTBIN LCUSTOMTYPE6TEXTURE LCUSTOMTYPE6WEIGHT LDOWNLOADTARGET LDRYTIMEDELAY...
  • Page 36 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LFAXREDIALFREQUENCY LFAXRESOLUTION LFAXTRANSMISSIONLOG LFOLD LFEEDERPAPERTYPE LFONTDENSITY LGLOSSYLOADING LGLOSSYOUTBIN LGLOSSYTEXTURE LGLOSSYWEIGHT LHEAVYGLOSSYLOADING LHEAVYGLOSSYOUTBIN LHEAVYGLOSSYTEXTURE LHEAVYGLOSSYWEIGHT LHEAVYPAPERLOADING LHEAVYPAPEROUTBIN...
  • Page 37 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LIMAGESATURATION LIMAGESMOOTHING LINFEEDER LINFEEDERSIZE LINKALERT LINMPFEEDERSIZE LJAMASSIST LJAMRECOVERY LJOBPARKPERSIST LJOBWAITFORSUPPLIES LLABELSLENGTH LLABELSLOADING LLABELSOUTBIN LLABELSTEXTURE LLABELSWEIGHT LLASTTRAYRENUMBER...
  • Page 38 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LMANUALCOLORCMYKGRAPHICS LMANUALCOLORCMYKIMAGE LMANUALENVELOPESIZE LMANUALENVELOPETYPE LMANUALPAPERSIZE LMANUALPAPERTYPE MICRJOB LMAXSTATUSMSG LMPFEEDERPAPERTYPE LMPFEEDERRENUMBER LMULTIPAGEBORDER LMULTIPAGEORDER LMULTIPAGEPRINT LMULTIPAGEVIEW LNPAP LOPTIONALOUTBIN1NAME...
  • Page 39 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LPAGESREMAININGDISPLAY LPAPERSOURCE LPICTUREGRADE LPLAINLENGTH LPLAINOUTBIN LPLAINTEXTURE LPLAINWEIGHT LPOWERSAVER LPPDS LPPDSFORMLINES LPPDSLINESPERINCH LPREPRINTEDLENGTH LPREPRINTEDLOADING LPREPRINTEDOUTBIN LPREPRINTEDTEXTURE LPREPRINTEDWEIGHT...
  • Page 40 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LRECYCLEDWEIGHT LREPEATPRINTLIMIT LRESET LRESOURCESAVE LRIGHTMARGINOFFSET LROUGHENVELOPELOADING LROUGHENVELOPEOUTBIN LROUGHENVELOPETEXTURE LROUGHENVELOPEWEIGHT LROUGHPAPERLOADING LROUGHPAPEROUTBIN LROUGHPAPERTEXTURE LROUGHPAPERWEIGHT LSCREENING LSEPARATORSHEETS LSEPARATORSOURCE...
  • Page 41 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 LTRANSPARENCYWEIGHT LTRAY1AUTOSIZE LTRAY2AUTOSIZE LTRAY3AUTOSIZE LTRAY4AUTOSIZE LTRAY5AUTOSIZE LTRAY1PAPERTYPE LTRAY2PAPERTYPE LTRAY3PAPERTYPE LTRAY4PAPERTYPE LTRAY5PAPERTYPE LTRAY1RENUMBER LTRAY1SENSEDTYPEPAPER LTRAY1SENSEDTYPETRANSPARENCY LTRAY2SENSEDTYPEPAPER LTRAY2SENSEDTYPETRANSPARENCY...

  • Page 42: Common Variables For Pcl Emulation

    MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 FONTNUMBER FONTSOURCE PITCH PTSIZE SYMSET Lexmark‑unique variables for PCL emulation = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511...

  • Page 43: Common Variables For Postscript Emulation

    MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610 MX510, MX511 MX610, MX611 ADOBEMBT JAMRECOVERY PRTPSERRS Lexmark‑unique variables for PostScript emulation = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Variable name MS610...

  • Page 44: Status Readback Commands

    Appendix B: PJL support Status Readback commands = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command MS610 MX510, MX511 MX610, MX611 DINQUIRE ECHO INFO INQUIRE USTATUS USTATUSOFF USTATUS unsolicited status variables = Supported X = Not supported Printer model MS310, MS312,...

  • Page 45: Pjl Messages For Auto-Continuable Conditions

    Appendix B: PJL support PJL messages for auto-continuable conditions = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 30014 PPDS font error [50] PPDS Font Error Intervention Required...
  • Page 46 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 30016 Memory full [38] Memory Full Intervention Required 30016 Configuration Change [57]...
  • Page 47 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 30018 Standard network software error Standard Network [54] Software Error Network error, standard port...
  • Page 48 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 30027 Std Parallel Port Disabled [56] Std Parallel Port Disabled Intervention Required 30029...
  • Page 49 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 30076 Res Save Off Deficient Memory [35] Resource Save Off Deficient Memory Intervention Required 30076...
  • Page 50 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 30112 Serial port [x] disabled [56] Serial Port [x] Disabled Intervention Required 30112 USB port [x]...
  • Page 51 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention required - 32015 Disk must be formatted for Disk Must Be use in this Formatted device...
  • Page 52 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 35075 Scheduled Maintenance [80] Scheduled Maintenance Intervention Required 40316 Scheduled Maintenance [x]...

  • Page 53: Pjl Messages For Attendance Conditions

    Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention Required 40049 [Pick up text from 'data1' and 'data2' but not PJL ST Message 'userMessage1' 'userMessage2']...
  • Page 54 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 32052 Disk problem Required - Disk Problem Intervention 32056 Remove Required - defective...
  • Page 55 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40021 Cartridge Required - Life Expired CMYK Cartridge Life Expired Intervention 40021 Cartridge...
  • Page 56 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40021 Close Required - Finisher Rear Door Close Finisher Rear Door Intervention 40021...
  • Page 57 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40021 Close Tray Required - [x] Top Cover Close Tray [x] Top Cover Intervention 40021...
  • Page 58 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40021 Invalid Required - refill, change Invalid Refill cartridge [31.xx] Intervention 40021...
  • Page 59 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40021 Open Bin 1 Required - Exit Tray [41] Open Bin Exit Tray Intervention 40021...
  • Page 60 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40028 Install Required - envelope feeder Install Envelope Feeder Intervention 40028 Install Env...
  • Page 61 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40030 Too Many Bins Required - Attached [58] Too Many Bins Attached Intervention 40030...
  • Page 62 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40038 Replace Toner Required - To Continue Replace Toner Cartridge To Continue Intervention...
  • Page 63 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40038 Yellow Toner Required - Low [88] Toner Low Magenta Toner Low [88] Cyan Toner...
  • Page 64 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40050 Replace Fuser Required - Replace Fuser Intervention 40050 Replace Required - Transfer Kit...
  • Page 65 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40096 Close Duplex Required - Door Duplex Cover Open Intervention 40096 Insert Duplex...
  • Page 66 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40200 Black Required - cartridge low [88.xx] Cartridge Low Intervention 40200 black...
  • Page 67 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40203 Yellow Required - cartridge low [88.xx] Cartridge Low Intervention 40203 yellow...
  • Page 68 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40215 Transfer Required - module life warning Transfer Module Life [83.xx] Warning Intervention...
  • Page 69 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40305 Replace black Required - PC Unit [84] 84 Replace Black PC Unit Intervention 40309...
  • Page 70 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40311 Replace Required - unsupported magenta Replace unsupported cartridge cartridge [32.xx] Intervention...
  • Page 71 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40316 Scheduled Required - maintenance [x] [80] Scheduled Maintenance Note: [x] indicates 100K kit.
  • Page 72 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40407 Magenta PC Required - Unit missing [84.41] [Color] PC Unit Missing Intervention 40407...
  • Page 73 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40410 Defective Required - cyan cartridge Defective Cartridge [31.xx] Intervention 40410 Missing or...

  • Page 74: Pjl Messages For Paper Handling

    Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MX310, MX410, Message Status code Return string MS415, MS510, MS610 MX510, MX511 MX610, MX611 Intervention 40412 Missing or Required - defective yellow Missing or Defective cartridge Cartridge [31.xx]...
  • Page 75 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention 30034 Wrong Paper Size in Required - Tray [x] [34] Wrong Paper Size in Tray [x] Intervention...
  • Page 76 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention 4100x Check [paper Required - source] orientation or guides Check [Paper Source] Orientation or Guides...
  • Page 77 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention 41xyy Load Manual Feeder Required - with [paper type] [paper size] Load Manual [orientation]...

  • Page 78: Pjl Messages For Paper Jams

    Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code Return string MS610 MX510, MX511 MX610, MX611 Intervention 412yy Insert Duplex Pages Required - & Press Go. Insert Duplex Pages &...
  • Page 79 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code MS610 MX510, MX511 MX610, MX611 Intervention Required - 4206x Paper Jam Intervention Required - 4207x Paper Jam Intervention Required - 4208x Paper Jam...
  • Page 80 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code MS610 MX510, MX511 MX610, MX611 Intervention Required - 424xz Paper Jam Intervention Required - 4241wy Paper Jam Intervention Required - 4241z Paper Jam...
  • Page 81 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code MS610 MX510, MX511 MX610, MX611 Intervention Required - 4251wy Paper Jam Intervention Required - 4251x Paper Jam Intervention Required - 4252w Paper Jam...
  • Page 82 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code MS610 MX510, MX511 MX610, MX611 Intervention Required - 4271 Paper Jam Intervention Required - 4271z Paper Jam Intervention Required - 4272 Paper Jam...
  • Page 83 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Message Status code MS610 MX510, MX511 MX610, MX611 Intervention Required - 4284w Paper Jam Intervention Required - 4284x Paper Jam Intervention Required - 4284z Paper Jam...

  • Page 84: Service Errors

    MS415, MS510, MX310, MX410, Message MS610 MX510, MX511 MX610, MX611 RDYMSG OPMSG STMSG Lexmark‑unique PJL commands These commands are Lexmark extensions which have been added to the PJL command set to provide the user with remote control of many printer functions.
  • Page 85 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command MS610 MX510, MX511 MX610, MX611 Common file system commands • LFORMAT • LDEFRAG • LOPENFILE • LCLOSEFILE • LREADFILE •...
  • Page 86 Appendix B: PJL support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Command MS610 MX510, MX511 MX610, MX611 • LPRINTPCLFONTS • LPRINTPSFONTS • LPRINTDIAG1TEST • LPRINTDIAG2TEST • LPRINTDIAG3TEST LPROGRAM LPROGRAMADAPTOR LPROGRAMCOFF LPROGRAMENG LPROGRAMRIP LWRITEOM...

  • Page 87: Appendix C: Postscript Support

    Appendix C: PostScript support Appendix C: PostScript support Supplemental operators = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Operator name MS610 MX510, MX511 MX610, MX611 appletalktype buildtime byteorder checkpassword currentfilenameextend currentmanualduplexmode currentuniversalsize defaulttimeouts deletefile devcontrol...
  • Page 88 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Operator name MS610 MX510, MX511 MX610, MX611 duplexer duplexmode enginesync file filenameforall fileposition firstside fontnonzerowinding hardwareiomode idlefonts ignoresize initializedisk jobname jobsource jobtimeout manualfeed...
  • Page 89 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Operator name MS610 MX510, MX511 MX610, MX611 renamefile resolution revision sccbatch sccinteractive setcoverpage setdefaulttimeouts setdoidlefonts setdojamrecovery setdoprinterrors setdoret setdostartpage setdosysstart setduplexmode setenginesync setethernetaddress...

  • Page 90: Page Device Parameters

    Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Operator name MS610 MX510, MX511 MX610, MX611 setsccinteractive setsoftwareiomode settumble setuniversalsize setuserdiskpercent softwareiomode tumble userdiskpercent waittimeout Page device parameters = Supported X = Not supported Printer model MS310, MS312,...
  • Page 91 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 • ImageEnhancementType • PrintDarkness • AutoMediaType • EdgeToEdge • DefaultPoliciesPageSize • SubstituteSize • LineDetail • Type •...
  • Page 92 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 • 5 - Tray 4 • 6 - Tray 5 ‑ PageSize ‑ MatchAll ‑ MediaColor ‑...
  • Page 93 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 • LandscapeOverride OutputAttributes • 0 - Standard Bin ‑ OutputType ‑ OutputLocation ‑ PunchModesSupported • 1 - Optional Bin 1 ‑...

  • Page 94: User Interpreter Parameters

    Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 • PolicyReport PostRenderingEnhance PostRenderingEnhanceDetails • REValue • Type PowerSave ProcessColorModel Punch SlipSheet SlipSheetDetails • SlipSheetSource •...

  • Page 95: System Interpreter Parameters

    Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Default MS610 MX510, MX511 MX610, MX611 MaxDictStack MaxExecStack 10015 MaxFontItem 12500 MaxFormItem 100000 MaxLocalVM 2147483647 MaxOpStack 100000 MaxPatternItem 20000 MaxScreenItem 48000 MaxSuperScreen 1024...
  • Page 96 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 CurInputDevice CurOutlineCache CurOutputDevice CurPatternCache CurScreenStorage CurSourceList CurUPathCache DisableFastProcs DoPrintErrors DoStartPage EnableExtraFonts EngineBoot EngineCode EngineSpeed EnvironmentSave FactoryDefaults FatalErrorAddress FontResourceDir...
  • Page 97 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 MaxFormCache MaxImageBuffer MaxOutlineCache MaxPatternCache MaxPermanentVM MaxRasterMemory MaxScreenStorage MaxSourceList MaxUPathCache PageCount PanelCode PrinterCode PrinterName RamSize RealFormat Revision SearchBuiltinFontsFirst SerialNumber...

  • Page 98: Devices Supported

    Appendix C: PostScript support Devices supported = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Device MS610 MX510, MX511 MX610, MX611 %AppSocketA% %AppSocketB% %AppSocketC% %AppSocketD% %CalendarA% %CalendarB% %CalendarC% %CalendarD% %Console% %disk1% %Engine% %EthernetPhysicalA% %EthernetPhysicalB% %EthernetPhysicalC% %EthernetPhysicalD%...
  • Page 99 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Device MS610 MX510, MX511 MX610, MX611 %IR_C% %IR_D% %LexLinkA% %LexLinkB% %LexLinkC% %LexLinkD% %LocalTalkA% %LocalTalkB% %LocalTalkC% %LocalTalkD% %LPR_A% %LPR_B% %LPR_C% %LPR_D% %ParallelA% %ParallelB% %ParallelC%...

  • Page 100: Device Parameters

    Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, Device MS610 MX510, MX511 MX610, MX611 %RemotePrinterC% %RemotePrinterD% %rom% %SerialA% %SerialB% %SerialC% %SerialD% %TokenRingPhysicalA% %TokenRingPhysicalB% %TokenRingPhysicalC% %TokenRingPhysicalD% %TokenTalkA% %TokenTalkB% %TokenTalkC% %TokenTalkD% %USB_A% %USB_B%...
  • Page 101 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 Filtering Handshake HasNames Interpreter OutputDevice PCLSmartSwitch PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %Serial%, %SerialA%, %SerialB%, %SerialC%, %SerialD% Baud CheckParity DataBits...
  • Page 102 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 SerialMode StopBits Type Device Parameters for the Communication Device %LocalTalk%, %LocalTalkA%, %LocalTalkB%, %LocalTalkC%, %LocalTalkD% DelayedOutputClose Enabled Filtering HasNames...
  • Page 103 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %IR%, %IR_A%, %IR_B%, %IR_C%, %IR_D% DelayedOutputClose Enabled Filtering HasNames...
  • Page 104 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 Bridging DelayedOutputClose Enabled Filtering HasNames Interpreter NodeID PCLSmartSwitch PortLocation PSSmartSwitch TokenTalkType Type Zone Device Parameters for the Communication Device %AppSocket%, %AppSocketA%, %AppSocketB%, %AppSocketC%, %AppSocketD% DelayedOutputClose Enabled...
  • Page 105 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 HasNames Interpreter PortLocation Type Device Parameters for the Communication Device %PrintServer%, PrintServerA%, PrintServerB%, %PrintServerC%, %PrintServerD% DelayedOutputClose Enabled Filtering...
  • Page 106 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 PortLocation Type Device Parameters for the Communication Device %IP%, %IP_A%, %IP_B%, %IP_C%, %IP_D% GatewayAddress IPAddress IPAddressDynamic NetworkMask Physical...
  • Page 107 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 TimeToStandby Type Device Parameters for the Parameters Device %Console% Language Type Device Parameters for the Parameters Device %Calendar%, %CalendarA%, %CalendarB%, %CalendarC%, %CalendarD% Hour Minute Month...
  • Page 108 Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 SearchOrder Type Writeable Device Parameters for the Parameters Device %flash1% BlockSize Free HasNames InitializeAction LogicalSize Mounted PhysicalSize Removable...

  • Page 109: Postscript Message Keys Commands

    Appendix C: PostScript support = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410, MS610 MX510, MX511 MX610, MX611 Writeable PostScript message keys commands = Supported X = Not supported Printer model MS310, MS312, MS315, MS410, MS415, MS510, MX310, MX410,...

  • Page 110: Index

    PJL, Lexmark‑unique variables for meanings, letters after model emulation 43 LRESOURCE 43 number 5 Status Readback 44 PJL, Lexmark‑unique variables for PCL messages unique variables, both languages 32 emulation 42 PJL, attendance conditions 53 USTATUS variables 44 PJL, Lexmark‑unique variables for...
  • Page 111 Index atmospheric pressure 20 clearance requirements 18 electrical 16 environmental conditions 19 noise emission levels 15 power requirements 16 publications where to find 6 required clearance 18 shipping and storage ranges 19 shock specification 19 size, printer 17 supplemental operators PostScript 87 tray operators PostScript 11...
