- Page 1 VISUAL PRESENTER ＭＯ-１ Quick Start Guide Make sure you read the “IMPORTANT SAFEGUARDS” in the Instruction Manual contained in the supplied CD-ROM before use.
-
Page 2: Table Of Contents
CONTENTS Let’s get ready........................3 ①Necessary items ......................3 ②Setting Up ........................4 ③Connecting to a projector or a monitor ................5 ④Connecting to a PC......................5 Let’s use ..........................6 ①Turn the power on/off.....................6 ②Operating ........................6 ・Adjusting the size and focus ....................6 ・Adjusting the brightness ....................7 ・Operating panel .......................7... -
Page 3: Let's Get Ready

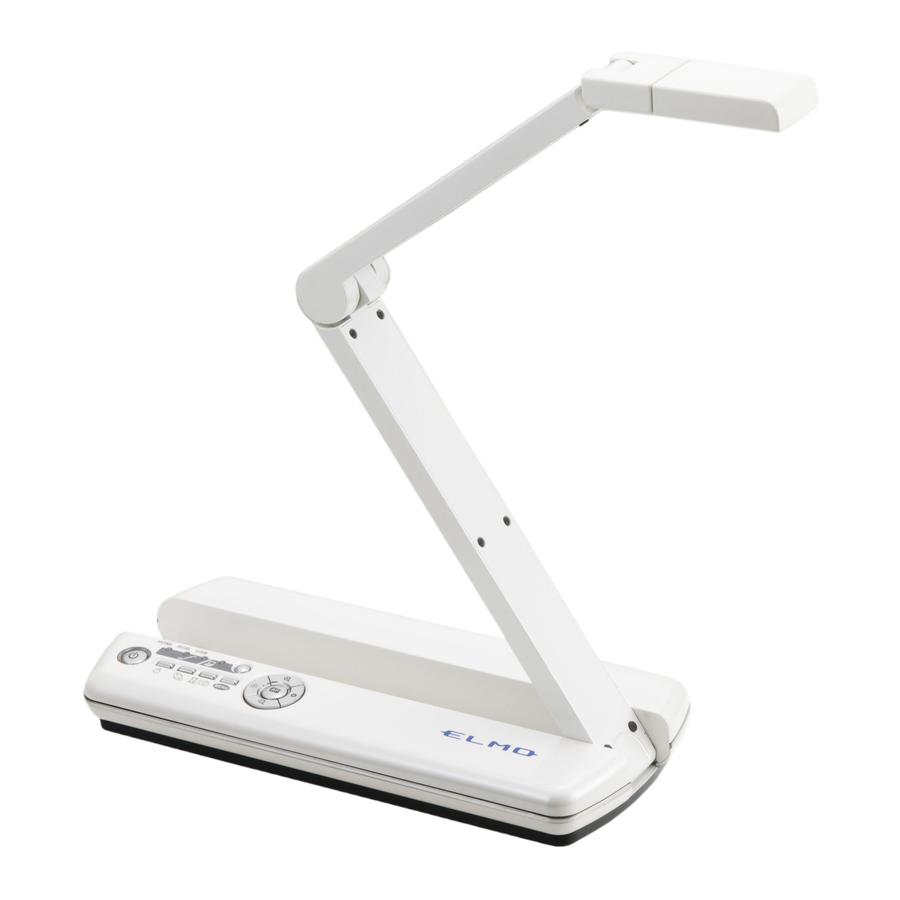

Let’s get ready ①Necessary items Supplied items ① ①Mobile Document camera ②CD-ROM ② (Image mate /Instruction Manual /Quick Start Guide) ③ ④ ⑤ ③Imag Mate Instruction Manual ④AC adapter ⑤AC cord ⑥USB cable ⑦Warranty* ⑥ ⑦ ⑧ *for N. America only ⑧Important Safeguards Composition of the instruction manual Quick Start Guide----------Contains information on the basic operation of this product. -
Page 4: ②Setting Up
②Setting Up ① Hooking your finger to the position ② Lift up the other side of the arm. indicated by an arrow in the drawing, slightly lift up the arm. ③ Move the arm in the direction ③ Move the camera head so that indicated by an arrow. -
Page 5: ③Connecting To A Projector Or A Monitor
③Connecting to a projector or a monitor ● Connecting with an RGB cable ● Connecting with an HDMI cable Micro HDMI(Type D) connector HDMI cable (Option) AC Adapter RGB cable (Option) AC Adapter AC cord AC cord To wall outlet To wall outlet To projector/monitor To projector/monitor... -
Page 6: Let's Use
Let’s use ①Turn the power on/off Power Power Blue ②Operation ・Adjusting the size and focus ZOOM-IN（Larger） ZOOM-OUT（Smaller）... -
Page 7: Adjusting The Brightness
・Adjusting the brightness Brighten Darken ・Operating panel Image Selection Image Image Freeze Lamp Menu Rotation /Capture Mark Name Function To turn the lamp ON/OFF Lamp Camera Live image :Rotates by 180° Image Rotation Camera Still image: Rotates counterclockwise by 90°. To pause the camera image by pressing this button for a short moment (less than 1 second). - Page 8 WARNING Unauthorized recording of copyrighted slide films, materials, photographs, etc. may infringe on the rights of copyright owners and be contrary to copyright laws. ELMO CO., LTD. 6-14, Meizen-cho, Mizuho-ku, West Coast Branch Nagoya, 467-8567, Japan Cypress Pointe Business Park...
