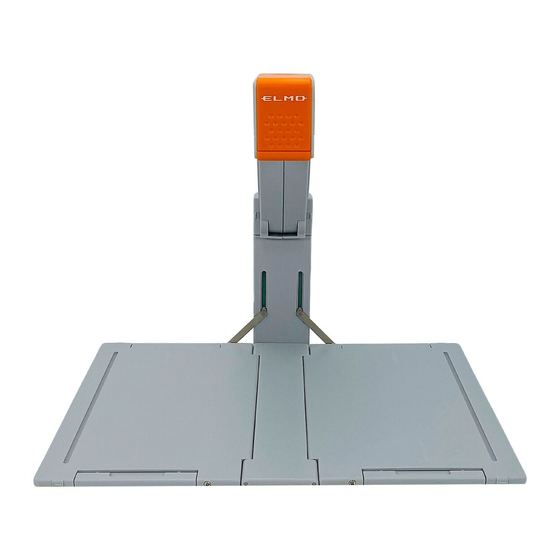

Elmo Visual Presenter EV-200 Instruction Manual

Elmo visual presenter instruction manual
Hide thumbs Also See for Visual Presenter EV-200:
Table of Contents

Advertisement

Quick Links

Download this manual
VISUAL PRESENTER
EV-200
INSTRUCTION MANUAL
Please read this instruction manual carefully before using this Visual Presenter and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Visual Presenter EV-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Elmo Visual Presenter EV-200

Summary of Contents for Elmo Visual Presenter EV-200

  • Page 1 VISUAL PRESENTER EV-200 INSTRUCTION MANUAL Please read this instruction manual carefully before using this Visual Presenter and keep it for future reference.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Read Instructions – All the safety and operating instructions should be read before the appliance is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
  • Page 3 Grounding or Polarization – This product may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet only one way.
  • Page 4 Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power-supply cord or plug is damaged. If liquid has been spilled, or objects have fallen into the product.
  • Page 5 T h e l i g h t n i n g f l a s h w i t h arrowhead symbol, within an e q u i l a t e r a l t r i a n g l e , intended to alert the user to the presence of uninsulated SA 1965...

  • Page 6: Before You Use

    BEFORE YOU USE Use the Visual Presenter under the rated electrical conditions. Do not leave the Presenter under direct sunlight or by heaters, or the Presenter may be discolored, deformed, or damaged. Do not place the Presenter in any humid, dusty, windy or vibrating location.

  • Page 7: Table Of Contents

    CONTENTS IMPORTANT SAFEGUARDS ....... 1 BEFORE YOU USE ........5 1.

  • Page 8: Part Names And Functions

    1. PART NAMES AND FUNCTIONS Anti-theft key-hole Camera Head Main Stage Auxiliary Stage Accessory Case Shutter Switch [SHUTTER] -Normally OFF Image Input Selection Switch [INPUT] Power Switch [POWER] Power Terminal [DC IN 12V] Base Unit AC Adapter Video Cable - 7 -...
  • Page 9 Name Camera Head Base Unit Main Stage Auxiliary Stage Shutter Switch [SHUTTER] Image Input Selection Switch [INPUT] Power Switch [POWER] Power Terminal [DC IN 12V] Accessory Case Video Cable AC Adapter Function Moving up/down the camera head can change the size of an object in display on the monitor screen smoothly.
  • Page 10 Gain Button [GAIN] - 9 - Composit-Video-in terminal [VIDEO IN] Composit-Video-out terminal [VIDEO OUT] Flicker Switch [FLICKER] - Normally 60 S-Video-out terminal [S-VIDEO OUT]...
  • Page 11 Name Gain Button [GAIN] Composit-Video-in Terminal [VIDEO INPUT] Composit-Video-out Terminal [VIDEO OUTPUT] Flicker Switch [FLICKER] S-Video-out terminal [S-VIDEO OUT] Function To adjust the image brightness by manipulating the gain button [UP]/ [DOWN]. Note: - The gain setting is kept after turning the power supply OFF.

  • Page 12: Setting Up And Storing

    2. SETTING UP AND STORING 2-1 SETTING UP Gently release the clipped area (as marked with arrow) of the right and left stages as illustrated. Note:- It may be damaged by un- latching the stages putting hands on other position not shown by arrows.

  • Page 13: Zooming

    2-3 ZOOMING By moving up/down the camera head, the object in display on the monitor screen can be zoomed-in or zoomed-out. In zoom operation by moving up/down the camera head, focus adjustment is not required (FOCUSFREE). Example of connection (Backside of the Base Unit) AC adaptor (supplied) Belt The supplied belt is for...

  • Page 14: Troubleshooting Hints

    • Is this caused by the interference between the dots The image of printed matter is striped. If the trouble still remains after checking the above, consult your dealer or an authorized ELMO service center. Checkpoint terminal [DC IN 12V] of the Presenter? [VIDEO IN]? come to the screen.

  • Page 15: Specifications

    Instruction manual Quick reference Warranty card Belt These specifications are subject to change without prior notice. Trademark Acknowledgements , ELMO are registered trademarks of ELMO CO., Ltd. FOCUSFREE is a trademark of ELMO CO., Ltd. (14.2in.(W)x11.1in.(D)x6.3-11.2in.(H)) 59mm(W)x285mm(D)x161mm(H) (2.3in.(W)x11.1in.(D)x6.3in.(H)) 364mmx271mm (14.3in.x10.7in.) 179mmx135mm (7.1in.x5.3in.)
  • Page 16 OVERSEAS SUBSIDIARY COMPANIES U.S.A. ELMO Mfg. Corp. 1478 Old Country Road, Plainview, NY 11803-5034 Tel:(516)501-1400 E-mail:elmo@elmousa.com web:http://www.elmousa.com/ Canada ELMO Canada Mfg. Corp. 44 West Drive, Brampton, Ontario L6T 3T6 Tel:(905)453-7880 E-mail:info@elmocanada.com web:http://www.elmocanada.com/ Germany ELMO (Europe) G.m.b.H Neanderstr. 18, 40233 Düsseldorf Tel:(0211)376051 E-mail:elmoeurope@AOL.com...
