INSTRUCTION MANUAL

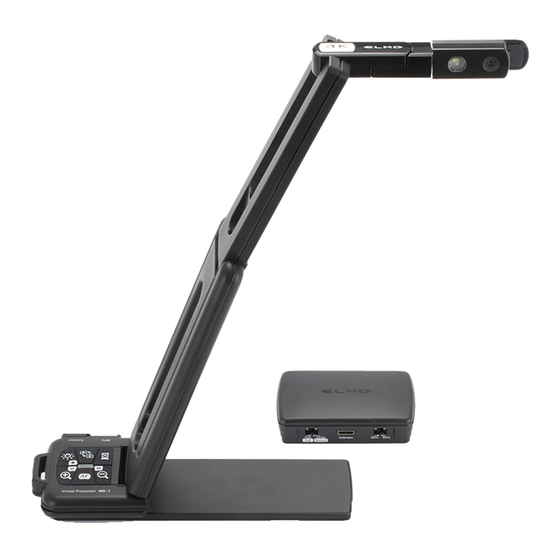

Image Mate 4
Please read this instruction manual carefully before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Image Mate 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Elmo Image Mate 4

Summary of Contents for Elmo Image Mate 4

  • Page 1 INSTRUCTION MANUAL Image Mate 4 Please read this instruction manual carefully before using this product.

  • Page 2: Table Of Contents

    NOTE ..........................3 INSTALLING / UNINSTALLING ..................3 Image Mate 4 ........................5 STARTING IMAGE MATE 4 ..................... 5 SCREEN AND ICONS ...................... 6 REMOTE CONTROL WINDOW ..................8 CAPTURING A STILL IMAGE / VIEWING A STILL IMAGE ..........9 RECORDING VIDEO / VIEWING VIDEO ................

  • Page 3: Introduction

    ・For the latest instruction manual, installation manual and firmware information, go to the ELMO web site. ・When using Image Mate 4, be sure to refer to the instruction manual supplied with the Document Camera. ・Depending on the OS, Image Mate 4 may not display the correct fonts.
  • Page 4 To remove Image Mate 4 from your computer, go to "Start menu" and go to "Settings" - "System”-"Apps & features", and uninstall Image Mate 4.

  • Page 5: Image Mate 4

    USB cable (bus power). CAUTION Image Mate 4 may not start if the USB cable is connected before starting Image Mate 4. Start Image Mate 4 before connecting the camera via the supplied USB cable. ●HOW TO SELECT THE CAMERA ・The live image of the camera appears after Image Mate 4 is started when the Document...

  • Page 6: Screen And Icons

    SCREEN AND ICONS The live image of the camera is displayed when Image Mate 4 is started. Control icons Icon Name Function To display the remote control window. Zoom In Brightness (darken） Brightness Remote control （brighten） Auto Focus Zoom out Reset Brightness To save the currently displayed image as a still image.
  • Page 7 Show version The software license agreement will be displayed. Carefully read it before using Image Mate 4. To close Image Mate 4. Exit A confirmation message will be displayed when this icon is clicked. Click “OK” to close Image Mate 4.

  • Page 8: Remote Control Window

    REMOTE CONTROL WINDOW You can control the Document Camera from the remote control window. ●Each function can be operated by pressing respective buttons. ●The remote control window can be moved by dragging. Button Name Function Auto Focus To focus automatically. Zoom in To enlarge the image.

  • Page 9: Capturing A Still Image / Viewing A Still Image

    ] is pressed. The captured still image will be saved in a folder. ●VIEWING A STILL IMAGE The destination folder of captured still images is [Pictures/ELMO Interactive Toolbox/rec]. The destination folder can be opened from [ ] in the control menu.
  • Page 10 ・Depending on the performance of your computer or type of the file, you may not be able to view the captured still image or recorded video correctly. ・Depending on the playback environment, some video files recorded by Image Mate 4 may not be played back.

  • Page 11: Live Settings

    LIVE SETTINGS Resolution Settings, Camera Mode settings and Camera Settings can be configured. *The image shows the initial settings. （USB3.0） ●Resolution Settings Item Setting Frame rate Description value USB3.0 USB2.0 Resolution/ 30fps 30fps Framerate The image quality increasesin the 30fps 30fps order as indicated bythe arrow,while 720p...
  • Page 12 Normal To clearly display photos or documents with color. Scene mode Document To clearly display text documents. Binned The speed takes precedence over image quality. Priority mode Resized The image quality takes precedence over speed. ●Camera Settings Item Setting range Description To adjust the brightness.

  • Page 13: System Requirement

    ＊The Camera mode settings and Camera settings will be initialized when the Default button is pressed. SYSTEM REQUIREMENT Your computer must meet the following requirements to use Image Mate 4. Windows 8.1 (32 / 64bit) Windows 10 (32 / 64bit)

  • Page 14: Trouble Shooting

    The USB cable is disconnected. Remove the USB cable and connect again. If the problem still persists, Remedy restart Image Mate 4. Symptom There is a delay or decrease in the frame rate. Close all other applications on your computer.
  • Page 15 Remedy Memory：16GB Graphic board：GeForce GTX750 or higher Symptom Image Mate 4 does not start. Image Mate 4 may not start if the USB cable is connected before starting Remedy a computer. Start Image Mate 4 before connecting the USB cable.

  • Page 16: Reference

    REFERENCE DISCLAIMER The contents of this manual and Image Mate 4 are subject to change without prior notice. Our software may not function as intended due to compatibility issues with the peripheral devices and existing software installed in your computer.
  • Page 17 TECHNO HORIZON CO., LTD. 2-13-1, Chikamatori, Minami-ku Nagoya, 457-0071, Japan OVERSEAS SUBSIDIARY COMPANIES ELMO USA CORP. Headquarters 1478 Old Country Road Plainview, NY 11803, U.S.A. Tel. (516) 501-1400 Fax.(516) 501-0429 E-mail: elmo@elmousa.com Web: http://www.elmousa.com ELMO Europe SAS Headquarters 12 place de la Défense Maison de la Défense...
