Summary of Contents for Elmo MX-P2

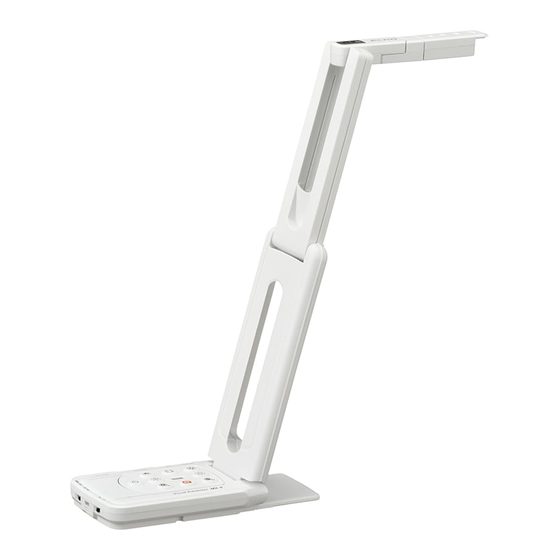

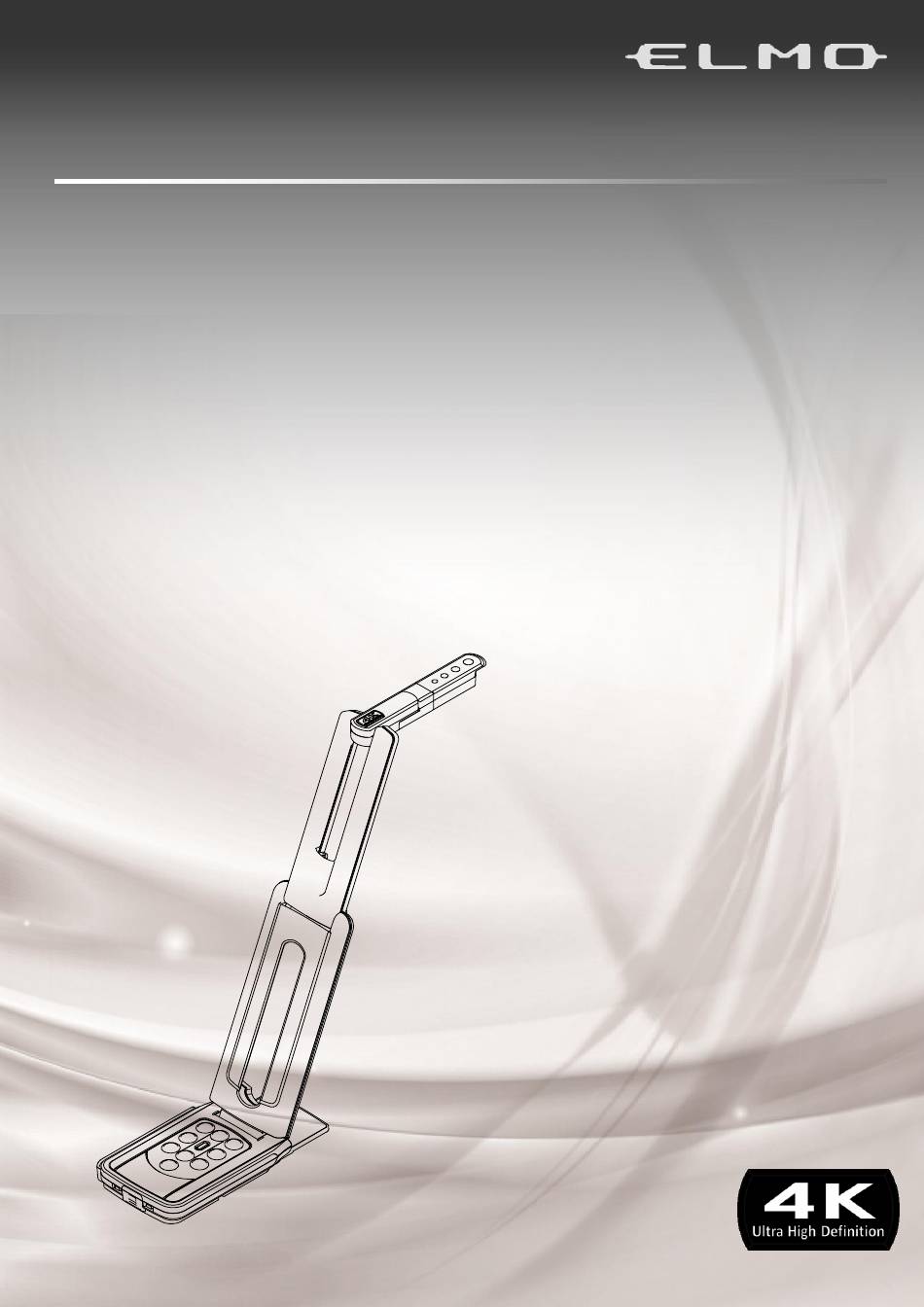

- Page 1 VISUAL PRESENTER MＸ-P2...
-
Page 2: Important Safeguards
■ IMPORTANT SAFEGUARDS ■ Read Instructions All the safety and operating instructions should be read before the appliance is operated. ■ Retain Instructions The safety and operating instructions should be retained for future reference. ■ Heed Warnings All warnings on the product and in the operating instructions should be adhered to. ■... - Page 3 ■ Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. ■...
- Page 4 This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.
-
Page 5: Usage Precautions
PC to save a backup copy. Malfunction of the product or repairs to it may cause the data to be deleted. ■ ELMO is not liable for any damage caused by the loss or damage of the data in the recording media. - Page 6 ■ It is prohibited under copyright law to use or copy any part or the whole of this document without our prior written consent. ■ ELMO shall not be liable for any claim for damage or loss of earnings or any claim raised by a third person due to the use, malfunction or repair of the product.
-
Page 7: Handling Precautions
HANDLING PRECAUTIONS The followings are special precautions against mishandling of the product. Pay close attention to them. ①Installation ②Setting up Do not place the product on an When setting up the product, hold the unstable place. body around the operating panel. Be careful not to pinch your fingers. -
Page 8: Table Of Contents
■ TABLE OF CONTENTS ■ IMPORTANT SAFEGUARDS USAGE PRECAUTIONS ················································································· 5 HANDLING PRECAUTIONS ············································································ 7 ■ TABLE OF CONTENTS ➊ PREPARATION ◆PACKAGE CONTENTS ·············································································· 9 ➋ BASIC OPERATIONS ◆THE NAME OF EACH PART ······································································· 10 ◆OPERATING PANEL ················································································· 11 ◆STATUS LED ··························································································· 12 ◆CABLE CONNECTION ··············································································... -
Page 9: ➊ Preparation
➊ PREPARATION ◆PACKAGE CONTENTS The items below are included with this product. If any item is missing, contact the dealer from whom you purchased this product. MX-P2 Warranty Card IMPORTANT USB3.0 cable Quick Start Guide (For Japan/ North SAFEGUARDS America only）... -
Page 10: ➋ Basic Operations
➋ BASIC OPERATIONS ◆THE NAME OF EACH PART ① ② ③ ⑤ ⑦ ⑥ ④ Name ① Camera head ② LED lighting ③ ④ Operating panel ⑤ Connection ports ⑥ Setting switches／Anti theft lock hole ⑦ Stage... -
Page 11: Operating Panel
⑦ ⑧ ⑩ ⑨ ◆OPERATING PANEL ① ⑥ ⑤ ② ④ ③ Function Description Power ON The product enters the standby status in 5 – 10 seconds after the DC power cord is connected to the product.（LED：Red） To turn on the product, press the Power button. The LED turns blue and the product starts to output images from HDMI port or RGB port. -
Page 12: Status Led
◆STATUS LED The connection status of the AC adapter, USB 3.0 cable or USB 2.0 cable, power supply status, or image output status can be checked with the Status LED. Status LED Power supply Image output Power Freeze Freeze Power Button AC adapter HDMI... -
Page 13: Setting Switches
◆SETTING SWITCHES ① ② Mark Description To change the resolution and output mode. When connecting RGB only：XGA⇔1080p 1080p ← → XGA When connecting HDMI：Full⇔Normal ① NORMAL FULL (For details about changing the aspect ratio, refer to P.14.) ※This function is disabled when outputting USB and HDMI/RGB simultaneously. -
Page 14: Size Of Images Being Output
◆SIZE OF IMAGES BEING OUTPUT The output resolution is different according to the setting of the Resolution/Output mode selection. The product can capture aspect ratio ① . Pay attention to the shooting conditions. RGB output and HDMI output ・When HDMI output is possible, both RGB output and HDMI output are output in the same resolution. -
Page 15: ➌ Preparation And Connection
➌ PREPARATION AND CONNECTION ◆SETTING UP STEP1．Raise the body while holding the operating panel. STEP2．Raise the arm as indicated by an arrow. Camera head STEP3．Raise the camera head. Set it horizontally. Operating panel STEP1 STEP2 STEP3 CAUTION ・Be careful not to pinch your fingers when moving the arm. ・Do not hold the arm or camera head when carrying the product. -
Page 16: Moving Parts Of The Product
◆MOVING PARTS OF THE PRODUCT The product can be moved as shown below. 350° CAUTION Be careful not to let the top of the camera head hit the camera arm. 270° 90° Camera head 120° 90° Rotating part 180° 90°... -
Page 17: Connecting To A Projector Or Monitor
◆CONNECTING TO A PROJECTOR OR MONITOR To the AC adapter DC power cord HDMI cable RGB cable Resolution/Output mode selection When connecting RGB only: select between XGA and 1080p When connecting HDMI: select between Full and Normal (angle of view) Flicker correction Select the same value as the power supply frequency of the location where the product is... -
Page 18: Connecting To A Projector Or Monitor And A Computer
CAUTION ・When connecting to the USB2.0 port (Status LED：green), the frame rate may be decreased depending on the output resolution. ・The frame rate may be decreased depending on the computer used. ・The performance may be unstable depending on the power supply of the computer. In that case, use the AC adapter to supply the power to the product. -
Page 19: ➍ Using The Product
➍ USING THE PRODUCT ◆ADJUSTING THE SIZE The size of the image can be adjusted using [ buttons on the operating panel NOTE The maximum zoom ration is 16x (digital zoom). The image quality will be degraded when using the digital zoom. -
Page 20: ➎ About Viewer Software
- Operate the product or enlarge the computer screen - Draw on the image - Save live video streaming or still images to a computer For details of the EIT (ELMO Interactive Toolbox), visit the following website https://www.elmousa.com/software/ https://www.elmoeurope.com/index.php/en/products/software-choice/elmo-interactive-toolbox NOTE If your computer does not meet the recommended requirements or depending on the performance of your computer, the recording frame rate may be decreased. -
Page 21: Installing The Software
◆INSTALLING THE SOFTWARE You need to install the software to your computer to use “Image Mate 4” or “EIT (ELMO Interactive Toolbox)”. Access the respective website described above. ※If the software is already installed in your computer, update the version of the existing software. -
Page 22: ➏ Trouble Shooting
➏ TROUBLE SHOOTING ◆SYMPTOMS AND CONFIRMATION Check the following items. If any abnormality is found, consult the dealer from whom you purchased this product or our nearest branch/office. Symptom Possible cause / remedy ・ The cable is not correctly connected. No image is displayed. - Page 23 ・Check that the graphics driver and other device drivers on your The UVC video stream is upside down. computer are updated. The latest device drivers are available from the computer manufacturer. ・The software and OS you are using or the connection status may The displayed UVC image contains images other than be causing images other than the camera image to breakthrough...
-
Page 24: ➐ Specification
➐ SPECIFICATION ■MAIN CAMERA Item Specifications Power source DC5V Power consumption 4.0W（when connecting USB） 6.0W（when connecting HDMI/RGB） Outside dimensions W：343mm D：82mm H：302mm(When setup) W：290mm D：82mm H：22mm(When folded) Weight Approx. 500g（Main body only） Ext. control terminal USB3.0 type microB × 1 Lens F=2.0 Frame rate... -
Page 25: Illumination Device
✔ ✔ Resolution Manual ✔ ✔ ✔ Flicker 60Hz / 50Hz（Default setting: 60Hz） Contrast Possible（Set value 0～20） Default ✔ ✔ value: 14 Possible（Set value -180～180） ✔ ✔ Default value: 0 Saturation Possible（Set value 0～31） Default ✔ ✔ value: 26 Definition Possible（Set value 1～15）... -
Page 26: Trademarks And Licenses
■TRADEMARKS AND LICENSES , Image Mate, and ELMO Interactive Toolbox are the registered trademarks of ELMO Co., Ltd. Windows and/or other Microsoft products referenced herein are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. - Page 27 株式会社エルモ社 OVERSEAS SUBSIDIARY COMPANIES 〒457-0078 ELMO USA CORP. 名古屋市南区塩屋町一丁目３番地４ □Headquarters Web：https://www.elmo.co.jp 6851 Jericho Turnpike Suite 145 製品のお問い合わせは、下記営業所へ Syosset, NY 11791 Tel. (516) 501-1400 □ 東日本営業所 Fax.(516) 501-0429 E-mail： elmo@elmousa.com □札幌オフィス Web：https://www.elmousa.com/ 〒001-0021 札幌市北区北 21 条西 8 丁目 3 番 8 号 バックスビル...
