IEI Technology MMD-4300 User Manual

30" color/gray medical lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

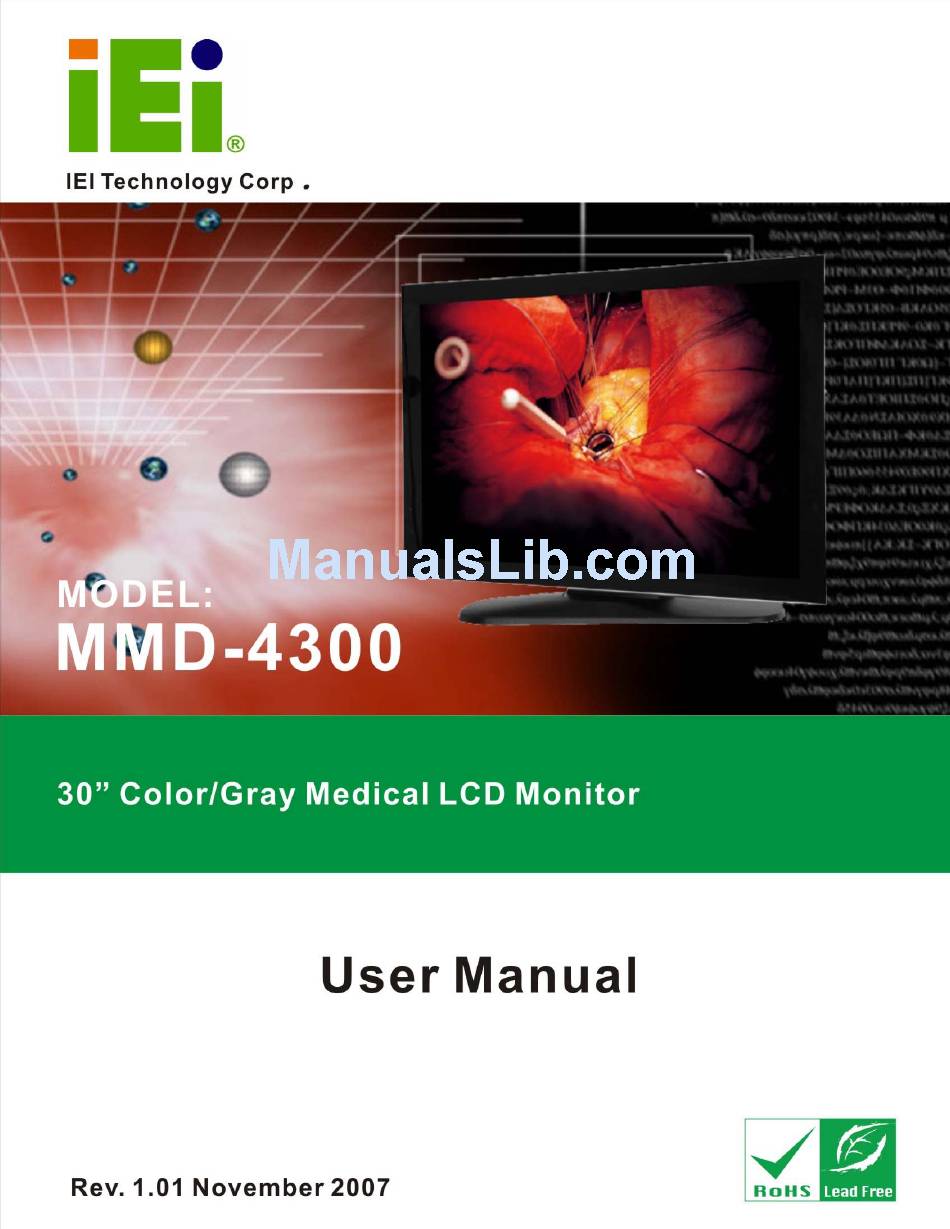

MMD-4300 Series Medical LCD Monitor
MMD-4300 Series Medical LCD Monitor
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMD-4300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology MMD-4300

Summary of Contents for IEI Technology MMD-4300

  • Page 1 MMD-4300 Series Medical LCD Monitor MMD-4300 Series Medical LCD Monitor Page i...
  • Page 2 MMD-4300 Series Medical LCD Monitor Revision Date Version Changes 2007-11 1.01 Modified OSD images 2007-10 1.00 Initial Release Page ii...
  • Page 3 MMD-4300 Series Medical LCD Monitor Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
  • Page 4 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the MMD-4300 Series. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message.
  • Page 5 MMD-4300 Series Medical LCD Monitor CAUTION: This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the MMD-4300 Series. Please take caution messages seriously. NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.
  • Page 6 MMD-4300 series from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the MMD-4300 Series package. 1 x MMD-4300 Series LCD monitor 1 x Monitor stand...

  • Page 7: Safety Precautions

    MMD-4300 Series Medical LCD Monitor Safety Precautions Prior to installing, moving and modifying the monitor, make sure the power is turned off and the power cord is disconnected. Do not apply voltage levels that exceed the specified voltage range. Doing so will cause fire or an electric shock.
  • Page 8 MMD-4300 Series Medical LCD Monitor To fully disengage power to the unit, disconnect the power cord from its AC outlet. Do not remove any of the display housings. There are no user serviceable parts inside the monitor. Refer servicing to qualified service personnel.
  • Page 9 MMD-4300 Series Medical LCD Monitor WARNING: Any changes or modifications made to the equipment that are not expressly approved by the relevant standards could void the authority to operate the equipment. ADDITIONAL INFORMATION AND ASSISTANCE MAINTENANCE AND CLEANING Prior to cleaning any part or component of the monitor, please read the details below.
  • Page 10 MMD-4300 Series Medical LCD Monitor CLEANING TOOLS Some components in the monitor may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the computer or computer peripherals.
  • Page 11 MMD-4300 Series Medical LCD Monitor PRODUCT DISPOSAL Within the United States: The lamps in this product contain mercury. Please dispose according to state, local or Federal law. Within the European Union: EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste.

  • Page 12: Table Of Contents

    MMD-4300 Series Medical LCD Monitor Table of Contents INTRODUCTION..................... 1 1.1 MMD-4300 S LCD M ........2 ERIES EDICAL ONITOR VERVIEW 1.2 F ........................2 EATURES 1.3 C ................... 3 OMPATIBLE RAPHICS 1.4 M ....................3 ODEL ARIATIONS 1.5 G ..................
  • Page 13 MMD-4300 Series Medical LCD Monitor 4.2.4 USB Type A Connector..................22 4.2.5 USB Type B Connector ..................23 4.3 D ................23 ISPLAY DJUSTMENT WIVEL 4.4 M MMD-4300 S LCD M ..........24 OUNTING THE ERIES ONITOR 4.4.1 Monitor Arm or Stand Installation..............24 ON-SCREEN-DISPLAY (OSD) CONTROLS .............
  • Page 14 MMD-4300 Series Medical LCD Monitor A.3 FCC ........................47 A.4 R HS C ....................47 OMPLIANT A.5 A ......................48 TTENTION GLOSSARY......................50 INDEX..........................54 Page xiv...
  • Page 15 MMD-4300 Series Medical LCD Monitor List of Figures Figure 1-1: MMD-4300 Series Medical LCD Monitor ..........2 Figure 2-1: MMD-4300 Series Front View..............8 Figure 2-2: Rear Panel ....................9 Figure 2-3: EPIC Panel ....................10 Figure 2-4: EPIC Symbols ..................10 Figure 4-1: Monitor EPIC Panel Connectors ............19 Figure 4-2: Power Connector ..................19...
  • Page 16 MMD-4300 Series Medical LCD Monitor List of Tables Table 1-1: Model Variations..................3 Table 1-2: MMD-4300 Series Monitor Specifications ..........5 Table 2-1: Physical Dimensions ................11 Table 3-1: Package List Contents................15 Table 5-1: OSD Menus ....................29 Table 5-2: Information Menu – Item Description............36 Table 7-1: Troubleshooting ..................44...

  • Page 17: Introduction

    MMD-4300 Series Medical LCD Monitor Chapter Introduction Page 1...

  • Page 18: Mmd-4300 Series Medical Lcd Monitor Overview

    The VESA mounting capabilities provide a wide array of mounting options. The MMD-4300 Series can be configured to display in seamless dual 2MP through two DVI signal inputs. The built-in front sensor and the backlight sensor ensure the MMD-4300 Series to display consistent images over time.

  • Page 19: Compatible Graphics Card

    Various graphics card support: Matrox, RealVision, ATI, nVidia and other high-level commercial cards 1.3 Compatible Graphics Card MMD-4300 Series supports the following graphics cards in either Single 4MP Viewing Mode or Dual 2MP Viewing Mode: NVIDIA QUADRO FX Series ATI FireGL Series 1.4 Model Variations...
  • Page 20 MMD-4300 Series Medical LCD Monitor Model MMD-4300C/MMD-4300CX Drive System a-Si TFT active matrix Display area (H x V) 641.3mm x 400.8mm Diagonal size of display 75.6cm (30.0 inches) Resolution (H x V) 2560 x 1600 Display color 16,777,216 colors Pixel pitch (H x V) 0.2505mm x 0.2505mm...

  • Page 21: Classification

    The equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Not AP or APG Category: 1.6 International Standards Compliance The MMD-4300 series LCD monitor complies with the following international standards: UL 60601-1 AND CAN/CSA C22.2 NO. 601.1 93/42/EEC, EN60601-1, EN60601-2 RoHS For a more detailed description of these standards, please refer to Appendix A.
  • Page 22 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 6...

  • Page 23: Mechanical Overview

    MMD-4300 Series Medical LCD Monitor Chapter Mechanical Overview Page 7...

  • Page 24: Introduction

    2.2 Front Panel The front panel of the MMD-4300 Series has an LCD screen surrounded by a sturdy acrylonitrile butadiene styrene (ABS) and polycarbonate (PC) plastic frame. A front sensor and an ambient light sensor are also located on the front panel to ensure the stability and accuracy of the displayed image.

  • Page 25: Rear Panel

    MMD-4300 Series Medical LCD Monitor 2.3 Rear Panel The rear panel of the MMD-4300 Series has standard VESA mounting holes that supports 100mm x 100mm and 100mm x 200mm VESA mounting. An OSD control panel is also located on the rear panel. The rear panel is shown in Figure 2-2.

  • Page 26: Figure 2-3: Epic Panel

    MMD-4300 Series Medical LCD Monitor Figure 2-3: EPIC Panel The EPIC connectors on the bottom panel can easily be distinguished by the connector symbols shown on the rear panel (Figure 2-4). Figure 2-4: EPIC Symbols Page 10...

  • Page 27: Physical Dimensions

    MMD-4300 Series Medical LCD Monitor 2.5 Physical Dimensions The physical dimensions of the MMD-4300 Series monitors are specified in Table 2-1 below. Landscape Orientation Landscape Orientation Without Stand With Stand Width (mm) Height (mm) Depth (mm) Table 2-1: Physical Dimensions...
  • Page 28 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 12...

  • Page 29: Unpacking

    MMD-4300 Series Medical LCD Monitor Chapter Unpacking Page 13...

  • Page 30: Unpacking

    3.1.1 Unpacking Precautions When the MMD-4300 Series is unpacked, please do the following: Make sure the packing box is facing upwards so the MMD-4300 Series does not fall out of the box. Make sure all the components shown in Section 3.1.2 are present.

  • Page 31: Table 3-1: Package List Contents

    MMD-4300 Series Medical LCD Monitor AC power adapter AC power cable (US) Utility CD Table 3-1: Package List Contents Page 15...
  • Page 32 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 16...

  • Page 33: Installation

    MMD-4300 Series Medical LCD Monitor Chapter Installation Page 17...

  • Page 34: Installation Precautions

    MMD-4300 Series Medical LCD Monitor 4.1 Installation Precautions When installing the MMD-4300 Series medical LCD monitor, please follow the precautions listed below: Read the user manual: The user manual provides a complete description of the MMD-4300 Series medical LCD monitor, installation instructions and configuration options.

  • Page 35: Epic Panel Connectors Overview

    MMD-4300 Series Medical LCD Monitor 4.2.1 EPIC Panel Connectors Overview Figure 4-1 shows the EPIC panel connectors for the MMD-4300 Series LCD monitor. The following sections fully describe EPIC panel connectors. Figure 4-1: Monitor EPIC Panel Connectors 4.2.2 Power Connector Use the bottom panel power connector to connect the monitor to the AC power adapter provided with the monitor.

  • Page 36: Dvi-D Connector

    Figure 4-3: DVI-D Connector Pin-out Locations 4.2.3.1 Single Viewing Mode Connection Connect the master DVI port of a system to the master DVI port of the MMD-4300 Series to display in the single viewing mode. Figure 4-4: DVI-D Connection (One System, 4MP)

  • Page 37: Dual Viewing Mode Connection (One System)

    Connect the master DVI port of a system to the master DVI port of the Step 1: MMD-4300 Series (Figure 4-5). Connect the slave DVI port of a system to the slave DVI port of the MMD-4300 Step 2: Series (Figure 4-5).

  • Page 38: Usb Type A Connector

    Connect the master DVI port of the other system to the slave DVI port of the Step 2: MMD-4300 Series (Figure 4-6). The MMD-4300 Series displays the source from the master port on the left hand Step 3: side screen while the source from the slave port is displayed on the right hand side screen.

  • Page 39: Usb Type B Connector

    MMD-4300 Series Medical LCD Monitor 4.2.5 USB Type B Connector Use the bottom panel standard USB Type B connector to connect the monitor to a computer system to enable the other two USB Type A connectors on the bottom panel of the MMD-4300 Series.

  • Page 40: Mounting The Mmd-4300 Series Lcd Monitor

    (VESA) standard mounting holes tapped into the rear panel. The standard holes are M4 set at 100mm x 100mm or 100mm x 200mm apart (Figure 4-10). Figure 4-10: VESA Mounting Holes To mount the MMD-4300 Series medical LCD monitor onto a monitor arm or stand, please follow the steps below. Page 24...
  • Page 41 MMD-4300 Series Medical LCD Monitor Line up the threaded holes on the monitor rear panel with the screw holes on the Step 1: monitor arm or stand mounting plate. Secure the monitor to the arm or stand with the retention screws supplied with...
  • Page 42 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 26...

  • Page 43: On-Screen-Display (Osd) Controls

    MMD-4300 Series Medical LCD Monitor Chapter On-Screen-Display (OSD) Controls Page 27...

  • Page 44: User Mode Osd Structure

    ON/OFF Button Press this button to turn the LCD monitor backlight on or off. Info Button Press this button to show the general information of the MMD-4300 Series. Menu Button Press this button to show or exit the OSD main menu.

  • Page 45: Osd Menu Structure

    MMD-4300 Series Medical LCD Monitor temperature inside the monitor housing falls below 45°C. 5.1.2 OSD Menu Structure Table 5-1 shows the OSD menu structure for all models of the MMD-4300 Series LCD monitor. Menu Value 120~220 for MMD-4300C Brightness 120~200 for MMD-4300CX...

  • Page 46: Using The Osd

    MMD-4300 Series Medical LCD Monitor 5.2 Using the OSD The following sections describe how to enter the OSD menus and adjust their functions. 5.2.1 Entering, Exiting and Switching OSD Menus To enter the OSD menus, press the <Menu> button once.

  • Page 47: Resolution Menu

    MMD-4300 Series Medical LCD Monitor 5.3.2 Resolution Menu Resolution menu options are shown in Figure 5-3. Figure 5-3: Resolution Menu Single viewing mode. The display resolution is 4 megapixels (2560 x 1600). Dual viewing mode. The display resolution is 2 megapixels (1600 x 1280) in each display window.

  • Page 48: Dual Viewing Mode (2Mp)

    MMD-4300 Series Medical LCD Monitor Figure 5-4: Color/Gray Menu (4MP) Display in color mode. Color Display in grayscale mode. Gray 5.3.3.2 Dual Viewing Mode (2MP) Color/Gray menu options for dual viewing mode (2MP) are shown in Figure 5-2. Figure 5-5: Color/Gray Menu (2MP)

  • Page 49: Gamma Menu

    MMD-4300 Series Medical LCD Monitor Display in color mode in both viewing window. The left hand side window is displayed in grayscale mode; The right hand side window is displayed in color mode. The left hand side window is displayed in color mode;...

  • Page 50: Color Display

    MMD-4300 Series Medical LCD Monitor 5.3.4.2 Color Display Gamma menu options for color display in single display mode are shown in Figure 5-2. Figure 5-7: Gamma Menu (Color Display) NTSC standard Kelvin. Color Temperature. 6500K The available display gamma options under 6500K include: Gamma2.2...

  • Page 51: Dual Display (2Mp)

    MMD-4300 Series Medical LCD Monitor 5.3.4.3 Dual Display (2MP) Gamma menu options in dual display mode are shown in Figure 5-2. Figure 5-8: Gamma Menu (Dual Display) Select to control the gamma setting of the left hand side window. Select to control the gamma setting of the right hand side window.

  • Page 52: Figure 5-9: Information Menu

    MMD-4300 Series Medical LCD Monitor Figure 5-9: Information Menu Item Description Model MMD-4300/MMD-4300A Lookup table. Based on the setting in Gamma menu. G0: 6500K – Gamma2.2 G6: Special – Special1 G1: 6500K – Gamma2.0 G7: Special – Special2 G2: 6500K – Gamma1.8 G8: Special –...

  • Page 53: Default Setting Menu

    MMD-4300 Series Medical LCD Monitor 5.3.6 Default Setting Menu Default Setting menu options are shown in Figure 5-2. Figure 5-10: Default Setting Menu Resets the menu items to factory defaults. The reset does not affect the user-defined value of the SPECIAL item in gamma menus.
  • Page 54 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 38...

  • Page 55: Software Driver

    MMD-4300 Series Medical LCD Monitor Chapter Software Driver Page 39...

  • Page 56: Available Software Drivers

    MMD-4300 Series Medical LCD Monitor 6.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Please contact technical support for the latest updates.

  • Page 57: Figure 6-2: Installation Successful Screen

    MMD-4300 Series Medical LCD Monitor The driver files are copied to the system and the Installation Successful Step 4: screen in Figure 6-2 appears. Figure 6-2: Installation Successful Screen Click OK to complete the driver installation process. Step 5: Step 0:...

  • Page 58: Troubleshooting

    MMD-4300 Series Medical LCD Monitor Chapter Troubleshooting Page 42...

  • Page 59: Troubleshooting

    MMD-4300 Series Medical LCD Monitor 7.1 Troubleshooting If a problem persists even after applying the remedies suggested below, please contact a dealer for further examination. Only qualified engineers from certified system integrators are allowed to make necessary functional modifications to the monitor.

  • Page 60: Table 7-1: Troubleshooting

    MMD-4300 Series Medical LCD Monitor Problem Solution the buttons again. does not appear Press and hold the <Menu> button for 1.5 second or more. Monitor turns off Make sure the temperature status and fan status indicated while in use in the OSD menus are still within the allowable operating range.
  • Page 61 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 45...

  • Page 62: Ainternational Standards Compliance

    MMD-4300 Series Medical LCD Monitor Appendix International Standards Compliance Page 46...

  • Page 63: Ul 60601-1 And Can/Csa C22.2 No. 601.1

    FCC Rules. A.4 RoHS Compliant The MMD-4300 series comply with the Restriction of Hazardous Materials (RoHS) Directive. This means that all components used to build the industrial workstations and the workstation itself are RoHS compliant.

  • Page 64: Attention

    MMD-4300 Series Medical LCD Monitor The RoHS Directive bans the placing on the EU market of new electrical and electronic equipment containing more than agreed levels of lead, caISDMium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
  • Page 65 MMD-4300 Series Medical LCD Monitor THIS PAGE IS INTENTIONALLY LEFT BLANK Page 49...

  • Page 66: Bglossary

    MMD-4300 Series Medical LCD Monitor Appendix Glossary Page 50...
  • Page 67 MMD-4300 Series Medical LCD Monitor Active-Matrix Liquid Crystal Displays A type of flat panel display with advantages such as light weight, excellent image quality, wide color gamut and response time as compare with other types of displays. Whereas a passive matrix display uses a simple conductive grid to deliver current to the liquid crystals in the target area, an active matrix display uses a grid of transistors and capacitors with the ability to hold a charge for a limited period of time.
  • Page 68 MMD-4300 Series Medical LCD Monitor Gamma Correction In reference to displaying an image accurately on a computer screen, Gamma correction controls the overall brightness of an image. Images that are not properly corrected can look either bleached out, or too dark.
  • Page 69 MMD-4300 Series Medical LCD Monitor Response Time Response time is the amount of time a pixel in an LCD monitor takes to go from active (black) to inactive (white) and back to active (black) again. It is measured in milliseconds (ms).

  • Page 70: Index

    MMD-4300 Series Medical LCD Monitor Index Page 54...
  • Page 71 MMD-4300 Series Medical LCD Monitor Ａ Ｉ ACTIVE-MATRIX LIQUID CRYSTAL Installation Precautions......18 DISPLAYS ..........51 International Standards Compliance....5 93/42/EEC, EN60601-1, EN60601-2..47 Ｃ FCC ............47 UL 60601-1 AND CAN/CSA C22.2 NO. Cleaning Tools ..........x 601.1 ..........47 COLOR GAMUT ........51 COLOR SPACE .........51 Ｌ...
  • Page 72 MMD-4300 Series Medical LCD Monitor Menu Structure ........29 Classification ...........5 Resolution Menu ........31 General............3 Structure ..........28 Monitor.............3 Using the OSD ........30 Ｔ Overview............2 Troubleshooting .........43 Ｐ Ｕ Packing List ..........14 Physical Dimensions........11 unpacking...........14 product DisposAL ........xi unpacking precautions......14 Ｒ...
