IEI Technology LCD-KIT Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LCD KIT Series Monitor
Page 1

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology LCD-KIT Series

Summary of Contents for IEI Technology LCD-KIT Series

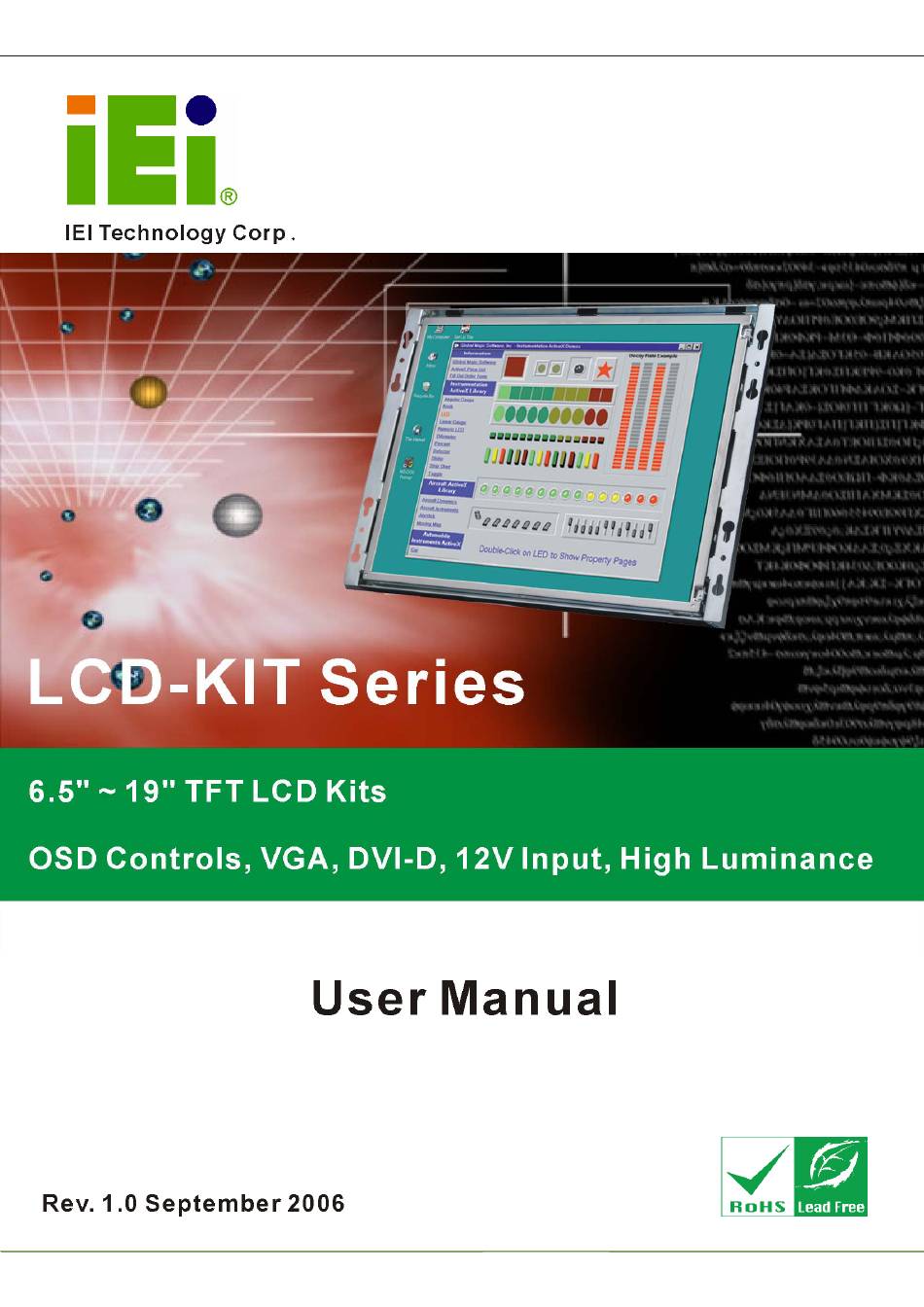

  • Page 1 LCD KIT Series Monitor Page 1...

  • Page 2: About This Manual

    LCD-KIT150G, LCD-KIT121G, LCD-KIT104G, LCD-KIT84G and LCD-KIT65G. COPYRIGHT NOTICE This document is copyrighted 2006, by IEI Technology Corp. All rights are reserved. IEI Technology Corp. reserves the rights to alter the products described in this manual at any time without prior notice.

  • Page 3: Safety Precautions

    LCD KIT Series Monitor SAFETY PRECAUTIONS Prior to installing, moving, and modifying the monitor, make sure the power is turned off and the power cord is disconnected. Do not apply voltage levels that exceed the specified voltage range. Doing so will cause fire or an electrical shock.
  • Page 4 Condensation might form inside the monitor chassis if exposed to sudden changes in temperature. Carefully route the power cord so that people cannot step on it. Do not place anything over the power cord. If the equipment should be left unused for an extended period of time, disconnect it from the power source to avoid damage by transient over-voltage.

  • Page 5: Esd Precautions

    LCD KIT Series Monitor Be cautious of all small removable components when vacuuming the monitor. Turn the system off before cleaning the LCD monitor. Never drop any objects or liquids through the openings of the LCD monitor. Be cautious of any possible allergic reactions to solvents or chemicals used when cleaning the monitor.

  • Page 6: Conventions Used In This Manual

    strap and an anti-static work pad is recommended. Avoid dust and debris or other static-accumulating materials in the work area. CONVENTIONS USED IN THIS MANUAL WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning”...

  • Page 7: Table Of Contents

    1.1.1 Standard Features .................... 19 1.1.2 Model Variations ....................19 1.2 A .................. 19 PPLICATIONS AND EATURES 1.2.1 LCD-KIT Series Monitor Applications ............19 1.2.2 LCD-KIT Series Monitor Features ..............20 1.3 E ....................20 XTERNAL VERVIEW 1.3.1 Front View ......................20 1.3.2 Rear View ......................
  • Page 8 2.4.6 LCD-KIT104G Physical Dimensions............... 35 2.4.7 LCD-KIT84G Physical Dimensions..............36 2.4.8 LCD-KIT65G Physical Dimensions..............37 2.5 M ....................38 OUNTING PTIONS LCD SPECIFICATIONS ..................39 3.1 LCD S ....................40 PECIFICATIONS 3.1.1 LCD Overview ....................40 3.1.2 LCD-KIT190G LCD Specifications ..............41 3.1.3 LCD-KIT170G LCD Specifications ..............
  • Page 9 LCD KIT Series Monitor 4.2.17 OSD Control Buttons ..................64 4.2.18 VGA Connector ....................65 4.2.19 AV-9350 Onboard Jumper................66 4.2.20 LCD Panel (TTL) Voltage Select Jumper............67 4.3 AV-5350 AD B ....................68 OARD 4.3.1 AV-5350 AD Board Overview ................68 4.3.2 AV-5350 AD Board Connectors ...............
  • Page 10 4.4.14 VGA Connector ....................95 4.4.15 AV-5300 External (Rear Panel) Connectors..........97 4.4.16 DC 12V Connector..................98 4.4.17 VGA Connector ....................99 4.4.18 DVI-D Connector................... 99 4.4.19 AV-5300 Onboard Jumpers ................101 4.4.20 LCD Panel Power Input Jumper..............102 4.4.21 LCD Panel Voltage Select Jumper ............... 103 INSTALLATION ....................
  • Page 11 LCD KIT Series Monitor A.1 R HS C ....................122 OMPLIANT INDEX........................123 Page 11...

  • Page 12: List Of Figures

    List of Figures Figure 1-1: Typical LCD-KIT Front View..............21 Figure 1-2: Typical LCD-KIT Rear View..............22 Figure 1-3: Typical LCD-KIT Connectors ..............22 Figure 1-4: AV-5300 AD Board ...................23 Figure 2-1: Rear Panel Variant 1 ................28 Figure 2-2: Rear Panel Variant 2 ................29 Figure 2-3: LCD-KIT190G Physical Dimensions (millimeters)........31 Figure 2-4: LCD-KIT170G Physical Dimensions (millimeters)........32 Figure 2-5: LCD-KIT150G Physical Dimensions (millimeters)........33...
  • Page 13 LCD KIT Series Monitor Figure 4-14: AV-5350 AD Board Overview ..............68 Figure 4-15: Connector and Jumper Locations ............69 Figure 4-16: 5V Power Connector Location .............71 Figure 4-17: Backlight Inverter Connector Location ..........72 Figure 4-18: External OSD and LED Indication Connector Location.....73 Figure 4-19: LVDS Output Connector Location ............75 Figure 4-20: VGA Connector Location ..............76 Figure 4-21: AV-5350 External (Rear Panel) Connectors ........77...
  • Page 14 Figure 6-3: Main Display Features................115 Figure 6-4: Color Options..................116 Figure 6-5: Language Menu ..................117 Figure 6-6: OSD Configurations Menu ..............118 Figure 6-7: Signal Menu................... 119 Figure 6-8: Backlight Menu ..................119 Page 14 IEI ® Technology, Corp.
  • Page 15 LCD KIT Series Monitor List of Tables Table 1-1: LCD-KIT Series Specifications..............24 Table 2-1: Rear Panel Variants...................27 Table 2-2: General Physical Dimensions..............30 Table 2-3: Mounting Holes ..................38 Table 3-1: LCD-KIT190G LCD Specifications ............41 Table 3-2: LCD-KIT170G LCD Specifications ............42 Table 3-3: LCD-KIT150G LCD Specifications ............43 Table 3-4: LCD-KIT121G LCD Specifications ............44...
  • Page 16 Table 4-15: OSD Control Button JP4 Pinouts ............64 Table 4-16: VGA Connector Pinouts .................65 Table 4-17: LCD Panel (TTL) Voltage Select Jumper Settings .......67 Table 4-18: AV-5350 Peripheral Interface Connectors ..........70 Table 4-19: AV-5350 Rear Panel Connectors ............70 Table 4-20: AV-5350 Onboard Jumper ..............70 Table 4-21: 5V Power Connector Pinouts..............71 Table 4-22: Backlight Inverter Connector Pinouts...........72 Table 4-23: External OSD and LED Indication Connector Pinouts ......73...
  • Page 17 LCD KIT Series Monitor Table 5-2: VGA Connector Pinouts ................ 108 Table 5-3: DVI-D Connector Pinouts ..............109 Table 6-1: OSD Menus – All Models Except LCD-KIT65G ........113 Table 6-2: LCD-KIT65G OSD Menus ............... 115 Page 17...

  • Page 18: Introduction

    Chapter Introduction Page 18 IEI ® Technology, Corp.

  • Page 19: Lcd-Kit Series Monitor Overview

    LCD KIT Series Monitor 1.1 LCD-KIT Series Monitor Overview The LCD-KIT series monitor is the latest member of IEI’s line of sophisticated LCD designs, and it has been improved to be RoHS compliant. It is designed to fit industrial automation, or any other applications that require minimum installation space and flexible configuration.

  • Page 20: Lcd-Kit Series Monitor Features

    The following sections describe the physical layout of the LCD-KIT series monitors. 1.3.1 Front View The front of the LCD-KIT series monitor is a flat panel TFT LCD screen attached to a metal chassis. Figure 1-1 shows a typical LCD-KIT front view.

  • Page 21: Rear View

    Figure 1-1: Typical LCD-KIT Front View 1.3.2 Rear View The rear of the LCD-KIT series monitor is a metal chassis. An on screen display (OSD) control button panel, if present, is located vertically on the left side of the chassis with the...

  • Page 22: Connectors

    Figure 1-2: Typical LCD-KIT Rear View 1.3.3 Connectors Each LCD-KIT series monitor has a number of interface connectors on either the top or right panel of the chassis (when viewing the rear panel). Figure 1-3 shows a typical LCD-KIT connector panel. Each model may include or exclude additional connectors.

  • Page 23: Series Specifications

    CPU card through cabling. Figure 1-4 shows the AV-5300 AD board as a sample of a typical AD board for the LCD-KIT series monitor. Refer to Chapter 4 for a complete description of AD boards and their connectors.

  • Page 24: Table 1-1: Lcd-Kit Series Specifications

    364.1 x 390.4 x 427.9 x (WxHxD) 121 x 147 x 209 x 240.7 x 262.5 x 300 x 327.4 x (mm) 35.3 33.6 41.9 46.9 48.4 Operation 0~50°C Temperature Table 1-1: LCD-KIT Series Specifications Page 24 IEI ® Technology, Corp.

  • Page 25: Certifications

    LCD KIT Series Monitor 1.5 Certifications All LCD-KIT series monitor models comply with the following international standards: RoHS For a more detailed description of these standards, please refer to Appendix A. Page 25...

  • Page 26: Mechanical Overview

    Chapter Mechanical Overview Page 26 IEI ® Technology, Corp.

  • Page 27: Introduction

    This chapter describes the general mechanical overview of the LCD-KIT series monitors including rear panel variations, available interfaces and overall dimensions. 2.2 Rear Panel The rear panel of the LCD-KIT series monitor is comprised of a metal chassis with an OSD control panel. 2.2.1 Rear Panel Variants Table 2-1 shows the rear panel variants for the LCD-KIT series monitor.

  • Page 28: Rear Panel Variant 2

    Figure 2-1 shows the location of the rear panel variant 1 OSD controls. Figure 2-1: Rear Panel Variant 1 2.2.3 Rear Panel Variant 2 The following model of the LCD-KIT series monitor has OSD control buttons located on the bottom of the rear panel: LCD-KIT65G Figure 2-2 shows the location of the rear panel variant 2 OSD controls.

  • Page 29: Connector Panel

    LCD KIT Series Monitor Figure 2-2: Rear Panel Variant 2 2.3 Connector Panel All external peripheral interface connectors are located on the rear panel of the LCD-KIT series monitor. The following sections describe the rear panel variants and their associated connectors. 2.3.1 Available Connectors There are a number of rear panel peripheral device connectors available for the LCD-KIT series monitor.

  • Page 30: Variant 2 Connectors

    12V power connector 2.4 Physical Dimensions The following sections describe the physical dimensions for each model of the LCD-KIT series monitor. 2.4.1 General Physical Dimensions General physical dimensions for the LCD-KIT series monitors are shown in Table 2-2. Model Width Height Depth...

  • Page 31: Lcd-Kit190G Physical Dimensions

    LCD KIT Series Monitor 2.4.2 LCD-KIT190G Physical Dimensions The physical dimensions of the LCD-KIT190G are shown in Figure 2-3. Figure 2-3: LCD-KIT190G Physical Dimensions (millimeters) Page 31...

  • Page 32: Lcd-Kit170G Physical Dimensions

    2.4.3 LCD-KIT170G Physical Dimensions The physical dimensions of the LCD-KIT170G are shown in Figure 2-4. Figure 2-4: LCD-KIT170G Physical Dimensions (millimeters) Page 32 IEI ® Technology, Corp.

  • Page 33: Lcd-Kit150G Physical Dimensions

    LCD KIT Series Monitor 2.4.4 LCD-KIT150G Physical Dimensions The physical dimensions of the LCD-KIT150G are shown in Figure 2-5. Figure 2-5: LCD-KIT150G Physical Dimensions (millimeters) Page 33...

  • Page 34: Lcd-Kit121G Physical Dimensions

    2.4.5 LCD-KIT121G Physical Dimensions The physical dimensions of the LCD-KIT121G are shown in Figure 2-6. Figure 2-6: LCD-KIT121G Physical Dimensions (millimeters) Page 34 IEI ® Technology, Corp.

  • Page 35: Lcd-Kit104G Physical Dimensions

    LCD KIT Series Monitor 2.4.6 LCD-KIT104G Physical Dimensions The physical dimensions of the LCD-KIT104G are shown in Figure 2-7. Figure 2-7: LCD-KIT104G Physical Dimensions (millimeters) Page 35...

  • Page 36: Lcd-Kit84G Physical Dimensions

    2.4.7 LCD-KIT84G Physical Dimensions The physical dimensions of the LCD-KIT84G are shown in Figure 2-8. Figure 2-8: LCD-KIT84G Physical Dimensions (millimeters) Page 36 IEI ® Technology, Corp.

  • Page 37: Lcd-Kit65G Physical Dimensions

    LCD KIT Series Monitor 2.4.8 LCD-KIT65G Physical Dimensions The physical dimensions of the LCD-KIT65G are shown in Figure 2-9. Figure 2-9: LCD-KIT65G Physical Dimensions (millimeters) Page 37...

  • Page 38: Mounting Options

    2.5 Mounting Options Each LCD-KIT series monitor has mounting holes located on the mounting bracket. Table 2-3 details the number of mounting holes for each model of the LCD-KIT series monitor. Refer to Section 2.4 for more information. Model No. of Round Holes - Size No.

  • Page 39: Lcd Specifications

    LCD KIT Series Monitor Chapter LCD Specifications Page 39...

  • Page 40: Lcd Specifications

    3.1 LCD Specifications 3.1.1 LCD Overview The LCD-KIT series monitors use the following LCD panels. AUO M190EG02 LCD-KIT190G: AUO M170EG01 LCD-KIT170G: AUO G150XG01 LCD-KIT150G: AUO G121SN01 LCD-KIT121G: AUO G104SN03 LCD-KIT104G: AUO G084SN03 LCD-KIT84G: Toshiba LTA065B0D0F LCD-KIT65G: Detailed specifications for the LCD screens are listed in the following sections.

  • Page 41: Lcd-Kit190G Lcd Specifications

    LCD KIT Series Monitor 3.1.2 LCD-KIT190G LCD Specifications Table 3-1 lists the LCD-KIT190G LCD specifications. Model LCD-KIT190G Size 19” MFR/Model AUO/M190EG02 Resolution SXGA (1280 x 1024) Active Area (mm) 376.3 x 301.1 Pixel Pitch (mm) 0.294 Mode Number of Colors 16.2M Color Saturation (NTSC%) View Angle (H/V)

  • Page 42: Lcd-Kit170G Lcd Specifications

    3.1.3 LCD-KIT170G LCD Specifications Table 3-2 lists the LCD-KIT170G LCD specifications. Model LCD-KIT170G Size 17" MFR/Model AUO/M170EG01 Resolution SXGA (1280 x 1024) Active Area (mm) 337.9 x 270.3 Pixel Pitch (mm) 0.264 Mode Number of Colors 16.2M Color Saturation (NTSC%) View Angle (H/V) 140/130 Brightness (cd/m2)

  • Page 43: Lcd-Kit150G Lcd Specifications

    LCD KIT Series Monitor 3.1.4 LCD-KIT150G LCD Specifications Table 3-3 lists the LCD-KIT150G LCD specifications. Model LCD-KIT150G Size 15" MFR/Model AUO/G150XG01 Resolution XGA (1024 x 768) Active Area (mm) 304.1 x 228.1 Pixel Pitch (mm) 0.297 Mode Number of Colors 262K Color Saturation (NTSC%) View Angle (H/V)

  • Page 44: Lcd-Kit121G Lcd Specifications

    3.1.5 LCD-KIT121G LCD Specifications Table 3-4 lists the LCD-KIT121G LCD specifications. Model LCD-KIT121G Size 12.1” MFR/Model AUO/G121SN01 Resolution SVGA (800 x 600) Active Area (mm) 246.0 x 184.5 Pixel Pitch (mm) 0.307 Mode Number of Colors Color Saturation (NTSC%) View Angle (H/V) 150/110 Brightness (cd/m2) Contrast Ratio...

  • Page 45: Lcd-Kit104G Lcd Specifications

    LCD KIT Series Monitor 3.1.6 LCD-KIT104G LCD Specifications Table 3-5 lists the LCD-KIT104G LCD specifications. Model LCD-KIT104G Size 10.4” MFR/Model AUO/G104SN03 Resolution SVGA (800 x 600) Active Area (mm) 211.2 x 158.4 Pixel Pitch (mm) 0.264 Mode Number of Colors 262K Color Saturation (NTSC%) View Angle (H/V)

  • Page 46: Lcd-Kit84G Lcd Specifications

    3.1.7 LCD-KIT84G LCD Specifications Table 3-6 lists the LCD-KIT84G LCD specifications. Model LCD-KIT84G Size 8.4” MFR/Model AUO/G084SN03 Resolution SVGA (800 x 600) Active Area (mm) 170.4 x 127.8 Pixel Pitch (mm) 0.213 Mode Number of Colors 262K Color Saturation (NTSC%) View Angle (H/V) 130 / 110 Brightness (cd/m2)

  • Page 47: Lcd-Kit65G Lcd Specifications

    LCD KIT Series Monitor 3.1.8 LCD-KIT65G LCD Specifications Table 3-7 lists the LCD-KIT65G LCD specifications. Model LCD-KIT65G Size 6.5” MFR/Model Toshiba/LTA065B0D0F Resolution VGA (640 x 480) Active Area (mm) 132.48 x 99.36 Pixel Pitch (mm) 0.207 Mode Number of Colors 262K Color Saturation (NTSC%) View Angle (H/V)

  • Page 48: Power Adapters

    3.2 Power Adapters Table 3-8 lists the AC/DC power adapter specifications. LCD-KIT 190G, 170G, 150G, 121G 104G, 84G, 65G Power 45 Watt AC/DC Adapter 25 Watt AC/DC Adapter General Description Universal Input 90 to 264 VAC Universal Input 90 to 264 VAC EMI Meets FCC/CISPR 22 Class B EMI Meets FCC/CISPR 22 Class B MTBF 165Khrs...

  • Page 49: Ad Boards

    LCD KIT Series Monitor Chapter AD Boards Page 49...

  • Page 50: Ad Board Overview

    CPU card through cabling. There are three AD boards used for the LCD-KIT series monitors: AV-9350, AV-5350 and AV-5300. Refer to Table 1-1 for a listing of LCD-KIT series monitors and their associated AD board. The following sections describe each AD board in detail.

  • Page 51: Av-9350 Ad Board Layout

    LCD KIT Series Monitor 1 x TTL output connector 2 x 5V power connector 1 x RS-232 connector The AV-9350 AD board has the following connectors on the board rear panel: 1 x RS-232 connector 1 x VGA connector 1 x 12V DC power connector The locations of the peripheral interface connectors for the AV-9350 AD board are shown in Section 4.2.3.

  • Page 52: Av-9350 Rear Panel Connectors

    Connector Type Label 5V Power connector 2-pin header CN11, CN12 Debugged Port connector 4-pin header CN3, CN5 Connector Type Label External OSD and 9-pin header LED Indication connector Serial Communications connector 10-pin header COM1 TTL Output connector 40-pin header VGA connector 10-pin header Table 4-1: AV-9350 Peripheral Interface Connectors 4.2.5 AV-9350 Rear Panel Connectors...

  • Page 53: Av-9350 Internal Peripheral Connectors

    LCD KIT Series Monitor 4.2.7 AV-9350 Internal Peripheral Connectors Internal peripheral connectors on the AV-9350 AD board are only accessible when the board is outside of the monitor. This section has complete descriptions of all the internal, peripheral connectors on the AV-9350 AD board. 4.2.8 5V Power Connector CN Label: CN11, CN12...

  • Page 54: Figure 4-3: 5V Power Connector Location

    Figure 4-3: 5V Power Connector Location Page 54 IEI ® Technology, Corp.

  • Page 55: Debugged Port Connector

    LCD KIT Series Monitor 4.2.9 Debugged Port Connector CN Label: CN3, CN5 CN Type: 4-pin header CN Pinouts: See Table 4-5 CN Location: See Figure 4-4 Use the debugged port connector to update the AD board BIOS. Description Table 4-5: Debugged Port Connector Pinouts Figure 4-4: Debugged Port Connector Location Page 55...

  • Page 56: External Osd And Led Indication Connector

    4.2.10 External OSD and LED Indication Connector CN Label: CN Type: 9-pin header CN Pinouts: See Table 4-6 CN Location: See Figure 4-5 The External OSD and LED Indication connector connects to an external OSD controller. Description LED_ORANGE LED_GREEN MENU/ENTER RIGHT LEFT AUTO...

  • Page 57: Figure 4-5: External Osd And Led Indication Connector Location

    LCD KIT Series Monitor Figure 4-5: External OSD and LED Indication Connector Location Page 57...

  • Page 58: Serial Communications Connector

    4.2.11 Serial Communications Connector CN Label: COM1 CN Type: 10-pin header CN Pinouts: See Table 4-7 CN Location: See Figure 4-6 The AV-9350 has a 10-pin serial communications connector. Description Description Table 4-7: Serial Communications Connector Pinouts Figure 4-6: Serial Communications Connector Location Page 58 IEI ®...

  • Page 59: Ttl Output Connector

    LCD KIT Series Monitor 4.2.12 TTL Output Connector CN Label: CN Type: 40-pin header CN Pinouts: See Table 4-8 CN Location: See Figure 4-7 The TTL output connector connects the LCD panel to the system. Description Description LCD5V LCD5V GROUND GROUND LCD3V LCD3V...

  • Page 60: Figure 4-7: Ttl Output Connector Location

    Figure 4-7: TTL Output Connector Location NOTE: The supply voltage (3.3V and 5V) can be selected via JP5. Page 60 IEI ® Technology, Corp.

  • Page 61: Vga Connector

    LCD KIT Series Monitor 4.2.13 VGA Connector CN Label: CN Type: 10-pin header CN Pinouts: See Table 4-9 CN Location: See Figure 4-8 In addition to the standard DB-15 female VGA connector (CN1), a VGA connection can also be made through the onboard CN2 10-pin header. Description Description DDCCLK...

  • Page 62: Av-9350 External (Rear Panel) Connectors

    4.2.14 AV-9350 External (Rear Panel) Connectors Figure 4-9 shows the AV-9350 external (rear panel) connectors. The peripheral connectors on the back panel of the monitor can connect to external devices. The peripheral connectors on the rear panel are: 1 x DC 12V connector 1 x Serial Communications connector 4 x OSD Function Button 1 x VGA conector...

  • Page 63: Rs232 Serial Connector

    LCD KIT Series Monitor 4.2.16 RS232 Serial Connector CN Label: CN Type: D-Sub 9 female connector CN Pinouts: See Table 4-11 and Figure 4-10 CN Location: See Figure 4-9 Use the RS-232 serial connector to connect the touch panel. DESCRIPTION DESCRIPTION RI/Vout DESCRIPTION...

  • Page 64: Osd Control Buttons

    4.2.17 OSD Control Buttons CN Label: JP1, JP2, JP3, JP4 CN Type: Pushbutton CN Pinouts: See Table 4-12, Table 4-13, Table 4-14, Table 4-15 CN Location: See Figure 4-9 Use these buttons to control the OSD functions. The following tables list each button’s function and pinouts.

  • Page 65: Vga Connector

    LCD KIT Series Monitor 4.2.18 VGA Connector CN Label: CN Type: HD-D-sub 15 female connector CN Pinouts: See Table 4-16 and Figure 4-11 CN Location: See Figure 4-9 Use the standard HD-D-sub 15-pin VGA connector to connect the monitor to a system. DESCRIPTION DESCRIPTION No Connect...

  • Page 66: Av-9350 Onboard Jumper

    4.2.19 AV-9350 Onboard Jumper NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 67: Lcd Panel (Ttl) Voltage Select Jumper

    LCD KIT Series Monitor 4.2.20 LCD Panel (TTL) Voltage Select Jumper Jumper Label: Jumper Type: 3-pin header Jumper Location: See Figure 4-13 Jumper Settings: See Table 4-17 The JP5 jumper sets the voltage to the LCD panel. Description Panel Voltage select 5V Panel Voltage select 3.3V (Default) Table 4-17: LCD Panel (TTL) Voltage Select Jumper Settings Page 67...

  • Page 68: Av-5350 Ad Board

    4.3 AV-5350 AD Board The following sections describe the AV-5350 AD board in detail. 4.3.1 AV-5350 AD Board Overview Figure 4-14: AV-5350 AD Board Overview 4.3.2 AV-5350 AD Board Connectors The AV-5350 AD board has the following connectors onboard: 1 x VGA connector 1 x External OSD and LED Indication connector 1 x LVDS connector 3 x 5V power connector...

  • Page 69: Av-5350 Ad Board Layout

    LCD KIT Series Monitor The AV-5350 AD board has the following connectors on the board rear panel: 1 x VGA connector 1 x 12V DC power connector The locations of the peripheral interface connectors for the AV-5350 AD board are shown in Section 4.3.3.

  • Page 70: Av-5350 Peripheral Interface Connectors

    4.3.4 AV-5350 Peripheral Interface Connectors Table 4-18 shows a list of the peripheral interface connectors on the AV-5350 AD board. Detailed descriptions of these connectors can be found in Section 0. Connector Type Label 5V Power connector 2-pin header CN7, CN8, CN9 Backlight Inverter connector 6-pin header External OSD and...

  • Page 71: Av-5350 Internal Peripheral Connectors

    LCD KIT Series Monitor 4.3.7 AV-5350 Internal Peripheral Connectors Internal peripheral connectors on the AV-5350 AD board are only accessible when the board is outside of the monitor. This section has complete descriptions of all the internal, peripheral connectors on the AV-5350 AD board. 4.3.8 5V Power Connector CN Label: CN7, CN8, CN9...

  • Page 72: Backlight Inverter Connector

    4.3.9 Backlight Inverter Connector CN Label: CN Type: 6-pin header CN Pinouts: See Table 4-22 CN Location: See Figure 4-17 The Inverter connector connects to the LCD backlight. Description +12V +12V On/Off BKLT_ADJ Table 4-22: Backlight Inverter Connector Pinouts Figure 4-17: Backlight Inverter Connector Location Page 72 IEI ®...

  • Page 73: External Osd And Led Indication Connector

    LCD KIT Series Monitor 4.3.10 External OSD and LED Indication Connector CN Label: CN Type: 9-pin header CN Pinouts: See Table 4-23 CN Location: See Figure 4-18 The External OSD and LED Indication connector connects to an external OSD controller. Description LED_ORANGE LED_GREEN...

  • Page 74: Lvds Output Connector

    4.3.11 LVDS Output Connector CN Label: CN Type: 30-pin header CN Pinouts: See Table 4-24 CN Location: See Figure 4-19 Use the LVDS output connector to connect the LCD panel to a system. Description Description TXO3+ TXO3- TXOC+ TXOC- TXO2+ TXO2- TXO1+ TXO1-...

  • Page 75: Vga Connector

    LCD KIT Series Monitor Figure 4-19: LVDS Output Connector Location NOTE: The supply voltage (3.3V (Default), 5V or 12V) can be selected via JP1. 4.3.12 VGA Connector CN Label: CN Type: 10-pin header CN Pinouts: See Table 4-25 CN Location: See Figure 4-20 In addition to the standard DB-15 female VGA connector (J1), a VGA connection can also be made through the onboard CN2 10-pin header.

  • Page 76: Av-5350 External (Rear Panel) Connectors

    Description Description DDCCLK GREEN DDCDAT BLUE GROUND HSYNC GROUND VSYNC GROUND Table 4-25: VGA Connector Pinouts Figure 4-20: VGA Connector Location 4.3.13 AV-5350 External (Rear Panel) Connectors Figure 4-21 shows the AV-5350 external (rear panel) connectors. The peripheral connectors on the back panel of the monitor can connect to external devices. The peripheral connectors on the rear panel are: 1 x DC 12V connector 1 x VGA connector...

  • Page 77: Dc 12V Connector

    LCD KIT Series Monitor Figure 4-21: AV-5350 External (Rear Panel) Connectors 4.3.14 DC 12V Connector CN Label: CN Type: DC 12V Jack CN Pinouts: See Table 4-26 CN Location: See Figure 4-21 Use the DC 12V connector to power the monitor. DESCRIPTION DC 12V Table 4-26: DC 12V Connector Pinouts...

  • Page 78: Av-5350 Onboard Jumper

    DESCRIPTION DESCRIPTION No Connect Green Ground Blue No Connect No Connect DDC DAT Ground Horizontal Synchronization Ground Vertical Synchronization Ground DDC Clock Ground Table 4-27: VGA Connector Pinouts Figure 4-22: VGA Connector Pinout Locations 4.3.16 AV-5350 Onboard Jumper NOTE: A jumper is a metal bridge used to close an electrical circuit.

  • Page 79: Lcd Panel Voltage Select Jumper

    LCD KIT Series Monitor Figure 4-24: Jumper Location 4.3.17 LCD Panel Voltage Select Jumper Jumper Label: Jumper Type: 6-pin header Jumper Location: See Figure 4-24 Jumper Settings: See Table 4-28 The JP1 jumper sets the voltage to the LCD panel. Description Panel Voltage select 3.3V (Default) Panel Voltage select 5V...

  • Page 80: Av-5300 Ad Board

    4.4 AV-5300 AD Board The following sections describe the AV-5300 AD board in detail. 4.4.1 AV-5300 AD Board Overview Figure 4-25: AV-5300 AD Board Overview Page 80 IEI ® Technology, Corp.

  • Page 81: Av-5300 Ad Board Connectors

    LCD KIT Series Monitor 4.4.2 AV-5300 AD Board Connectors The AV-5300 AD board has the following connectors onboard: 1 x VGA connector 1 x External OSD and LED Indication connector 2 x LVDS connector 3 x 5V power connector 1 x Backlight Inverter connector 1 x Debug connector The AV-5300 AD board has the following connectors on the board rear panel: 1 x 12V DC power connector...

  • Page 82: Av-5300 Ad Board Layout

    4.4.3 AV-5300 AD Board Layout Figure 4-26 shows the onboard peripheral connectors and onboard jumpers. Figure 4-26: Connector and Jumper Locations Page 82 IEI ® Technology, Corp.

  • Page 83: Av-5300 Peripheral Interface Connectors

    LCD KIT Series Monitor 4.4.4 AV-5300 Peripheral Interface Connectors Table 4-29 shows a list of the peripheral interface connectors on the AV-5300 AD board. Detailed descriptions of these connectors can be found in Section 4.4.7. Connector Type Label 5V Power connector 2-pin header CN2, CN9, CN15 Backlight Inverter connector...

  • Page 84: Av-5300 Onboard Jumpers

    4.4.6 AV-5300 Onboard Jumpers Table 4-31 lists the onboard jumpers. A detailed description of these jumpers can be found in Section 4.4.19. Jumper Type Label LCD Panel Power Input Select 6-pin header LCD Panel Voltage Select 6-pin header Table 4-31: AV-5300 Onboard Jumpers 4.4.7 AV-5300 Internal Peripheral Connectors Internal peripheral connectors on the AV-5300 AD board are only accessible when the board is outside of the monitor.

  • Page 85: Figure 4-27: 5V Power Connector Location

    LCD KIT Series Monitor Figure 4-27: 5V Power Connector Location Page 85...

  • Page 86: Backlight Inverter Connector

    4.4.9 Backlight Inverter Connector CN Label: CN Type: 6-pin header CN Pinouts: See Table 4-33 CN Location: See Figure 4-28 The Inverter connector connects to the LCD backlight. Description +12V +12V On/Off BKLT_ADJ Table 4-33: Backlight Inverter Connector Pinouts Page 86 IEI ®...

  • Page 87: Dc/Dc Power Connector

    LCD KIT Series Monitor Figure 4-28: Backlight Inverter Connector Location 4.4.10 DC/DC Power Connector CN Label: CN10 CN Type: 3-pin connector Page 87...

  • Page 88: Table 4-34: Dc/Dc Power Connector Pinouts

    CN Pinouts: See Table 4-34 CN Location: See Figure 4-29 The DC/DC power connector connects the board to the optional 9~36V DC terminal block. Description +9V~+36V Table 4-34: DC/DC Power Connector Pinouts Page 88 IEI ® Technology, Corp.

  • Page 89: Debugged Port Connector

    LCD KIT Series Monitor Figure 4-29: DC/DC Power Connector Location 4.4.11 Debugged Port Connector CN Label: CN Type: 4-pin header CN Pinouts: See Table 4-35 Page 89...

  • Page 90: Table 4-35: Debugged Port Connector Pinouts

    CN Location: See Figure 4-30 Use the debugged port connector to update the AD board BIOS. Description Table 4-35: Debugged Port Connector Pinouts Page 90 IEI ® Technology, Corp.

  • Page 91: External Osd And Led Indication Connector

    LCD KIT Series Monitor Figure 4-30: Debugged Port Connector Location 4.4.12 External OSD and LED Indication Connector CN Label: CN Type: 9-pin header Page 91...

  • Page 92: Table 4-36: External Osd And Led Indication Connector Pinouts

    CN Pinouts: See Table 4-36 CN Location: See Figure 4-31 The External OSD and LED Indication connector connects to an external OSD controller. Description LED_ORANGE LED_GREEN MENU/ENTER RIGHT LEFT AUTO LCD ON/OFF Table 4-36: External OSD and LED Indication Connector Pinouts Page 92 IEI ®...

  • Page 93: Lvds Output Connector

    LCD KIT Series Monitor Figure 4-31: External OSD and LED Indication Connector Location 4.4.13 LVDS Output Connector CN Label: CN7, CN17 CN Type: 30-pin crimped connector Page 93...

  • Page 94: Table 4-37: Lvds Output Connector Pinouts

    CN Pinouts: See Table 4-37 CN Location: See Figure 4-32 Use either LVDS output connector to connect the LCD panel to a system. Description Description TXO3+ TXO3- TXOC+ TXOC- TXO2+ TXO2- TXO1+ TXO1- TXO0+ TXO0- TXE3+ TXE3- TXEC+ TXEC- TXE2+ TXE2- TXE1+ TXE1-...

  • Page 95: Vga Connector

    LCD KIT Series Monitor Figure 4-32: LVDS Output Connector Location NOTE: The supply voltage (3.3V (Default), 5V or 12V) can be selected via JP1. 4.4.14 VGA Connector CN Label: CN Type: 10-pin header CN Pinouts: See Table 4-38 CN Location: See Figure 4-33 Page 95...

  • Page 96: Table 4-38: Vga Connector Pinouts

    In addition to the standard DB-15 female VGA connector (J1), a VGA connection can also be made through the onboard CN2 10-pin header. Description Description DDCCLK GREEN DDCDAT BLUE GROUND HSYNC GROUND VSYNC GROUND Table 4-38: VGA Connector Pinouts Page 96 IEI ®...

  • Page 97: Av-5300 External (Rear Panel) Connectors

    LCD KIT Series Monitor Figure 4-33: VGA Connector Location 4.4.15 AV-5300 External (Rear Panel) Connectors Figure 4-34 shows the AV-5300 external (rear panel) connectors. The peripheral connectors on the back panel of the monitor can connect to external devices. The peripheral connectors on the rear panel are: 1 x DC 12V connector 1 x VGA connector...

  • Page 98: Dc 12V Connector

    Figure 4-34: AV-5300 External (Rear Panel) Connectors 4.4.16 DC 12V Connector CN Label: CN Type: DC 12V Jack CN Pinouts: See Table 4-39 CN Location: See Figure 4-34 Use the DC 12V connector to power the monitor. DESCRIPTION DC 12V Table 4-39: DC 12V Connector Pinouts Page 98 IEI ®...

  • Page 99: Vga Connector

    LCD KIT Series Monitor 4.4.17 VGA Connector CN Label: CN Type: HD-D-sub 15 female connector CN Pinouts: See Table 4-40 and Figure 4-35 CN Location: See Figure 4-34 Use the standard HD-D-sub 15-pin VGA connector to connect the monitor to a system. DESCRIPTION DESCRIPTION No Connect...

  • Page 100: Figure 4-36: Dvi-D Connector Pinout Locations

    CN Location: See Figure 4-34 The 24-pin female dual link digital only DVI [Digital Visual Interface] connector is a standard for high-speed, high-resolution digital displays. Use the DVI-D connector to connect the LCD to a system. DESCRIPTION DESCRIPTION DESCRIPTION TMDS Data2- TMDS Data1- TMDS Data0- TMDS Data2+...

  • Page 101: Av-5300 Onboard Jumpers

    LCD KIT Series Monitor 4.4.19 AV-5300 Onboard Jumpers NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 102: Lcd Panel Power Input Jumper

    Figure 4-38: Jumper Location 4.4.20 LCD Panel Power Input Jumper Jumper Label: Jumper Type: 6-pin header Jumper Location: See Figure 4-38 Jumper Settings: See Table 4-42 Page 102 IEI ® Technology, Corp.

  • Page 103: Lcd Panel Voltage Select Jumper

    LCD KIT Series Monitor The JP2 jumper sets the input voltage to either the 12V connector or the 9~36V terminal block. Description 1-3, 2-4 +12V input (Default) 3-5, 4-6 +9~36V input Table 4-42: LCD Panel Power Input Jumper Settings 4.4.21 LCD Panel Voltage Select Jumper Jumper Label: Jumper Type: 6-pin header...

  • Page 104: Installation

    Chapter Chapter Installation Page 104 IEI ® Technology, Corp.

  • Page 105: Installation Precautions

    LCD-KIT series monitor, installation instructions and configuration options. DANGER! Disconnect Power: Power to the monitor must be disconnected when installing the LCD-KIT series monitor, or before any attempt is made to access the rear panel. Electric shock and personal injury might occur if the rear panel of the monitor is opened while the power cord is still connected to an electrical outlet.

  • Page 106: Unpacking

    5.2 Unpacking 5.2.1 Packaging When shipped, the LCD-KIT series monitor is wrapped in a plastic bag. Two polystyrene ends are placed on either side of the monitor. The monitor is then placed into a first (internal) cardboard box. This box is then sealed and placed into a second (external) cardboard box.

  • Page 107: Packing List

    5.3 Pre-installation Preparation 5.3.1 Tools Before installing the LCD-KIT series monitor, make sure the following tools are on hand: Philips (crosshead) screwdriver: All the retention screws on the system are Philips screws. Soft working mat: When the LCD-KIT series monitor is installed, the screen is placed on the working surface.

  • Page 108: Vga Connector

    Power (12V Jack) Table 5-1: Rear Panel Connectors 5.4.1 VGA Connector Use the rear panel standard 15-pin female VGA connector to connect the monitor to the system graphics interface. DESCRIPTION DESCRIPTION DESCRIPTION GROUND GREEN GROUND DDCDAT BLUE GROUND HSYNC VSYNC GROUND GROUND DDCCLK...

  • Page 109: Power Connector

    Figure 5-3: 12V Power Connector 5.5 Mounting the LCD-KIT Series Monitor Each LCD-KIT series monitor comes with a preinstalled mounting bracket with a number of holes available for mounting purposes that system integrators will find especially useful. Refer to Sections 2.4 and 2.5 for further details on the number and location of mounting holes for each model of the LCD-KIT series monitor.

  • Page 110: On-Screen-Display (Osd) Controls

    Chapter On-Screen-Display (OSD) Controls Page 110 IEI ® Technology, Corp.

  • Page 111: User Mode Osd Structure

    There are several on-screen-display (OSD) control buttons oriented either vertically along the right hand side or horizontally along the bottom of the monitor front panel. Refer to Section 2.2 for availability and orientation of the OSD controls on specific LCD-KIT series monitors.

  • Page 112: Osd Menu Structure - All Models Except Lcd-Kit65G

    Figure 6-2: LCD-KIT65G OSD Control Buttons NOTE: Pressing the direction keys (LEFT or RIGHT) can bring out a simple menu which adjusts the LCD screen brightness and contrast values. 6.1.2 OSD Menu Structure – All Models Except LCD-KIT65G Table 6-1 shows the OSD menu structure for all models of the DN series monitor except the LCD-KIT65G.

  • Page 113: Table 6-1: Osd Menus - All Models Except Lcd-Kit65G

    LCD KIT Series Monitor Mute and will be implemented with models equipped with speakers. Color Menu 9300 - Preset NTSC value 7500 - Preset NTSC value User RGB values from 0 to 100 Language Menu English Select French German Spanish Italian Japanese Russian...

  • Page 114: Lcd-Kit65G Osd Menu Structure

    6.1.3 LCD-KIT65G OSD Menu Structure Table 6-2 shows the OSD menu structure for the LCD-KIT65G. Level 0 Level 1 Level 2 Contrast 0 to 100 Brightness 0 to 255 Color Adjust Green Blue Color 9300 6500 Color Temp 5800 sRGB USER Back Clock...

  • Page 115: Using The Osd

    LCD KIT Series Monitor Signal source D-SUB Reset Misc. Factory Mode Info. Back Exit Table 6-2: LCD-KIT65G OSD Menus 6.2 Using the OSD OSD menu options are described below. NOTE: The LCD-KIT65G OSD display features differ from those described below. Use the following display features as reference for the LCD-KIT65G monitor.

  • Page 116: Color

    Brightness: The brightness option adjusts the brightness of screen. This function adjusts the offset value of ADC. Setting this value too high or too low will affect the quality of image. Contrast: This function adjusts the gain value of ADC. Adjusting this value too high or too low will worsen the quality of image.

  • Page 117: Language

    LCD KIT Series Monitor The Color menu fine-tunes the palette of color hues for the LCD. 9300: NTSC standard Kelvin 7500: NTSC standard Kelvin User: This item allows fine-tuning the balance among Red, Green, and Blue color hues if images look garish or unrealistic. 6.2.3 Language The Languages are shown in Figure 6-5.

  • Page 118: Figure 6-6: Osd Configurations Menu

    Figure 6-6: OSD Configurations Menu OSD Configurations are described below. OSD Time Out: Determines how many seconds the OSD screen stays on screen before it disappears when OSD is left unattended. OSD Position: Adjusts the OSD position on the screen. Position 1 is in the upper left of the screen, position 2 in the upper right and position 3 in the center.

  • Page 119: Signal

    LCD KIT Series Monitor 6.2.5 Signal The Signal menu in Figure 6-7 enables manual selection of the type of graphic source input, i.e., analog (15-pin VGA) or digital (DVI-D). Figure 6-7: Signal Menu 6.2.6 Backlight The Backlight menu in Figure 6-8 enables users to configure the LCD backlight. Figure 6-8: Backlight Menu Page 119...
  • Page 120 Backlight Menu options are described below. Light Enabled: Turns backlight on or off. Light Contrast: Adjusts the backlight contrast. Light Brightness: Adjusts the backlight brightness. Light H Start: Adjusts the backlight projection area in the horizontal direction. Light H Width: Adjusts the width of the backlight projection area.

  • Page 121: Acertifications

    LCD KIT Series Monitor Appendix Certifications Page 121...
  • Page 122 A.1 RoHS Compliant All models in the DM monitor series comply with the Restriction of Hazardous Materials (RoHS) Directive. This means that all components used to build the industrial workstations and the workstation itself are RoHS compliant. The RoHS Directive bans the placing on the EU market of new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
  • Page 123 LCD KIT Series Monitor Index Page 123...
  • Page 124 12V Power Connector, 109 ESD Precautions AD Board, 22, 23, 24, 50, 51, 68, 69, 80, 81, 82; AV-5300, 23, 24, 50, 80, 81, Features, 19 82, 83, 84, 97, 98, 101; AV-5350, 24, 50, 68, 69, 70, 71, 76, 77, 78; AV-9350, 24, 50, 51, 52, 53, 58, 62, Hi-pot Isolation, 48 Hold-up Time, 48...
  • Page 125 LCD KIT Series Monitor RoHS, 122 Operation Temperature, 24 OSD Configurations, 117 OSD Control Panel Location, 27 Safety Precautions OSD Controls, 110 Short Circuit Protection, 48 OSD Menu Structure – All Models Specifications, 23 Except LCD-KIT65G, 112 Standard Features, 19 OSD Menu Structure LCD-KIT65G, 114 Over-voltage Protection, 48 Unpacking, 106...
  • Page 126 THIS PAGE IS INTENTIONALLY LEFT BLANK Page 126 IEI ® Technology, Corp.

This manual is also suitable for:

Lcd-kit190gLcd-kit121gLcd-kit104gLcd-kit84gLcd-kit65gLcd-kit150g ... Show all

Table of Contents
