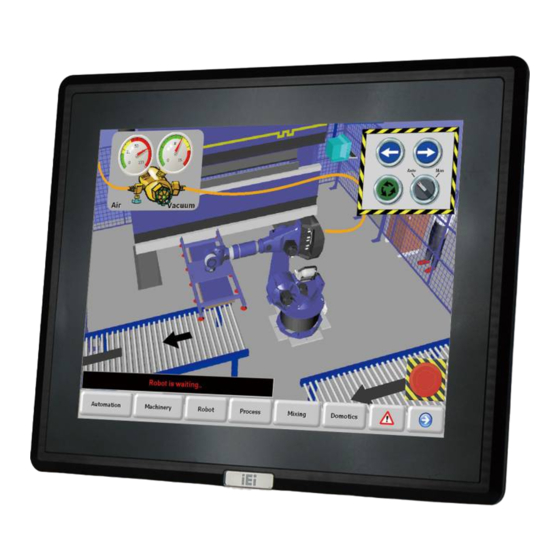

DM-F Series Monitor
DM Series Industrial Monitor
MODEL:
DM-F series
6.5" ~ 23.8" LCD Monitor
DisplayPort, HDMI, VGA, IP 65 Protection, RoHS
User Manual
Page I
Rev. 2.01 – February 24, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-F15A/PC-R40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology DM-F15A/PC-R40

Summary of Contents for IEI Technology DM-F15A/PC-R40

  • Page 1 DM-F Series Monitor DM Series Industrial Monitor MODEL: DM-F series 6.5" ~ 23.8" LCD Monitor DisplayPort, HDMI, VGA, IP 65 Protection, RoHS User Manual Page I Rev. 2.01 – February 24, 2021...
  • Page 2 DM-F Series Monitor Revision Date Version Changes February 24, 2021 2.01 Modified the max. resolution of the DM-FW15A and the DM-FW19A Updated Section 2.3: Optional Items August 16, 2019 2.00 Added DM-FW15A and DM-FW19A information December 13, 2017 1.17 Updated LCD size of DM-F12A and DM-F24A Updated P-CAP controller spec.
  • Page 3 DM-F Series Monitor Safety Instructions Warning! Read the user manual before connecting the system to the power source. Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine Stromquelle anschließen. Attention! Avant de brancher le système à la source d'alimentation, consultez le mode d'emploi.
  • Page 4 DM-F Series Monitor Warning! Use only the adapter and power cord approved for this system. Use of another type of adapter may risk fire or explosion. Please refer to the user manual for the power adapter specifications. Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur Folge haben.
  • Page 5 DM-F Series Monitor Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 6 DM-F Series Monitor Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 7: Table Of Contents

    DM-F Series Monitor Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 M ....................3 ODEL ARIATIONS 1.4 A ......................3 PPLICATIONS 1.5 F ......................4 RONT 1.6 R ........................ 5 1.7 C ......................
  • Page 8 DM-F Series Monitor 3 INSTALLATION ......................26 3.1 I ................... 27 NSTALLATION RECAUTIONS 3.2 E ............28 XTERNAL ERIPHERAL EVICE ONNECTION 3.2.1 DC-in Jack ....................... 28 3.2.2 9 V–36 V Terminal Block (Optional) ............... 28 3.2.3 USB for Touch Panel Connector ..............29 3.2.4 VGA Connector ....................
  • Page 9 DM-F Series Monitor 5.4 C ..............71 HANGE THE OUCHSCREEN NTERFACE 5.5 C ................71 ALIBRATING THE OUCHSCREEN 6 AD BOARDS ........................ 74 6.1 AD B ..................... 75 OARD VERVIEW 6.2 AV-6038 AD B ....................75 OARD 6.2.1 AV-6038 Peripheral Interface Connectors ............76 6.2.2 Backlight Inverter Connector (INVERTER1) ..........
  • Page 10 DM-F Series Monitor B.1.2 Anti-static Precautions ..................90 B.1.3 Product Disposal ..................... 91 B.2 M ............92 AINTENANCE AND LEANING RECAUTIONS B.2.1 Maintenance and Cleaning ................92 B.2.2 Cleaning Tools ....................92 C SMARTOSD ........................ 94 C.1 IEI OSD Q ............
  • Page 11 DM-F Series Monitor List of Figures Figure 1-1: DM-F Series ......................... 2 Figure 1-2: Typical Monitor Front View ..................4 Figure 1-3: DM-F65A/08A Rear View ..................... 5 Figure 1-4: DM-F12A/15A/W15A/17A/19A/W19A/22A/24A Rear View ........5 Figure 1-5: Bottom Panel Connectors (DM-F65A/08A) ............... 6 Figure 1-6: Side Panel Connectors (DM-F65A/08A) ..............
  • Page 12 DM-F Series Monitor Figure 3-12: Hex Jack Screws for Securing RS-232 Connector ..........35 Figure 3-13: Mounting Clamps Holder ..................36 Figure 3-14: Mounting Clamps ....................36 Figure 3-15: DM-F65A Cutout Dimensions (Unit: mm) ............. 37 Figure 3-16: DM-F08A Cutout Dimensions (Unit: mm) ............. 37 Figure 3-17: DM-F12A Cutout Dimensions (Unit: mm) .............
  • Page 13 DM-F Series Monitor Figure 4-2: OSD Keypad for DM-F12A ~ DM-F24A ..............56 Figure 4-3: Image Menu ....................... 58 Figure 4-4: Color Settings ......................59 Figure 4-5: Display Menu ......................60 Figure 4-6: System Menu ......................61 Figure 4-7: Input Options ......................62 Figure 4-8: OSD Settings Menu ....................
  • Page 14 DM-F Series Monitor List of Tables Table 1-1: DM-F Series Model Variations ..................3 Table 1-2: DM-F65A ~ DM-F(W)15A Specifications ..............9 Table 1-3: DM-F17A ~ DM-F24A Specifications ................. 11 Table 2-1: Packing List ......................... 24 Table 3-1: USB Touch Panel Connector Pinouts ..............29 Table 3-2: VGA Connector Pinouts .....................
  • Page 15 DM-F Series Monitor Table 6-18: Touchscreen Connector (J1) Pinouts ..............84 Table 6-19: VGA Connector (VGA2) Pinouts ................84 Table 6-20: Backlight Voltage Select Jumper (JP5) Pinouts ............ 84 Table 6-21: LVDS Panel Voltage Select Jumper (JP2) Pinouts ..........84 Table 6-22: Power Input Setting Jumper (JP4) Pinouts ............

  • Page 17: Introduction

    DM-F Series Monitor Chapter Introduction Page 1...

  • Page 18: Overview

    DM-F Series Monitor 1.1 Overview Figure 1-1: DM-F Series The DM-F series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezel. It is designed to fit industrial automation, or any other applications that require minimum installation space and flexible configuration. The flat front panel provides IP 65 protection, which effectively wards off dust and water.

  • Page 19: Model Variations

    DM-F Series Monitor 1.3 Model Variations The DM-F series LCD monitor base models have a variety of variants. The model variations are listed in Table 1-1. Model Number Touchscreen Power HDMI/DVI DisplayPort DM-F65A/R 6.5" Resistive 12 V DVI-D DM-F08A/R 8" Resistive 12 V DVI-D...

  • Page 20: Front View

    DM-F Series Monitor Plant environment monitoring Factory automation HMI terminal Shop-floor/MES control  Self-service Kiosk Full-service receptionist kiosk Hospital self-registration terminal Interactive photo kiosk Video rental kiosk Self-service POS terminal 1.5 Front View The front of the DM-F series LCD monitor is a flat panel LCD screen surrounded by an aluminum frame.

  • Page 21: Rear View

    DM-F Series Monitor 1.6 Rear View The rear panel provides access to retention screw holes that support VESA mounting. A 5-key/7-key membrane OSD keypad is also located on the rear panel. The following diagrams show the rear panel of the DM-F series. Figure 1-3: DM-F65A/08A Rear View Figure 1-4: DM-F12A/15A/W15A/17A/19A/W19A/22A/24A Rear View Page 5...

  • Page 22: Connectors

    DM-F Series Monitor 1.7 Connectors The following sections show the I/O interfaces of the DM-F series LCD monitor. All connectors are fully described in Section 3.2. 1.7.1 DM-F65A and DM-F08A Connectors Figure 1-5: Bottom Panel Connectors (DM-F65A/08A) Figure 1-6: Side Panel Connectors (DM-F65A/08A) Page 6...

  • Page 23: Dm-F12A ~ Dm-F19A Connectors

    DM-F Series Monitor 1.7.2 DM-F12A ~ DM-F19A Connectors Figure 1-7: Bottom Panel Connectors (DM-F12A/15A/W15A/17A/19A/W19A) Figure 1-8: Side Panel Connector (DM-F12A/15A/17A/19A) 1.7.3 DM-F22A and DM-F24A Connectors Figure 1-9: Bottom Panel Connectors (DM-F22A/24A) Page 7...

  • Page 24: Technical Specifications

    DM-F Series Monitor 1.8 Technical Specifications The following tables show the DM-F series technical specifications. 1.8.1 DM-F65A ~ DM-F(W)15A Specifications Model DM-F65A DM-F08A DM-F12A DM-F15A DM-FW15A LCD Display 6.5" (4:3) 8" (4:3) 12.1" (4:3) 15" (4:3) 15.6" (16:9) Max. Resolution 640x480 800x600 1024 x768...

  • Page 25: Table 1-2: Dm-F65A ~ Dm-F(W)15A Specifications

    DM-F Series Monitor Model DM-F65A DM-F08A DM-F12A DM-F15A DM-FW15A Optional Wall Wall Wall Wall Wall Mounting Kit Rack Rack Rack Rack Rack Panel Panel Panel Panel Panel Stand Stand Stand Stand Stand Operating Temp. -20°C ~ 60°C (with air flow) Storage Temp.

  • Page 26: Dm-F17A ~ Dm-F24A Specifications

    DM-F Series Monitor 1.8.1 DM-F17A ~ DM-F24A Specifications Model DM-F17A DM-FW19A DM-F19A DM-F22A DM-F24A LCD Display 17" (5:4) 18.5" (16:9) 19" (5:4) 21.5" (16:9) 23.8" (16:9) Max. Resolution 1280x1024 1366x768 1280x1024 1920x1080 1920x1080 Brightness (cd/m²) Contrast Ratio 1000:1 1000:1 1000:1 1000:1 3000:1 LCD Color...

  • Page 27: Table 1-3: Dm-F17A ~ Dm-F24A Specifications

    DM-F Series Monitor Model DM-F17A DM-FW19A DM-F19A DM-F22A DM-F24A Storage Temp. -20°C ~ 70°C -20°C ~ 60°C Humidity 10% ~ 95% (non-condensing) I/O Ports 1 x VGA 1 x VGA 1 x VGA 1 x VGA 1 x DP 1.1 1 x DP 1.1 1 x DP 1.1 1 x HDMI...

  • Page 28: Physical Dimensions

    DM-F Series Monitor 1.9 Physical Dimensions The following sections describe the physical dimensions for each model of the DM-F series LCD monitor. 1.9.1 DM-F65A Physical Dimensions The physical dimensions of the DM-F65A are shown in Figure 1-12. Figure 1-10: DM-F65A Physical Dimensions (Unit: mm) Page 12...

  • Page 29: Dm-F08A Physical Dimensions

    DM-F Series Monitor 1.9.2 DM-F08A Physical Dimensions The physical dimensions of the DM-F08A are shown in Figure 1-12. Figure 1-11: DM-F08A Physical Dimensions (Unit: mm) Page 13...

  • Page 30: Dm-F12A Physical Dimensions

    DM-F Series Monitor 1.9.3 DM-F12A Physical Dimensions The physical dimensions of the DM-F12A are shown in Figure 1-12. Figure 1-12: DM-F12A Physical Dimensions (Unit: mm) Page 14...

  • Page 31: Dm-F15A Physical Dimensions

    DM-F Series Monitor 1.9.4 DM-F15A Physical Dimensions The physical dimensions of the DM-F15A are shown in Figure 1-13. Figure 1-13: DM-F15A Physical Dimensions (Unit: mm) Page 15...

  • Page 32: Dm-Fw15A Physical Dimensions

    DM-F Series Monitor 1.9.1 DM-FW15A Physical Dimensions The physical dimensions of the DM-FW15A are shown in Figure 1-13. Figure 1-14: DM-FW15A Physical Dimensions (Unit: mm) Page 16...

  • Page 33: Dm-F17A Physical Dimensions

    DM-F Series Monitor 1.9.2 DM-F17A Physical Dimensions The physical dimensions of the DM-F17A are shown in Figure 1-15. Figure 1-15: DM-F17A Physical Dimensions (Unit: mm) Page 17...

  • Page 34: Dm-F19A Physical Dimensions

    DM-F Series Monitor 1.9.3 DM-F19A Physical Dimensions The physical dimensions of the DM-F19A are shown in Figure 1-12. Figure 1-16: DM-F19A Physical Dimensions (Unit: mm) Page 18...

  • Page 35: Dm-Fw19A Physical Dimensions

    DM-F Series Monitor 1.9.1 DM-FW19A Physical Dimensions The physical dimensions of the DM-FW19A are shown in Figure 1-12. Figure 1-17: DM-FW19A Physical Dimensions (Unit: mm) Page 19...

  • Page 36: Dm-F22A Physical Dimensions

    DM-F Series Monitor 1.9.2 DM-F22A Physical Dimensions The physical dimensions of the DM-F22A are shown in Figure 1-18. Figure 1-18: DM-F22A Physical Dimensions (Unit: mm) Page 20...

  • Page 37: Dm-F24A Physical Dimensions

    DM-F Series Monitor 1.9.3 DM-F24A Physical Dimensions The physical dimensions of the DM-F24A are shown in Figure 1-19. Figure 1-19: DM-F24A Physical Dimensions (Unit: mm) Page 21...

  • Page 38: Unpacking

    DM-F Series Monitor Chapter Unpacking Page 22...

  • Page 39: Unpacking Procedure

    DM-F Series Monitor 2.1 Unpacking Procedure To unpack the DM-F series LCD monitor, follow the steps below: WARNING: The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the DM-F series LCD monitor has been properly installed.

  • Page 40: Packing List

    DM-F Series Monitor 2.2 Packing List The DM-F series monitor is shipped with the following components: Quantity Item Image DM-F series USB cable (for touchscreen) VGA cable Touch pen (resistive touch only) 60W 12V DC adapter with lockable connector (6.5" and 8" models only) Table 2-1: Packing List If any of the above items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 41: Optional Items

    DM-F Series Monitor 2.3 Optional Items The following items are optional accessories for the DM-F series monitor: DM-F65A DM-F08A DM-F12A DM-F15A DM-FW15A ARM-11-RS ARM-11-RS ARM-11-RS ARM-31-RS ARM-31-RS STAND-C19-R10 STAND-C19-R10 Stand STAND-B08 STAND-B08 STAND-C12-R10 STAND-A21-R10 STAND-A21-R10 Wall Mount Kit AFLWK-12 AFLWK-12 WK-190MS-R10 WK-190MS-R10 WK-190MS-R10...

  • Page 42: Installation

    DM-F Series Monitor Chapter Installation Page 26...

  • Page 43: Installation Precautions

    DM-F Series Monitor 3.1 Installation Precautions CAUTION: Some SKUs of the DM-F series have more than one power supply connection point. To reduce the risk of electric shock, disconnect all power sources before installing or servicing the DM-F series. When installing the DM-F series LCD monitor, please follow the precautions listed below: ...

  • Page 44: External Peripheral Device Connection

    DM-F Series Monitor avoid electrocution and static discharge to the AD board. The use of a grounded wrist strap and an anti-static work pad is recommended. 3.2 External Peripheral Device Connection The external I/O connector pinouts of the DM-F series industrial monitors are described in the following sections.

  • Page 45: Usb For Touch Panel Connector

    DM-F Series Monitor 3.2.3 USB for Touch Panel Connector Use the rear panel standard USB touch panel connector to connect the monitor to the system graphics interface. DESCRIPTION DESCRIPTION USB20_N11 USB20_P11 Table 3-1: USB Touch Panel Connector Pinouts Figure 3-3: USB Touch Panel Connector 3.2.4 VGA Connector Use the rear panel standard 15-pin female VGA connector to connect the monitor to the system graphics interface.

  • Page 46: Dvi-D Connector (F65A, F08A And F19A Only)

    DM-F Series Monitor 3.2.5 DVI-D Connector (F65A, F08A and F19A Only) The 24-pin Digital Visual Interface (DVI) connector connects to high-speed, high-resolution digital displays. The DVI-D connector supports only digital signals. DESCRIPTION DESCRIPTION TMDS Data2- TMDS Data2+ PVDD1 TMDS Data0- DDC Clock [SCL] TMDS Data0+ DDC Data [SDA]...

  • Page 47: Displayport Connector (F12A ~ F24A Only)

    DM-F Series Monitor 3.2.6 DisplayPort Connector (F12A ~ F24A Only) The DisplayPort connector transmits a digital signal to compatible DisplayPort display devices such as a TV or computer screen. DESCRIPTION DESCRIPTION ML_L3N ML_L3P ML_L2N ML_L2P ML_L1N ML_L1P ML_L0N ML_L0P C_DDI0_DP_AUXP C_DDI0_DP_AUXN C_DDI0_DP_HPD Table 3-4: Display Port Connector Pinouts...

  • Page 48: Hdmi Connector (F12A, F(W)15A, F17A, Fw19A, F22A, F24A Only)

    DM-F Series Monitor 3.2.7 HDMI Connector (F12A, F(W)15A, F17A, FW19A, F22A, F24A Only) The HDMI connector connects to a display device with HDMI interface. DESCRIPTION DESCRIPTION HDMI_TMDS_C_DATA2 HDMI_TMDS_C_DATA2# HDMI_TMDS_C_DATA1 HDMI_TMDS_C_DATA1# HDMI_TMDS_C_DATA0 HDMI_TMDS_C_DATA0# HDMI_TMDS_C_CLK HDMI_TMDS_C_CLK# HDMI_DDC_SCLK HDMI_DDC_SDATA +5V_HDMI HDMI_HPD Table 3-5: HDMI Connector Pinouts Figure 3-7: HDMI Connector 3.2.8 RS-232 Port for Touch Panel (Reserved for Resistive Touch) Use the side panel standard RS-232 DB-9 female touch panel connector to connect the...

  • Page 49: Installing Rs-232 Connector

    DM-F Series Monitor Figure 3-8: RS-232 Touch Panel Connector 3.2.8.1 Installing RS-232 Connector If the DM-F series doesn’t have the RS-232 connector on the side panel, the user can purchase the RS-232 Touch Cable Kit (DM-F-COMKIT-R10 or DM-F-COMKIT01-R10) and install the RS-232 connector onto the system. Please note that the RS-232 port is only available for the resistive type models of the 6.5"–19"...

  • Page 50: Figure 3-10: Rear Panel Retention Screw Removal (Dm-F12A ~ Dm-F24A)

    DM-F Series Monitor Figure 3-10: Rear Panel Retention Screw Removal (DM-F12A ~ DM-F24A) Step 2: Remove the RS-232 knockout hole on the side panel. Step 3: Connect the RS-232 flat cable to the internal RS-232 connector (1x9 pin, RS232_1) on the AD board. See Figure 3-11. Figure 3-11: Connecting RS-232 Cable Step 4: Insert the D-sub 9 connector of the RS-232 flat cable into the hole and secure...

  • Page 51: Mounting The Monitor

    DM-F Series Monitor Figure 3-12: Hex Jack Screws for Securing RS-232 Connector Step 5: Re-install the rear panel. 3.3 Mounting the Monitor The DM-F series LCD monitor can be mounted in a panel, cabinet, rack or wall. The monitor can also be mounted on a monitor arm or stand. The mounting methods are described below.

  • Page 52: Figure 3-13: Mounting Clamps Holder

    DM-F Series Monitor DM-F17A DM-F19A/FW19A DM-F22A DM-F24A Table 3-7: Panel Mounting Clamps Figure 3-13: Mounting Clamps Holder Figure 3-14: Mounting Clamps To mount the DM-F series LCD monitor into a panel, please follow the steps below. Step 1: Select the position on the panel to mount the monitor. Step 2: Cut out a section of the panel that corresponds to the rear panel dimensions of the monitor.

  • Page 53: Figure 3-15: Dm-F65A Cutout Dimensions (Unit: Mm)

    DM-F Series Monitor Figure 3-15: DM-F65A Cutout Dimensions (Unit: mm) Figure 3-16: DM-F08A Cutout Dimensions (Unit: mm) Figure 3-17: DM-F12A Cutout Dimensions (Unit: mm) Page 37...

  • Page 54: Figure 3-18: Dm-F15A Cutout Dimensions (Unit: Mm)

    DM-F Series Monitor Figure 3-18: DM-F15A Cutout Dimensions (Unit: mm) Figure 3-19: DM-FW15A Cutout Dimensions (Unit: mm) Figure 3-20: DM-F17A Cutout Dimensions (Unit: mm) Page 38...

  • Page 55: Figure 3-21: Dm-F19A Cutout Dimensions (Unit: Mm)

    DM-F Series Monitor Figure 3-21: DM-F19A Cutout Dimensions (Unit: mm) Figure 3-22: DM-FW19A Cutout Dimensions (Unit: mm) Figure 3-23: DM-F22A Cutout Dimensions (Unit: mm) Page 39...

  • Page 56: Figure 3-24: Dm-F24A Cutout Dimensions (Unit: Mm)

    DM-F Series Monitor Figure 3-24: DM-F24A Cutout Dimensions (Unit: mm) Step 3: Secure the mounting clamps holders to the corresponding holes on the rear of the monitor (Figure 3-25). NOTE: It is not required to install the clamp holders to the DM-F65A and DM-F08A monitors for panel/rack mounting.

  • Page 57: Figure 3-25: Secure The Mounting Clamp Holders

    DM-F Series Monitor Figure 3-25: Secure the Mounting Clamp Holders Step 4: Slide the monitor through the hole until the aluminum frame is flush against the panel (Figure 3-26). Figure 3-26: Slide into the Panel Step 5: Insert the panel mounting clamps into the pre-formed holes of the clamp holders (Figure 3-27).

  • Page 58: Figure 3-27: Panel Mounting Clamp Installation

    DM-F Series Monitor Step 6: Tighten the screws that pass through the panel mounting clamps until the plastic caps at the front of all the screws are firmly secured to the panel (Figure 3-27). Figure 3-27: Panel Mounting Clamp Installation The dimensions of the clamp holder and the clamp are shown in the following diagrams.

  • Page 59: Figure 3-29: Ultra Set Plate Dimensions

    DM-F Series Monitor Figure 3-29: Ultra Set Plate Dimensions Figure 3-30: Bolt Dimensions Figure 3-31: Steering Button Dimensions Page 43...

  • Page 60: Cabinet And Rack Installation (For F65A ~ F17A & Fw19A)

    DM-F Series Monitor 3.3.2 Cabinet and Rack Installation (for F65A ~ F17A & FW19A) NOTE: When purchasing a cabinet/rack installation bracket, make sure it is compatible with both the monitor and the cabinet/rack into which the monitor is installed. The DM-F series LCD monitor can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation.

  • Page 61: Figure 3-32: Secure The Mounting Clamp Holders

    DM-F Series Monitor Figure 3-32: Secure the Mounting Clamp Holders Step 2: Slide the rear of the DM-F series LCD monitor through the rack/cabinet bracket until the aluminum frame is flush against the front of the bracket (Figure 3-33). Figure 3-33: Slide into the Rack/Cabinet Bracket Step 3: Insert the panel mounting clamps into the pre-formed holes of the clamp holders (Figure 3-34).

  • Page 62: Figure 3-34: Secure The Rack/Cabinet Bracket

    DM-F Series Monitor Figure 3-34: Secure the Rack/Cabinet Bracket Step 5: Slide the LCD monitor with the attached rack/cabinet bracket into a rack or cabinet (Figure 3-35). Figure 3-35: Install into a Rack/Cabinet Step 6: Once the LCD monitor with the attached rack/cabinet bracket has been properly inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 3-35).

  • Page 63: Cabinet And Rack Installation (For F19A)

    DM-F Series Monitor 3.3.3 Cabinet and Rack Installation (for F19A) NOTE: When purchasing a cabinet/rack installation bracket, make sure it is compatible with both the monitor and the cabinet/rack into which the monitor is installed. To install the DM-F19A to a cabinet or rack, please follow the steps below: Step 1: Slide the rear of the DM-F series LCD monitor through the rack/cabinet bracket until the aluminum frame is flush against the front of the bracket (Figure 3-36).

  • Page 64: Figure 3-37: Secure The Mounting Brackets

    DM-F Series Monitor Figure 3-37: Secure the Mounting Brackets Step 3: Slide the LCD monitor with the attached rack/cabinet bracket into a rack or cabinet (Figure 3-38). Figure 3-38: Install DM-F19A into a Rack/Cabinet Step 4: Once the LCD monitor with the attached rack/cabinet bracket has been properly inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 3-35).

  • Page 65: Wall Mounting

    DM-F Series Monitor 3.3.4 Wall Mounting CAUTION: Due to safety concerns, it is highly recommended to use the VESA mounting kits provided by IEI for wall, stand and arm mounting. If the VESA mounting kit is purchased separately, please make sure the mounting kit is UL-listed.

  • Page 66: Figure 3-40: Hook Onto Wall Mounting Kit

    DM-F Series Monitor Figure 3-40: Hook Onto Wall Mounting Kit Step 4: Tighten the top screw on the wall mounting kit to securely hold the DM-F series in place. After this screw is tightened, the DM-F series should not be able to move.

  • Page 67: Stand Installation

    DM-F Series Monitor 3.3.5 Stand Installation The DM-F series LCD monitor has Video Electronics Standards Association (VESA) standard mounting holes tapped into the rear panel. The standard holes are M4 set at 75 mm x 75 mm or 100 mm x 100 mm apart (Figure 3-42 and Figure 3-43). Figure 3-42: VESA Mounting Holes (DM-F65A/08A) Figure 3-43: VESA Mounting Holes (DM-F12A ~ DM-F24A) Page 51...

  • Page 68: Arm Installation

    DM-F Series Monitor To mount the DM-F series LCD monitor onto a stand, please follow the steps below. Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the monitor stand mounting plate. Step 2: Secure the monitor to the stand with the supplied retention screws (Figure 3-44).

  • Page 69: Figure 3-45: Monitor Arm Mounting

    DM-F Series Monitor Figure 3-45: Monitor Arm Mounting Page 53...

  • Page 70: On-Screen-Display (Osd) Controls

    DM-F Series Monitor Chapter On-Screen-Display (OSD) Controls Page 54...

  • Page 71: Osd Keypad

    DM-F Series Monitor 4.1 OSD Keypad There are several on-screen-display (OSD) control buttons of the OSD keypad on the monitor rear panel. Figure 4-1 shows the 5-key membrane OSD keypad of the DM-F65A and DM-F08A LCD monitors. Figure 4-1: OSD Keypad for DM-F65A and DM-F08A The function of each button is described in the following table.

  • Page 72: Figure 4-2: Osd Keypad For Dm-F12A ~ Dm-F24A

    DM-F Series Monitor Figure 4-2 shows the 7-key membrane OSD keypad of the DM-F12A ~ DM-F24A. Figure 4-2: OSD Keypad for DM-F12A ~ DM-F24A The function of each button is described in the following table. LCD on/off Press this button to turn on or turn off the LCD screen. Auto Press this button to automatically adjust the screen.

  • Page 73: Osd Menu Structure

    DM-F Series Monitor 4.2 OSD Menu Structure Table 4-3 shows the OSD menu structure for all models of the DM-F series LCD monitor. Level 0 Level 1 Level 2 Value Image Brightness 0 to 100 Contrast 0 to 100 Sharpness -4 to 4 Color Auto...

  • Page 74: Using The Osd

    DM-F Series Monitor 4.3 Using the OSD OSD menu options are described below. 4.3.1 Image Menu Image menu features are shown in Figure 4-3. Figure 4-3: Image Menu The brightness option adjusts the brightness of screen. This function Brightness adjusts the offset value of ADC. Setting this value too high or too low will affect the quality of image.

  • Page 75: Color Setting

    DM-F Series Monitor 4.3.1.1 Color Setting Color settings are shown in Figure 4-3. Figure 4-4: Color Settings Automatically adjusts the color settings. auto This item allows adjustment of the following items. Color temp  5000k – NTSC standard Kelvin  6500k –...

  • Page 76: Display Menu

    DM-F Series Monitor 4.3.2 Display Menu Display menu features are shown in Figure 4-5. Figure 4-5: Display Menu Automatically adjusts the LCD screen position. Auto Adjust Phase Adjusts the phase control of image Adjusts frequency to fill display Clock Display Position Adjusts the horizontal and vertical position of the display screen Display Mode This item allows adjustment of the Gamma.

  • Page 77: System Menu

    DM-F Series Monitor 4.3.3 System Menu System menu features are shown in Figure 4-6. Figure 4-6: System Menu Input Allows selection of input device to use. (Figure 4-7) OSD Settings Provides options for OSD configuration. (Figure 4-8) Provides information on the LCD monitor, such as firmware version, Information release date and input resolution.

  • Page 78: Input

    DM-F Series Monitor 4.3.3.1 Input Input options are shown in Figure 4-7. Figure 4-7: Input Options Input options are described below. Display Port This item sets the input device to display port. This item sets the input device to VGA. This item sets the input device to HDMI.

  • Page 79: Osd Settings

    DM-F Series Monitor 4.3.3.2 OSD Settings The OSD settings are shown in Figure 4-8. Figure 4-8: OSD Settings Menu OSD settings are described below. Determines how many seconds the OSD screen stays on screen Timer before it disappears when OSD is left unattended. Rotation Adjusts the OSD rotation angle on the screen.

  • Page 80: Software Drivers

    DM-F Series Monitor Chapter Software Drivers Page 64...

  • Page 81: Introduction

    DM-F Series Monitor 5.1 Introduction The touch panel controller enables analog resistive touch panels for four-wire, five-wire & eight-wire models. The controller directly communicates with the PC system through the touch panel communications interface. The controller design is superior in sensitivity, accuracy, and friendly operation.

  • Page 82: Touch Panel Driver Installation

    DM-F Series Monitor NOTE: The default touchscreen interface for the DM-F series monitor is USB interface. The RS-232 interface is only reserved for the models with resistive type touchscreen.  RS-232 Interface: If the touchscreen interface connection is an RS-232 connection, connect the RS-232 connector on the single board computer to the DB-9 connector of the DM-F series monitor.
  • Page 83 DM-F Series Monitor Step 2: Download the touch driver from IEI website. Go to https://download.ieiworld.com. Type the model name of the DM Series and press Enter. Step 3: All product-related software, utilities, and documentation will be listed. You can choose Driver to filter the result. Step 4: Click the driver file name on the page and you will be prompted with the ...

  • Page 84: Figure 5-1: Welcome Screen

    DM-F Series Monitor Step 5: Select the PenMount Touch Driver folder. Double click the setup icon in the folder. Step 6: The Welcome screen in Figure 5-1 appears. Figure 5-1: Welcome Screen Step 7: Click Next to continue. Step 8: The license agreement in Figure 5-2 appears.

  • Page 85: Figure 5-2: License Agreement

    DM-F Series Monitor Figure 5-2: License Agreement Step 9: The installation destination screen appears. See Figure 5-3. Click Install. Figure 5-3: Initiate Install Step 10: The installation of the program begins. See Figure 5-4. Page 69...

  • Page 86: Figure 5-4: Installation Starts

    DM-F Series Monitor Figure 5-4: Installation Starts Step 11: When the installation is complete, the complete screen appears. See Figure 5-5. To complete the installation process click Finish. Figure 5-5: Finish Installation Page 70...

  • Page 87: Change The Touchscreen Interface

    DM-F Series Monitor 5.4 Change the Touchscreen Interface If the touchscreen interface must be changed from a USB interface to an RS-232 interface or from an RS-232 interface to a USB interface, the following steps must be followed. Step 1: Uninstall the touchscreen driver Step 2: Remove the interface cable i.e.

  • Page 88: Figure 5-8: Configuration Screen

    DM-F Series Monitor Step 5: Click Control Panel in the pop up menu shown in Figure 5-7. Step 6: The configuration screen in Figure 5-8 appears. Figure 5-8: Configuration Screen Step 7: Double click the PenMount 6000 icon as shown in Figure 5-8. Step 8: The calibration initiation screen in Figure 5-9 appears.

  • Page 89: Figure 5-9: Calibration Initiation Screen

    DM-F Series Monitor Figure 5-9: Calibration Initiation Screen Step 10: The calibration screen in is shown. See Figure 5-10. Figure 5-10: Calibration Screen Step 11: Follow the instructions. The user is asked touch the screen at five specified points after which the screen is calibrated. Step 0: Page 73...

  • Page 90: Ad Boards

    DM-F Series Monitor Chapter AD Boards Page 74...

  • Page 91: Ad Board Overview

    DM-F Series Monitor 6.1 AD Board Overview The DM series LCD monitor AD board provides a wide variety of control interfaces. There are two AD boards used for the DM series monitors: AV-6038 and AV-60381. Refer to Table 1-2 for a listing of DM series monitors and their associated AD board. The following sections describe each AD board in detail.

  • Page 92: Av-6038 Peripheral Interface Connectors

    DM-F Series Monitor 6.2.1 AV-6038 Peripheral Interface Connectors Table 6-1 shows a list of the peripheral interface connectors on the AV-6038 AD board. Pinouts of the connectors that are used in the DM-F series can be found in the following sections.

  • Page 93: Backlight Inverter Connector (Inverter1)

    DM-F Series Monitor 6.2.2 Backlight Inverter Connector (INVERTER1) PIN NO. DESCRIPTION BKL_POWER1 BKL_POWER1 ENABKL BRIGHTNESS Table 6-2: Backlight Inverter Connector (INVERTER1) Pinouts 6.2.3 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION A0P_C A0M_C A1P_C A1M_C A2P_C A2M_C CLK1P_C CLK1M_C A3P_C A3M_C A4P_C...

  • Page 94: Osd Keypad Connector (Cn14)

    DM-F Series Monitor 6.2.4 OSD Keypad Connector (CN14) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +5V_OSD +12V OSD1 OSD2 OSD3 OSD4 OSD5 OSD6 OSD7 MLED8 +3.3V_DVDD Table 6-4: OSD Keypad Connector (CN14) Pinouts 6.2.5 Power Input Connector (CN9) PIN NO. DESCRIPTION Table 6-5: Power Input Connector (CN9) Pinouts 6.2.6 RS-232 Connector for Touchscreen (RS232_1) PIN NO.

  • Page 95: Usb Connector For Touchscreen (Usb_Touch1)

    DM-F Series Monitor 6.2.7 USB Connector for Touchscreen (USB_TOUCH1) PIN NO. DESCRIPTION VCC_TOUCH D2F- D2F+ Table 6-7: USB Connector for Touchscreen (USB_TOUCH1) Pinouts 6.2.8 Touchscreen Connector (J1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION SENSE Table 6-8: Touchscreen Connector (J1) Pinouts 6.2.9 LVDS Panel Voltage Select Jumper (JP2) DESCRIPTION Short 1-2...

  • Page 96: Av-60381 Ad Board

    DM-F Series Monitor 6.3 AV-60381 AD Board The connector locations of the AV-60381 are shown in Figure 6-1. The Pin 1 locations of the on-board connectors are also indicated in the diagrams below. The connector pinouts for these connectors are listed in the following sections. Figure 6-2: AV-60381 AD Board Layout Diagram 6.3.1 AV-60381 Peripheral Interface Connectors Table 6-11 shows a list of the peripheral interface connectors on the AV-60381 AD board.

  • Page 97: Backlight Inverter Connector (Inverter1)

    DM-F Series Monitor Power input connector 3-pin wafer, p=3.96 mm PWR2 Power input connector (+12 V) 2-pin wafer, p=2.00 mm CN15 Power output connector 2-pin wafer, p=2.00 mm CN16 RS-232 connector for touchscreen 6-pin wafer, p=1.25 mm RS232_1 SPI flash connector 6-pin wafer, p=1.25 mm JSPI1 USB connector for touchscreen...

  • Page 98: Lvds Connector (Lvds1)

    DM-F Series Monitor 6.3.3 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION A0P_C A0M_C A1P_C A1M_C A2P_C A2M_C CLK1P_C CLK1M_C A3P_C A3M_C A4P_C A4M_C A5P_C A5M_C A6P_C A6M_C CLK2P_C CLK2M_C A7P_C A7M_C Table 6-13: LVDS Connector (LVDS1) Pinouts 6.3.4 OSD Keypad Connector (KEYPAD1) PIN NO.

  • Page 99: Power Input Connector (Pwr2)

    DM-F Series Monitor 6.3.5 Power Input Connector (PWR2) PIN NO. DESCRIPTION +9 V ~ +36 V to external power module +12 V input Table 6-15: Power Input Connector (PWR2) Pinouts 6.3.6 RS-232 Connector for Touchscreen (RS232_1) PIN NO. DESCRIPTION NDSR NRTS NDTR Table 6-16: RS-232 Connector for Touchscreen (RS232_1) Pinouts...

  • Page 100: Vga Connector (Vga2)

    DM-F Series Monitor PIN NO. DESCRIPTION PIN NO. DESCRIPTION Table 6-18: Touchscreen Connector (J1) Pinouts 6.3.9 VGA Connector (VGA2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMCLK GREEN SMDATA BLUE H-SYNC V-SYNC Table 6-19: VGA Connector (VGA2) Pinouts 6.3.10 Backlight Voltage Select Jumper (JP5) DESCRIPTION Short 1-2 +3.3 V...

  • Page 101: Power Input Setting Jumper (Jp4)

    DM-F Series Monitor 6.3.12 Power Input Setting Jumper (JP4) DESCRIPTION Short 1-3, 2-4 +12 V from power jack (PRW1) Input with external connector Short 3-5, 4-6 (external power module is needed) Table 6-22: Power Input Setting Jumper (JP4) Pinouts 6.3.13 Touchscreen Type Select Jumper (JP1) DESCRIPTION 5-wire touchscreen 4-wire/8-wire touchscreen...

  • Page 102: A Regulatory Compliance

    DM-F Series Monitor Appendix Regulatory Compliance Page 86...
  • Page 103 DM-F Series Monitor DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules.

  • Page 104: B Safety Precautions

    DM-F Series Monitor Appendix Safety Precautions Page 88...

  • Page 105: Safety Precautions

    DM-F Series Monitor WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the DM-F Series. B.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 106: Anti-Static Precautions

    DM-F Series Monitor B.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the DM-F Series may result in permanent damage to the DM-F Series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the DM-F Series.

  • Page 107: Product Disposal

    DM-F Series Monitor B.1.3 Product Disposal CAUTION: Risk of explosion if the battery is replaced by an incorrect type; Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;...

  • Page 108: Maintenance And Cleaning Precautions

    DM-F Series Monitor B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the DM-F Series, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the DM-F Series, please read the details below. ...
  • Page 109 DM-F Series Monitor  Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard to reach areas.  Foam swabs - Whenever possible, it is best to use lint free swabs such as foam swabs for cleaning.

  • Page 110: C Smartosd

    DM-F Series Monitor Appendix smartOSD Page 94...

  • Page 111: Iei Smartosd Quick Installation Guide

    DM-F Series Monitor C.1 IEI smartOSD Quick Installation Guide IEI smartOSD is a proprietary On-Screen-Display (OSD) software solution from IEI that enables easy, remote monitor setting adjustments in a Windows environment. IEI smartOSD delivers excellent performance and provides more flexibility than the typical OSD hardware solutions when adjusting a monitor.
  • Page 112 DM-F Series Monitor Figure C-1: smartOSD Welcome Screen Step 4: Click Next to continue. Step 5: The Folder Select screen in Figure C-2 appears. Figure C-2: smartOSD Folder Select Screen Step 6: Select the installation folder in Figure C-2 shown above. Step 7: Click Next to continue.
  • Page 113 DM-F Series Monitor Figure C-3: smartOSD Confirm Installation Step 9: Confirm the installation by clicking Next in the screen above. Step 10: The program starts to install and the progress bar shown in FIgure C-4 appears. Figure C-4: smartOSD Installation Progress Step 11: When the installation is complete the “Complete Installation”...

  • Page 114: Software Illustration

    DM-F Series Monitor Figure C-5: smartOSD Installation Complete Step 12: Click Close in the screen above. Step 13: After quick setup is complete, the IEI smartOSD wizard logo appears on the desktop as shown in the screen below. Step 14: To access the smartOSD, click the smartOSD wizard logo.Step 0: C.4 Software Illustration...
  • Page 115 DM-F Series Monitor NOTE: To update the display setting status immediately, push the refresh button on every page To turn the system on, press ALT + P. Item Elements Management Save/Load File Power Management EDID EDID contains basic information about the monitor and its capabilities.

  • Page 116: Table C-1: Smartosd Menu Structure

    DM-F Series Monitor Auto Brightness (disabled in the DM-F Series) Main Source Input (YPbPr, S-Video and CVBS disabled) Volume (disabled in the DM-F Series) Factory Presets/OSD Lock/OSD Unlock Mute (disabled in the DM-F Series) Table C-1: SmartOSD Menu Structure Page 100...

  • Page 117: Manage Page

    DM-F Series Monitor C.4.1 Manage Page Figure C-6: Manage Page Page 101...

  • Page 118: Edid Page

    DM-F Series Monitor C.4.2 EDID Page Figure C-7: EDID Page Page 102...

  • Page 119: Image Page

    DM-F Series Monitor C.4.3 Image Page Figure C-8: Image Page Page 103...

  • Page 120: Display Page (For Analog Signal)

    DM-F Series Monitor C.4.4 Display Page (for analog signal) Figure C-9: Display Page Page 104...

  • Page 121: Color Page

    DM-F Series Monitor C.4.5 Color Page Figure C-10: Color Page Page 105...

  • Page 122: Pip Page

    DM-F Series Monitor C.4.6 PIP Page NOTE: The functions in the PIP page are only available in the MLCD-KIT Series and AFOLUX Series monitors. Figure C-11: PIP Page Page 106...

  • Page 123: System Page

    DM-F Series Monitor C.4.7 System Page Figure C-12: System Page NOTE: Some of the functions in the System Page are only available to some of the IEI LCD series as following:  Auto Brightness: SRM, MLCD-KIT and AFOLUX series only ...

  • Page 124: About Page

    DM-F Series Monitor C.4.8 About Page Figure C-13: About Page Page 108...

  • Page 125: Smartosd Faq

    DM-F Series Monitor C.5 smartOSD FAQ For troubleshooting, please see the steps below: C.5.1 Windows 2000 Installation Failure Installation fails under Windows 2000 and shows the following image: Figure C-14: DLL Missing Solution: Download and install service pack Windows Installer 3.1 C.5.2 Vista Installation Failure Installation fail under Vista while showing following image: Figure C-15: Windows Vista Error...

  • Page 126: Model Failure

    DM-F Series Monitor Solution: Install SmartOSD.exe as the administrator authority Figure C-16: Install as Administrator C.5.3 Model Failure The Model Fail error message shown below appears. Figure C-17: Firmware Incompatibility Solution: SmartOSD only supports firmware version 2.0 and following versions. Page 110...

  • Page 127: Ddc Port Failure

    DM-F Series Monitor C.5.4 DDC Port Failure The DDC port fail error message shown below appears. Figure C-18: DDC Port Failure Solutions:  Check VGA or HDMI cable  Check an IEI monitor is being used  Make sure the version is version 2.3 for the AFOLUX/MDM series and version 1.5 for the DM/ISDM/TDM/SRM/LCD-KIT series that have the SmartOSD functions ...

  • Page 128: D Hazardous Materials Disclosure

    DM-F Series Monitor Appendix Hazardous Materials Disclosure Page 112...

  • Page 129: Rohs Ii Directive (2015/863/Eu)

    DM-F Series Monitor D.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 130: China Rohs

    DM-F Series Monitor D.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 114...

This manual is also suitable for:

Dm-f seriesDm-f15a/r-r40Dm-fw19a/pc-r10Dm-f19a/r-rs232Dm-f19a/pc-r20Dm-f19a/r-r20 ... Show all

Table of Contents
