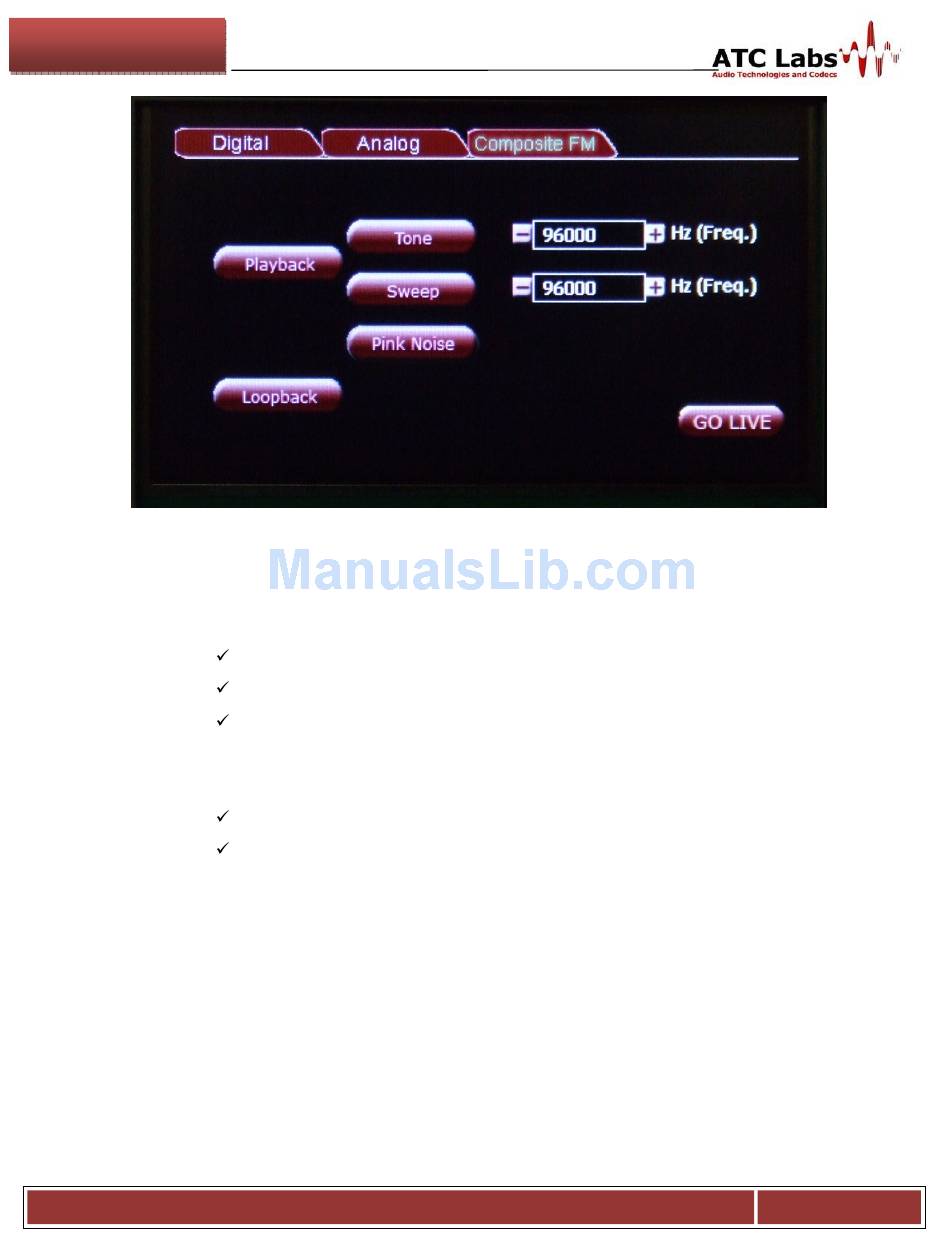

Figure 3.9: Diagnostic Screen
To diagnose each path with built in test tone follow these steps:
Select any one of the path form Digital/Analog/Composite FM option.
Press Playback key
Now select option from Tone/Sweep/Pink Noise. In case of Tone,
fundamental frequency can vary from 1 kHz to 24 kHz. User can also
configure Start and stop frequency in case of Sweep tone.
Loopback
Press GO LIVE key to get back into 'Processing' mode.
