ATC Labs Perceptual SoundMax Q24 Operation Manual page 23

• SCA IN: Subcarrier inputs sum into composite baseband outputs and provides
MPX outputs. SCA and RBDS levels will make sure proper A/D will match to the
absolute maximum peak level of analog signal to the full scale digital level with
word length 24 bit. It has range from -12dBu to +12dBu, configurable as shown
above.
• RDS/RDBS IN: It has range from -12dBu to +12dBu, configurable as shown
above.
• OUTPUT1: It's the coaxial output and software selectable as COMP or MPX. It
has range from -12dBu to +12dBu, configurable on the settings screen above.
• OUTPUT2: It's the coaxial output and software selectable as COMP, MPX or
PILOT tone of 19 kHz. It has range from -12dBu to +12dBu, configurable on the
settings screen above.
• OUT1: With this selection tab user can configure above mentioned OUTPUT1.
• OUT2: With this selection tab user can configure above mentioned OUTPUT2.
• Pre-emphasis: With this option user can configure type of applied pre-emphasis on
COMPOSITE PATH only.

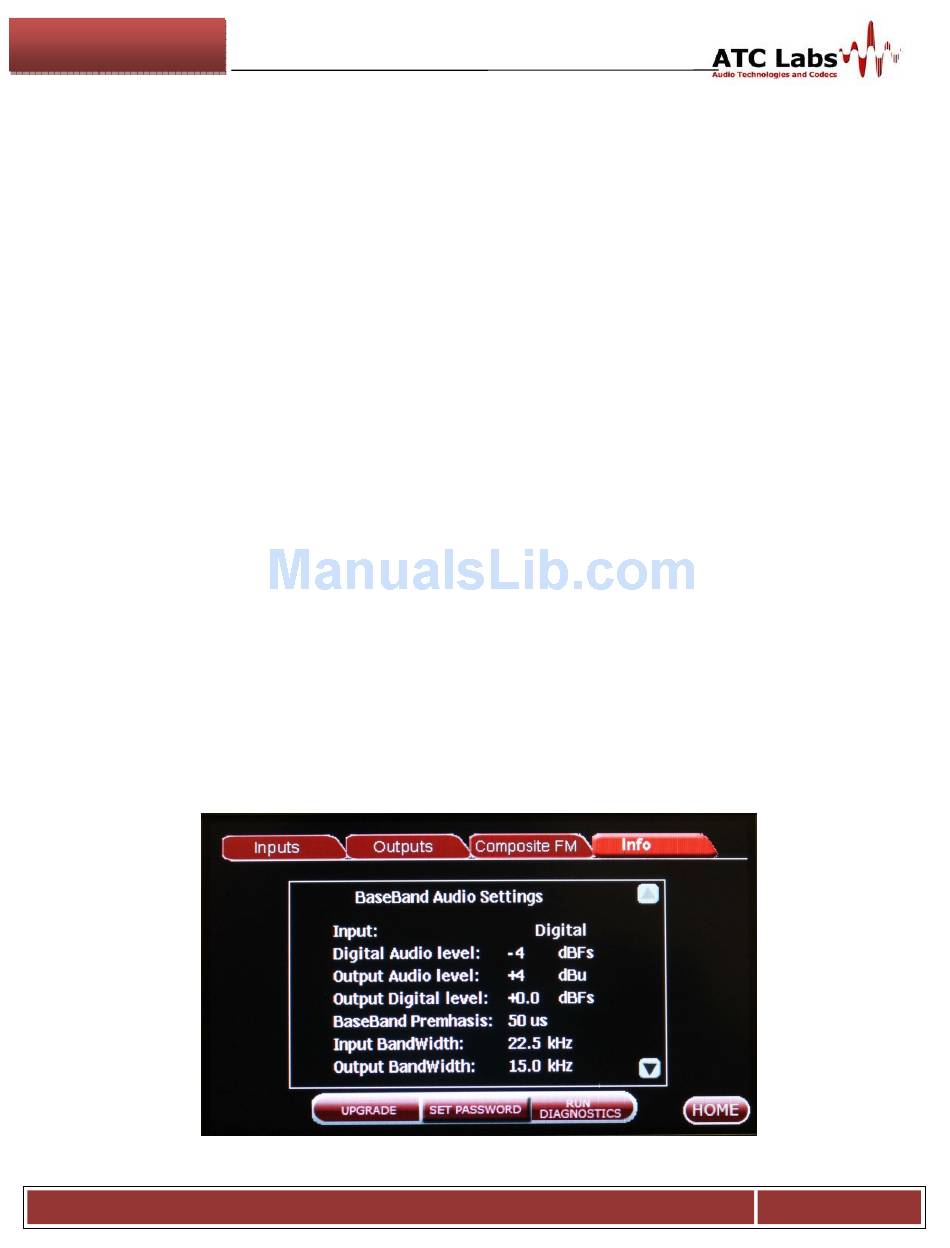

3.2.5 Consolidated Information Screen:
Info screen summarizes the status of all important settings at one place. Info
screen displays features like up-gradation of software, setting the user password and
diagnostic feature. These new features are accessible through soft keys: UPGRADE,
SET PASSWORD, RUN DIAGNOSTICS.
