2.6

Quick Start Guide

(WARNING: Do not skip to this section without familiarizing yourself with the
material in the above sections)
Make sure Installation procedure is complete as per instruction given in Section 2.1-
2.3
Model Q24 ships with digital input and digital output as the default I/O connections.
So during the quick start the audio coming in through the digital input will be
processed and the processed output will be available on the digital output connection.
If analog I/O is needed instead please refer to Section 3.2 to change I/O configuration
(System will be start with default settings or last user settings, if applicable).
Once the front-panel power switch is pressed, the unit will power ON and LED
around the ON/OFF switch will light up. It may take several seconds for the unit to
power up and during this time various start-up messages will be displayed on the
front-panel TFT screen. After the unit is fully powered up the front-panel displays a

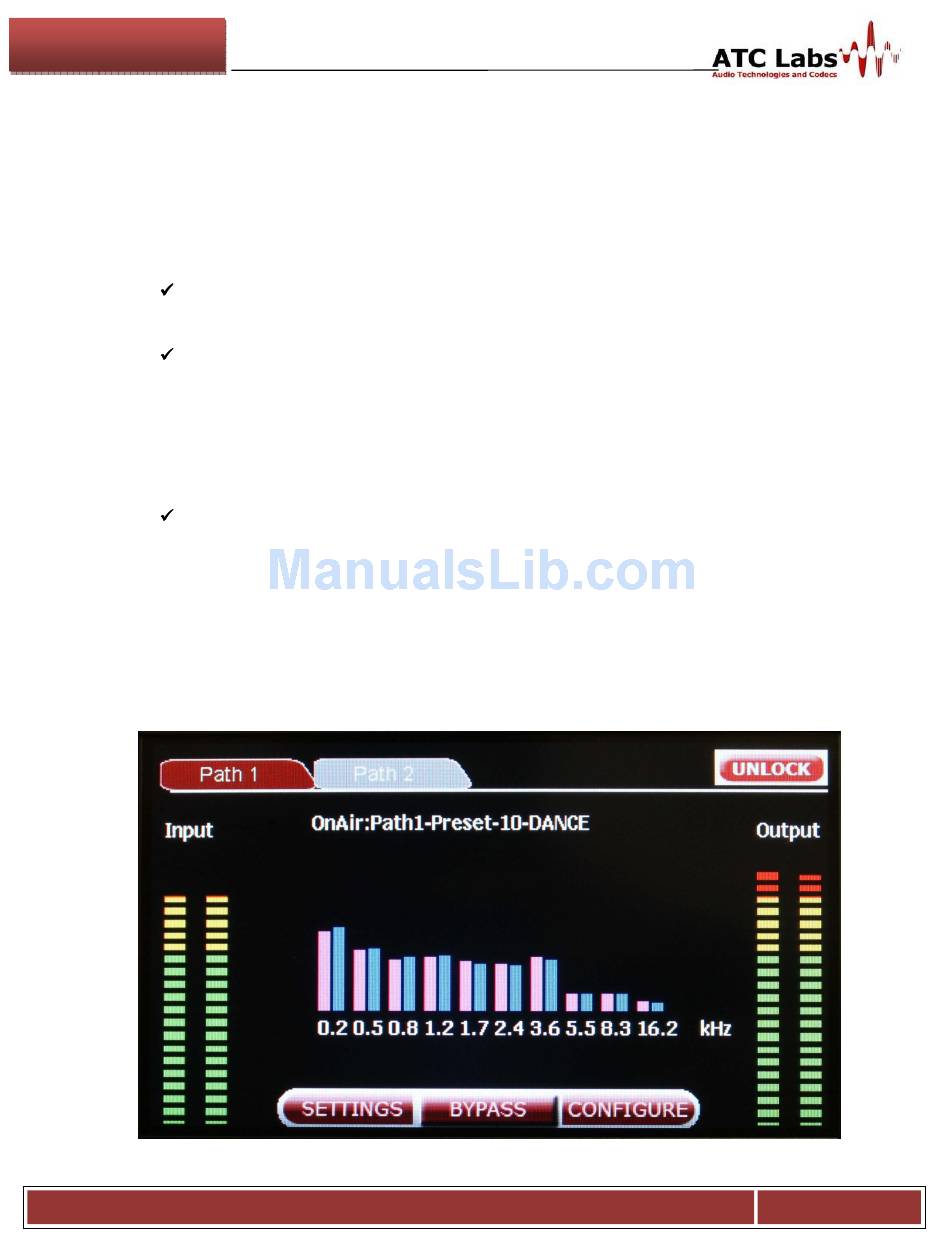

HOME screen which SHOULD BE similar to the figure below. If not then refer to
section 3.2.5.
