Detailed System Setup Instructions

3.1 Model Q24 Main Screen Controls: Home Screen

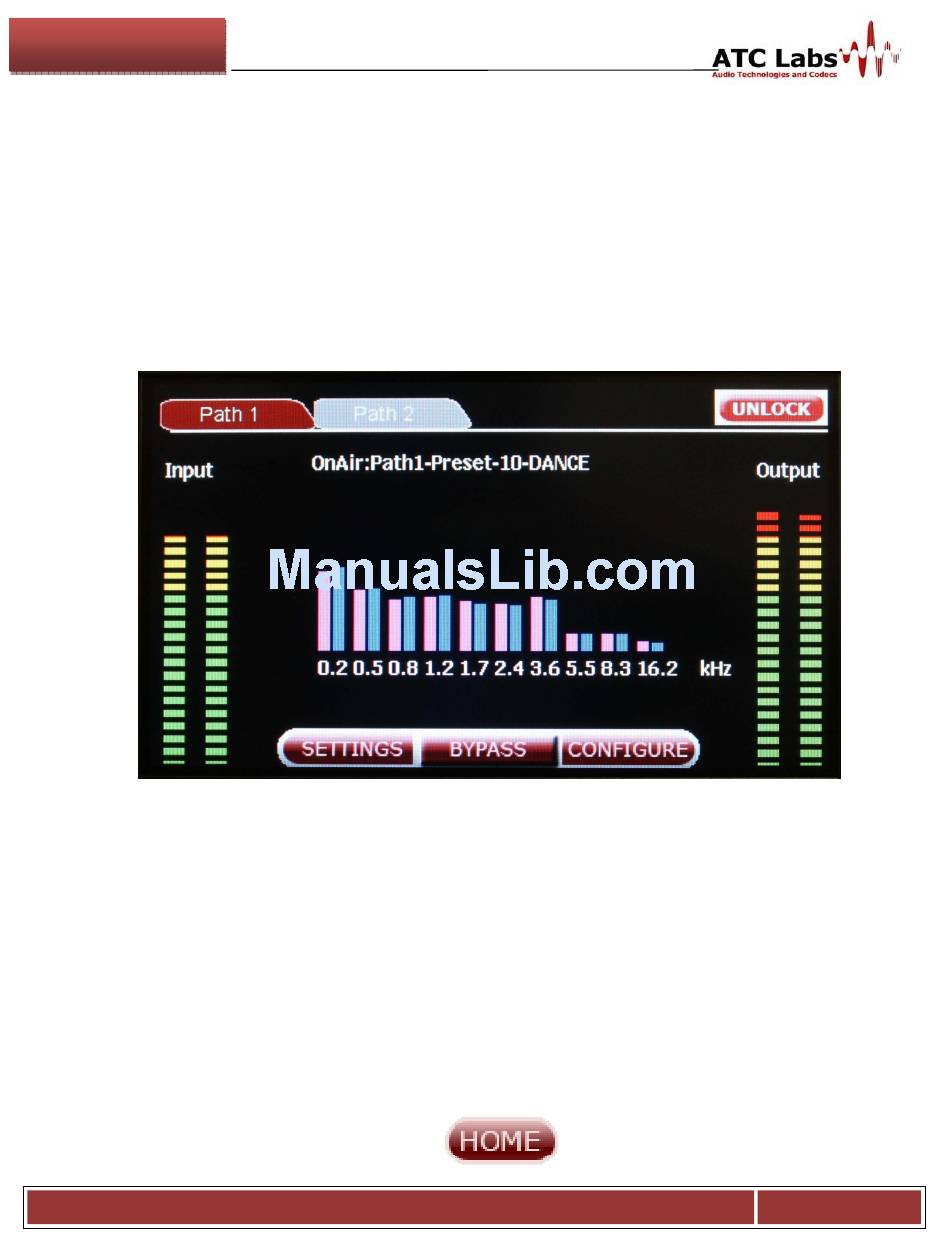

Main Screen Display labels the following items:
Soft keys: UNLOCK, SETTING, BYPASS, CONFIGURE
•
Input and Output VU meter
•
Output Spectrum in 10 Bandwidth central frequency display.
•
On Air preset which displays current profile
•
User can recall Main Screen from any of the other screens by pressing the HOME
soft key.
