Front Panel Controls

1
1. Power Switch: Once the rare-panel master switch is in ON position (i.e. equipment
is in power standby mode) use this switch to turn the unit ON or OFF.
2. TFT Touch Screen: The equipment is equipped with a front panel TFT touch
screen for purpose of controlling and monitoring the unit.
3. Rotary Selector: This can be used in lieu of the touch screen control for
controlling the unit. Generally user can also select the particular option displayed
over TFT screen by pressing the rotary selector switch once, and move around
different regions/options of the screen by rotating the rotary encoder in either
direction.
4. Headphone Audio Output – ¼'' jack: Used for quick monitoring of processed
output of audio processor. User can listen to the processed output through this
audio jack.
5. Headphone Volume Control
A T C L a b s C o p y r i g h t ( 2 0 1 2 ) A l l R i g h t s R e s e r v e d .
19 in
4.2 in
2

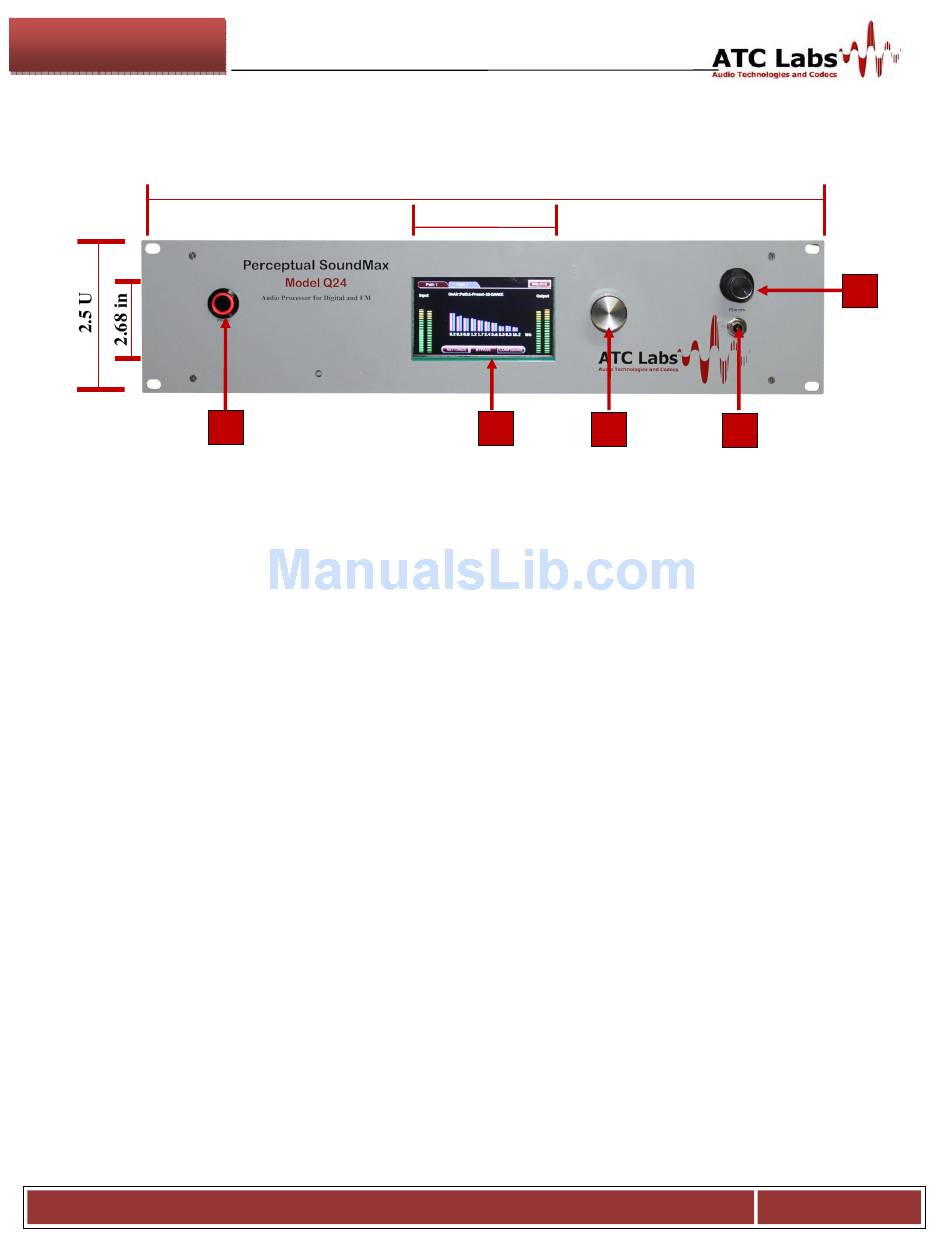

Figure 2.4: Model Q24 FRONT PANEL
3
4
Page 13
5
