ATC Labs Perceptual SoundMax Q24 Operation Manual page 16

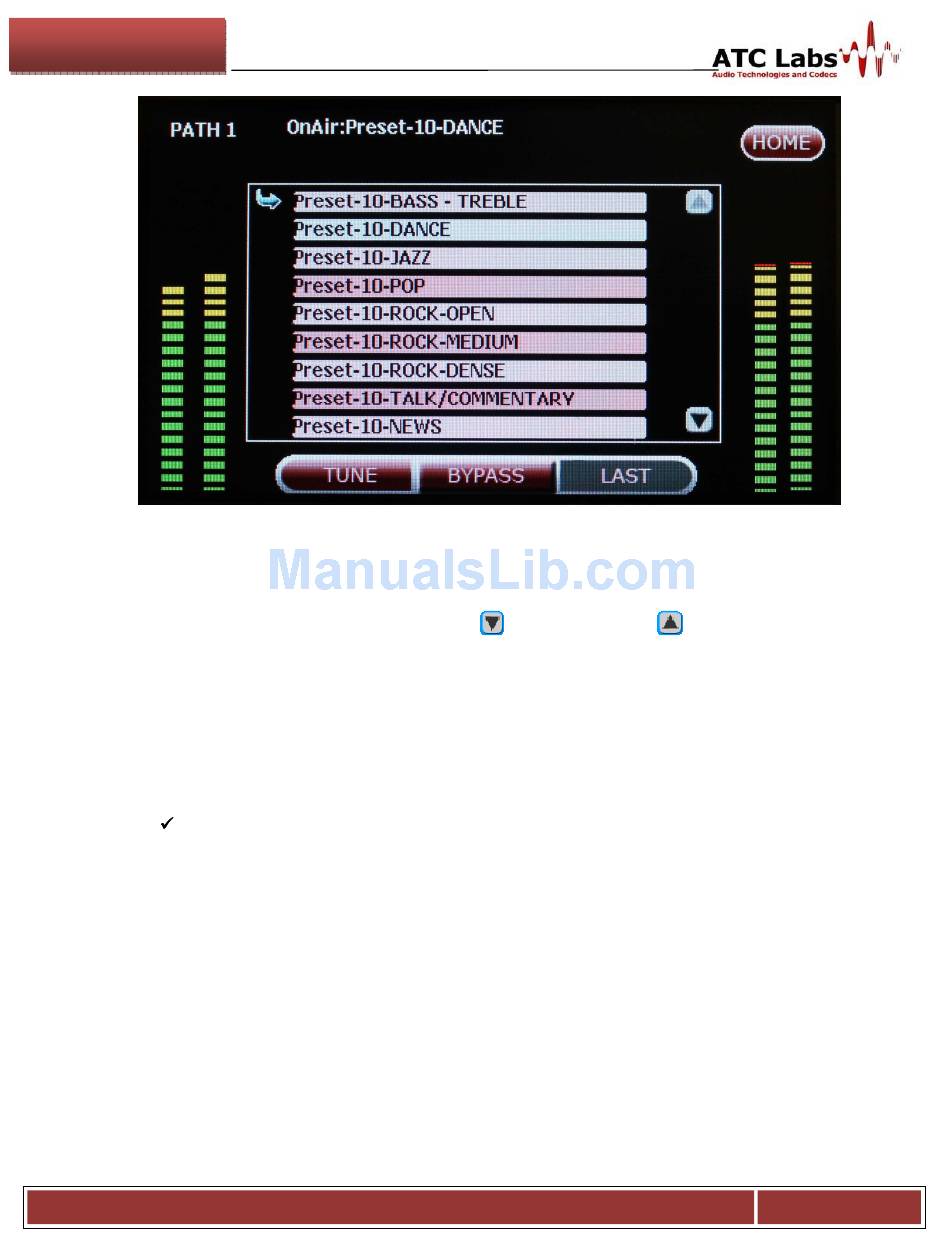

Figure 2.6: Preset Profile Selection Screen
• With the soft keys of NEXT
between next page and previous page respectively.
• User can go to the recent last preset with LAST key.
• With TUNE key user can see the different processing module available and
their ON/OFF status.
Click on BYPASS key to switch between processed and unprocessed output.
• If output is in BYPASS mode then display text will be "OnAIR: Path1-
Processing ByPassed".
• If output is in PROCSSED mode then preset/custom profile being applied will
be displayed as text like "OnAIR: Path1- Preset-10 BASS-TREBLE".
A T C L a b s C o p y r i g h t ( 2 0 1 2 ) A l l R i g h t s R e s e r v e d .
and PREVIOUS user can traverse
Page 16
