AMX Modero X Series Quick Start Manual

Overview

With the MXD-701 7" Modero X Series® G5 Wall/Flush Mount Touch Panel, available in
portrait (MXD-701-P: FG5968-54) and landscape (MXD-701-L: FG5968-55) models, the
most elegant interface designed specifically for dedicated room control has been significantly
enhanced to include a new G5 Graphic Engine to provide even faster and smoother
animations and transitions. In addition, the MXD-701 quadruples the processing power with
a new Quad Core Processor. This new generation of touch panels is built for usability
offering edge-to-edge capacitive touch glass with multi-touch capabilities. It features
advanced technology empowering users to operate AV equipment seamlessly, while
providing the ultimate in audio and video quality. The distinctive appearance will complement
even the most sophisticated meeting facilities and homes. With a lightning fast processor,
brilliant graphics and enhanced capabilities, the Modero X Series is the control surface that
simply delivers more.
For more information on installation and configuration, please refer to the
MXT/MXD-701 Operation Reference Guide, available at www.amx.com.

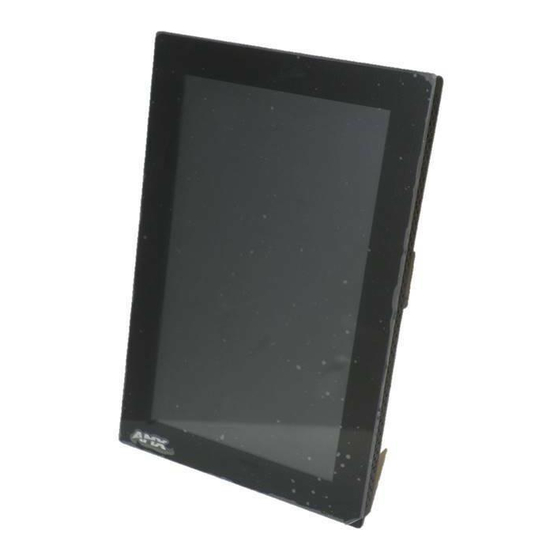

FIG. 1
MXD-701, Landscape and Portrait

Common Applications

The MXD-701 is ideal for boardrooms, conference rooms or podiums where a control surface
is needed to provide access to key functions. In residences, it is perfect for kitchens,
bedrooms or home offices where it can be used to manage systems throughout the home.

Features

• G5 Graphics Engine and Quad Core Processing – The most powerful
processing in the industry delivers smooth gesturing, animations and transitions all at
higher speeds for an experience any user will enjoy.
• Apps - Modero X Series G5 touch panels now have the ability to run stand-alone
applications (apps) within the control environment.
• Simplified Enterprise Touch Panel Updates – Deploy and update touch panel files from
a network URL for simplified company-wide updates.
• Latest Communication Technologies – Supports Near Field Communication™ (NFC) -
short-range wireless technologies that deliver peer-to-peer communication by 'sharing,
pairing and transaction' between RF devices like exchanging data/identities.
• Enhanced Usability – HD video streaming.
• Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest technology in
popular tablet/mobile devices that delivers the widest viewing angles and the most
accurate color reproduction on the market.

Product Specifications

MXD-701 (FG5968-54/55) Specifications
Power: PoE (Power over Ethernet), 802.3af, class 3
Power Consumption: • Full-On: 11.5 W maximum
• Standby: 5.8 W
• Shutdown: 1 W
Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
Dimensions (HWD): • Landscape: 4.8" x 7.3" x 2.5" (122 mm x 186 mm x 63 mm)
• Portrait: 7.3" x 4.8" x 2.5" (186 mm x 122 mm x 63 mm)
Weight: 1.4 lbs (0.64 Kg)
Certifications: • UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• RoHS
MXD-701
7" Modero X Series® G5 Wall/Flush Mount Touch Panel
MXD-701 (FG5968-54/55) Specifications (Cont.)
Included Accessories:
Other AMX Equipment:

Panel Connectors and Wiring

FIG. 2 shows the connectors located on the underside of the MXD-701.

Power for the MXD-701 via Power Over Ethernet

Power for the MXD-701 is supplied via Power Over Ethernet (PoE), utilizing an AMX-
certified, capacitive touch-compliant PoE injector such as the PS-POE-AT High Power PoE
Injector (FG423-81) or other approved AMX PoE power source. The incoming Ethernet cable
should be connected to the RJ45 port on the MXD-701 (FIG. 2 and FIG. 3).
RJ45
Cable
Clip
RJ45
Port
FIG. 2
Rear of the MXD-701 (Landscape)
RJ45
Cable
Clip
RJ45
Port
FIG. 3
Rear of the MXD-701 (with RJ45 connection extended)

Configuring the MXD-701

The MXD-701 is equipped with a Settings app that allow you to set and configure various
features on the panel. For more information on connecting and configuring the MXD-701 to a
network, please refer to the Modero X Series G5 Programming Guide, available at
www.amx.com.

Accessing the Settings App

To access the Settings app on the MXD-701, press and hold the Sleep Button (FIG. 1) on the
top of the panel for 3 seconds. The user will be prompted to release the button to enter the
Settings app.

Accessing the NetLinx Subpage

1. From the Settings app page, select NetLinx. This opens a password keypad.
2. Enter the panel password into the keypad (the default is 1988) and select OK to
access the subpage.
Setting the Panel's Device Number and Device Name
In the NetLinx subpage:
1. Press Device Number to open the NetLinx editing window.
2. Enter a unique Device Number assignment for the panel and press OK.
3. Enter a unique Device Name assignment for the panel and press OK.
Quick Start Guide
• MXD-701 Installation Guide (93-5968-54)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• MXD-701 Installation Template (68-5968-04)
• PS-POE-AF-TC, POE Injector, 802.3af Compliant
(FG423-83)
• NXA-ENET8-2POE, Gigabit Switch, 8 Port POE, 2 Port
SFP (FG2178-63)
• MXA-MPL, Modero X Series Multi Preview Live
(FG5968-10)
• MXA-MP, Modero X Series Multi Preview (FG5968-20)
• MXA-RMK-07, 7" Modero X Series Rack Mount Kit
(FG5969-63)
• MXA-FMK-07, Flush Mount Kit, 7" Modero X Wall
(FG5968-71)
USB
Port
Top
