Summary of Contents for Wincor Nixdorf BEETLE /i8A-3

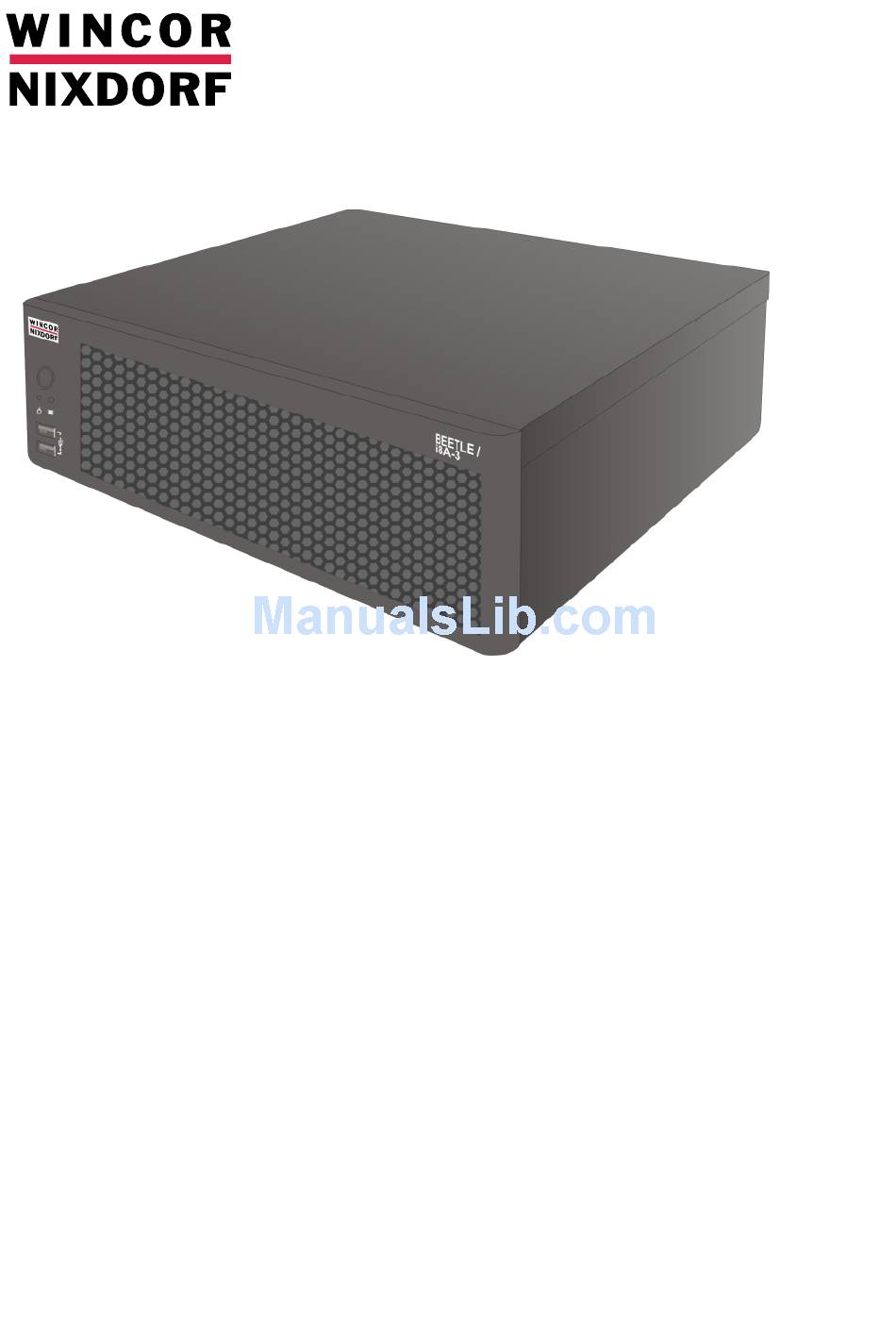

- Page 1 BEETLE /i8A-3 (D425/D525-Mot her bo ard) Modular POS System User Manual...
- Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards, Your opinion: Wincor Nixdorf International GmbH Documentation RD HWD01 Wohlrabedamm 31 D-13629 Berlin E-Mail: retail.documentation@wincor-nixdorf.com...
- Page 3 BEETLE /i8A-3 (D425/D525 Motherboard) Modular POS System User Manual, Edition June 2012...
- Page 4 All brand and pro duct na mes men tio ned in this do cu ment are tra de marks of their re spec ti ve owners. Co py right© Win cor Nix dorf In ter na tio nal GmbH, 2012 The re pro duc ti on, trans mis si on or use of this do cu ment or its con tents is not per mit ted wit hout ex press aut ho ri ty.
-
Page 5: Table Of Contents
Contents Ma nu fac tu rer´s Cer ti fi ca ti on..........7 Tes ted Sa fe ty....................7 FCC-Class A De cla ra ti on................7 Im por tant no tes ...................7 In tro duc ti on................10 About this ma nu al ..................11 Care of the BEET LE /i8A-3 ...............11 Re cy cling the BEET LE /i8A-3 ..............12 War ran ty ....................13... - Page 6 Jack Plug 3.5 mm (IN, OUT, MIC) ............28 D- Sub, 25 pin (LPT1, Mo du lar Prin ter).............29 D- Sub, 15 pin (VGA) ................29 LAN (RJ45) ....................29 Dis con nec ting ca bles............30 Sto ra ge Me dia ..............32 Chan ge of the Data Sto re .................32 P- USB- Hub (op tio nal) ............36 COM6*, COM7*- In ter fa ces (op tio nal).......37 CF- Card Adap ter (op tio nal) ..........38...
-
Page 7: Manufacturer´s Certification
Cet appareil numerique de la classe A est conforme à la norme NMB-003 du Canada. Important notes The mo du lar POS sys tem BEETLE /i8A-3 con forms to the cur rent sa fe ty stan dards for data pro ces sing equip ment. BEETLE /i8A-3... - Page 8 Customer Service of Wincor Nixdorf or your dealer must be notified. The li thi um bat te ry must be dis po sed of in ac cor dan ce with lo cal re gu la tions for spe ci al was te.
- Page 9 BEETLE, provided that these devices comply with the specifications according to usb.org. Other peripheral devices with higher power requirement (such as PoweredUSB printer) should be connected to or disconnected from your BEETLE system only after the BEETLE has been switched off. BEETLE /i8A-3...
-
Page 10: Introduction
Introduction The BEETLE /i8A-3 is the powerful POS System for multi-functional solutions. This entry level POS system unit with low power, state-of-the-art Intel Atom™ processor technology provides a basis for all of today’s and future POS store and back office solutions. -
Page 11: About This Manual
Care of the BEETLE /i8A-3 Clean your BEETLE /i8A-3 at regular intervals with a suitable plastic-surface cleaner which can be ordered from Wincor Nixdorf International GmbH. Make sure that the power plug is disconnected and that no liquid finds its way into the device. -
Page 12: Recycling The Beetle /I8A-3
Please do not stick labels onto plastic case parts. This would help us to re-use components and material. At this time, there are still some parts that are not reusable. Wincor Nixdorf International GmbH guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001. -
Page 13: Warranty
All parts of the pro duct which are sub ject to wear and tear are not in clu ded in the war ran ty en ga ge ment. For detailed warranty arrangements please consult your contract documents. Plea se or der spa re parts at the Win cor Nix dorf cus to mer ser vi ce. BEETLE /i8A-3... -
Page 14: Beetle /I8A-3- The Pos System
BEETLE /i8A-3 in a network and upgrade the BEETLE /i8A-3, since it can accommodate one expansion card (1x PCI). This means that the BEETLE /i8A-3 can meet your requirements at all times, without having to exchange the complete system for a new one. BEETLE /i8A-3... -
Page 15: Before Switching On The System
Should you notice any transport damages or discrepancies between package contents and delivery ticket or functional defects please inform your contracting parties or the branch office of Wincor Nixdorf immediately. Please indicate the number of your delivery ticket and delivery ticket position and serial numbers of the respective devices. - Page 16 Ver ti cal in stal la ti on of the equip ment The minimum top and bottom distances listed in the figure must be maintained; otherwise, a sufficient ventilation of the equipment is not guaranteed. 60 mm 50 mm 100 mm BEETLE /i8A-3...
- Page 17 If you install the BEETLE /i8A-3 in vertical position, you have attend to the following: Three breakable bore holes are located at the underside, which allow the BEETLE /i8A-3 to be suspended by means of the screws. Mind the following minimum clearances also for vertical mounting to ensure sufficient ventilation (100 mm = 3.94 inch):...
-
Page 18: Cab Ling Of The Beetle /I8A-3
Cab ling of the BEETLE /i8A-3 Follow the steps below in the order given when installing devices: Plug one end of the power cable into the socket of the BEETLE /i8A-3. Plug in and secure the data cable. Plug the other end of the power cable into the main power supply. -
Page 19: Ba Sic Set Tings
304 W. Ba sic set tings Ex works, the BEETLE /i8A-3 is configured to your order. Your configuration must be subsequently adapted to support supplementary devices such as scanners. For more information, contact the Wincor Nixdorf International GmbH branch office responsible for your area. -
Page 20: The System Beetle /I8A-3

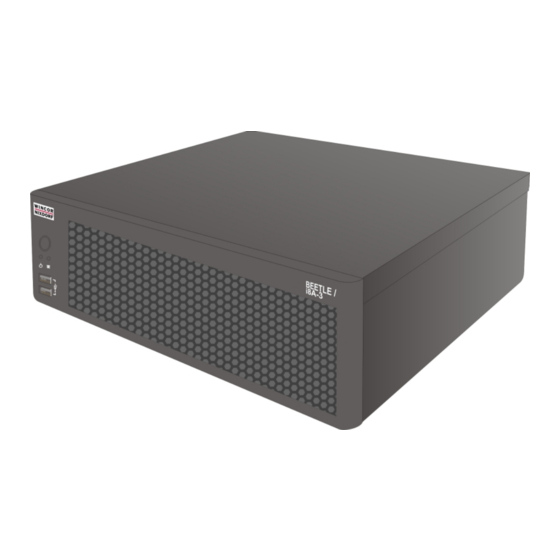

The System BEETLE /i8A-3 Front Side View ON Button Power LED HDD- LED 2 USB Interfaces Ventilation Slots (NOT COVERING) BEETLE /i8A-3... -
Page 21: On But Ton
USB (Uni ver sal Se ri al Bus)- A, USB 2.0 Interface (USB-A) for connecting different USB peripheral devices such as scanners or scales. You must use only shiel ded ca bles for the con nec ti on of USB de vi ces. BEETLE /i8A-3... -
Page 22: Interior View
Interior view Power Supply Ventilator Hard Disk BEETLE /i8A-3... -
Page 23: Power Supply
Connector Panel DC 24V CASHDR ONLY Power connector DC24V (Power supply for the printer, HOSIDEN socket) RJ12 (Cashdrawer socket) At the front side of the box you will find the ON button to switch on the system. BEETLE /i8A-3... -
Page 24: Po Wer Con Nec Tor
The power supply unit has one RJ12 socket for connecting a cash drawer. Make sure that the connector is plugged firmly into the socket to prevent malfunctioning. RJ12 plugs lock in when you insert them. Power is supplied to the cash drawer via this socket, P24V +5% / -15%. BEETLE /i8A-3... - Page 25 Con nec ting dai sy chai ned cash dra wers and 12V OEM-dra wers is pro hi bi ted! Connect cash drawers only (no telephon). BEETLE /i8A-3...
-
Page 26: System Unit
LCD PWR (power supply display) D- Sub power supplied (COM2*/COM3*/COM4*/COM5*) 4 x USB- A (USB 2.0) Mini DIN (KYBD) D- Sub (COM1) 25 pin D-sub (LPT1) D- Sub, 15 pin (VGA) LAN (RJ45 socket) Jack plug, 3.5 mm (IN, OUT, MIC) BEETLE /i8A-3... -
Page 27: 12V Dc Jack
4-pin 12V LCD Out This port is intended to supply 12V power to LCD monitor. Rated current is 3A. Use only appropriate power cable supplied by Wincor Nixdorf. Pin 1 Pin 2... -
Page 28: Usb (Uni Ver Sal Se Ri Al Bus)- A, Usb 2.0
USB-in ter fa ces. Mini-DIN (KYBD) The BEETLE /i8A-3 has a 6-pin mini-DIN jack for con nec ting a key bo ard. Make sure that the con nec tor is plug ged firm ly into the so cket to pre vent mal functio ning. -
Page 29: D- Sub, 25 Pin (Lpt1, Modular Printer)
D- Sub, 25 pin (LPT1, Modular Printer) The standard parallel interface LPT1 is intended for connecting a printer. D- Sub, 15 pin (VGA) You can connect a monitor to the BEETLE /i8A-3 via the 15-pin D-sub jack on the CRT adapter. LAN (RJ45) The system can be connected to a network (LAN) from the POS terminal back panel. -
Page 30: Dis Con Nec Ting Ca Bles
RJ12 plugs lock in when you insert them. To release them push the latch under the plug to the top. The powered P-USB connector is disengaged by pressing the spring that is marked by an arrow. BEETLE /i8A-3... - Page 31 Pull the plastic covering from the connecting socket with your thumb. The lock is released. The metal of the plug is visible. You loosen the USB-A- connector by pushing the covering of the connector. Manually loosen the knurled screws of the COM connector. BEETLE /i8A-3...
-
Page 32: Storage Media
First ensure that the device is switched off and that the power connector is disconnected. Open your BEETLE /i8A-3. Loosen the two screws at the back side (1) and pull it out of the front guide (2). Lift the top cover at the back side (3). - Page 33 Push the metal plate (1). Tilt the hard disk hol der in direction of arrow (2). Lift up the dri ve and remove it. Loosen the connecting cables. Ca ble Po wer Supp ly Data Ca ble BEETLE /i8A-3...
- Page 34 Change the hard disk. Please pay regard to the cor rect fitting position. One 2.5" hard disk is being installed at the upper position on the drive holder. Buffer Dri ve Holder Me tal Tang Con nec tor Socket BEETLE /i8A-3...
- Page 35 Carefully tilt the hard disk carrier into the orginally position. Make sure that the drive holder will not pinsh cables. The metal tangs snap in place. Close the cover and connect the main plugs. Now you can switch on the system. BEETLE /i8A-3...
-
Page 36: P- Usb- Hub (Optional)
BEETLE, provided that these devices comply with the specifications according to usb.org. Peripheral devices with a high power requirement (such as PoweredUSB printer) should be connected to or disconnected from your BEETLE system only after the BEETLE has been switched off. BEETLE /i8A-3... -
Page 37: Com6*, Com7*- Interfaces (Optional)
The equipment and tools you use must be free of static charges. Pull out the power plug before inserting or pulling out boards containing ESDs. Always hold boards with ESDs by their edges. Never touch pins or conductors on boards fitted with ESDs. BEETLE /i8A-3... -
Page 38: Cf- Card Adapter (Optional)
The low power and shock resistant CF media can be used as a direct replacement of a hard drive and appears to any OS. The adapter provides an IDE interface. CF- Card Adap ter BEETLE /i8A-3... -
Page 39: Starting Up The System
Starting up the system After installing the BEETLE /i8A-3, switch on the POS system using the ON/OFF button on the front panel and the power switch on the power supply. The system first performs an automatic self-test to test its basic functions. - Page 40 If the operating system has started up without error, the POS application software is automatically booted if necessary. A message is displayed as soon as the BEETLE is ready for operation. For more detailed information, see the description of your application program. BEETLE /i8A-3...
-
Page 41: Appendix
Appendix Technical Data BEETLE /i8A-3 Dimensions Width 310 mm Depth 280 mm (w/o cable cover) 352 mm (with cable cover) Height 103 mm Weight approx. 6 kg Climatic category Class 3K3 DIN IEC 721-3-3 Class 2K2 DIN IEC 721-3-2 Class 1K2... -
Page 42: Interfaces
RJ45- jack, 10/100 Mbit/s PCI-Bus 1 x PCI 2.1, 32 Bit, 33MHz Serial ATA II 3.0 Gbit/s, for internal Hard Disk 12V DC Jack 12V output port (rated 3A) 4-pin 12V LCD out 12V output port (rated 3A) BEETLE /i8A-3... -
Page 43: To Tal Cur Rent Con Sump Ti On Of In Ter Fa Ces
Max. 5A @ 12V The total current consumption at 24V interfaces must not exceed 3A. each PUSB 24V = 3,0A Max. 3A @ 24V Power loss of implemented PCI- Controller is - for thermic reasons - limited to 10W. BEETLE /i8A-3... -
Page 44: Glossary
Panel Link is a procedure for signal transmission based on the VESA standard serving the connection of (LCD or Plasma) displays and monitors to a PC or POS system e.g. BEETLE. PLINK is an interface for many graphics and display standards such as VGA, SVGA, XGA or SXGA. BEETLE /i8A-3... - Page 45 Stands for Video Graphics Array and is the interface for connecting colour monitors. BEETLE /i8A-3...
-
Page 46: Abbreviations
Random Access Memory S-ATA Serial Advanced Technology Attachment Solid State Disk (flash medium) Total Cost of Ownership Thermal Design Power (INTEL specification) Thin Film Transistor TN-S Terre Neutre- Separé Underwriters Laboratory (standard) Uninterruptable Power Supply Universal Serial Bus BEETLE /i8A-3... - Page 47 Verband der Elektrotechnik, Elektronik und Informationstechnik e.V. German Association for Electrical, Electronic and Information Technologies Wide Area Network WLAN Wireless Local Area Network Wincor Nixdorf International GmbH Zero Cache BEETLE /i8A-3...
- Page 48 Published by Wincor Nixdorf International GmbH D-33094 Paderborn 01750220871C Order No.:...
