BEETLE /iPRINT
POS-System
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Wincor Nixdorf Beetle

Summary of Contents for Wincor Nixdorf Beetle

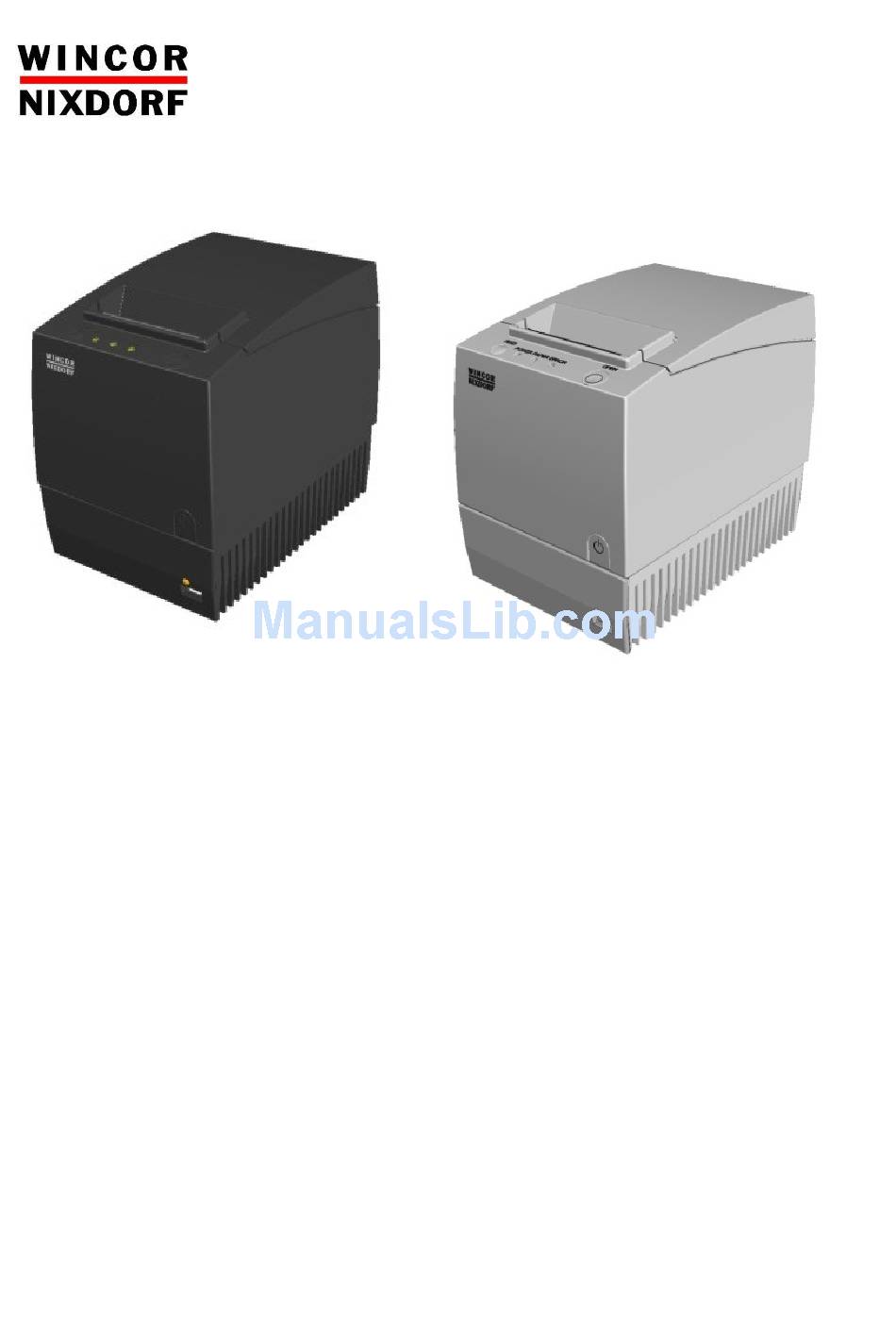

  • Page 1 BEETLE /iPRINT POS-System User Manual...
  • Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards, Your opinion: Wincor Nixdorf International GmbH Technical Documentation RD HWD01 Wohlrabedamm 31 D-13629 Berlin E-Mail: retail.documentation@wincor-nixdorf.com...
  • Page 3 BEETLE /iPRINT POS-System User Manual 2012 Edition March...
  • Page 4 All brand and product names mentioned in this document are trademarks of their respective owners. Copyright© Wincor Nixdorf International GmbH, 2012 The reproduction, transmission or use of this document or its contents is not permitted without express authority. Offenders will be liable for damages.

  • Page 5: Table Of Contents

    ENERGY STAR ...................1 FCC-Class A Declaration ................1 Warranty......................2 Safety Instructions..................2 Recycling.......................4 BEETLE /iPRINT – the Modular System ............5 Introduction....................5 Before Switching On the System..............6 Unpacking And Checking the System ............6 Setting Up the Device..................7 Connecting the BEETLE /iPRINT ..............8 Basic Settings....................8 Front Side View .....................9...
  • Page 6 Storage Medium..................32 Change the 2.5" Hard Disk/SSD..............32 Technical Data ...................35 Interfaces.....................35 Hard Disk.....................35 Display Resolution and Frame Rate .............36 Solid State Disk ...................36 Printer......................37 Paper Specification..................38 Print Area.....................39 BEETLE /iPRINT Service Menu ..............40 “Waking up” the BEETLE /iPRINT ...............40 Abbreviations.....................41...

  • Page 7: Manufacturer´s Certification

    Therefore, you will find the CE mark on the device or packaging. Tested Safety The BEETLE /iPRINT has been provided with the symbol for “Tested Safety”. In addition, the BEETLE has received the UL symbol and cUL symbol.  ENERGY STAR ...

  • Page 8: Warranty

    A est conforme à la norme NMB-003 du Canada. Warranty Wincor Nixdorf generally guarantees a limited warranty engagement for 12 months beginning with the date of delivery. This warranty engagement covers all those damages which occur despite a normal use of the product.
  • Page 9 This will help to keep the print head durable. The system should only be disassembled or repaired by a technician,  who is certified by Wincor Nixdorf. Operate the system only with power supplies and cables approved by ...

  • Page 10: Recycling

    Please do not stick labels onto plastic case parts. This would help us to re-use components and material. At this time, there are still some parts that are not reusable. Wincor Nixdorf International GmbH guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001.

  • Page 11: Beetle /Iprint - The Modular System

    13 watts in typical checkout operation. BEETLE /iPRINT is a dedicated POS system based on the latest mobile PC technology and has been developed by experts for deployment in difficult environments where lack of space is the norm. As Operating System “Microsoft Windows”...

  • Page 12: Before Switching On The System

    Should you notice any transport damages or discrepancies between the package contents and delivery ticket or functional defects please inform your contracting parties or the branch office of Wincor Nixdorf immediately. Please indicate the number of your delivery ticket and delivery ticket position and serial numbers of the respective devices.

  • Page 13: Setting Up The Device

    Transport the device only in its original packaging (to protect it against impact and shock). Setting Up the Device Set up the BEETLE system where it will not be exposed to extreme environmental conditions. Protect the device from vibrations, dust, moisture, heat and strong magnetic fields.

  • Page 14: Connecting The Beetle /Iprint

     Always make sure that all power plugs from the grounded-contact power sockets are unplugged. Except for one USB connection on the front side of the BEETLE /iPRINT the connectors are located on the rear side. DC24V Take care that the plugs are firmly connected. Check this by slightly pulling at the plug.

  • Page 15: Front Side View

    Front Side View        Cover  Paper Output  Operator Panel  On/Off Switch  LED (storage media)  BEETLE /iPRINT User Manual...

  • Page 16: Operator Panel

    Yellow PAPER LED on, paper end is reached Red ERROR LED blinking: An error has occured. Open cover, clear possible paper jam, close cover. Switch system off and on again. Contact techni- cal support if this does not help. BEETLE /iPRINT User Manual...

  • Page 17: Open

    LED. As soon as the printer will be ready-to-operate the function of the ON/OFF button is available again. Pressing the button for at least three seconds and then releasing it will turn the device off (Sleep Mode, Idle State or Off Mode). BEETLE /iPRINT User Manual...

  • Page 18: Led

    State Disc (SSD). While the hard disk is being accessed the LED flashes blue. USB 2.0 (Universal Serial Bus)- A Interface (USB-A) for connecting different USB peripheral devices such as barcode scanner or keyboard. Use only shielded cables for the connection of USB devices. BEETLE /iPRINT User Manual...

  • Page 19: Rear Side

    DC24V (Power Supply)  RJ12 (Cash Drawer) USB 2.0 (Universal Serial Bus)- A Interface (USB-A) for connecting different USB peripheral devices such as customer display or barcode scanner. Use only shielded cables for the connection of USB devices. BEETLE /iPRINT User Manual...

  • Page 20: Kensington Lock

    Put the wire rope around a thief-proof object and push the lock through the loop. Push it into the opening of the BEETLE /iPrint and secure the lock with the key. Kensington Lock LAN (RJ45 Socket) The system can be connected to a network (LAN) from the POS terminal’s...

  • Page 21: Dvi-I

    Wincor Nixdorf. RJ12 (CASHDR) The BEETLE /iPRINT has one RJ12 socket for connecting a cash drawer. Make sure that the connector is plugged firmly into the socket to prevent malfunctioning. RJ12 plugs lock in when you insert them. Power is supplied to the cash drawer via this socket (P24V +5% / -15%).

  • Page 22: Connecting Peripheral Devices

    Frame Ground Opening pulse for cash drawer 1 Status cash drawer 1 and 2 +24V DC Opening pulse for cash drawer 2 Signal Ground A connected cash drawer may not adjust more than 1A by 24V. BEETLE /iPRINT User Manual...

  • Page 23: Cash Drawer Cables

    Cash Drawer Cables The cash drawer cable connects the BEETLE /iPRINT to one or two cash drawers. Plug the cable into the cash drawer connector (standard phone jack) located at the rear of the system. If your system has two cash drawers, attach a Y-cable to the system’s cash drawer connector as shown below.

  • Page 24: Power Management

    Efficiency Level V. This corresponds to an efficiency of at least 85%. That is good for the environment and cuts the cost of ownership. The values given in the following table refer to a BEETLE /iPRINT with the print unit in Sleep Mode.

  • Page 25: Switch-On Characteristics

    Ethernet Capable System 1Gbit/s Ethernet port is provided WOL Enabled from Sleep Mode The BEETLE /iPRINT can be ordered without any Operating System. When setting up such a system also consider compliance with the  specifications for the ENERGY STAR label.

  • Page 26: Beetle /Iprint Service Menu

    BEETLE /iPRINT Service Menu Power Failure Characteristics The BEETLE /iPRINT is delivered in „Last State“ mode. In the menu „iPRINT Power On Behavior“ you can determine the state of the device after a power failure. Select „Last State“ to regain the system’s state before power failure.

  • Page 27: On/Off Button

    ON/OFF Button Your BEETLE /iPRINT is delivered with a preset delay of 3 seconds for the ON/OFF button. Thus, the ON/OFF button can be used to wake up the printer without having the complete system to be switched on or off. The delay of this button can be set in the menu “Configuration”.
  • Page 28 1x short and 1x long. The printer will carry out a reset then. We recommend to print the Service menu after you made your settings to check whether your settings/changes were acknowledged as new entries. BEETLE /iPRINT User Manual...

  • Page 29: Starting Up The System

    Starting up the system After installing the BEETLE /iPRINT, switch on the POS system using the ON/OFF button on the front. The system first performs an automatic self-test to test its basic functions. For example, you may see the following message on the monitor: WN "iP1 xx/xx Datum"...

  • Page 30: Printer

    Let the print line cool down before cleaning it. Clean print line and rubber roller with a soft lint-free cloth moistened with pure Isopropyl alcohol (e.g. ISOPADS which can be ordered from Wincor Nixdorf). BEETLE /iPRINT User Manual...
  • Page 31 Make sure that the entire roller will be cleaned. Cleaning the print line not properly, may cause an early failure. Wait until the isopropyl alcohol is evaporated. Insert the (new) paper-roll and close the cover and verify the printing quality (density, alignment and consistency). BEETLE /iPRINT User Manual...

  • Page 32: Paper Roll Exchange

    If necessary clean the print head and the rubber roller.  Unwind the outer layer (winding) of the paper roll.  Insert the paper roll. Lay the unwinded paper over the front edge of  the printer. BEETLE /iPRINT User Manual...
  • Page 33 Hold down the paper and close the printer cover. Press on the middle of  the cover until it audibly and distinctly locks into place. Tear off residual paper at the tear-off edge.  BEETLE /iPRINT User Manual...

  • Page 34: Paper Near End Sensor Adjustment

    The scale reaches from 0.5mm to 12.5mm. After determination of the distance mark: Tighten the locking screw.  Insert the paper roll.  Close the printer cover and lock it.  BEETLE /iPRINT User Manual...

  • Page 35: Service Menu And Self Test Printout

    Keep the FEED button pressed and close the cover until it audibly  engages. A Self Test printout will be carried out immediately. (You can also use the printer’s API for a Self Test printout. Consult the «TH230/TH230+, POS Printer, Programmer’s Guide» for details.) BEETLE /iPRINT User Manual...
  • Page 36 BEETLE /iPRINT User Manual...
  • Page 37 BEETLE /iPRINT User Manual...

  • Page 38: Storage Medium

    Storage Medium As storage media the BEETLE /iPRINT can be equipped with either a 2.5” SATA hard disk or a 2.5” Solid State Drive (SSD). Change the 2.5" Hard Disk/SSD First, ensure that the device is switched off and that the power connector of the external power supply is disconnected.
  • Page 39  Loosen and remove the screw on the hard disk holder with a screw-  driver. Turn the holder around, slightly press the metal tang outside (1) and push the plastic cap to the left (2). BEETLE /iPRINT User Manual...
  • Page 40 Close the cover. Fasten the screw at the rear side of the device to fit the  hard disk/SSD. If present, plug the Kensington lock to the designed posi- tion and secure it with the key. Finally, plug the power cable and switch on the system.  BEETLE /iPRINT User Manual...

  • Page 41: Technical Data

    4 x USB 2.0 high speed, at the rear side, each port 500mA, together not more than 1.5A 10/100/1000 Mbit/s (RJ45 socket) DVI-I Solution up to 1920 x 1080 pixel Hard Disk Interface Serial ATA Capacity min. 160 GB Format/ Speed 2.5“ with 5.400 r.p.m. BEETLE /iPRINT User Manual...

  • Page 42: Display Resolution And Frame Rate

    1680x1050 16:10 x (RB) 1920x1080 16:9 x (RB) 1920x1200 16:10 x (RB) RB = Reduced Blanking. Do not use for CRT Display! Solid State Disk Interface Serial ATA Capacity 16 / 32 GB (MLC) Format 2.5“ BEETLE /iPRINT User Manual...

  • Page 43: Printer

    Printer Technology High-speed thermal print Resolution 8 Dots/mm (203 dpi) One colour: 220 mm/s, Two colours: 110 mm/s BEETLE /iPRINT draft mode up to 300 mm/s Printing speed (reduced density) Material: tempered steel Cutter Speed full cut: < 300ms Forward; to use paper to full capacity after cut-...

  • Page 44: Paper Specification

    72 mm = 576 Dots (print width: 80 mm) There is a Programmer’s Guide available for the Print Unit of the  BEETLE /iPRINT («TH230/TH230+, POS Printer, Programmer’s Guide»). If required, please apply to your Wincor Nixdorf branch office. BEETLE /iPRINT User Manual...

  • Page 45: Print Area

    Print Area BEETLE /iPRINT User Manual...

  • Page 46: Beetle /Iprint Service Menu

    1 Exit iPRINT Power On Behavior 0 sec 3 sec iPRINT Power On Behavior 1 Exit Last State Always On Always Off “Waking up” the BEETLE /iPRINT System State Wake on Wake on Wake on ON/OFF Scheduled Timer Button Tasks Windows)

  • Page 47: Abbreviations

    Local Area Network Light Emitting Diode Point Of Sale r.p.m. Revolutions per minute S-ATA Serial Advanced Technology Attachment Solid State Disk Thin Film Transistor Underwriters Laboratory (Organisation for certifying product safety) Universal Serial Bus Wincor Nixdorf International GmbH BEETLE /iPRINT User Manual...
  • Page 48 Wincor Nixdorf International GmbH D-33094 Paderborn Order No.: 01750214094A...
