BEETLE /FUSION
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for Wincor Nixdorf Beetle

Summary of Contents for Wincor Nixdorf Beetle

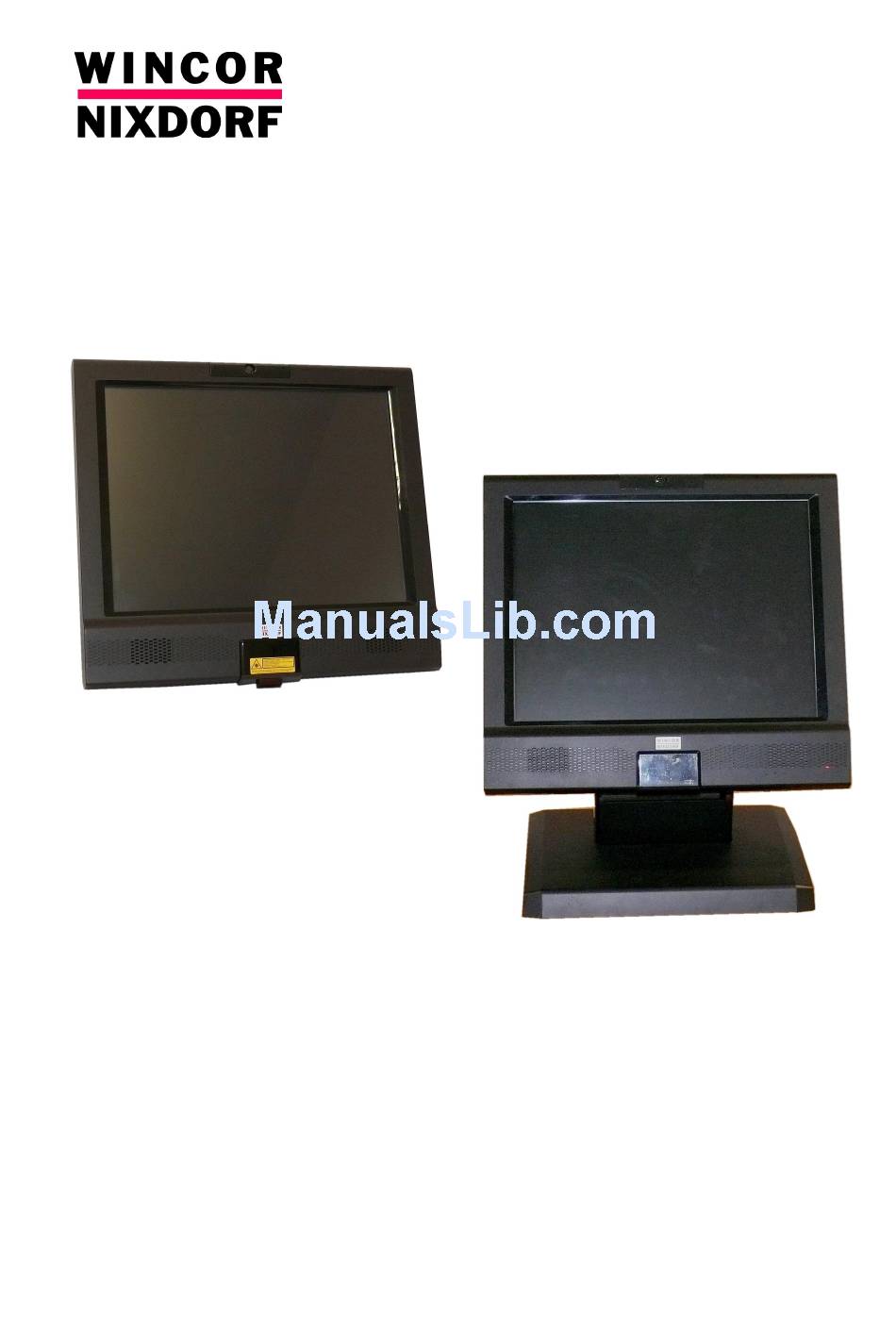

  • Page 1 BEETLE /FUSION Installation Guide...
  • Page 2 Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability; technical modifications possible. Copyright© Wincor Nixdorf International GmbH, 2011...
  • Page 3 BEETLE /FUSION Installation Guide Edition Dec 2011...

  • Page 4: Table Of Contents

    Contents Contents Manufacturer’s Certification ................1 Tested Safety ....................1 FCC-Class A Declaration ................2 BSMI (EMC for Taiwan) ................2 Technical & Regulatory Information on Wireless ........3 Wireless Interoperability ................3 Safety Instructions..................3 Regulatory Information .................4 Local Restriction of 802.11a, 802.11b, 802.11g, and 802.11n Radio Usage.......................4 Europe-EU Declaration of Conformity ............5 France......................6...
  • Page 5 Mounting wall mount front plate onto the system ........45 Securing system onto wall ..............46 Appendix .......................47 Technical Data for BEETLE /Fusion 12............47 Technical data for BEETLE /Fusion 15 ............48 Technical data for BEETLE /Fusion 19 ............49 Operating Environment for IR Touch............50 01750166737 E...
  • Page 6 Contents AC Power Adapter..................51 Power Cord Selection.................52 I/O connection ports ................... 53 Fusion – Installation Guide 01750166737 E...

  • Page 7: Manufacturer's Certification

    The device complies with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/ECC “Low Voltage Directive”. In addition, the device has received the UL symbol and cUL symbol. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 8: Fcc-Class A Declaration

    The device complies with the requirements of the BSMI (Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs) directive CNS14348 with regard to “Electromagnetic compatibility” with the limits for a Class B product. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 9: Technical & Regulatory Information On Wireless

    Technical & Regulatory Information on Wireless Wireless Interoperability The WLAN adapter integrated in the BEETLE /Fusion is designed to be interoperable with any wireless LAN product that is based on direct sequence spread spectrum (DSSS) and to comply with the following standards: ·...

  • Page 10: Regulatory Information

    Any deviation from permissible settings and restrictions in the country of use could be an infringement of national law and may be punished as such. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 11: Europe-Eu Declaration Of Conformity

    Dette udstyr opfylder de Væsentlige krav i EU's direktiv 1999/5/EC om Radio- og teleterminaludstyr. Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet (1999/5/EC) fra EU. Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten teleutrustning och ömsesidigt erkännande av utrustningens 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 12: France

    Indoor use: maximum power (EIRP) of 100 mW for the entire 2400- 2483.5 MHz frequency band. · Outdoor use: maximum power (EIRP) of 100 mW for the 2400-2454 MHz band and with maximum power (EIRP) of 10 mW for the 2454- 2483.5 MHz band. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 13: Introduction

    Planning the Installation Introduction This installation guide provides you with the information you require to install the Beetle /Fusion system. Symbols used in this guide Text following this mark represents an item in a list. “ “ Text in quotation marks contains references to other chapters or sections in this document.

  • Page 14: Important Safety Precautions

    15 minutes, using soap or alcohol. If the liquid comes into contact with your eyes, consult a medical doctor immediately. BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 15 Repair work may only be carried out by authorized personnel. Unauthorized opening of the device or repair work carried out improperly could result in considerable danger to the user. In case of noncompliance, Wincor Nixdorf International GmbH excludes all liability. 01750166737 E...

  • Page 16: Planning The Installation

    All dimensions are specified in millimetres. The views of the systems are not drawn to scale. 15” 15” 12.1” 12.1” 18.5” 18.5” Desktop Wall- Desktop Wall- Desktop Wall- mount mount mount Width (W) Height (H) Depth (D) All dimensions in mm BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 17: Beetle /Fusion - Desktop Version

    Planning the Installation BEETLE /Fusion - Desktop version 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 18: Beetle /Fusion - Wall-Mount Version

    Planning the Installation BEETLE /Fusion - Wall-mount version BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 19: Required Operation Space

    Reservation of minimum space is required to ensure proper ventilation during the operation of the device. Reserve at least 50 mm of operation space from the side of the device to its nearest barrier / wall. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 20: Installation Site Requirements

    Please take note of the following points for the installation site for desktop version: The installation area must be flat leveled. The system needs to be installed on the table surface and not on the floor. If necessary, appropriate arrangements must be made. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 21: Wall Mount Version

    The system is to be mounted on a solid concrete or brick wall with flat smooth surface. If necessary, appropriate arrangements must be made. 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 22 It is also recommended that the system is approximately 122cm (48 in) from the floor to the center of the display when the user is in the standing position. 122 cm (48 in) Floor BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 23 Recommended Screw for wall is Pan head Wood Screw TGS-C3- 4.8 x 38L Drill Diameter: 6 mm Min Hole Depth: 40 mm Load per anchor for concrete: 40 kg Load per anchor for Solid brick: 30 kg Safety factor is 6 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 24 The wall cutout at the mounting location is to be prepared according to the dimensions shown in the following diagram: Note: All dimensions are specified in millimetres, the diagram is not drawn to scale. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 25: Installation

    Removing the packaging · Remove the packing material of the system or the modules ordered. · Dispose of the packaging which is no longer needed according to the regulations of your country. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 26: Installing Desktop Stand Onto Panel Pc Module

    Panel PC · Remove the stand covers and cable covers as indicated in the picture below to assess to cable routing path. Stand cover #2 Stand cover #1 Cable cover #2 Cable cover #1 BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 27 To remove the stand cover #1 and stand cover #2, push the desktop stand to its most upright position Œ and remove the covers by sliding the back cover upward • (see picture below). • Stand cover #2 Œ Stand cover #1 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 28 Unlock the cable clamp at the back of the desktop stand (see picture below). unlock cable clamp · Route the cables through the desktop stand to the I/O panel of the panel PC, one cable at a time (see picture below). cables BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 29 Installation · Alternatively, the cables could also be routed via the restrainers located at he back of the panel PC (see picture below). 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 30 Ensure that the connectors are secured with their latch or screws. · Install cable cover #1 (see picture below). Cable cover · Lift up the Panel PC and hook it on the desktop stand (see picture below). Hook BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 31 · Fasten the 4 screws to secure the Panel PC to the desktop stand and dress the cables neatly in single file through the cable clamp (see picture below). 4x screws Cable clamp 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 32 Installation · Lock the cable clamp to secure the cables (see picture below). cable clamp BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 33 Dress the cables neatly through the cable guide of the desktop stand (see picture below). Cable guide · Install the stand cover #1 and stand cover #2 (see picture below). Stand cover #2 Stand cover #1 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 34 When the stand cover #1 is fitted onto the desktop stand, press both side of the stand cover #1 to ensure that the cover click and lock onto the desktop stand (see picture below). Press to lock Press to lock BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 35 Tilt the panel PC back fully and install the cable cover #2 (see picture below). Cable cover #2 · Ensure that the catch of the cable cover #2 is fitted onto the slot. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 36: Installing Desktop Stand-2 Onto Panel Pc Module

    Desktop stand Panel PC · To remove the stand cover #1, push the desktop stand to its most upright position Œ and remove by sliding it outward (see picture below). Stand cover #1 Œ BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 37 Installation · Route the cables through the desktop stand to the I/O panel of the panel PC, one cable at a time (see picture below). cables 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 38 Installation · Alternatively, the cables could also be routed via the restrainers located at the back of the panel PC (see picture below). BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 39 (see picture below). Cut connecting tabs Cable cover #1 · Slot the cable cover #1 onto the back of the panel PC as shown above. 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 40 Fasten the 2 panel fasteners Œ clockwise with Philip screwdriver to secure the Panel PC to the desktop stand and dress the cable neatly. Install the stand cover #1 by sliding it back into place • (see picture below). Œ 2x screws • BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 41: Installing Ram Onto Panel Pc Module

    Installation Installing RAM onto panel PC module · Remove the screws to access the RAM slot PC (see picture below). remove screw 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 42 Insert the RAM module into the RAM slot and make sure it is engaged properly on the slot (see picture below). Ensure that the RAM module is inserted in this orientation slot · Close the cover and tighten the screws. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 43: Installing Harddisk Onto Panel Pc Module

    Installation Installing harddisk onto panel PC module · Remove the screws to access the harddisk slot PC (see picture below). Remove screws 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 44 Installation · Attach the 2 rail guides onto the harddisk. Ensure that the 2 guide rails are snapped onto the harddisk in the orientation shown in the picture below. BEETLE /FUSION – Installation Guide 01750166737 E...
  • Page 45 Insert the harddisk assy into the harddisk slot and make sure it is engaged properly on the slot (see picture below). Ensure that the harddisk is inserted in this orientation Harddisk slot · Close the cover and tighten the screws. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 46: Connecting The Power Cord

    Desktop version · Refer to page 16 to 19 for the steps to connect the power cord to the desktop version BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 47: Wall Mount Version

    Slide the I/O shield cover to the right to unlatch (1) before you slide downward to remove the cover (2) in order to access the I/O of the system (see picture below). (1) Slide cover to the right (2) Slide open the cover 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 48 Re-install the I/O shield covers back to the system. · Plug the power plug into the socket outlet. · The socket-outlet is to be installed near the device to ensure easy accessibility to the plug. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 49: Installation Of Wall Mount Unit

    Use only Wincor Nixdorf wall mount plate. wall mount wall mount front plate...

  • Page 50: Mounting Wall Mount Back Plate Onto The Wall

    After installation, ensure that the screw heads are flushed or below the outer surface of the wall mount back plate. · Ensure that the wall mount back plate is firmly and securely attached to the wall. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 51: Mounting Wall Mount Front Plate Onto The System

    Align the 4 mounting holes of the wall mount front plate onto the mounting holes of panel PC. Secure the wall mount front plate onto the panel PC using the fasteners provided in the wall mount kit. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 52: Securing System Onto Wall

    Tighten the thumb screw on the top of the wall mount front plate to secure the hooks of the wall mount plates. Dress the cables routing according to the store set up or the overall installation site plan. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 53: Appendix

    IEC 721-3-1 class 1K2 +5° to +40°C Rated Input voltage 24V DC (nominal) Rated Input current 7.5A Certifications CE, FCC, CB, UL, TUV-GS, CCC, BSMI BEETLE /Fusion is available in both Wall-mounted and Desktop versions. 01750166737 E BEETLE /FUSION – Installation Guide...

  • Page 54: Technical Data For Beetle /Fusion 15

    24V DC (nominal) Rated Input current 5.0A / 7.5A 4.17A Certifications CE, FCC, CB, UL, TUV-GS, CCC, BSMI R&TTE (for 910GMLE & GM45 only) BEETLE /Fusion is available in both Wall-mounted and Desktop versions. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 55: Technical Data For Beetle /Fusion 19

    Appendix Technical data for BEETLE /Fusion 19 Wall mount Desktop version version Dimensions Height 342 mm 434 mm Depth 81 mm 265 mm Width 476 mm 476 mm Weight of device 8.0 kg 10.7 kg Climatic category Operating IEC 721-3-3 class 3K3+ 5° to +40°C Transport IEC 721-3-2 class 2K2 -25°...

  • Page 56: Operating Environment For Ir Touch

    Angle of incidence of sunlight ray perpendicular to the touch screen within ±30 in all directions à Touch will function normally. Angle of incidence outside ±30 in all directions à Touch will not function but will not trigger false touch. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 57: Ac Power Adapter

    Appendix AC Power Adapter The AC power adapter used must be Wincor Nixdorf’s qualified and has to meet the following minimum requirements and industry standards: Rated Input voltage 100 / 240 Vac Input Voltage range 90 to 264Vac Input Frequency range...

  • Page 58: Power Cord Selection

    Safety Regulation of the country. Countries Safety Approvals Canada Germany Japan Taiwan BSMI China For other countries not mentioned in the above list, please check with the local authority. BEETLE /FUSION – Installation Guide 01750166737 E...

  • Page 59: I/O Connection Ports

    COM5 COM6 COM1 (RJ45) (RJ11) (touch) (RJ45) note1 note1 note1 COM4 eSATA PS/2 USB1 USB3 COM3 USB2 5/12V Audio USB4 Input Output note1: Spk-Out Proprietary interfaces, for (internal) note1 Wincor specific devices only. 01750166737 E BEETLE /FUSION – Installation Guide...
  • Page 60 Published by Wincor Nixdorf Pte Ltd 2, Kallang Sector Singapore 349277 Part No.: 01750166737 E...
