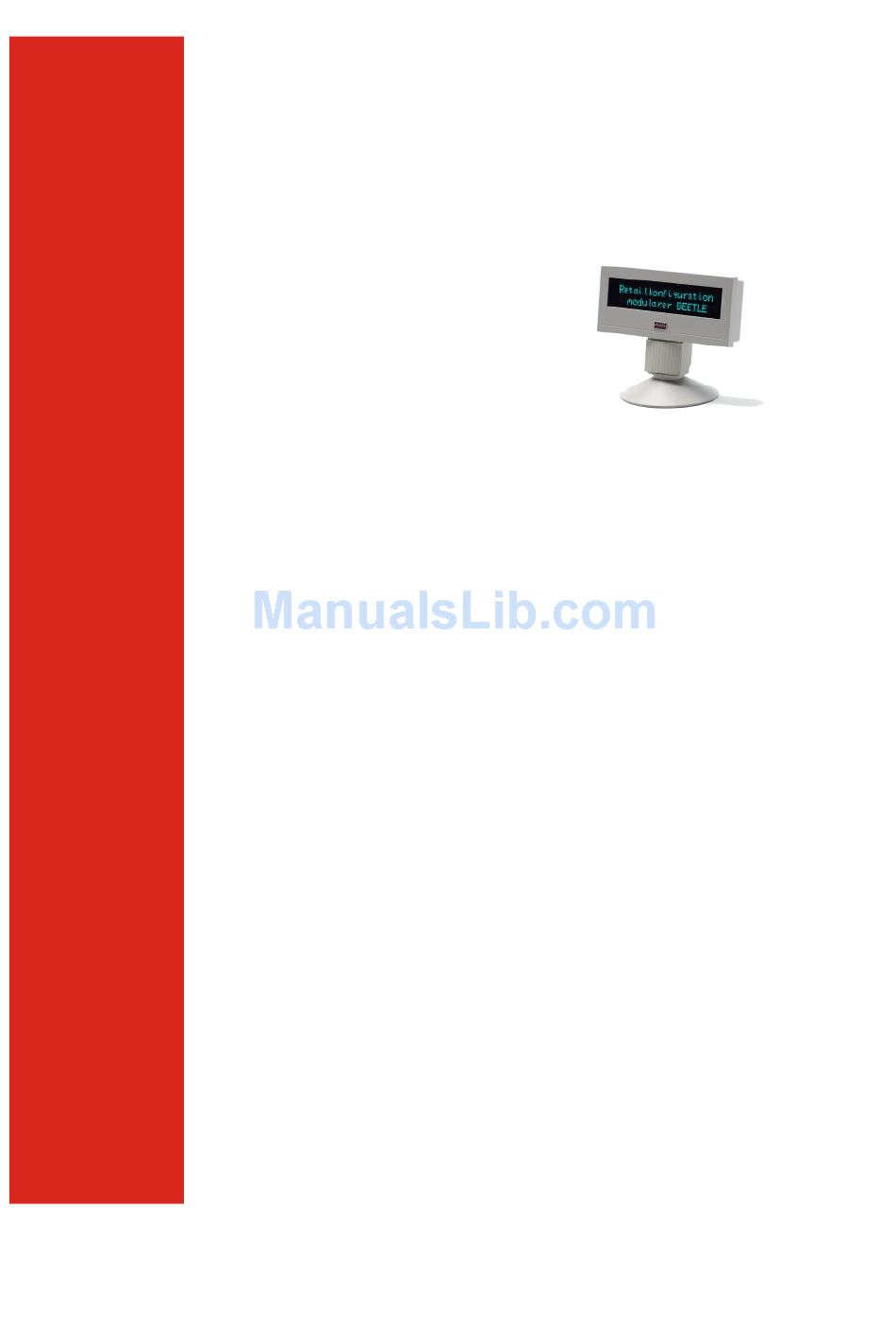

- Page 1 BA63 USB Customer Display Product Manual Edition January 2004...
- Page 2 Pen ti um™ is a re gis te red tra de mark of the In tel Cor po ra ti on MS-DOS™, Wind ows 95™, Wind ows 98™, Wind ows NT™ Wind ows XP™ and Wind - ows CE™ are re gis te red tra de marks of the Mi cro soft Cor po ra ti on BEET LE™...
-
Page 3: Table Of Contents
FCC-Class A De cla ra ti on................1 Tes ted Sa fe ty....................2 No tes on Care.....................2 War ran ty .....................2 Re cy cling the BA63..................3 Ge ne ral No tes ...............4 In stal la ti on of the Con nec tor..........6 Tube-ba sed ....................6 Base/ Ro ta ting Pla te ...................8... -
Page 4: Manufacturer's Declaration And Approval
Cet appareil numerique de la classe A est conforme à la norme NMB-003 du Canada. Wincor Nixdorf International GmbH (WN) accepts no responsibility for radio and television reception interference resulting from unauthorized modifications to the equipment. Furthermore, neither cables nor devices which have not been approved for use by WN may be connected. -
Page 5: Tested Safety
TESTED SAFETY Tested Safety The BA63 USB display has been pro vi ded with the GS-sym bol for “Tes ted Sa fe ty”. geprüfte Sicherheit In addition, the device has received the UL symbol and cUL symbol. Notes on Care Wipe the customer display with a damp cloth as required. -
Page 6: Recycling The Ba63
Recycling Center, which is certified pursuant to ISO 9001. So don’t simply throw your BA63 on the scrap heap when it has served its time, but take advantage of the environmentally smart, up-to-date recycling... -
Page 7: General Notes
The display is connected to the point of sale system via a Standard USB interface. The voltage (5 V DC) is also supplied via this interface. The BA63 works with operating systems that support USB and it has to be connected... - Page 8 GENERAL NOTES Customer display with adapter for tube-based installation The tube diameter is 40 mm (+ 0,3 mm / - 0,1 mm). The tube is not included in the delivery. The connection cables are available in different lengths. Cables have to be ordered separately and will be delivered separately.
-
Page 9: Installation Of The Connector
TUBE-BASED Installation of the Connector Tube-based Press the re lea se knob mar ked with the ar row in the dra wing (1) and dis con nect the hin ge from the cus to mer dis play (2). Thre ad the ca ble through the adap ter (3) and then through the hinge (4). - Page 10 TUBE-BASED Connect the hinge and adapter. Se cu re the con nec tor ca ble in the strain re lief. The dis tan ce bet ween the strain re lief and the tip of the con nec tor must be 73 mm ( 2 mm). 73mm +/- 2 mm...
-
Page 11: Base/ Rotating Plate
BASE/ ROTATING PLATE Plug the ca ble connector into the ap pro pria te so cket of the cus to mer dis play and plug the adap ter/hinge into the cus to mer dis play again un til it locks into pla ce. Base/ Rotating Plate Press the re lea se knob mar ked with the ar row in the dra wing (1) and... - Page 12 BASE/ ROTATING PLATE Thre ad the ca ble through the base (3) and then through the hinge (4). Connect the base and the hinge.
- Page 13 BASE/ ROTATING PLATE Plug the ca ble connector into the ap pro pria te so cket of the cus to mer dis play and plug the base/hinge into the cus to mer dis play again un til it locks into pla ce. A metal bracket of the strain relief is situated on the bottom side of the base table.
-
Page 14: Customer Display Control
CUSTOMER DISPLAY CONTROL Customer Display Control The customer display is controlled via software. The commands are entered with the appropriate ESC sequences. The following functions are available: The cursor can be moved to the desired position; Characters resp. areas can be deleted; Country-specific character sets can be selected;... -
Page 15: Control Sequences
CONTROL SEQUENCES Control Sequences The customer display operates in VT100 mode, i.e. it emulates a subset of the VT100 ESC sequences and control bytes. These are illustrated in the following: Backspace (without deleting) Line feed Carriage return Delete display ESC [2J Position cursor ESC [Py;PxH Delete to end of line... -
Page 16: Carriage Return
CONTROL SEQUENCES Carriage return The cursor is moved to the start of the line in which it is currently positioned when the CR command (hexadecimal 0D) is entered. The command is ignored if the cursor is already at the start of the line. Delete display The display can be deleted with this ESC sequence. -
Page 17: Delete To End Of Line
CONTROL SEQUENCES ESC ‘[‘ ‘1’; ‘1’ ‘H’ If you select 0 for the parameter value, this is interpreted as 1 by the display. If, on the other hand, you select a value which is greater than the maximum line and column value, the display will interpret this value as the maximum value permissible. - Page 18 CONTROL SEQUENCES Country code Character set France Germany Great Britain Denmark 1 Sweden Italy Spain 1 Japan Norway Denmark 2 Spain 2 Latin-America Furthermore PC code pages which contain additional country-specific display codes can be selected by ESC R n with the following codes: Country code Code page Character set...
-
Page 19: Pos Commands
Japan Space Page definable universal In the appendix all character set tables for BA63 in 5 x 7 matrix display are indicated. POS Commands Wri te Data Command Data can be Escape sequences, control characters or data to be issued. - Page 20 CONTROL SEQUENCES Test Request A self test is performed. This command causes no new enumeration. Command: 00H, 10H, 00H, .., 00H Status Request Status is requested. Command: 00H, 20H, 00H, .., 00H Reset Request A reset causes a new login and thus enumeration of the device with all sub-devices.
- Page 21 CONTROL SEQUENCES Parameters are not compatible to the response to the Escape sequence ESC [ 0 c of the displays BA63 and BA66 with RS232 interface. The firmware version is not specified here but in the corresponding descriptor. Test Response...
-
Page 22: Updating The Firmware
- Nonspecific (virgin device) is relevant. Roughly the BA63 USB software can be divided into a loader and a firmware. The selection "BA63" is for a case, where the BA63 USB already has a firmware and therefore knows "which type of device it is". If there is no firmware at all, i.e. - Page 23 BA63. In such a case you may try the selection "Nonspecific (virgin device)" rather than BA63 for another update. Note, that...
-
Page 24: System Connection
The system is connected via a USB 1.1 interface. Changes of operating mode or rate of transmission are not possible. A connection to a USB 2.0 port is possible. In this case a cable released by Wincor Nixdorf must be used. -
Page 25: Cable Connection
CABLE CONNECTION Cable Connection The customer display cable is a standard cable according to the USB specifications. Please use only cables delivered or released by Wincor Nixdorf. -
Page 26: Test Functions
The internal RAM of the processor and the EPROM are tested during the start-up phase. If no errors are detected during the test and the BA63 was initialized and attached as a USB device by the operating system, a start-up message will be displayed for approx. -
Page 27: Technical Data
TECHNICAL DATA Technical Data The technical data of the BA63 customer display is detailed in the following table: Vacuum Fluorescence Display (VFD) Display technology 2 lines each with 20 alphanumeric characters Matrix: 5 x 7 pixel Height: 9.5 mm Character display Width: 6.2 mm... - Page 28 He raus ge ge ben von/ Pub lis hed by Win cor Nix dorf In ter na tio nal GmbH D-33094 Pa der born Be stell-Nr./ Or der No.: 01750075148A Prin ted in Sin ga po re...
