Summary of Contents for Vista VM215

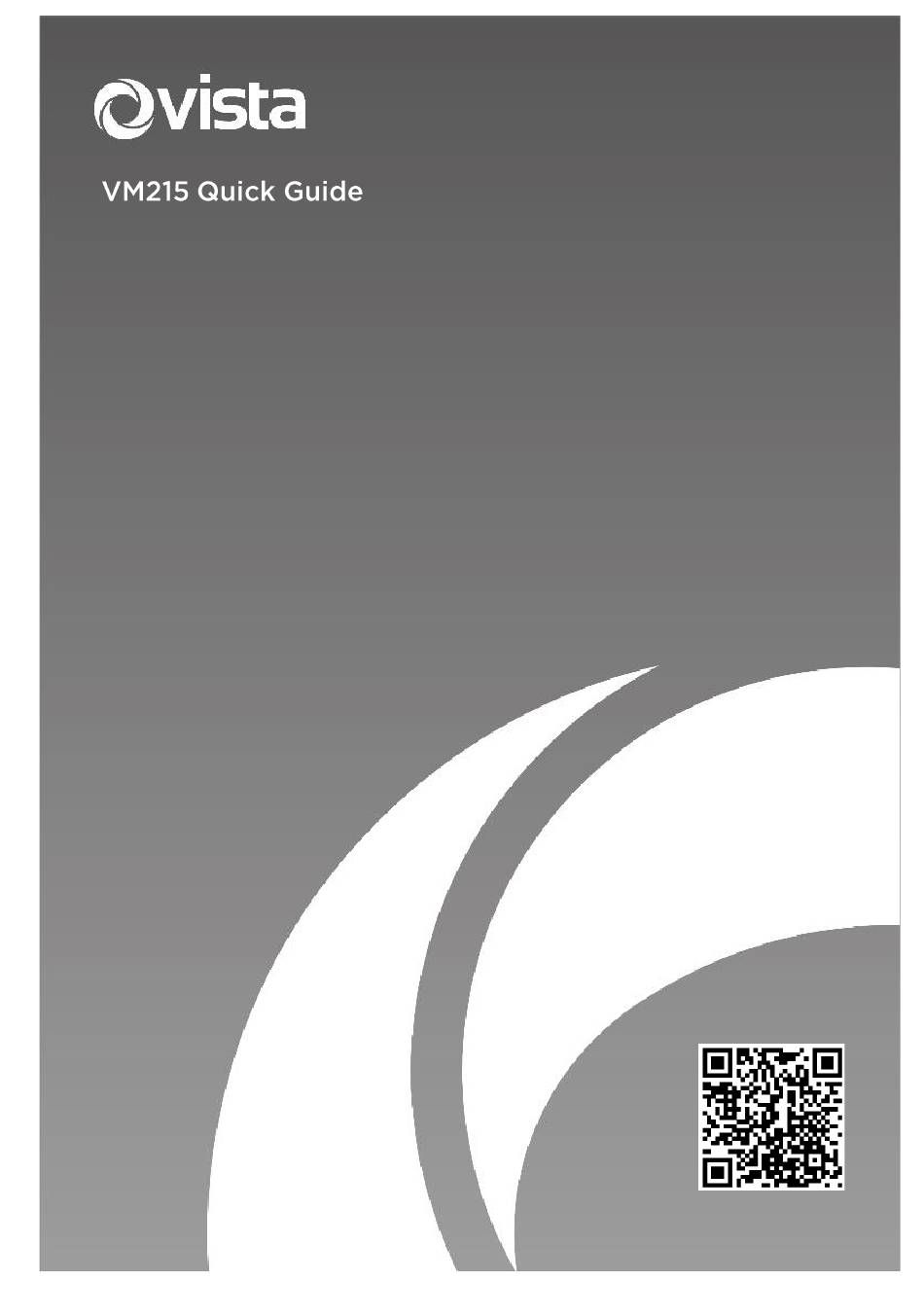

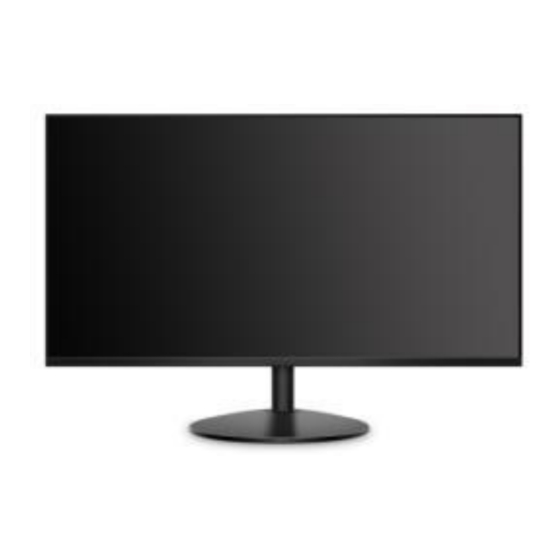

- Page 1 21.5” LED Monitor VM215 LED Monitor Quick Guide Ver 1.0 2023-06-13...
- Page 2 Please contact Norbain if any items are missing or damaged and note contents will vary according to each camera model number. ➢ Monitor ➢ Pedestal ➢ Power cable ➢ HDMi cable ➢ QR Code label Scan in order to access the Vista website for product info and this quick guide...
- Page 3 Safety & Maintenance Instructions • Use only correctly rated PSUs supplied with the device. • Do not use this apparatus near water. • Do not install near any heat sources such as radiators, stoves, or other apparatus (including amplifiers) that product heat. •...
- Page 4 Main Menu Settings Control buttons are located on the bottom left of the bezel and detailed below. "Source" button: Press to display OSD with all possible signal inputs. Press button again to change the selected function in 0SD menu. "Downward" button: Press to move the cursor downwards in any menu. "Upward"...
- Page 5 BRIGHTNESS MENU Sets the brightness, contrast, black equalizer, low blue, eco and OCR function. Press buttons to adjust each value whilst selected, press to exit. IMAGE MENU IMAGE menu can set H. POSITION, V. POSITION, CLOCK, PHASE and ASPECT function. Press buttons to adjust each value whilst selected, press...
- Page 6 Troubleshooting Before consulting with Vista Support, please use the following chart to attempt to diagnose any issue. Problem No image or sound Inferior sound, normal image Inferior image, normal sound Poor signal Vague image Double image Interfering lines in image...
- Page 7 How to Clean Product Please wipe off dust and other particles with a clean, soft towel. If still not clean, use a neutral cleaner wipe dry. Rubbing or scrapping the housing, with fingernails or other hard objects, may scratch the housing.
- Page 8 No liability will be accepted by Vista for any errors or omissions in this information and reserves the right to make changes to the product and its specification from time to time without prior notice.
