Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Dolev 8 2-Way, Bi-Amplified Studio- Grade Speaker P/N: 2900-300418 Rev 1... -
Page 3: Table Of Contents
Setting up Mid/Near-Field Installation Setting up Far-Field Installation Installing the Speaker Technical Specifications Figures Figure 1: Dolev 8 Active 2-Way, Bi-Amplified Studio-Grade Speaker Figure 2: setting the Dolev 8 at head height Figure 3: Dolev 8 Optimum positioning Dolev 8 – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio. Congratulations on purchasing your Kramer Dolev 8 2-Way, Bi-Amplified Studio- Grade Speaker, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer Dolev 8 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
The Dolev 8 ensures that you hear exactly what is happening in the music and reveals all the original nuances of the sound, without adding to or subtracting from the signal. -
Page 8: Defining The Dolev

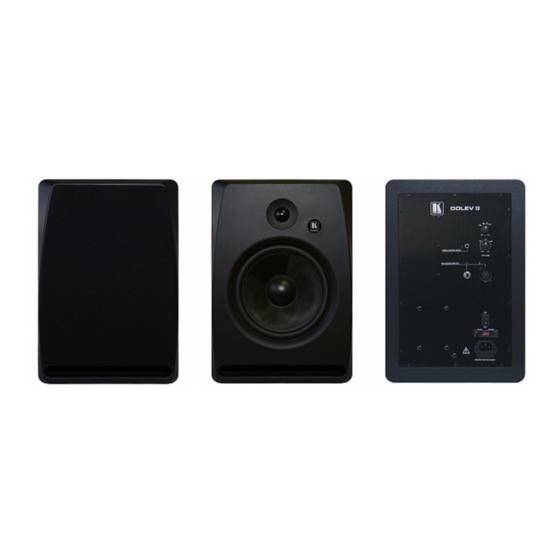

Defining the Dolev 8 This section defines the powered Dolev 8: Figure 1: Dolev 8 Active 2-Way, Bi-Amplified Studio-Grade Speaker Feature Function HF GAIN Selector Knob Choose one of the 4 settings of the high frequencies gain: -2dB, -1dB, 0dB or +1dB... -
Page 9: Installing The Speaker
Speakers should be positioned at least 50cm from the walls Install the Dolev 8 so that the center point between the tweeter and the woofer are at ear level. If required, use a speaker stand If required, use sound absorbing materials around the room ... -
Page 10: Setting Up Far-Field Installation
Note that even though the illustration in Figure 3 shows two speakers each Dolev 8 package includes one speaker. Setting up Far-Field Installation Far-field positioning is suitable for a large amount of listeners (unlike the near-field positioning where the speakers are directed at a specific listener). To maximize the listening experience: 1. -
Page 11: Installing The Speaker
A balanced input (for example, a professional mixer or audio interfaces) to the BALANCED INPUT XLR connector 2. Set the volume on the Dolev 8 to 12 o’clock (0dB) 3. Connect the power. 4. Set the volume on the input source to the minimum. -
Page 12: Technical Specifications
INCLUDED ACCESSORIES: Power cord COLORS: Available in black OPTIONS: XLR quad cable (C-XLQM/XLQF); 3.5mm to 2 RCA breakout cable (C-A35M/2RAM) Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Dolev 8 - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
