Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Galil 6-C (SPK-C612) Closed-back Ceiling Speakers P/N: 2900-300368 Rev 2... -
Page 3: Table Of Contents
Setting up an Array Installation Painting the Speaker Technical Specifications Figures Figure 1: Galil 6-C in a Boardroom Setup Figure 2: Galil 6-C Closed-back Ceiling Speaker Figure 3: Galil 6-C Schematic Diagram Figure 4: Mounting the Galil 6-C Figure 5: Plugging and Securing the Cable... -
Page 4: Introduction
Hotel lobbies and conference rooms Boardrooms, meeting rooms and presentation venues Classrooms and training rooms Galil 6-C is designed for indoor dry locations and is suitable for use in air handling spaces (plenum spaces). Galil 6-C - Introduction... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
The Galil 6-C consists of a pair of high performance closed back speakers. Mount your Galil 6-C speakers to the ceiling in one of two ways: either directly onto the ceiling or, for added protection, secure the speakers safely, using our... -
Page 8: Your Galil 6-C Closed-Back Ceiling Speakers

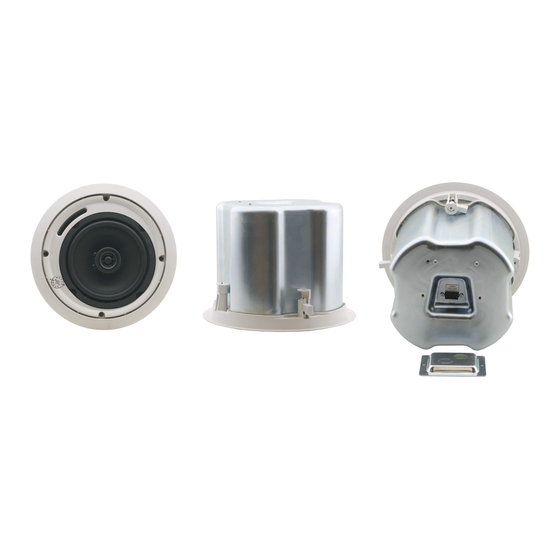

Your Galil 6-C Closed-back Ceiling Speakers Figure 2 defines the Galil 6-C: Figure 2: Galil 6-C Closed-back Ceiling Speaker The following table defines the Galil 6-C hardware items (per speaker pair) for each model in the series: Description A pair of... -
Page 9: Figure 3: Galil 6-C Schematic Diagram
When this is the case, the speakers will need additional support. Figure 3 shows a schematic diagram of the Galil 6-C: Figure 3: Galil 6-C Schematic Diagram Galil 6-C - Your Galil 6-C Closed-back Ceiling Speakers... -
Page 10: Installing The Galil 6-C Closed-Back Ceiling Speakers
Installing the Galil 6-C Closed-back Ceiling Speakers This section explains how to install the Galil 6-C, that is: Choosing the best place to locate your speakers (see Section 5.1) Cutting the ceiling tile (see Section 5.2) Mounting the Speakers (see Section 5.3) -
Page 11: Mounting The Speakers
1. Place the C-ring over the hole cut in the ceiling tile (on the “ceiling” side). Place it around the hole so that the tabs are located in parallel to the tile edges. Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers... -
Page 12: Figure 4: Mounting The Galil 6-C
5. Plug the connector into the socket in the terminal cup of the speaker (see Figure 6. Run the wires through the wires’ opening in the input terminal cover plug and then into the terminal block connector of the speaker. Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers... -
Page 13: Figure 5: Plugging And Securing The Cable
9. If required, you can further secure the speaker by connecting the speaker support ring to an independent secure anchor point. 10. Adjust each speaker to the appropriate tap setting before installing the grille (see Figure Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers... -
Page 14: Setting Up An Array Installation
Setting up an Array Installation When installing Galil 6-C in an array installation layout, you have to define the distance between speakers as well as the layout pattern (square or hexagonal). The distance between speakers is set according to the speakers’ dispersion angle, the uniformity of the coverage desired and the budget. -
Page 15: Figure 8: Square Layout
You can set the power on each speaker to get the desired power level in different installation areas. Figure 10 shows an example of parallel wiring in a square array installation: Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers... -
Page 16: Figure 10: Square Layout Parallel Wiring
Figure 10: Square Layout Parallel Wiring Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers... -
Page 17: Painting The Speaker
When painting after installation: Use the circle that you cut out of the template as a paint mask After you finish painting, remove the paint mask Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers... -
Page 18: Technical Specifications
Mounting depth: 19.6cm (7.72") ACCESSORIES: Installation bracket, safety cord attached to grill, ceiling mounting kit, cutout template COLORS: Available in white Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Galil 6-C - Technical Specifications... - Page 20 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
