Chapter 2

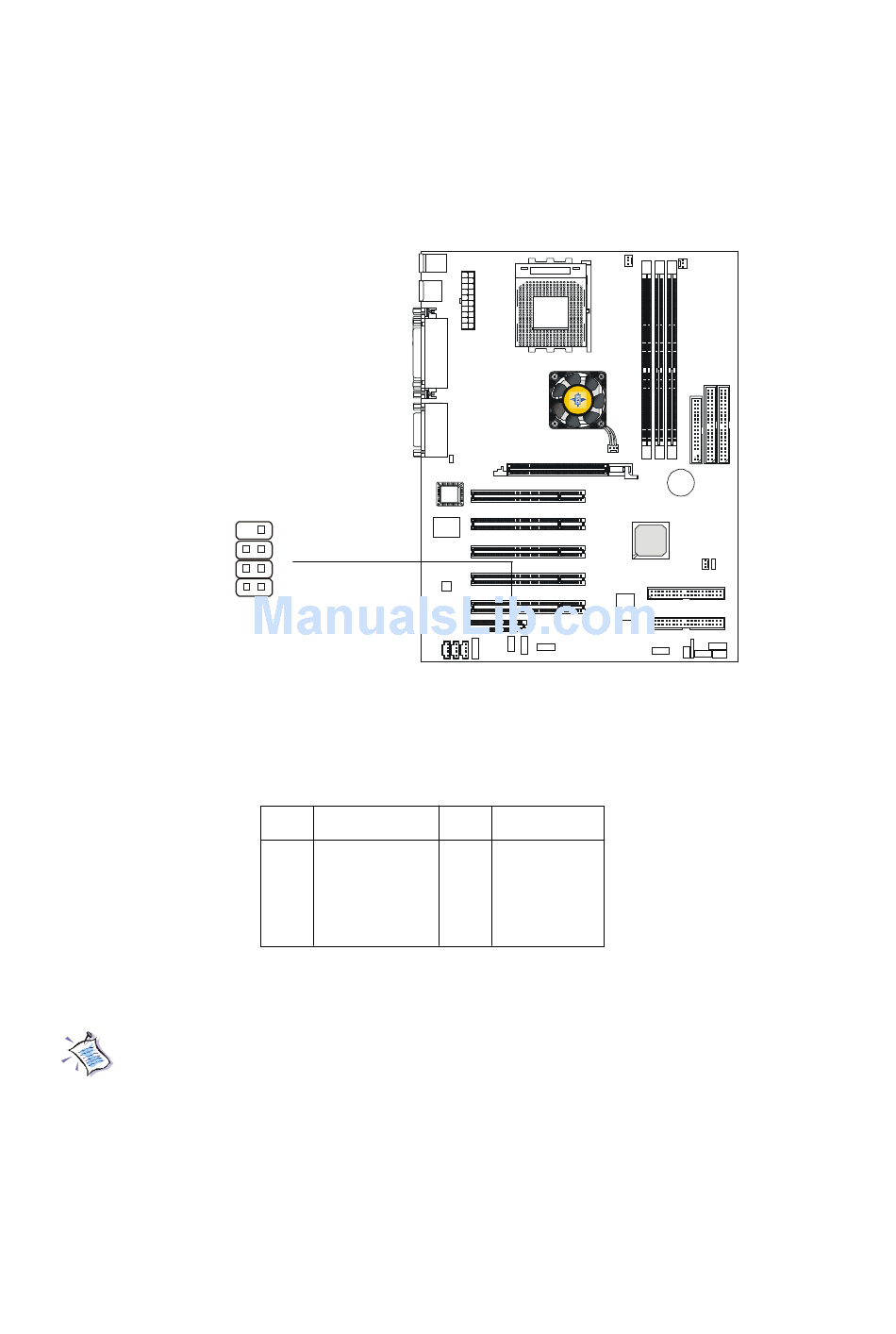

Bluetooth Connector: JBT2 (optional)
This connector is used to connect a bluetooth module for wireless
connection.
8
JBT2
2
Note:
1. Because the bluetooth connector shares the USB interface with
blue-colored USB2.0 connector, the bottommost USB2.0 port will not
function when you attach a bluetooth module to this connector.
2. Please refer to PC2PC Bluetooth Quick User's Guide for informa-
tion on the bluetooth module.
7
1
JBT2 Pin Definition
PIN
SIGNAL
1
5VDUAL
3
D+ (USB signal)
5
D- (USB signal)
7
GND
2-26
PIN
SIGNAL
2
3VDUAL
4
GND
6
GND
8
NC
