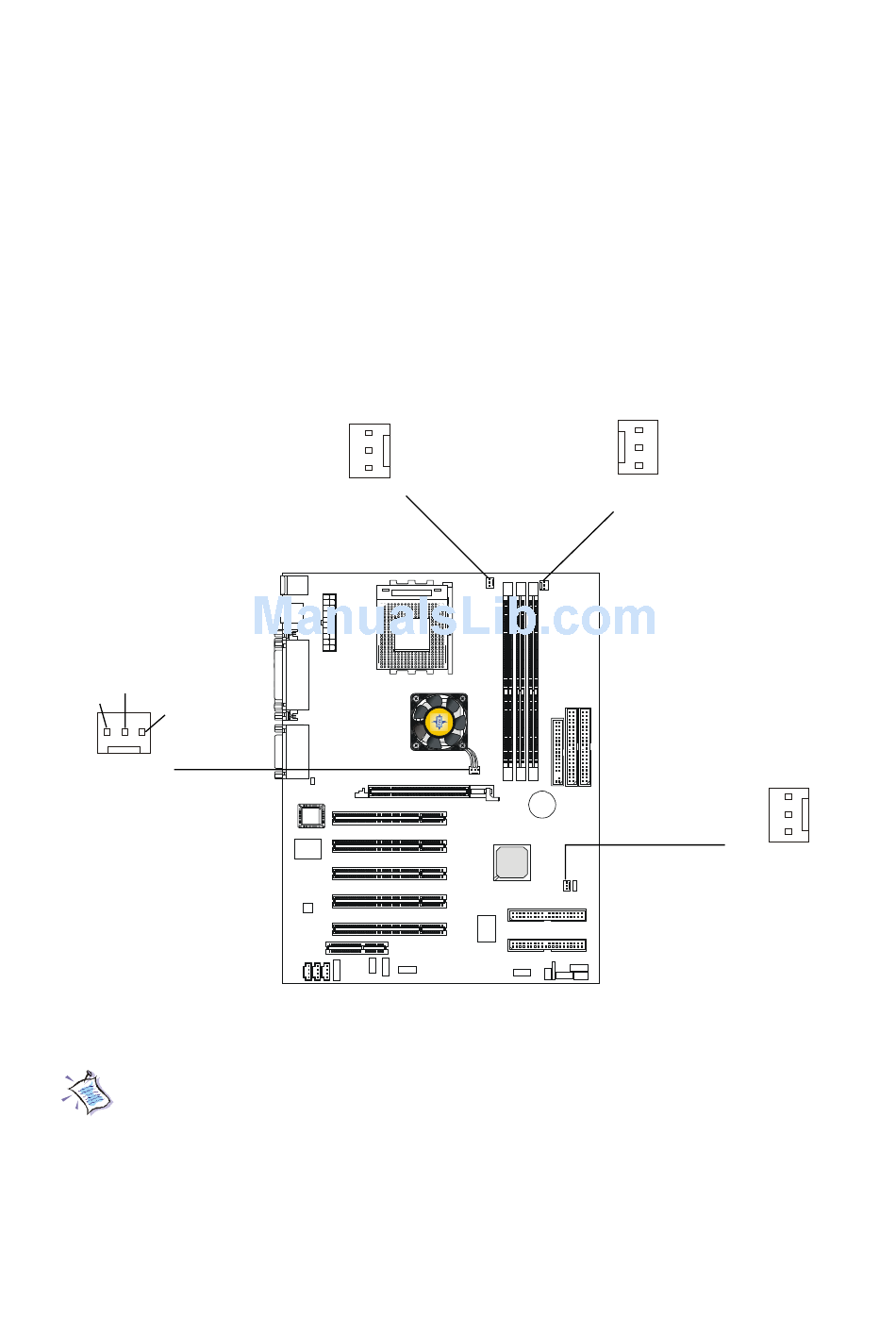

Fan Power Connectors: CFAN1/SFAN1/PSFAN1/NBFAN1

The CFAN1 (processor fan), SFAN1 (system fan), PSFAN1 (power sup-
ply fan) and NBFAN1 (chipset fan) support system cooling fan with +12V. It
supports three-pin head connector. When connecting the wire to the
connectors, always take note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to
GND. If the mainboard has a System Hardware Monitor chipset on-board, you
must use a specially designed fan with speed sensor to take advantage of the
CPU fan control.
+12V
GND
NC
NBFAN1
Note:
1. Always consult the vendor for proper CPU cooling fan.
2. CPU Fan supports the fan control. You can install the PC Alert
utility that will automatically control the CPU Fan speed accord-
ing to the actual CPU temperature.
SENSOR
+12V
GND
CFAN1
2-16
GND
+12V
NC
PSFAN1
SENSOR
+12V
GND
SFAN1
