Chapter 2
To Attach the Optional USB 2.0 Ports:
1. Take out the USB 2.0 bracket
2. Locate the blue USB pinheader (JUSB3) on the motherboard.
3. Connect the USB cable from USB 2.0 bracket to the JUSB3 pinheader.
Connected to JUSB3 (the
USB pinheader in blue color)
4. Place the USB 2.0 bracket into the appropriate slot of the system case.
Note: The USB 2.0 controller is downward compatible
with USB 1.1 spec. To use the USB 2.0 ports, you still
need to install the USB 2.0 driver, which is supplied by
Microsoft for Windows
questions regarding the USB 2.0 driver, please visit the
Microsoft Web site for more information.
This USB 2.0 port will not function when a
Bluetooth module is connected to the onboard
Bluetooth pinheader JBT2. If no Bluetooth
function is applied, remove the sticker to
utilize this port.
®
2000 and XP. If you have any
2-20

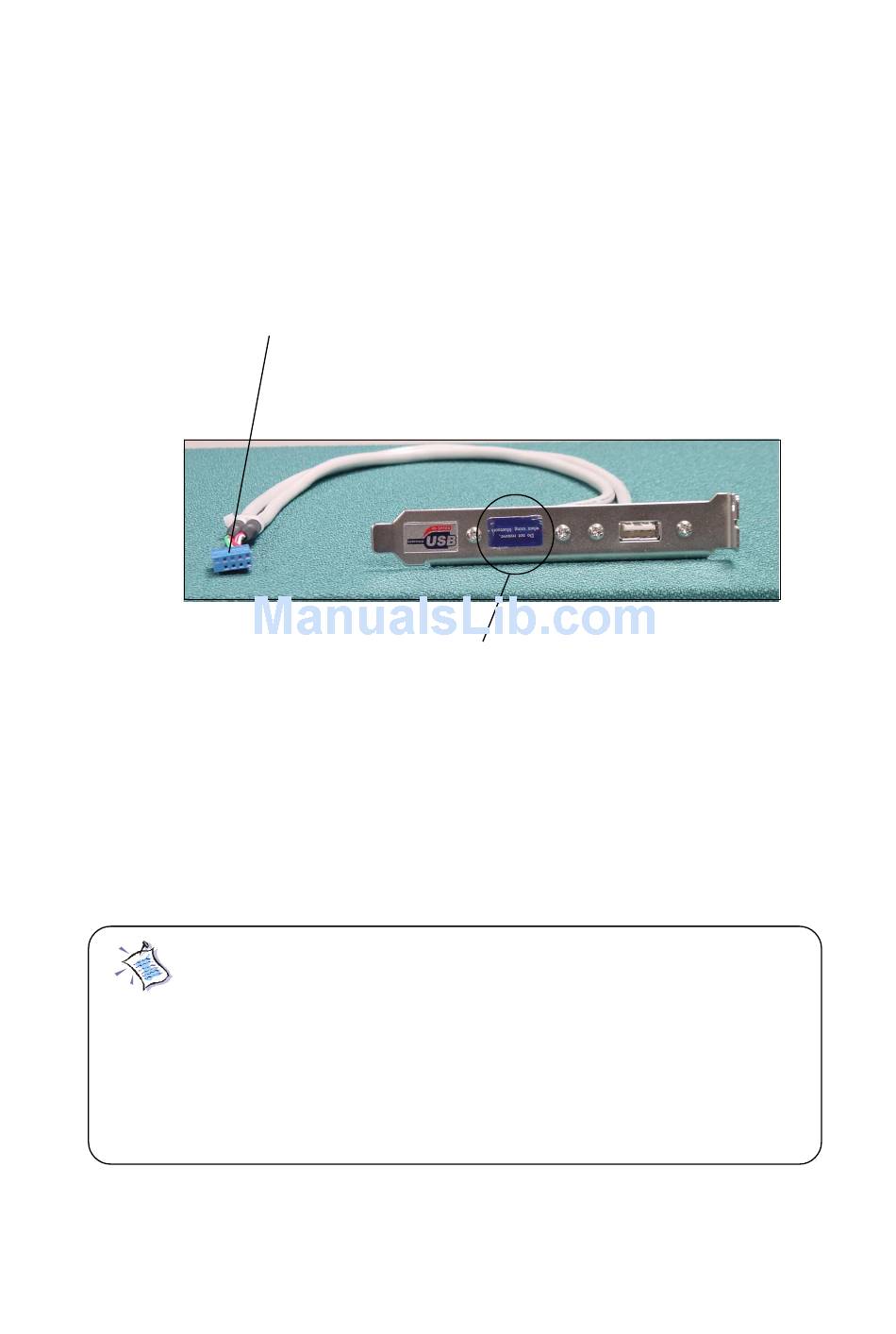

USB 2.0 Bracket
