Premio Computer Premio Apollo/Shadowhawk Computer User Manual

Premio apollo/shadowhawk computer user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Apollo/Shadowhawk
u s e r
m a n u a l

Advertisement

Table of Contents
loading

Related Manuals for Premio Computer Premio Apollo/Shadowhawk Computer

Summary of Contents for Premio Computer Premio Apollo/Shadowhawk Computer

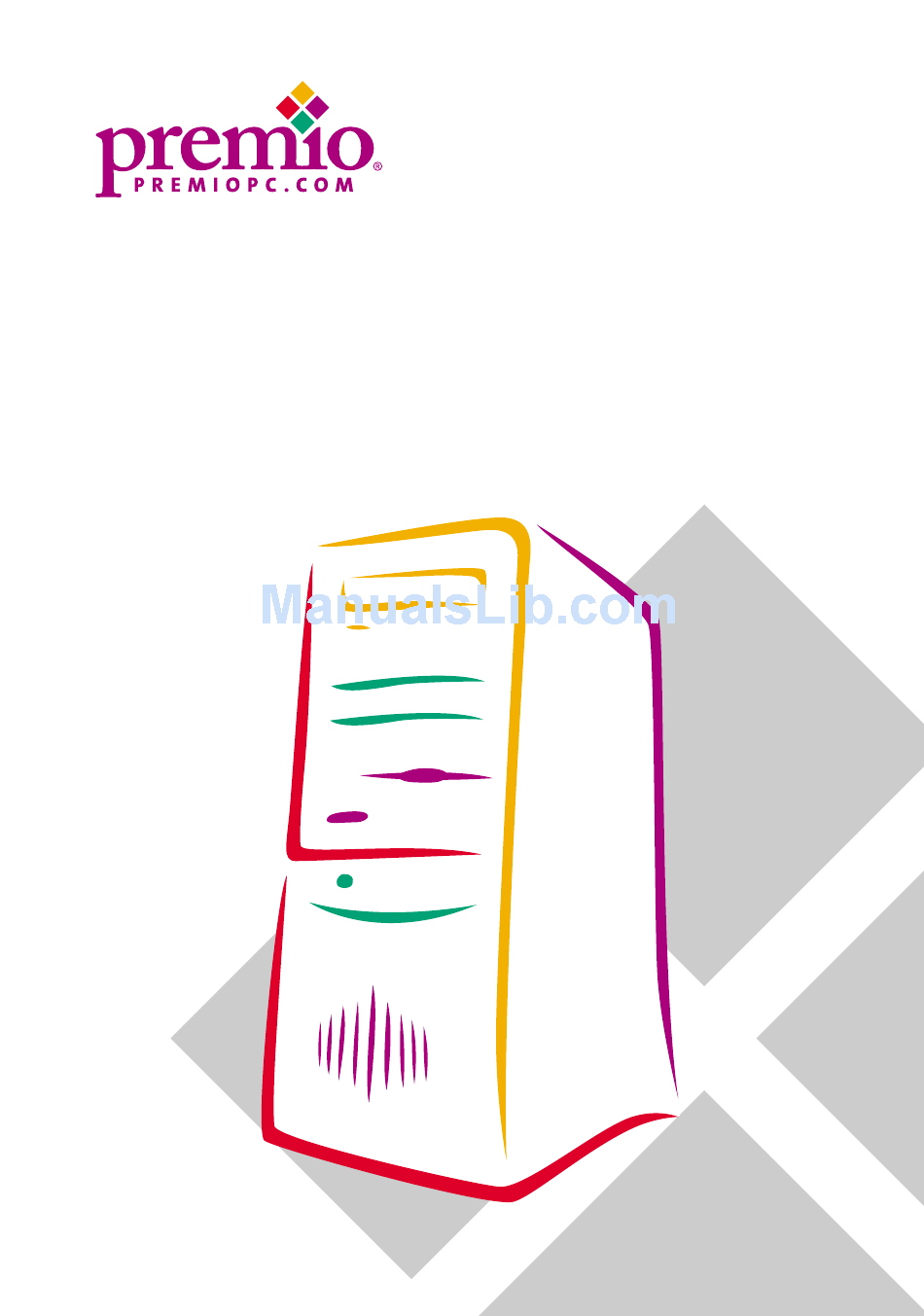

  • Page 1 Apollo/Shadowhawk u s e r m a n u a l...
  • Page 2 System Manual...
  • Page 3 Premio System Manual Copyright Premio is a registered trademark of Premio Computer, Inc. All other brands and product names are trademarks or registered trademarks of their respective companies. © 1997 by Premio Computer, Inc. All rights reserved. Printed in Taiwan.

  • Page 4: Table Of Contents

    Contents GETTING STARTED ... 1 Setting Up ... 2 Switches and Indicators... 3 UPGRADING ... 5 Opening the System Unit ... 6 Installing an Expansion Card... 7 Installing a Hard Drive ... 8 GETTING HELP ... 9 Troubleshooting... 9 Monitor Does Not Work... 9 Keyboard Does Not Work ...
  • Page 5 Premio System Manual APPENDIX... 13 Warranty Policy ...13 Service Under Warranty...14 Exclusions from Limited Warranty Programs...14 FCC Standards ...15 Important Safety Instructions ...16...

  • Page 6: Getting Started

    Getting Started ® Your Premio system consists of three components: a mid-tower or desktop system unit a keyboard a mouse Add your choice of monitor, and your system is ready to use. Mid-tower system Keyboard Desktop system Keyboard System Unit Mouse System Unit Mouse...

  • Page 7: Setting Up

    Premio System Manual Setting Up To set up your Premio system, simply connect your monitor, the mouse, the keyboard, and any additional components you want to use to the system unit. Follow these easy steps: Power Connector Mouse Connector Keyboard Connector USB Connector Serial-1 Connector Serial-2 Connector...

  • Page 8: Switches And Indicators

    Switches and Indicators The system unit’s front panel provides access to the CD-ROM and floppy drives, and to the system’s switches and indicator lights. The illustration below shows a mid-tower system. If you have a desktop system, turn to the illustration on the next page. Mid-tower system CD ROM Drive Floppy Drive...
  • Page 9 Premio System Manual Desktop system Reset Button Hard Drive Indicator Power Indicator The reset button restarts the system. The hard drive indicator lights when the hard drive is in use. The power indicator lights when the system is on. The power switch turns the system on and off. The CD-ROM drive reads information on CDs.

  • Page 10: Upgrading

    Upgrading You can upgrade your Premio system with: Expansion cards More memory An additional hard drive To install an upgrade, you must open the system unit. Before proceeding, read the important cautionary note below. Then follow the steps on the next page. Caution! Static discharge can cause permanent damage to internal electronic components of your computer.

  • Page 11: Opening The System Unit

    Premio System Manual Opening the System Unit Note: Opening the system unit could affect your warranty. Check with the dealer where you purchased your system before opening the system unit. To open the system unit, follow these steps: Mid-tower system Desktop system Turn off the system and unplug the power cord.

  • Page 12: Installing An Expansion Card

    Installing an Expansion Card To install an expansion card, open the system unit as described on the previous page. Then follow these steps: Upgrading Remove the screw securing the slot bracket cover for the expansion slot you want to use. Save the screw to secure the expansion card.

  • Page 13: Installing A Hard Drive

    Premio System Manual Installing a Hard Drive To install a hard drive in your system, follow these steps: Disconnect the hard drive cable and power connector. Mid-tower system Desktop system Remove the two screws securing the drive bay. Slide the bay toward the rear of the system unit to remove it. Insert the new drive into an open position in the bay and secure it with four screws.

  • Page 14: Getting Help

    Getting Help Troubleshooting Your Premio system is designed to provide years of trouble-free performance. If you have a problem with your system, you may wish to check the information in this section for a quick solution. Monitor Does Not Work If your monitor appears not to be working properly: Check that the monitor’s power cable is securely attached to the monitor and to an outlet that is receiving power.

  • Page 15: Keyboard Does Not Work

    Premio System Manual Keyboard Does Not Work If the NumLock indicator in the upper right corner of the keyboard does not light when the system powers up, or the keyboard does not work: Check that the keyboard cable is securely attached to the system unit’s keyboard connector.

  • Page 16: System Unit Problems

    System Unit Problems The fan inside the system unit should make a low, steady sound when operating properly. If the fan is totally silent: Check that the system power cord is securely attached to the back of the system unit and to a power outlet. Verify that the outlet has power.

  • Page 17: Technical Support

    Premio System Manual Technical Support You can contact Premio technical support at the following address: Premio Computer, Inc. 918 Radecki Court City of Industry, CA 91748 Telephone: 626.839.3100 Fax: 626.839.3191 Email: support@premiopc.com Web page: http://support.premiopc.com Premio on the Internet Premio maintains a web page on the Internet with the latest information on Premio products, updated drivers, answers to common problems, a troubleshooting guide, and more.

  • Page 18: Premio System Manual

    Premio Computer, Inc. or a Premio Computer, Inc. authorized reseller. This warranty is contingent upon proper use of the product in question and does not cover products which have been modified or which have been subjected to unusual physical or electrical stress.

  • Page 19: Service Under Warranty

    Service Under Warranty If this product fails to be in good working order during the warranty period (or specific period of time as noted above), Premio Computer, Inc. will, at its option, repair or replace the product. Repair parts and/or replacement products may be either new or reconditioned at Premio Computer Inc.'s discretion.

  • Page 20: Fcc Standards

    FCC Standards This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 21: Important Safety Instructions

    Premio System Manual Important Safety Instructions These instructions are provided by Underwriters Laboratories, Inc. Read all of these instructions and save them for later reference. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners.
  • Page 22 that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 12. Except as explained elsewhere in this manual, don't attempt to service this product yourself. Opening and removing those covers that are marked “Do Not Remove”...
  • Page 23 Chapter 1 INTRODUCTION The MS-6339 ATX TH1 mainboard is a high-performance computer mainboard based on Intel ® support the Intel Pentium desktop markets. ® The Intel Tehama chipset supports 64B cache line size and a 32- bit host addressing, allowing the processor to access the entire 4GB of the chipset’s memory address space.
  • Page 24 Mainboard Features l Support Intel ® Pentium l Supports 1.4GHz or faster Chipset l Intel ® Tehama chipset - Up to 2GB maximum memory (RAMBUS). - AGP Pro interface with 4x SBA/Data Transfer l Intel ® ICH2 chipset - AC’97 Controller Integrated - 2 Full IDE channels, up to ATA100 - Low pin count interface for SIO - 4 USB Ports...
  • Page 25 Integrated Super I/O Controller l Winbond W83627HF-AW I/O controller - 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 2 serial port (COM A + COM B) - 1 parallel port supports SPP/EPP/ECP mode - 1 IrDA connector for SIR Audio l ICH2 chip integrated l Creative CT5880 (optional)

  • Page 26: Mainboard Layout

    Mainboard Layout Top: mouse CPUFAN Bottom: keyboard Top: Port 2 Bottom: Port 1 Top: LPT Bottom: COM A COM B Top: Midi/ Game Port Bottom: Line-Out Line-In PCI SLOT 1 PCI SLOT 2 PCI SLOT 3 PCI SLOT 4 PCI SLOT 5 MS-6339 ATX TH1 Mainboard JWR1 PSFAN...
  • Page 27 Chapter 2 HARDWARE INSTALLATION The mainboard operates with Intel uses a CPU socket called Socket 423 for easy CPU installation. The CPU should always have a Heat Sink and a cooling fan attached to prevent overheating. CPU Installation Procedures 1. Pull the lever sideways away from the socket.

  • Page 28: Cpu Core Speed Derivation Procedure

    CPU Core Speed Derivation Procedure The mainboard CPU Bus Frequency can be set through BIOS setup. CPU Clock Core/Bus ratio then CPU core speed = Host Clock x Core/Bus ratio = 100MHz = 14 = 1.4GHz...
  • Page 29 Fan Power Connectors: CPUFAN/PSFAN/SYSFAN These connectors support system cooling fan with + 12V. It sup- ports three pin head connector. When connecting the wire to the connector, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND.
  • Page 30 A battery must be used to retain the mainboard configuration in CMOS RAM. Short 1-2 pins of JBAT1 to store the CMOS data. Keep Data Note: You can clear CMOS by shorting 2-3 pin, while the system is off. Then, return to 1-2 pin position. Avoid clearing the CMOS while the system is on, it will damage the mainboard.
  • Page 31 Memory Bank Configuration The mainboard supports a maximum memory size of 2G. It provides four 168-pin RIMMs sockets. It supports 64 MB to 512 Mbytes RIMM memory module.
  • Page 32 Memory Installation Procedures A. How to install a RIMM Module 1. The RIMM slot has 2 Notch Keys, so the RIMM memory module can only fit in one direction. 2. Insert the RIMM memory module vertically into theRIMM slot. Then push it in. 3.

  • Page 33: Memory Population Rules

    Memory Population Rules 1. Support only RIMM. 2. To operate properly, at least two same size168-pin RIMM module must be installed. 3. Support FSB 100MHz: 300/400MHz RIMM 4. Support up to 32 Direct Rambus Device. 5. Support ECC Single bit Correction and Multiple bit error detection (Setting in BIOS)
  • Page 34 The Power Switch, Reset Switch, Power LED, Speaker, HDD LED and Keylock (reserved) are all connected to the JFP1 connector block. Reset Switch Dual Speaker Color Power LED Buzzer HDD LED Keylock (Reserved) JFP1 Power Switch Single Color...
  • Page 35 Power Switch Connect to a 2-pin push button switch. This switch has the same feature with JRMS1. Reset Switch Reset switch is used to reboot the system rather than turning the power ON/ OFF. Avoid rebooting while the HDD LED is lit. You can connect the Reset switch from the system case to this pin.
  • Page 36 The mainboard also provides a standard floppy disk connector FDD that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables. 2-10...
  • Page 37 The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA/66 Controller that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66 function. It has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices to IDE1 and IDE2.
  • Page 38 ATX 20-pin Power Connector: JWR2 ATX 12V Power Connector: JWR1 These connectors support the power button on-board. Using the ATX power supply, functions such as Modem Ring Wake-Up and Soft Power Off are supported by this mainboard. These power connectors support instant power on function which means that system will boot up instantly when the power connector is inserted on the board.
  • Page 39 ATX 5V/3V Power Connector: JWR3 (optional) This mainboard supports an optional 5V/3V power supply connector. Refer to chapter 2-14 for pin definition. JWR3 2-13...
  • Page 40 Pin definition for JWR2 SIGNAL Pin definition for JWR1 Pin definition for JWR3 Warning: Since the mainboard has the instant power on function, make sure that all components are installed properly before inserting the power connector to ensure that no damage will be done. SIGNAL 3.3V 3.3V...
  • Page 41 Remote Power On/Off Switch: JRMS1 Connect to a 2-pin push button switch. During OFF state, press once and the system turns on. During ON stage, push once and the system goes to sleep mode: pushing it more than 4 seconds will change its status from ON to OFF.
  • Page 42 The mainboard provides one infrared (IR) connector for IR modules. This connector is for optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. Signal Signal IRRX 5VSB CIRRX IRTX 2-16...
  • Page 43 The mainboard provides two 9-pin male DIN connectors for serial port COM A & COM B. These port are 16550A high speed communication port that send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable directly into this connector. Serial Port (9-pin Male) PIN DEFINITION 1 2 3 4 5...
  • Page 44 The mainboard provides a 25 pin female centronic connector for LPT. A parallel port is a standard printer port that also supports Enhanced Parallel Port (EPP) and Extended capabilities Parallel Port (ECP). See connector and pin definition below: Parallel Port (25-pin Female) PIN DEFINITION SIGNAL STROBE...
  • Page 45 The mainboard provides a standard PS/2 ® attaching a PS/2 mouse. You can plug a PS/2 connector. The connector location and pin definition are shown below: Pin5 Mouse Clock Pin6 Pin3 Pin4 Pin1 Mouse DATA Pin2 PS/2 Mouse (6-pin Female) The mainboard provides a standard PS/2 attaching a keyboard.
  • Page 46 You can connect a joystick or game pad to this connector. Joystick/MIDI Line Out is a connector for Speakers or Headphones. Line In is used for external CD player, Tape player, or other audio devices. Mic is a connector for the microphones. Line Out Line In Mic 1/8”...
  • Page 47 The mainboard provides a UHCI (Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices like: keyboard, mouse and other USB devices. You can plug the USB device directly to this connector. USB Port 2 1 2 3 4 USB Port 1 SIGNAL -Data...
  • Page 48 The JWOL1 connector is for used with LAN add-on cards that supports Wake Up on LAN function. To use this function, set the “Wake-Up on LAN” to enable at the BIOS Power Management Setup. Note: LAN wake-up signal is active “high”. Note: To be able to use this function, you need a power supply that provide enough power for this feature.
  • Page 49 The JMDM1 connector is for used with Modem add-on card that supports the Modem Wake Up function. Note: Modem wake-up signal is active “low”. Note: To be able to use this function, you need a power supply that provide enough power for this feature. (Power supply with 750mA 5V Stand-by) JMDM1 SIGNAL...
  • Page 50 JGL1 can be connected with two-color LED. There are two types of LED that you can use: 3-pin LED or 2-pin LED (ACPI request). When the 2-pin LED is connected to JGL1, the light will turn green, when system is On. During sleep mode, the 2-pin LED will change color from Green to Orange.
  • Page 51 Attach a power saving switch to JGS1. When the switch is pressed, the system immediately goes into suspend mode. Press any key and the system wakes up. JGS1 2-25...
  • Page 52 This connector is for CD-ROM audio connector. 2-26...
  • Page 53 This connector is used for DVD Add on Card with Line In connector. 2-27...
  • Page 54 The connector is for Modem with internal voice connector. Mono_Out Phone_In Mono_Out is connected to the Modem Speaker Out connector. Phone_In is connected to the Modem Microphone In connector. 2-28...
  • Page 55 This jumper is used to Enabled/Disabled the onboard Soft audio codec. Enable Onboard Audio Codec Disable Onboard Audio Codec 2-29...
  • Page 56 These connectors are connected to 2-pin connector chassis switch. If the Chassis is open, the switch will be short. The system will record this status. To clear the warning, you must enter the BIOS settting and clear the status. 2-30...
  • Page 57 This is used to clear the BIOS password. To clear the password, open pin and restart your computer. Normal Clear 2-31...
  • Page 58 This jumper is used to lock/unlock BIOS Flash. This jumper should be unlock when flashing/programming the BIOS. BIOS Flash Locked BIOS Flash Unlocked 2-32...
  • Page 59 This jumper will enable the case speaker/buzzer to be transferred to the Audio speaker. Output to Audio Speaker Output to Onboard Buzzer (Default) 2-33...
  • Page 60 The mainboard provides a front Universal Serial Bus connector. This is an optional USB connector for Front Panel. Description USBD3- USBD3+ JUSB1 Description USBD2+ USBD2- 2-34...
  • Page 61 The Communication Network Riser specification is an open industry- standard specification that defines a hardware scalable Original Equipment Manufacturer (OEM) mainboard riser board and interface, which supports modem, audio and LAN. 2-35...
  • Page 62 ® Chapter 3 ® BIOS USER’S GUIDE The system configuration information and chipset register information is stored in the CMOS RAM. This information is retained by a battery when the power is off. Enter the BIOS setup (if needed) to modify this information. The following pages will describe how to enter BIOS setup, and all about options.
  • Page 63 Enter BIOS Setup ® Enter the AMI setup Program’s Main Menu as follows: 1. Turn on or reboot the system. The following screen appears with a series of diagnostic check. AMIBIOS (C) 1999 American Megatrends Inc. AGIOMS VXXX XXXXXX Hit <DEL> if you want to run setup (C) American Megatrends Inc.
  • Page 64 AMIBIOS HIFLEX SETUP UTILITIES - VERSION 1.30 (C) 1999 American Megatrends, Inc. All Rights Standard CMOS Feature BIOS Features Setup Chipset Features Setup Power Management Setup PnP/PCI Configuration Load Setup Defaults Load BIOS Defaults Esc: Quit FF5: Old Values F7: Load Setup Defaults Time, Date, Hard Disk Type, ...
  • Page 65 Standard CMOS Setup 1. Press <ENTER> on “Standard CMOS Setup” of the main menu screen . AMIBIOS SETUP - STANDARD CMOS SETUP (C)1999 American Megatrends,Inc.All Rights Reserved Date (mm/dd/yyyy): Thu Oct 26, 2000 Time (hh/mm/ss): 19:22:43 TYPE ---------------------------------------------------------- Pri Master : Auto Pri Slave : Auto Sec Master : Auto...
  • Page 66 BIOS Features Setup 1. Press <ENTER> on “BIOS Features Setup” of the main menu screen. AMIBIOS SETUP - BIOS FEATURES SETUP (C) 1999 American Megatrends, Inc. All Rights Reserved Quick Boot Ist Boot Device 2nd Boot Device 3rd Boot Device Try Other Boot Devices BootUp Num-Lock Floppy Drive Swap...
  • Page 67 Description of the item on screen follows: Quick Boot Set this option to Enabled to permit AMI seconds. This option replaces the old ABOVE 1 MB Memory Test option. 1st Boot Device/2nd Boot Device/3rd Boot Device This option sets the sequence of boot drives. The settings are: IDE0 IDE1...
  • Page 68 Floppy Drive Seek When this option is set to Enabled, AMI command on floppy drive A: before booting the system. The settings are Enabled and Disabled. The setup and BIOS default settings are Disabled. Password Check This option specifies the type of AMI that is implemented.
  • Page 69 Chipset Features Setup 1. Press <ENTER> on “Chipset Features Setup” of the main menu screen. AMIBIOS SETUP - CHIPSET FEATURES SETUP (C) 1999 American Megatrends, Inc. All Rights Reserved CPU Frequency Ratio USB Function USB Keyboard Support Memory Hole Graphics Aperture Size ICH Decode Select CPU Bist Enable ICH Delayed Transaction...
  • Page 70 Description of the item on screen follows: CPU Frequency Ratio This option enables you to set the CPU ratio. USB Function Set this option to Enabled or Disabled the on-chip USB controller. USB Keyboard Support Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard.
  • Page 71 ICH Decode Select This option allows you to select the PCI decode timing of ICH. CPU BIST Enable This option allows you Enable or Disable the CPU Built-In Self Test. ICH Delayed Transaction The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles.
  • Page 72 Power Management Setup 1. Press <ENTER> on “Power Management Setup” of the main menu screen. AMIBIOS SETUP - POWER MANAGEMENT SETUP (C) 1999 American Megatrends, Inc. All Rights Reserved IPCA Function Sleep State Sleep State LED Standby Time Out (Minute) :Disabled Keyboard &...
  • Page 73 Description of the item on screen follows: IPCA Function This item allows you to Enabled/Disabled the Advanced Configura- tion and Power Management (ACPI). The settings are Enabled and Disa- bled. Sleep State This option allows you to set which Sleep State will be used. S1/POS - Power on Suspend.
  • Page 74 Standby Time Out (Minute) This option specifies the length of a period of system inactivity while in Standby state. When this length of time expires, the computer enters Suspend power state. The settings are Disabled, 1 min, 2 min, 4 min, 8 min, 10 min, 20 min, 30 min, 40 min, 50 min or 60 min.
  • Page 75 Wake Up On Ring/Wake Up On LAN During Disabled, the system will ignore any incoming call from the modem/LAN. During Enabled, the system will boot up if there’s an incoming call from the modem/LAN. Note: If you have change the setting, you must let the system boot up until it goes to the operating system.
  • Page 76 PNP/PCI Configuration 1. Press <ENTER> on “PNP/PCI Configuration” of the main menu screen. AMIBIOS SETUP - PNP/PCI CONFIGURATION (C) 1999 American Megatrends, Inc. All Rights Reserved Clear ESCD PCI VGA Palette Snoop DMA Channel 0 DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6 DMA Channel 7...
  • Page 77 Description of the item on screen follows: Clear ESCD During Yes, this will clear ESCD data on every boot. PCI VGA Palette Snoop When this option is set to Enabled, multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device.
  • Page 78 IRQ3/IRQ4/IRQ5/RQ7/IRQ9/IRQ10/IRQ11/IRQ14/IRQ15 These options specify the bus that the specified IRQ line is used on. These options allow you to reserve IRQs for legacy ISA adapter cards. These options determine if AMI the pool of available IRQs passed to devices that are configurable by the system BIOS.
  • Page 79 Integrated Peripherals 1. Press <ENTER> on “Integrated Peripherals” of the main menu screen. AMIBIOS SETUP - INTEGRATED PERIPHERALS (C) 1999 American Megatrends, Inc. All Rights Reserved Floppy Controller :Auto Serial Port A :Auto Serial Port B :Auto Serial Port B Mode :Normal IR Duplex Mode :Half Duplex...
  • Page 80 Description of the item on screen follows: Floppy Controller Set this option to Auto for the BIOS to automatically detect the device Serial Port A/Serial Port B Choose Auto, for the BIOS to automatically detect the device. If the ISA add-on card has COM3 COM2 COM1...
  • Page 81 Serial Port B Mode Choosing Normal will set the Serial Port B for normal use, not for IR device. Choosing IrDA or Ask IR will set it for use with IR device using these protocols. IR Duplex Mode Can be set as either Half or Full duplex. IR Pin Select Set this option to IRRX/IRTX when using an internal IR device which is connected to J5 connector.
  • Page 82 Onboard Parallel Port Choose Auto, the BIOS automatically assigned onboard parallel port to the available parallel port or disabled. If the ISA add-on card has LPT1 LPT2 I/O:378H I/O:278H Note: If the onboard parallel port interrupt and ISA add-on card interrupt are in conflict, the parallel port will not work properly.
  • Page 83 Port IRQ If the onboard parallel mode is not on auto mode, the user can select the interrupt line for onboard parallel port. We suggest that the user select the interrupt for the onboard parallel port as shown below: Onboard parallel port set at LPT1(378H) LPT2(278H) LPT3(3BCH)
  • Page 84 Hardware Monitor Setup The Hardware Monitor Setup is used to set the CPU speed and monitor the current CPU Temperature, CPU Fan speed, Chassis Fan Speed, Power fan speed, Vcore, etc. This is only available if there is Hardware Monitor onboard. 1.
  • Page 85 Description of the item on screen follows: Chassis Intrusion Set this option to Enabled, Reset, or Disabled the chassis intrusion detector. During Enabled, any intrusion on the system chassis will be recorded. The next time you turn on the system, it will show a warning message.
  • Page 86 Supervisor/User Password This Main Menu item lets you configure the system so that a password is required each time the system boots or an attempt is made to enter the Setup program. Supervisor Password allows you to change all CMOS settings but the User Password setting doesn’t have this function.
  • Page 87 IDE HDD Auto Detection You can use this utility to automatically detect the characteristics of most hard drives. AMIBIOS SETUP - STANDARD CMOS SETUP (C)1999 American Megatrends,Inc.All Rights Reserved Date (mm/dd/yyyy): Fri Jul 21, 2000 Time (hh/mm/ss): 01:01:34 TYPE ---------------------------------------------------------- Pri Master : Pri Slave Sec Master :...
  • Page 88 ® Chapter 4 AWARD BIOS SETUP ® Award BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed RAM (CMOS RAM), so that it retains the Setup information when the power is turned off.
  • Page 89 Power on the computer and press <Del> immediately to allow you to enter Setup. The other way to enter Setup is to power on the computer. When the below message appears briefly at the bottom of the screen during the POST (Power On Self Test), press <Del> key or simultaneously press <Ctrl>, <Alt>, and <Esc>...

  • Page 90: Advanced Bios Features

    Once you enter Award (Figure 1) will appear on the screen. The Main Menu allows you to select from twelve setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. CMOS Setup Utility - Copyright(C) 1984-2000 Award Software Standard CMOS Features Advanced BIOS Features...
  • Page 91 Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system’s performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management Setup Use this menu to specify your settings for power management. PnP/PCI Configuration This entry appears if your system supports PnP/PCI.
  • Page 92 The items in Standard CMOS Setup Menu are divided into 10 catego- ries. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
  • Page 93 Date The date format is <day><month> <date> <year>. Day of the week, from Sun to Sat, determined by BIOS. Read-only. month The month from Jan. through Dec. date The date from 1 to 31 can be keyed by numeric function keys. year The year, depends on the year of the BIOS Time...
  • Page 94 If the controller of HDD interface is SCSI, the selection shall be If the controller of HDD interface is CD-ROM, the selection shall be Access Mode The settings are Auto, Normal, Large,LBA. Cylinder number of cylinders Head number of heads Precomp write precom Landing Zone...
  • Page 95 CMOS Setup Utility - Copyright(C) 1984-2000 Award Software Virus Warning BIOS Flash Write Control CPU L1 & L2 Cache Quick Power On Self Test First Boot Device Second Boot Device Third Boot Device Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up Numlock Status Gate A20 Option Typematic Rate Setting...
  • Page 96 BIOS Flash Write Control This option allows you to Enabled or Disabled the BIOS flash write control. CPU L1 & L2 Internal Cache Cache memory is additional memory that is much faster than the conventional DRAM (system memory). When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU.
  • Page 97 Boot Up NumLock Status The default value is On. On (default) Gate A20 Option Normal Fast(default) Typematic Rate Setting Key strokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are Enabled and Disabled.
  • Page 98 Security Option This category allows you to limit access to the system and Setup, or just to Setup. System Setup(default) OS Selection for DRAM > 64MB ® Allows OS2 to be used with > 64 MB of DRAM. Settings are Non- OS/2 (default) and OS2.
  • Page 99 The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer. Choose the “ADVANCED CHIPSET FEATURES” from the Main Menu and the following screen will appear. CMOS Setup Utility - Copyright(C) 1984-2000 Award Software RDRAM Bus Frequency DRAM Data Integrity Mode...
  • Page 100 RDRAM Bus Frequency This will show the RDRAM Bus Frequency during boot-up. The settings are Auto, 400MHz and 300MHz. DRAM Data Integrity Mode This option allows you to select the Parity or ECC (Error-Checking and Correcting), according to the type of installed DRAM. System BIOS Cacheable Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance.
  • Page 101 ® AGP Aperture Size (MB) This option determines the effective size of the graphics aperture used in the particular PAC configuration. The AGP aperture is memory- mapped, while graphics data structure can reside in a graphics aperture. The aperture range should be programmed as not cacheable in the processor cache, accesses with the aperture range are forwaded to the main memory, then PAC will translate the original issued address via a translation table that is maintained on the main memory.
  • Page 102 CMOS Setup Utility - Copyright(C) 1984-2000 Award Software OnChip Primary PCI IDE OnChip Secondary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA IDE Secondary Master UDMA IDE Secondary Slave UDMA USB Controller...
  • Page 103 OnChip Primary/Secondary PCI IDE The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled. IDE Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports.
  • Page 104 AC97 Audio This item allows you to decide to Enable/Disable the 850 chipset family to support AC97 Audio. AC97 Modem This item allows you to Enabled or Disabled the AC97 Modem. IDE HDD Block Mode Block mode is also called block transfer, multiple commands, or multiple sector read/write.
  • Page 105 UART Mode Select This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this functions uses. RxD, TxD Active This item allows you to determine the active of RxD, TxD. The settings are “Hi,Hi”, “Lo,Lo”, “Lo,Hi” and “Hi,Lo”. IR Transmission Delay This item allows you to Enabled/Disabled the IR transmission delay.
  • Page 106 Onboard Parallel Mode To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP + EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultane- ously.
  • Page 107 The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use. CMOS Setup Utility - Copyright(C) 1984-2000 Award Software ACPI Suspend Type Power Management Video Off Method Video Off In Suspend Suspend Type...
  • Page 108 ACPI Suspend Type This item will set which ACPI suspend type will be used. S1 (POS) The S1 sleeping state is low wake-up latency sleeping state. In this state, no system context is lost (CPU or chipset) and hardware maintains all system context. S3 (STR) The S3 state is a low wake-up latency sleeping state where all system context is lost except system memory.
  • Page 109 Video Off In Suspend This determines the manner in which the monitor is blanked. The settings are Yes and No. Suspend Type Select the Suspend Type. The settings are: PWRON Suspend, Stop Grant. Modem Use IRQ This determines the IRQ in which the MODEM can use. The settings are 3, 4, 5, 7, 9, 10, 11and NA.
  • Page 110 Power On by Ring During Disabled, the system will ignore any incoming call from the modem. During Enabled, the system will boot up if there’s an incoming call from the modem. Wake-Up on LAN To use this function, you need a LAN add-on card which support power on functions.
  • Page 111 Reload Global Timer events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything which occurs to a device which is configured as Enabled , even when the system is in a power down mode.
  • Page 112 This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicat- ing with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
  • Page 113 Reset Configuration Data Normally, you leave this field to Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot. The settings are Enabled and Disabled .
  • Page 114 This section shows the Status of your CPU, Fan, Warning for overall system status. CMOS Setup Utility - Copyright(C) 1984-2000 Award Software Chassis Intrusion Detect CPU Warning Temperature Current System Temp Current CPU Temperature Current CPU FAN Current SYS Fan Current PWR Fan Vcore +1.88V...
  • Page 115 CPU Warning Temperature Select the combination of lower and upper limits for the CPU temperature. If the CPU temperature extends beyond either limit, any warning mechanism programmed into your system will be activated. Current System Temp/Current CPU Temperature/Current CPU Fan (optional)/SYS Fan (optional)/PWR Fan/Vcore/ +1.88V/Vio/+5V/+12V/-12V/-5V/VBAT(V)/5VSB(V) This will show the CPU/FAN/System voltage chart and FAN Speed.
  • Page 116 This section is for setting CPU Frequency/Voltage Control. CMOS Setup Utility - Copyright(C) 1984-2000 Award Software CPU Clock Ratio Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults CPU Clock Ratio The CPU Clock Ratio provides flexibility for overclockers from x8 to x 23.
  • Page 117 Load Fail-Safe Defaults When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N) ? N Pressing ‘Y’ loads the BIOS default values for the most stable, minimal- performance system operations. Load Optimized Defaults When you press <Enter>...
  • Page 118 You can set either supervisor or user password, or both of them. The differences are: Supervisor password: User password: ENTER PASSWORD: Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory.
  • Page 119 ® Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option.

  • Page 120: System Requirements

    Chapter 5 CREATIVE AUDIO DRIVER (OPTIONAL) ® The Creative CT5880 digital controller provides the next generation of audio performance to the PC market. Features SoundScape WaveTable Synthesizer. Full DOS Game Compatibility. PCI Bus Master for fast DMA. Fully Compliant with PC97 Power Management Specification. System Requirements This section describes system requirements for the Audio Driver installation and Usage.
  • Page 121 Audio Driver Setup Insert the CD-title into your CD-ROM drive. This CD will auto-run. This will display installation for Microsoft Direct X 7.0a, Creative PCI 128 Sound Driver and Intel Inf Update. Please make sure that you have finished the installation for Intel Inf Update before proceeding to install the Audio Driver.
  • Page 122 ® Windows NT 4.0 Audio Driver Installation Procedure: Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon. This will show the setup screen. Step 3: Click on “Creative PCI 128 Sound Driver” icon. Step 4: This will copy the audio drivers into the hard drive.
