1 Optical SPDIF jack
2 Coaxial SPDIF jack
3 Line Out
4 Line Out
1
Plug

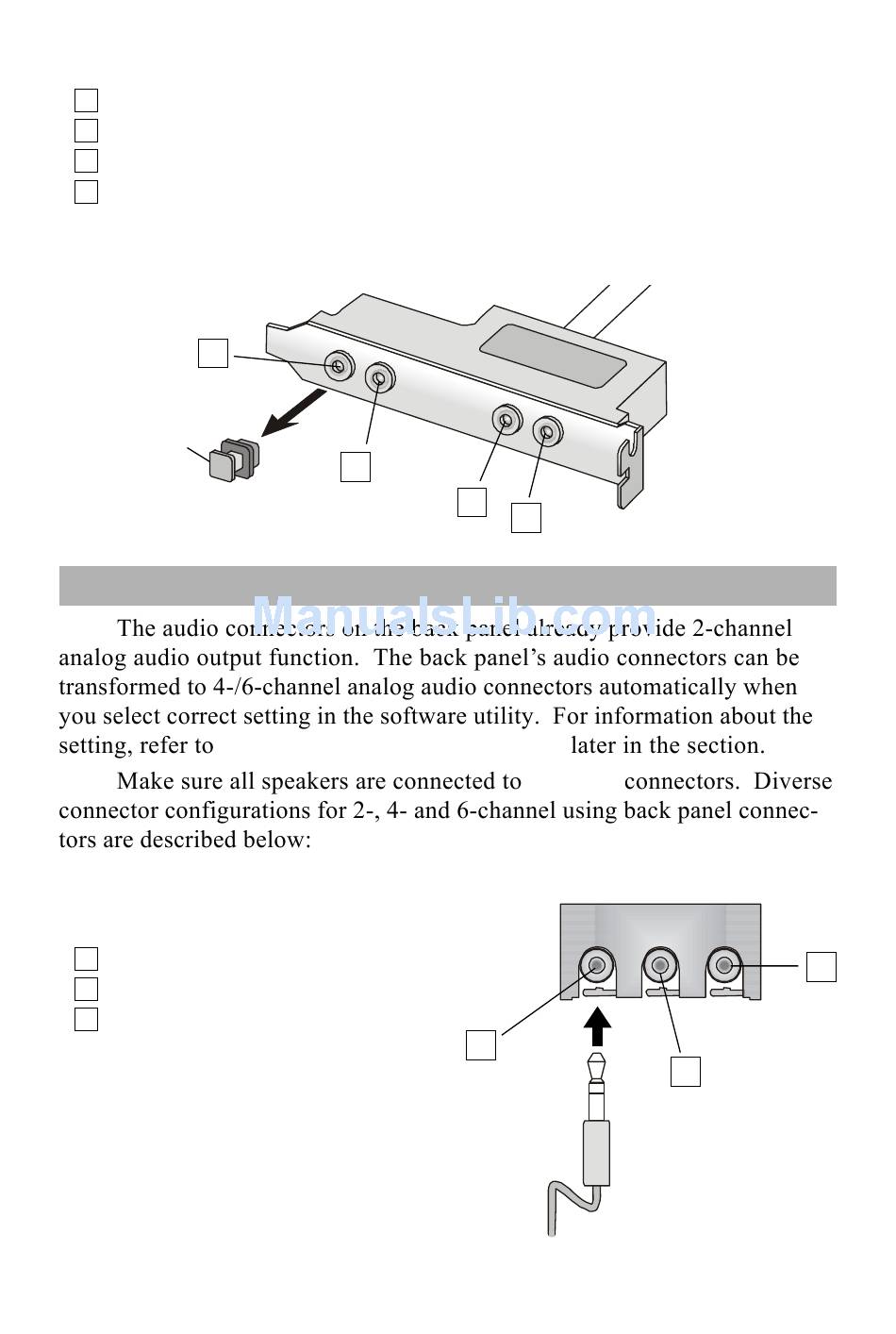

Using BACK PANEL connectors only:
Selecting 4- or 6-Channel Setting
2-Channel Analog Audio Output
1 Line Out (Front channels)
2 Line In
3 MIC
Description:
Line Out, Line In and MIC functions all
exist under 2-channel configuration.
Using 4- or 6-Channel Audio Function
Description:
Select the correct type of SPDIF jack to connect
SPDIF speakers. For optical connection,
remove the plug from the S-Bracket before
inserting the fiber-optic cable to it.
S-Bracket
2
3
1
A-7
4
Line Out
2
3
