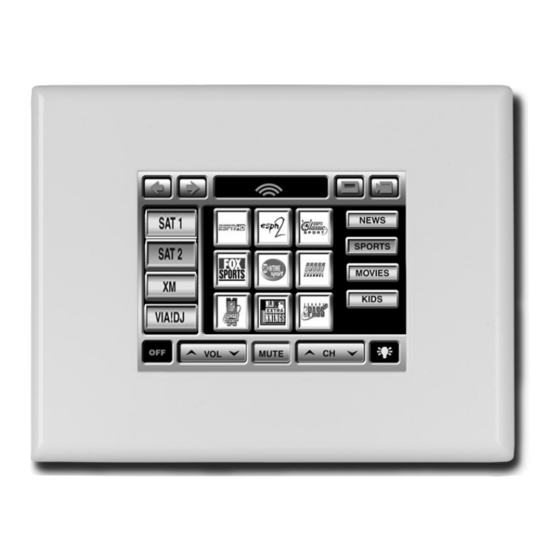

- Page 1 Color LCD Touch Panel INSTALLATION MANUAL...
-
Page 3: Table Of Contents
ELAN Z•System ..........27 ELAN HD System ..........28 Increasing Wire Runs Beyond the 220 Foot Maximum .29 Programming ............32 Operation ..............33 Troubleshooting ............35 Warranty ............Back Page © ELAN Home Systems 2005 • All rights reserved. Page 1... -
Page 4: Introduction
(a Home Theater, for example). With IR control, RS-232 control, and full- motion video display, the VIA!4.0 has all of the features that make ELAN’s award-winning VIA!64 and VIA!Valet Touch Panel the most successful products in their category Touch Screen Technology The VIA!4.0 utilizes a polyester plastic film suspended over a glass... -
Page 5: System Design & Applications
• The touch panel/LCD assembly should not be mounted near electronics that emit radio frequencies or electromagnetic interference (such as CRT monitors, light dimmers, and some power supplies). © ELAN Home Systems 2005 • All rights reserved. Page 3... -
Page 6: Side View
VIA!4.0 Side View Optimal 10º 56" to 60" Viewing 30º Angle Page 4 © ELAN Home Systems 2005 • All rights reserved. -
Page 7: Applications
The VIA!4.0 can be used for any stand-alone (non-ELAN) system application or as a Home Theater controller. The diagram below shows a basic application using one VIA!4.0, a PVIA1, and an ELAN IRD4 Amplified IR Connection Block to control a stack of A/V equipment. PWR1... -
Page 8: Stand-Alone/Home Theater-Expanded
System Design & Applications - Applications (cont’d) Stand-Alone/Home Theater - Expanded Stand-alone systems (without an ELAN multi-room controller) can be as simple as one VIA!4.0 controlling one IR source, or as complex as multiple VIA!4.0s, VIA!64s, keypads, and IR sensors all controlling many IR sources. -
Page 9: Elan System12
INSTALLATION MANUAL System Design & Applications - Applications (cont’d) ELAN S12 ELAN’s PS12 Precision Panel for the System12 Multi-Room A/V Controller (S12) makes quick work out of configuring VIA!4.0s to control S12 zones. No PVIA Wall Plate is necessary when using VIA!4.0s with an S12;... -
Page 10: Elan System6
The VIA!4.0’s affordability makes it an ideal candidate for System6 (S6) applications. Use a PVIA Wall Plate appropriate for the number of VIA!4.0s to be installed. The diagram below shows four VIA!4.0s and a PVIA4 configured for use with an ELAN S6. PVIA4 PVIA-4... -
Page 11: Elan Z•System
ELAN Z System Advanced features like Audio Detect and Spatial Enhancement can be accessed using a VIA!4.0 in an ELAN Z System. The diagram below shows how to configure four VIA!4.0s using a PVIA4 and a PZ6 Precision Panel for Z Systems. -
Page 12: Elan Hd System
System Design & Applications - Applications (cont’d) ELAN HD System Use a PHD12 Precision Panel for HD System in conjunction with a PVIA Wall Plate when using VIA!4.0s in an ELAN HD system. The diagram below shows ten VIA!4.0s connected to a PVIA10 and a PHD12. -
Page 13: Rs-232 Devices
MONO ZONE LOCAL ZONE LOCAL ZONE LOCAL ZONE LOCAL ZONE LOCAL ZONE LOCAL ZONE LOCAL VIA!POWER ZONE LOCAL VIA!SS1 16VDC / 10A 16VDC / 4A VIA!NET PS12 RS-232 Devices © ELAN Home Systems 2005 • All rights reserved. Page 11... -
Page 14: Installation
E L A N H O M E S Y S T E M S Installation ELAN Precision Panels The VIA!4.0 will require an ELAN Precision panel to properly function. The specific application will determine the specific Precision Panel needed. Each of these panels provides a power supply of the cor- rect voltage (+16VDC) and amperage for the application being cov- ered. - Page 15 The PS12 Precision panel is designed to accomodate all connectivity required for Systyem12 installation, including VIA! Touch Panels. Unlike the PVIA Panels, the PS12 will only work with ELAN’s System12 Multi-Room Controller. Each PS12 will provide connec- tions for S12 systems up to eight zones. A separate power supply must be used when connecting VIA! Touch panels to a System12.
-
Page 16: Pre-Wire
RCA “Y” cable to split the video signal going to a VIA!; a coaxial splitter or splitter/combiner will not pass Composite Video signals! From Video To VIA!4.0 Source or VIDEO IN Z•880 RG-6/RG-59 F-to-RCA Coax Adaptor Page 14 © ELAN Home Systems 2005 • All rights reserved. -
Page 17: Video
A single video feed is routed through the VIA!4.0 to additional VIA! Touch panels or TV(s). • Each VIA! and/or TV displays video independently. Independent video feeds are routed to each VIA! and/or TV. © ELAN Home Systems 2005 • All rights reserved. Page 15... -
Page 18: Pre-Wire
For applications where different, independent video is displayed on each VIA!/TV, run separate feeds of RG-6 or RG-59 from a video switcher (ELAN Z•880 or S12) to each VIA!/TV as shown below. Keep the 75 Ohm Termination Jumper in the 75 Ohm position. -
Page 19: Rough-In
The unit has a viewing angle of 10 degrees Up and 30 degrees Down. VIA!4.0 Side View Optimal 10º Viewing 56" to 60" 30º Angle © ELAN Home Systems 2005 • All rights reserved. Page 17... -
Page 20: New Contruction
Right Side Mounting Left Side Mounting Stud Stud Center Mounting Cross Beam Stud Stud Page 18 © ELAN Home Systems 2005 • All rights reserved. -
Page 21: Retro-Fit
• Use the clamping winglets on the side of the unit. • Use the pre-drilled holes to attach the unit to a stud or other secure point. Winglet Winglet Tighten Down (Clockwise) Side View © ELAN Home Systems 2005 • All rights reserved. Page 19... - Page 22 The VIA! back box is equipped with two clamping winglets that flush up against the drywall when tightened. VIA!4.0 Rear Clamping Winglets VIA!4.0 Rear Clamping Winglets VIA!4.0 Rear Clamping Winglets Clamping Winglets Page 20 © ELAN Home Systems 2005 • All rights reserved.
-
Page 23: Cutout Dimensions
Once the pattern is traced, use a dry wall knife or saw to cut a hole of the correct size and shape. 1" 2" 4" 1" 4 5/8" 3/8" VIA40 CUT-OUT TEMPLATE FACE THIS SIDE OUT, AWAY FROM DRYWALL. © ELAN Home Systems 2005 • All rights reserved. Page 21... -
Page 24: Mounting
VIA! panel into a stud the winglet on the opposite side should be deployed. The use of drywall anchors in leiu of stud-mounting is not recommended. Stud Screw Winglet VIA!4.0 Front Screw Page 22 © ELAN Home Systems 2005 • All rights reserved. -
Page 25: Removal From Wall
Label, disconnect and tie off the wires to keep them from dropping down inside the wall. Make sure to protect the Touch Panel/LCD assembly and faceplate from damage when it is not in the wall. VIA!4.0 Front © ELAN Home Systems 2005 • All rights reserved. Page 23... -
Page 26: Connections
Home Theater controller. For control of a Home Theater system, the VIA!4.0 and PVIA Wall Plate are combined with a method for IR distri- bution such as ELAN’s IRD4 Amplified Connection Block. Signals originate at the VIA!4.0, pass through the PVIA Wall Plate, then travel to the connection block where they are routed to each component. -
Page 27: Elan System12
ELAN PWR10 16V/10A Power Supply PS12 ELAN PWR4 16V/4A Power Supply ELAN strongly recommends the use of a PS12 Precision Panel when installing a VIA!4.0 in a System12 application. © ELAN Home Systems 2005 • All rights reserved. Page 25... -
Page 28: Elan System6
E L A N H O M E S Y S T E M S Installation - Connections (cont’d) ELAN System6 Use VIA!4.0s to add functionality and flexibility to ELAN’s System6 (S6) six source, six zone preamp controller. A PVIA1, PVIA4, or PVIA10 must be used when interfacing VIA!4.0s to an S6. Connect IR, RS485+/-, GND, and 16VDC from the PVIA Wall Plate to the VIA!4.0 as shown. -
Page 29: Elan Z System
(GR,GR/WH & BR, BR/WH) CABLE ELAN strongly recommends the use of a PVIA1, PVIA4, or PVIA10 VIA! Wall Plate and a PZ6 Precision Panel when installing a VIA!4.0 in a Z System. © ELAN Home Systems 2005 • All rights reserved. Page 27... -
Page 30: Elan Hd System
WHITE/BROWN CABLE ELAN strongly recommends the use of a PVIA1, PVIA4, or PVIA10 VIA! Wall Plate and a PHD12 Precision Panel when installing a VIA!4.0 in an HD System. Page 28 © ELAN Home Systems 2005 • All rights reserved. -
Page 31: Increasing Wire Runs Beyond The 220 Foot Maximum
C45P Blue ST/SNS Z485+ Z485- >220 Feet White/Brown +16V Brown White/Green +16V Green White/Orange V485+ Orange PWR1 V485- ELAN White/Blue C45P Blue ST/SNS Z485+ Z485- <110 Feet PVIA1 Rear © ELAN Home Systems 2005 • All rights reserved. Page 29... - Page 32 +16V White/Green Pairs For Power Brown (GR,GR/WH & BR, BR/WH) +16V White/Brown ELAN S6 Use a local PVIA1 to connect a VIA!4.0 to an ELAN System6 located more than 220 feet away. <110 Feet PVIA1 Rear White/Brown +16V Brown White/Green...
- Page 33 Use BOTH Twisted Pairs For Power (GR,GR/WH & BR, BR/WH) P & DB ELAN HD System Use a local PVIA1 to connect a VIA!4.0 to an ELAN PHD12 Precision Panel located more than 220 feet away. <110 Feet PVIA1 Rear White/Brown...
-
Page 34: Programming
INSTALLATION MANUAL E L A N H O M E S Y S T E M S Programming All VIA! Touch Panels must be programmed with ELAN’s VIA! TOOLS ® Setup Software using a PC running Windows 98 or higher. -
Page 35: Operation
The following products have been tested and approved for cleaning VIA! Touch Panels: Windex Glass Cleaner, Formula 409 Cleaner, and Mr. Clean ® ® ® © ELAN Home Systems 2005 • All rights reserved. Page 33... -
Page 36: Cleaning Mode
The CLEAN button should be placed in a location that the homeowner or house- keeper can easily remember (see the VIATOOLS HELP File for more details). Page 34 © ELAN Home Systems 2005 • All rights reserved. -
Page 37: Troubleshooting
Video source turned off Turn on source Incorrect camera or video Source©s video output(s) Connect properly source displayed incorretly connected Incorrect or missing IR/RS232 Verify IR commands in VIA!TOOLS commands in VIA!TOOLS © ELAN Home Systems 2005 • All rights reserved. Page 35... - Page 38 VIA!4.0 INSTALLATION MANUAL E L A N H O M E S Y S T E M S Notes: Page 36 © ELAN Home Systems 2005 • All rights reserved.
- Page 39 VIA!4.0 E L A N H O M E S Y S T E M S INSTALLATION MANUAL Notes: © ELAN Home Systems 2005 • All rights reserved. Page 37...
-
Page 40: Limited Warranty
(2 years) from date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ELAN in writing, ELAN shall repair or replace the item at the company©s option. This warranty shall not apply (a) to equipment not...
